Product Description

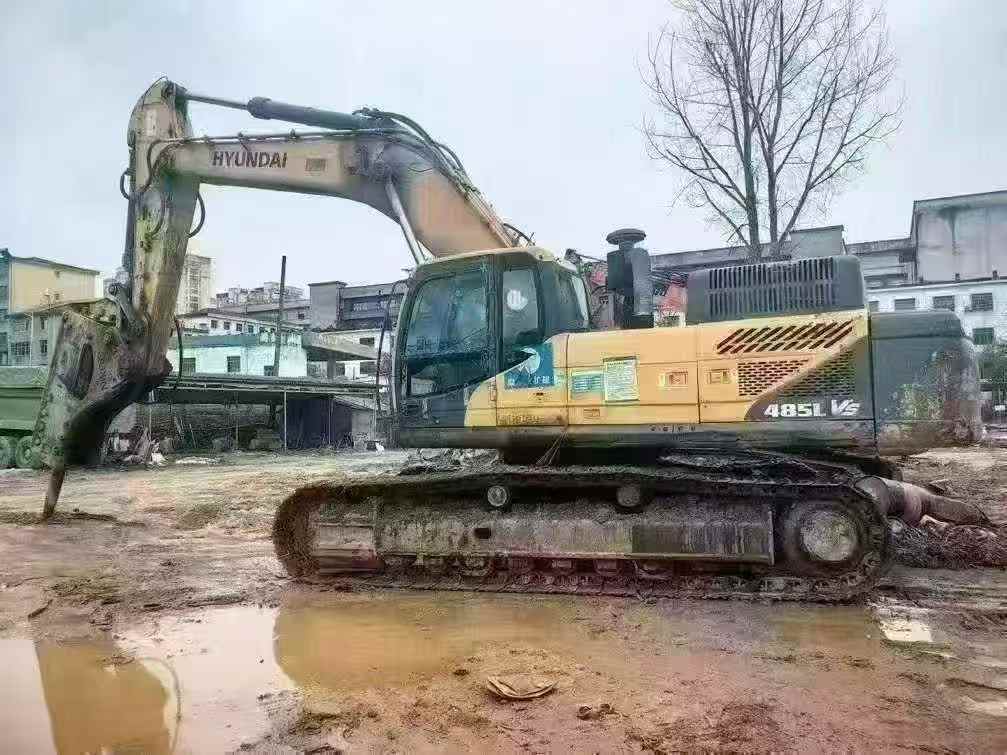

With a working weight of 48,400 kg and a bucket capacity of 2.2 m³, this 2017 Hyundai R485LVS excavator, located in Hunan, China, stands as a testament to robust engineering and durability. Powered by a Cummins QSM11 engine, delivering 266 kW at 1900 rpm, it ensures reliable performance. Equipped with a two-variable plunger pump and an axial plunger motor, the hydraulic system maintains efficiency and control. The machine's maximum digging depth of 6860 mm and reach of 11040 mm make it ideal for demanding excavation tasks. Built to last, this proven workhorse features a full cab height of 3190 mm and a track plate width of 600 mm, enhancing stability and operator comfort. Its 70% climbing ability and travel speeds of 4.7/2.9 km/h ensure versatility across various terrains.
- Working weight: 48,400 kg
- Bucket capacity: 2.2 m³
- Engine: Cummins QSM11, 266 kW at 1900 rpm
- Maximum digging depth: 6860 mm
- Maximum digging radius: 11040 mm
- Climbing ability: 70%
- Travel speed: 4.7/2.9 km/h
| Specifications | Value |
|---|---|
| No. | 1057244 |
| Tonnage (tons) | 48 |
| Working weight (kg) | 48400 |
| Bucket capacity (m³) | 2.2 |
| Boom length (mm) | 6550 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins QSM11 |
| Rated power (kw/rpm) | 266/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 125 x 147.1 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.8 |
| Rotation speed (rpm) | 8.3 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 4.7/2.9 |
| Rotary hydraulic motor type | Axial plunger motor with automatic control |
| Maximum flow of main pump (l/min) | 2*370 |
| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 - ø 160 x ø 110 x 1370 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 - ø 190 x ø 130 x 1820 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 - ø 170 x ø 115 x 1570 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 260 |
| Engine Oil changes (L) | 38 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 380 |
| Total transport length (mm) | 11650 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3870 |
| Full cab height (mm) | 3190 |
| Counterweight ground clearance (mm) | 1295 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3750 |
| Onboard width (mm) | 2980 |
| Track plate width (mm) | 600 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 53 |
| Maximum digging radius (mm) | 11040 |
| Maximum digging depth (mm) | 6860 |
| Maximum excavation height (mm) | 10440 |
| Maximum unloading height (mm) | 7000 |
| Maximum vertical digging depth (mm) | 5830 |
| Maximum excavation radius of stop surface (mm) | 10820 |
