Product Description

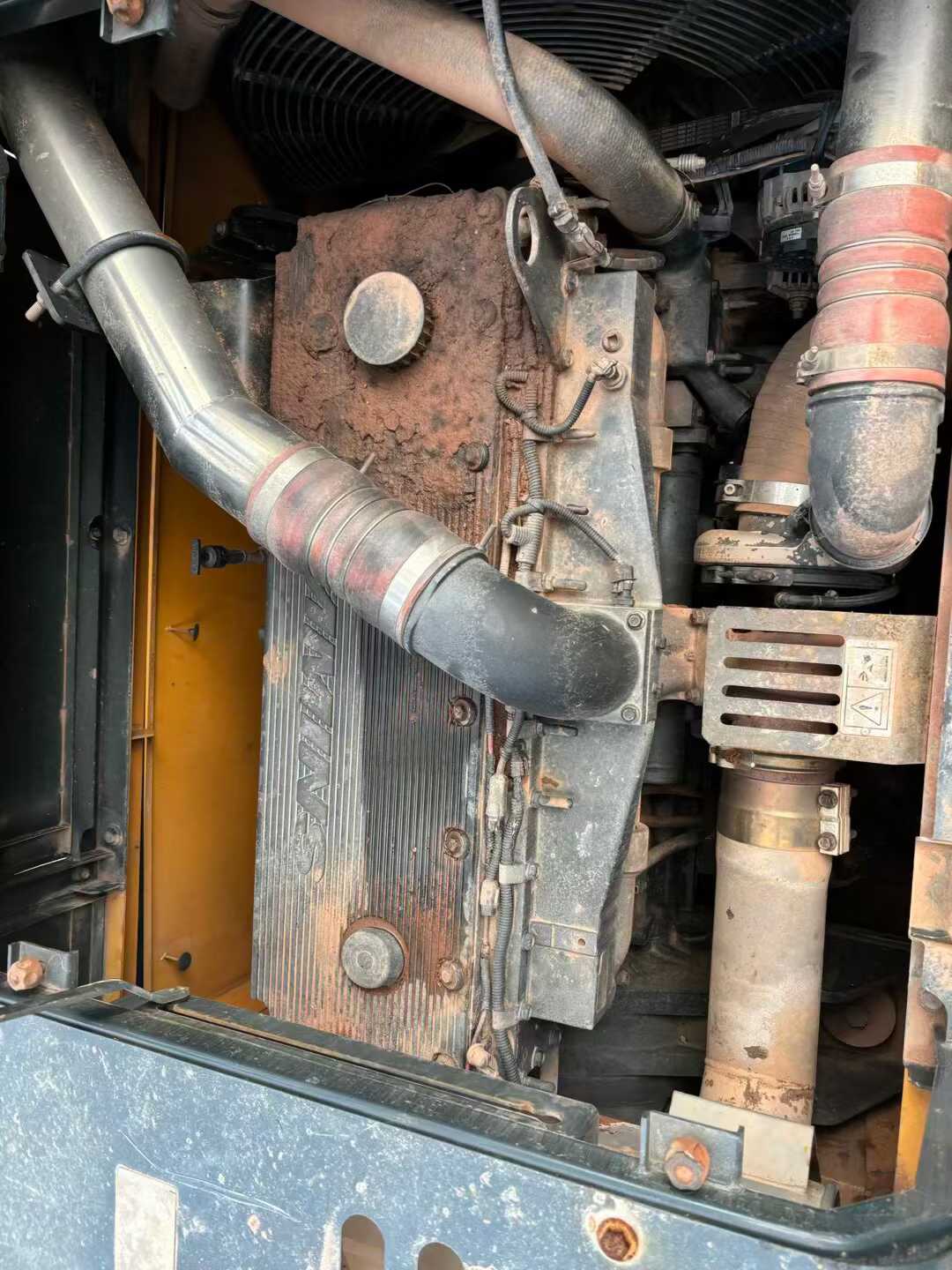

Equipped with a Cummins QSM11 engine, the Hyundai R485LVS delivers 266 kW of power at 1900 rpm, ensuring robust performance and reliability. Water-cooled and featuring a displacement of 10.8 liters, this engine is designed for efficiency and durability.

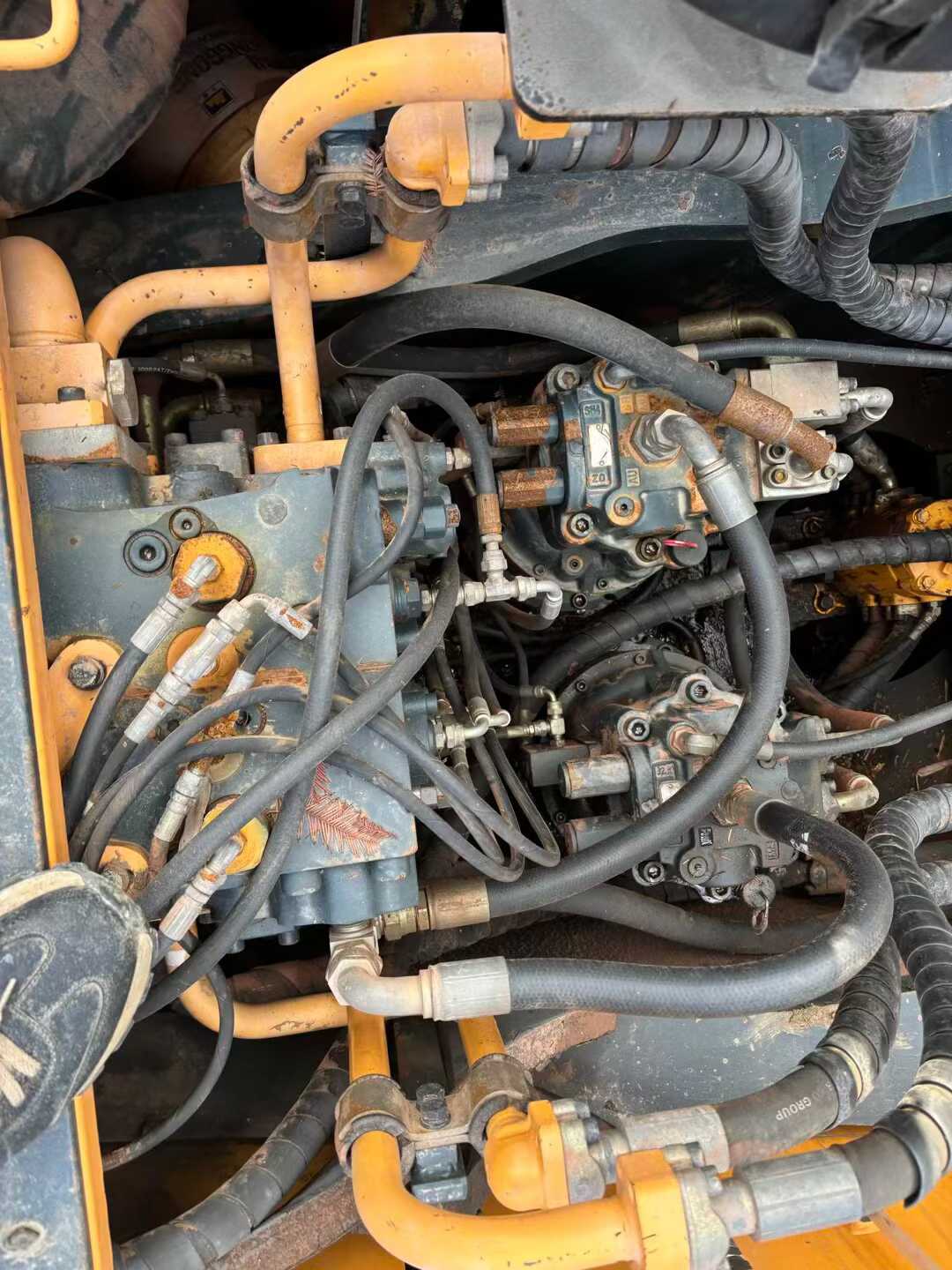

- Hydraulics: Two variable plunger pumps provide a maximum flow of 2*370 l/min, enhancing operational precision and control.
- Boom and arm: A boom length of 6550 mm and rod length of 2900 mm, paired with a bucket capacity of 2.2 m³, make this excavator versatile for a wide range of tasks.
- Engine: The six-cylinder engine, with a cylinder diameter of 125 mm and stroke of 147.1 mm, ensures consistent power output and optimal fuel efficiency.
- Travel and speed: Capable of climbing at a 70% gradient, the R485LVS travels at speeds of 4.7 km/h on high and 2.9 km/h on low, making it highly maneuverable in various terrains.
Located in 广东惠州, this 2018 Hyundai R485LVS is a prime example of engineering excellence, combining advanced hydraulics and a powerful engine to meet the demands of heavy-duty construction projects.
| Specifications | Value |
|---|---|
| No. | 1020211 |
| Tonnage (tons) | 48 |
| Working weight (kg) | 48400 |
| Bucket capacity (m³) | 2.2 |
| Boom length (mm) | 6550 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins QSM11 |
| Rated power (kw/rpm) | 266/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 125 x 147.1 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.8 |
| Rotation speed (rpm) | 8.3 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 4.7/2.9 |
| Rotary hydraulic motor type | Axial plunger motor with automatic control |
| Maximum flow of main pump (l/min) | 2*370 |
| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 - ø 160 x ø 110 x 1370 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 - ø 190 x ø 130 x 1820 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 - ø 170 x ø 115 x 1570 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 260 |
| Engine Oil changes (L) | 38 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 380 |
| Total transport length (mm) | 11650 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3870 |
| Full cab height (mm) | 3190 |
| Counterweight ground clearance (mm) | 1295 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3750 |
| Onboard width (mm) | 2980 |
| Track plate width (mm) | 600 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 53 |
| Maximum digging radius (mm) | 11040 |
| Maximum digging depth (mm) | 6860 |
| Maximum excavation height (mm) | 10440 |
| Maximum unloading height (mm) | 7000 |
| Maximum vertical digging depth (mm) | 5830 |
| Maximum excavation radius of stop surface (mm) | 10820 |
