Product Description

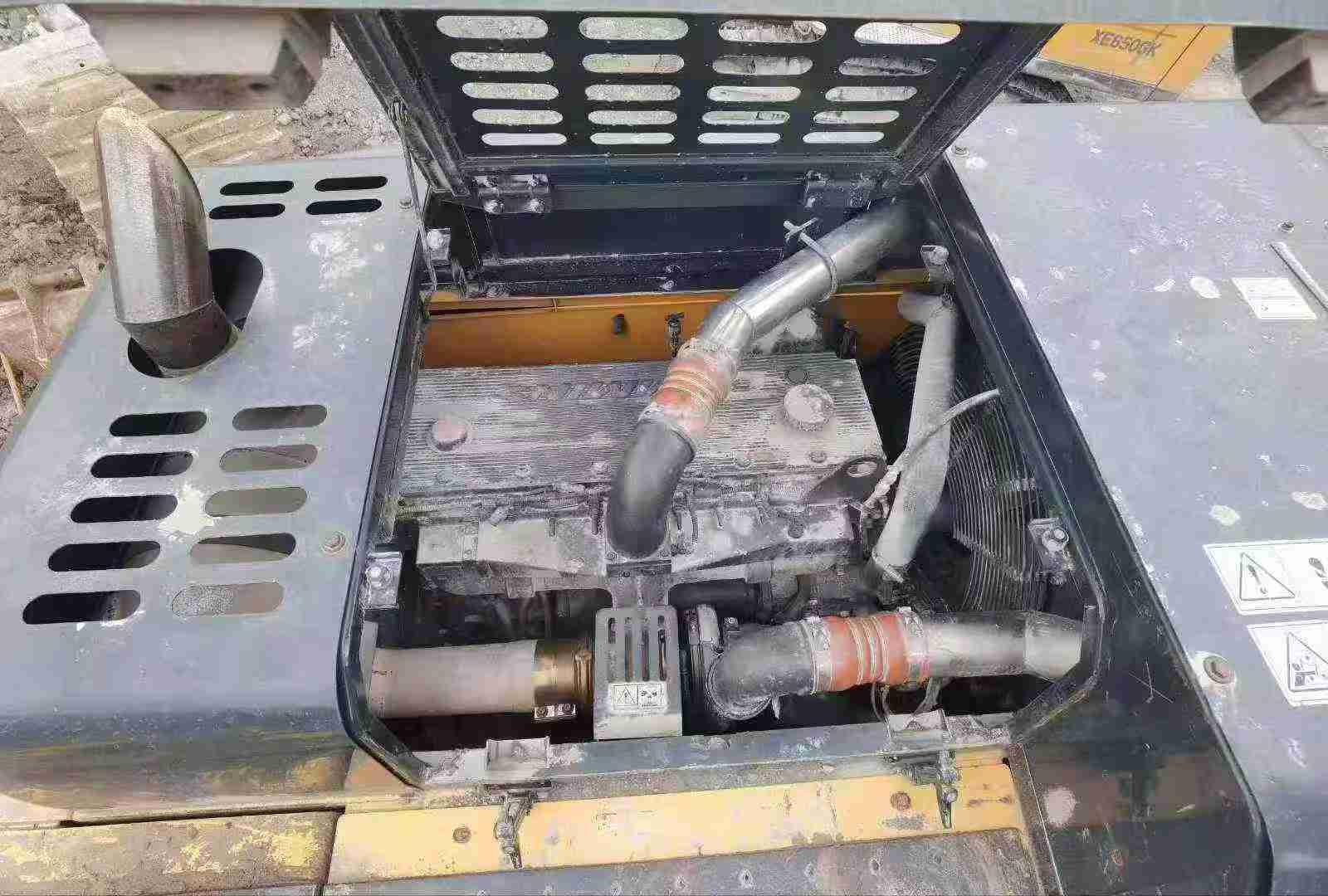

Built for relentless performance, this 2019 Hyundai R485LVS excavator demonstrates exceptional durability through five years of proven service. Operating at 48 tons with a robust 2.2 m³ bucket capacity, this machine delivers consistent productivity in the most demanding environments. Powered by a Cummins QSM11 engine generating 266 kW at 1900 rpm, it combines 10.8L displacement with water-cooled reliability for extended operational life.
Engineering excellence defines every component. Dual variable plunger pumps provide 740 L/min combined flow, while the 6550 mm boom and 2900 mm arm reach 11,040 mm maximum digging radius. Hydraulic systems operate through precision axial plunger motors, backed by a 380L capacity for sustained performance. With 70% climbing ability and 4.7 km/h travel speed, this workhorse maintains productivity across challenging terrain.
- Maximum digging depth: 6,860 mm
- Maximum digging height: 10,440 mm
- 620L fuel tank for extended operations
- Currently located in Luzhou, Sichuan
- Complete specifications verify consistent maintenance history
This proven excavator represents joint venture manufacturing quality, ready for immediate deployment in you
| Specifications | Value |
|---|---|
| No. | 1029068 |
| Tonnage (tons) | 48 |
| Working weight (kg) | 48400 |
| Bucket capacity (m³) | 2.2 |
| Boom length (mm) | 6550 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins QSM11 |
| Rated power (kw/rpm) | 266/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 125 x 147.1 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.8 |
| Rotation speed (rpm) | 8.3 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 4.7/2.9 |
| Rotary hydraulic motor type | Axial plunger motor with automatic control |
| Maximum flow of main pump (l/min) | 2*370 |
| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 - ø 160 x ø 110 x 1370 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 - ø 190 x ø 130 x 1820 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 - ø 170 x ø 115 x 1570 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 260 |
| Engine Oil changes (L) | 38 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 380 |
| Total transport length (mm) | 11650 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3870 |
| Full cab height (mm) | 3190 |
| Counterweight ground clearance (mm) | 1295 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3750 |
| Onboard width (mm) | 2980 |
| Track plate width (mm) | 600 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 53 |
| Maximum digging radius (mm) | 11040 |
| Maximum digging depth (mm) | 6860 |
| Maximum excavation height (mm) | 10440 |
| Maximum unloading height (mm) | 7000 |
| Maximum vertical digging depth (mm) | 5830 |
| Maximum excavation radius of stop surface (mm) | 10820 |
