Product Description
This 2020 Hyundai R505LC-7 excavator is currently located in Shandong, China, and represents a solid investment for contractors seeking reliable heavy equipment. The machine demonstrates good operational condition and performance characteristics suitable for demanding jobsite applications.
This unit comes equipped with both hydraulic hammer and bucket attachments, providing versatility for demolition, excavation, and material handling tasks. The R505LC-7 is known for its robust build quality and operational efficiency in the 50-ton class.
Key highlights:
- Year: 2020
- Model: Hyundai R505LC-7

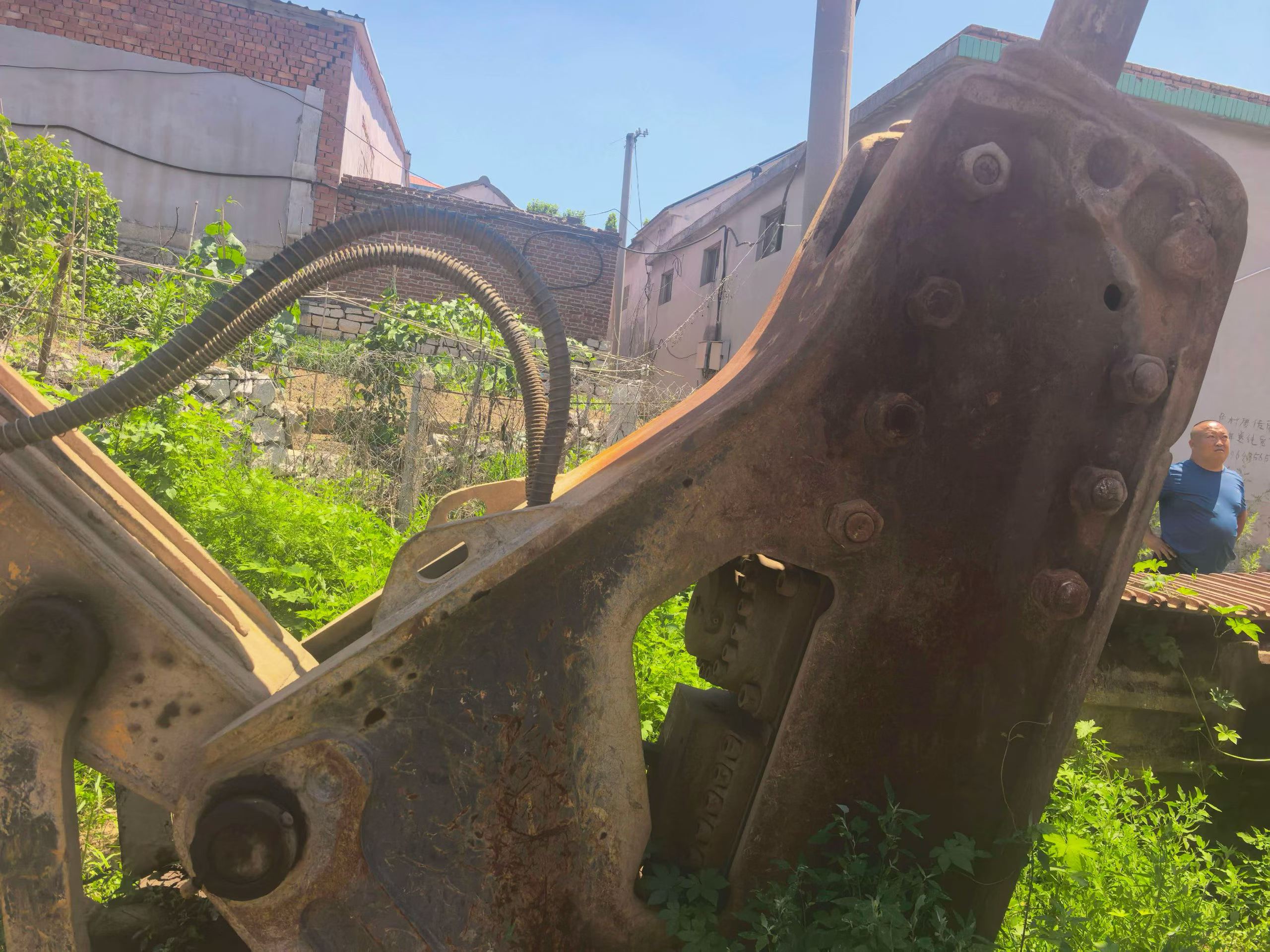

- Includes hydraulic hammer and bucket
- Good working condition
- Competitive pricing available
- Available for on-site inspection
Interested buyers are encouraged to arrange a site visit and submit offers for consideration. Pricing is negotiable based on inspection and buyer requirements.
| Specifications | Value |
|---|---|
| No. | 1104569 |
| Tonnage (tons) | 50 |
| Working weight (kg) | 48800 |
| Bucket capacity (m³) | 2.2 |
| Boom length (mm) | 7060 |
| Rod length (mm) | 3380 |
| Country of origin | Jiangsu (Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins QSM11-C |
| Rated power (kw/rpm) | 263/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 125 x 147 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10800 |
| Ground specific pressure (Kpa) | 84 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 292.2 |
| Rod digging force (kN) | 196.1 |
| Travel speed (km/h) | 3.3-5.2 |
| Maximum flow of main pump (l/min) | 2 x 380 |
| Traveling Hydraulic Circuit (Mpa) | 345 |
| Rotary Hydraulic Circuit (Mpa) | 285 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2× variable axial piston pump + gear pump |
| Working Hydraulic Circuit (Mpa) | 330 |
| Pilot Oil Circuit (MPa) | 35 |
| Bucket cylinders - Number × diameter × stroke (mm) | 170 * 115 * 1370 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 190 * 130 * 1820 |
| Boom cylinders - Number × diameter × stroke (mm) | 170 * 115 * 1570 |
| Fuel Tank (L) | 610 |
| Hydraulic Tank (L) | 250 |
| Engine Oil changes (L) | 37.9 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 380 |
| Total transport length (mm) | 11980 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3670 |
| Full cab height (mm) | 3390 |
| Counterweight ground clearance (mm) | 1500 |
| Minimum ground clearance (mm) | 770 |
| Back end turning radius (mm) | 3720 |
| Total track length (mm) | 5460 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3340 |
| Track ground length (mm) | 4470 |
| Maximum digging radius (mm) | 12100 |
| Maximum digging depth (mm) | 7610 |
| Maximum excavation height (mm) | 11120 |
| Maximum unloading height (mm) | 7750 |
| Maximum vertical digging depth (mm) | 6380 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 11870 |
| Maximum effective digging depth (mm) | 7460 |
