Product Description

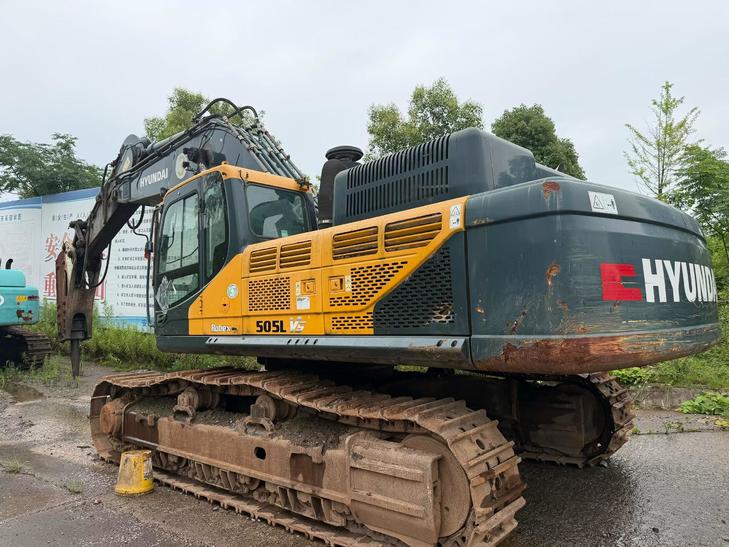

This 2020 Hyundai R505LVS excavator represents a reliable solution for heavy-duty earthmoving operations. Currently located in Jiangsu, China, this machine offers the performance and durability expected from Hyundai's premium excavator lineup. The R505LVS is designed for demanding applications including large-scale excavation, mining support, and heavy construction projects.
With its robust build quality and proven track record, this unit delivers consistent operational performance. The seller confirms the machine is in good working condition, making it suitable for immediate deployment on active job sites.
- Year of Manufacture: 2020
- Make: Hyundai
- Model: R505LVS
- Current Location: Jiangsu, China
- Condition: Operational
- Category: Heavy-Duty Crawler Excavator
This excavator is available for immediate sale. Interested buyers are encouraged to contact us promptly for additional specifications, pricing information, and arrangements for inspection.
| Specifications | Value |
|---|---|
| No. | 1099045 |
| Tonnage (tons) | 50 |
| Working weight (kg) | 50200 |
| Bucket capacity (m³) | 2.8 |
| Boom length (mm) | 6550 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins QSM11 |
| Rated power (kw/rpm) | 299/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 125*147.1 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.8 |
| Working form | 4-stroke, water-cooled, in-line turboturbo-charged air-to-air cooled engine |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.1/3.25 |
| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 2 x 405 |
| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 - ø 170 x ø 115 x 1370 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 - ø 190 x ø 130 x 1820 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 - ø 170 x ø 115 x 1570 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 295 |
| Engine Oil changes (L) | 38 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 486 |
| Total transport length (mm) | 11710 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3810 |
| Counterweight ground clearance (mm) | 1275 |
| Back end turning radius (mm) | 3780 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 53 |
| Maximum digging radius (mm) | 11050 |
| Maximum digging depth (mm) | 6900 |
| Maximum excavation height (mm) | 10280 |
| Maximum unloading height (mm) | 6990 |
| Maximum vertical digging depth (mm) | 4570 |
| Maximum excavation radius of stop surface (mm) | 10830 |
| Maximum effective digging depth (mm) | 6740 |
