Product Description
Commanding a 50-ton workhorse demands precision and confidence. This 2021 Hyundai R505LVS excavator delivers both through superior operator-focused engineering. Powered by a robust Cummins QSM11 engine generating 299 kW at 1800 rpm, the machine combines raw power with refined control systems designed for extended shifts on demanding jobsites.
Operator advantages include:
- Enhanced visibility across an 11,050 mm maximum digging radius with optimized cabin positioning
- Responsive dual variable plunger pumps (2 x 405 L/min) ensuring smooth, predictable hydraulic response
- Stable platform with 3,780 mm rear turning radius and 1,275 mm counterweight clearance for confined site maneuverability
- Intuitive pilot control system reducing fatigue during precision work
- Impressive 70% climbing ability and dual-speed travel (5.1/3.25 km/h) for versatile terrain navigation
Located in Hangzhou, Zhejiang, this joint venture-manufactured excavator represents proven reliability for heavy earthmoving operations. With 6,900 mm maximum digging depth and 2.8 m³ bucket capacity, operators can maintain productivity while experiencing reduced physical strain through advanced ergonomic design
| Specifications | Value |
|---|---|
| No. | 1009670 |
| Tonnage (tons) | 50 |
| Working weight (kg) | 50200 |
| Bucket capacity (m³) | 2.8 |
| Boom length (mm) | 6550 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

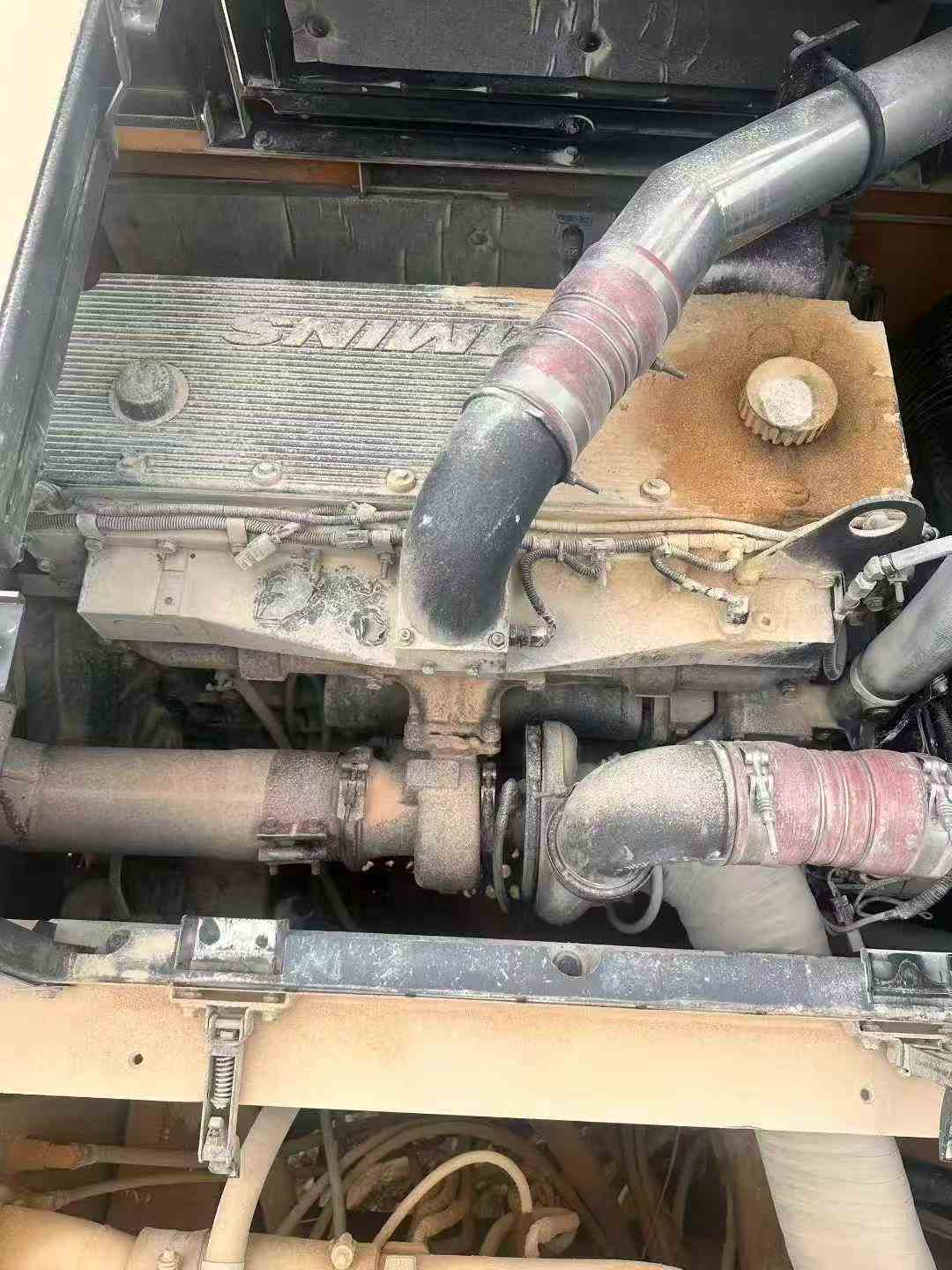

| Engine type | Cummins QSM11 |
| Rated power (kw/rpm) | 299/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 125*147.1 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.8 |
| Working form | 4-stroke, water-cooled, in-line turboturbo-charged air-to-air cooled engine |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.1/3.25 |
| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 2 x 405 |

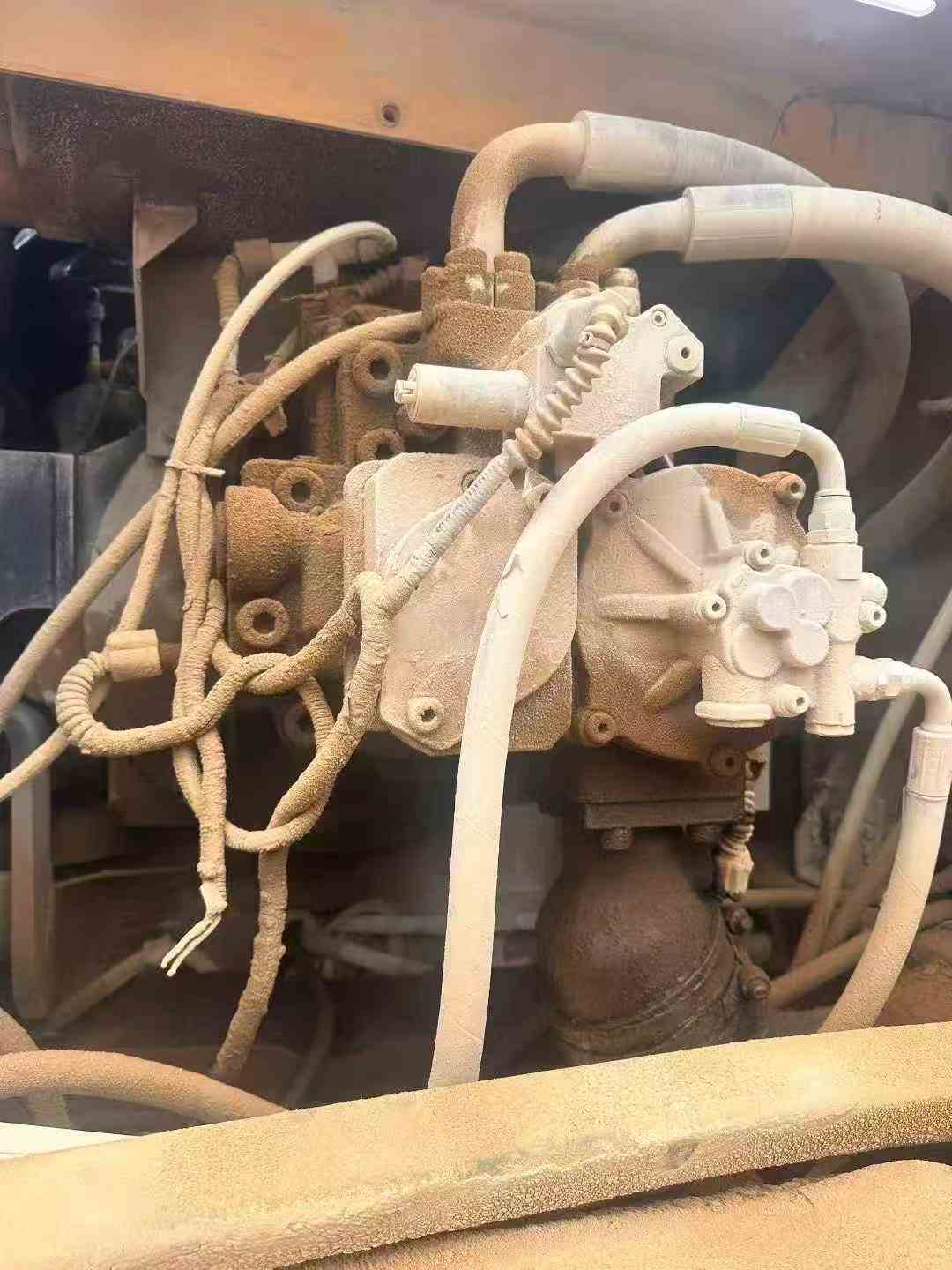

| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 - ø 170 x ø 115 x 1370 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 - ø 190 x ø 130 x 1820 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 - ø 170 x ø 115 x 1570 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 295 |
| Engine Oil changes (L) | 38 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 486 |
| Total transport length (mm) | 11710 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3810 |
| Counterweight ground clearance (mm) | 1275 |
| Back end turning radius (mm) | 3780 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 53 |
| Maximum digging radius (mm) | 11050 |
| Maximum digging depth (mm) | 6900 |
| Maximum excavation height (mm) | 10280 |
| Maximum unloading height (mm) | 6990 |
| Maximum vertical digging depth (mm) | 4570 |
| Maximum excavation radius of stop surface (mm) | 10830 |
| Maximum effective digging depth (mm) | 6740 |
