Product Description

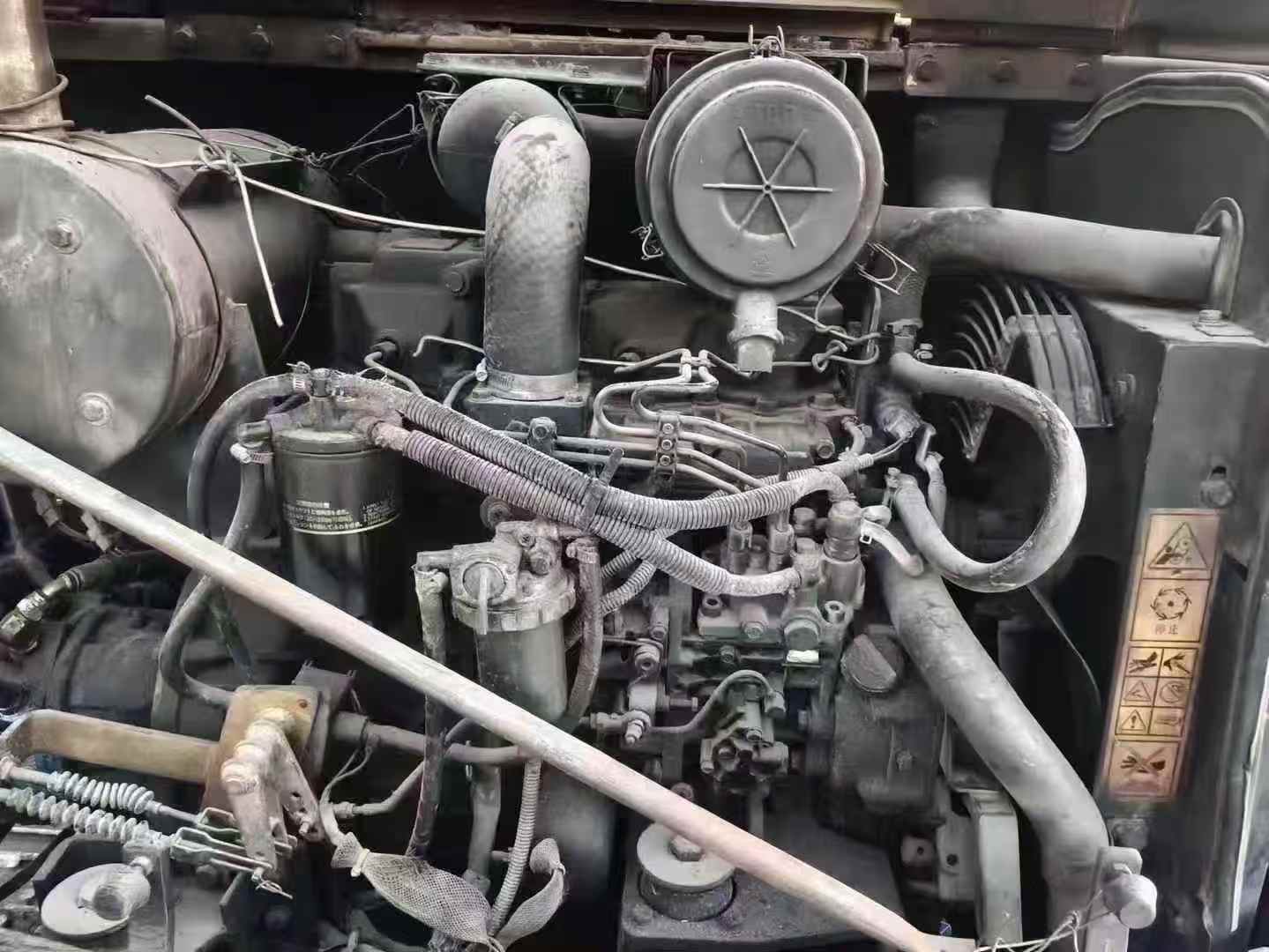

Engineered for precision and reliability, this 2011 Hyundai R60-7 compact excavator delivers exceptional performance through advanced hydraulic technology and proven mechanical design. At its core, the Yanmar 4TNV94L engine generates 40kW at 2200rpm with efficient water-cooling, providing consistent power for demanding excavation tasks. The dual variable axial piston pump system with supplementary gear pump ensures responsive hydraulic control across all functions.
Operating at 5,850kg working weight, this 6-ton class machine combines impressive digging capabilities with compact dimensions. Key performance specifications include:
- Maximum digging reach of 6,150mm with 3,820mm depth capability
- Bucket digging force: 37.7kN; Rod digging force: 28.4kN
- Rotation speed of 9.6rpm for efficient cycle times
- 70% (35°) climbing ability for challenging terrain
- Compact transport dimensions: 5,900mm × 1,920mm × 2,550mm
Built with joint venture manufacturing standards, the R60-7 represents Hyundai's commitment to engineering excellence. The 120L fuel tank and 70L hydraulic reservoir support extended operation, while the 1,650mm rear turning radius enables work in confined space
| Specifications | Value |
|---|---|
| No. | 999314 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.06-0.21 |
| Country of origin | Peking |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar Yanma 4TNV94L |
| Rated power (kw/rpm) | 40/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 37.7 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.2-4.0 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2× variable axial piston pump + gear pump |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 70 |
| Total transport length (mm) | 5900 |
| Total transport width (mm) | 1920 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 2550 |
| Minimum ground clearance (mm) | 380 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1520 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 1920 |
| Track ground length (mm) | 1990 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3820 |
| Maximum excavation height (mm) | 5780 |
| Maximum unloading height (mm) | 4050 |
| Maximum vertical digging depth (mm) | 3200 |
| Dodging plate width × height (mm) | 1920 x 350 |
| Maximum excavation radius of stop surface (mm) | 6010 |
| Maximum effective digging depth (mm) | 3420 |
