Product Description

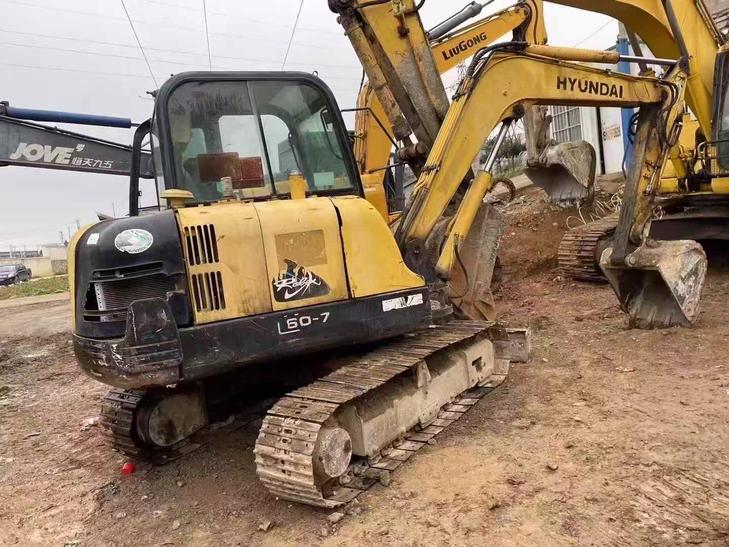

With a robust 6-ton working weight and powered by the reliable Yanmar 4TNV94L engine, this 2013 Hyundai R60-7 excavator stands as a testament to enduring quality. Originating from Peking, it has been a trusted workhorse in demanding environments, showcasing its durability and efficiency. Equipped with a backhoe bucket, this machine delivers a bucket digging force of 37.7 kN, making it ideal for tough excavation tasks. The water-cooled, 4-cylinder engine provides a rated power of 40 kW at 2200 rpm, ensuring consistent performance. Its compact design, with a total transport width of 1920 mm and height of 2550 mm, allows for easy maneuverability on various terrains. This excavator, with a maximum digging depth of 3820 mm and a travel speed of 2.2-4.0 km/h, is built to last and handle your most challenging projects.
| Specifications | Value |
|---|---|
| No. | 1021102 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.06-0.21 |
| Country of origin | Peking |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar Yanma 4TNV94L |
| Rated power (kw/rpm) | 40/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 37.7 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.2-4.0 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2× variable axial piston pump + gear pump |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 70 |
| Total transport length (mm) | 5900 |
| Total transport width (mm) | 1920 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 2550 |
| Minimum ground clearance (mm) | 380 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1520 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 1920 |
| Track ground length (mm) | 1990 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3820 |
| Maximum excavation height (mm) | 5780 |
| Maximum unloading height (mm) | 4050 |
| Maximum vertical digging depth (mm) | 3200 |
| Dodging plate width × height (mm) | 1920 x 350 |
| Maximum excavation radius of stop surface (mm) | 6010 |
| Maximum effective digging depth (mm) | 3420 |
