Product Description

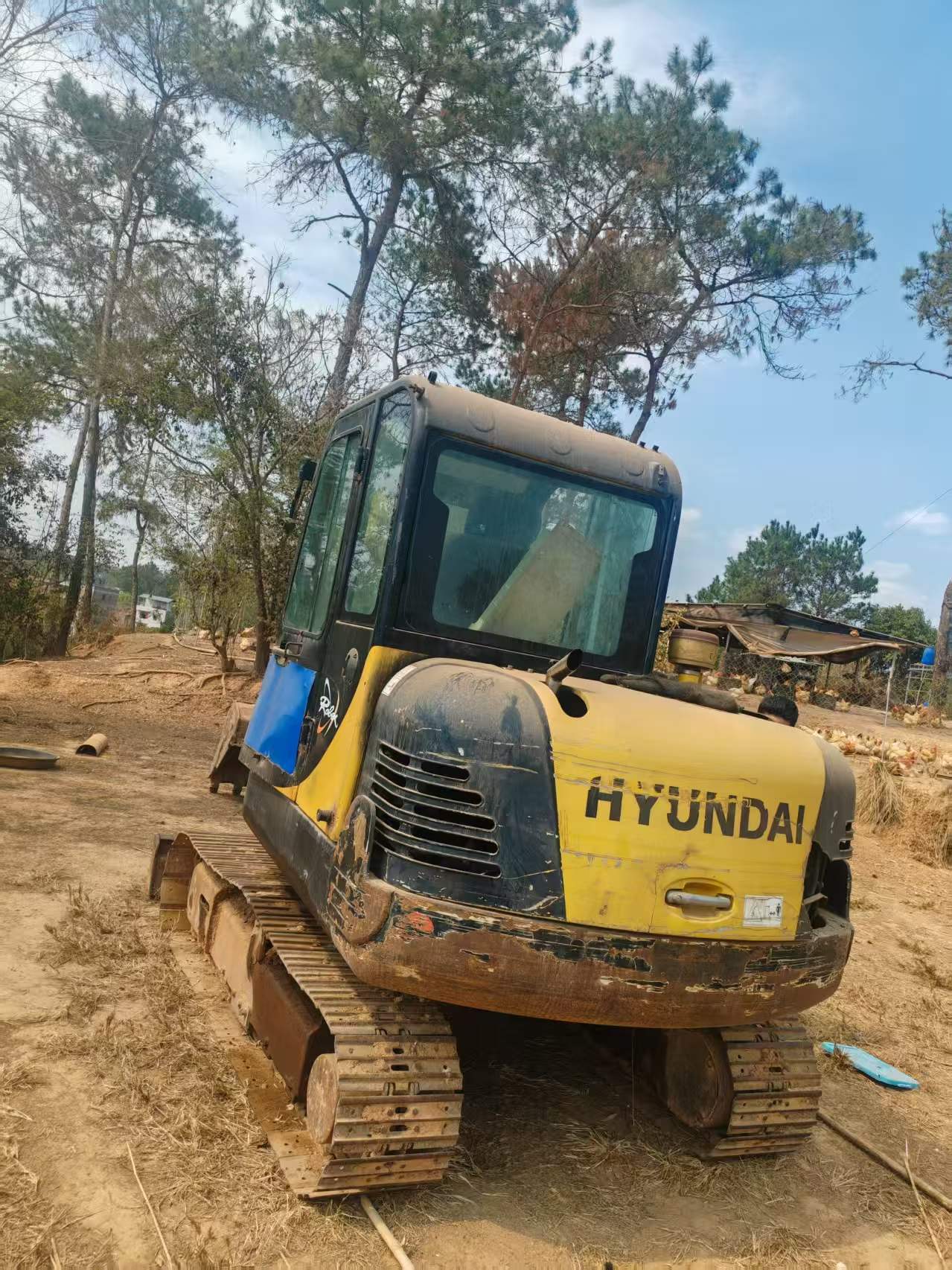

Available now in Guangdong Maoming, this 2016 Hyundai R60-7 mini excavator delivers immediate productivity without factory wait times. Powered by a reliable Yanmar 4TNV94L engine producing 40kW at 2200 rpm, this 6-ton machine combines compact dimensions with serious digging capability. Skip the lead times and fast-track deployment to your construction site with this ready-to-work unit.
- Year: 2016
- Operating Weight: 5,850 kg

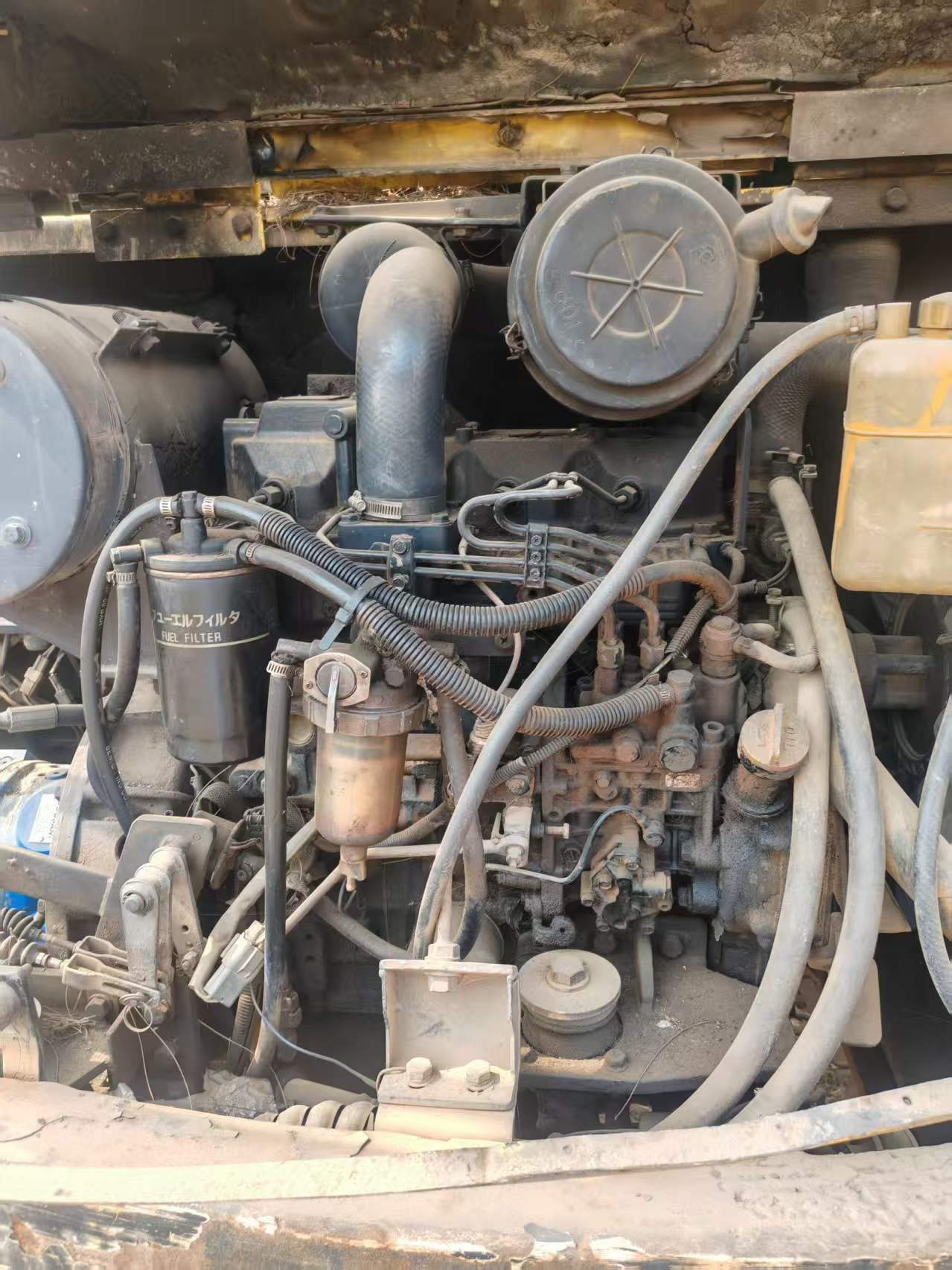

- Engine: Yanmar 4TNV94L, 40 kW @ 2200 rpm, water-cooled 4-cylinder
- Digging Performance: Max reach 6,150 mm, max depth 3,820 mm, bucket force 37.7 kN
- Bucket Capacity: 0.06–0.21 m³
- Compact Transport: 5,900 × 1,920 × 2,550 mm
- Hydraulics: Dual variable axial piston pumps plus gear pump
- Fuel/Hydraulic Tanks: 120 L / 70 L
- Location: Guangdong Maoming, China — ready for fast shipment
Secure this machine today and eliminate downtime. Direct from Maoming with expedited logistics available worldwide.
| Specifications | Value |
|---|---|
| No. | 1014406 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.06-0.21 |
| Country of origin | Peking |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar Yanma 4TNV94L |
| Rated power (kw/rpm) | 40/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 37.7 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.2-4.0 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2× variable axial piston pump + gear pump |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 70 |
| Total transport length (mm) | 5900 |
| Total transport width (mm) | 1920 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 2550 |
| Minimum ground clearance (mm) | 380 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1520 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 1920 |
| Track ground length (mm) | 1990 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3820 |
| Maximum excavation height (mm) | 5780 |
| Maximum unloading height (mm) | 4050 |
| Maximum vertical digging depth (mm) | 3200 |
| Dodging plate width × height (mm) | 1920 x 350 |
| Maximum excavation radius of stop surface (mm) | 6010 |
| Maximum effective digging depth (mm) | 3420 |
