Product Description

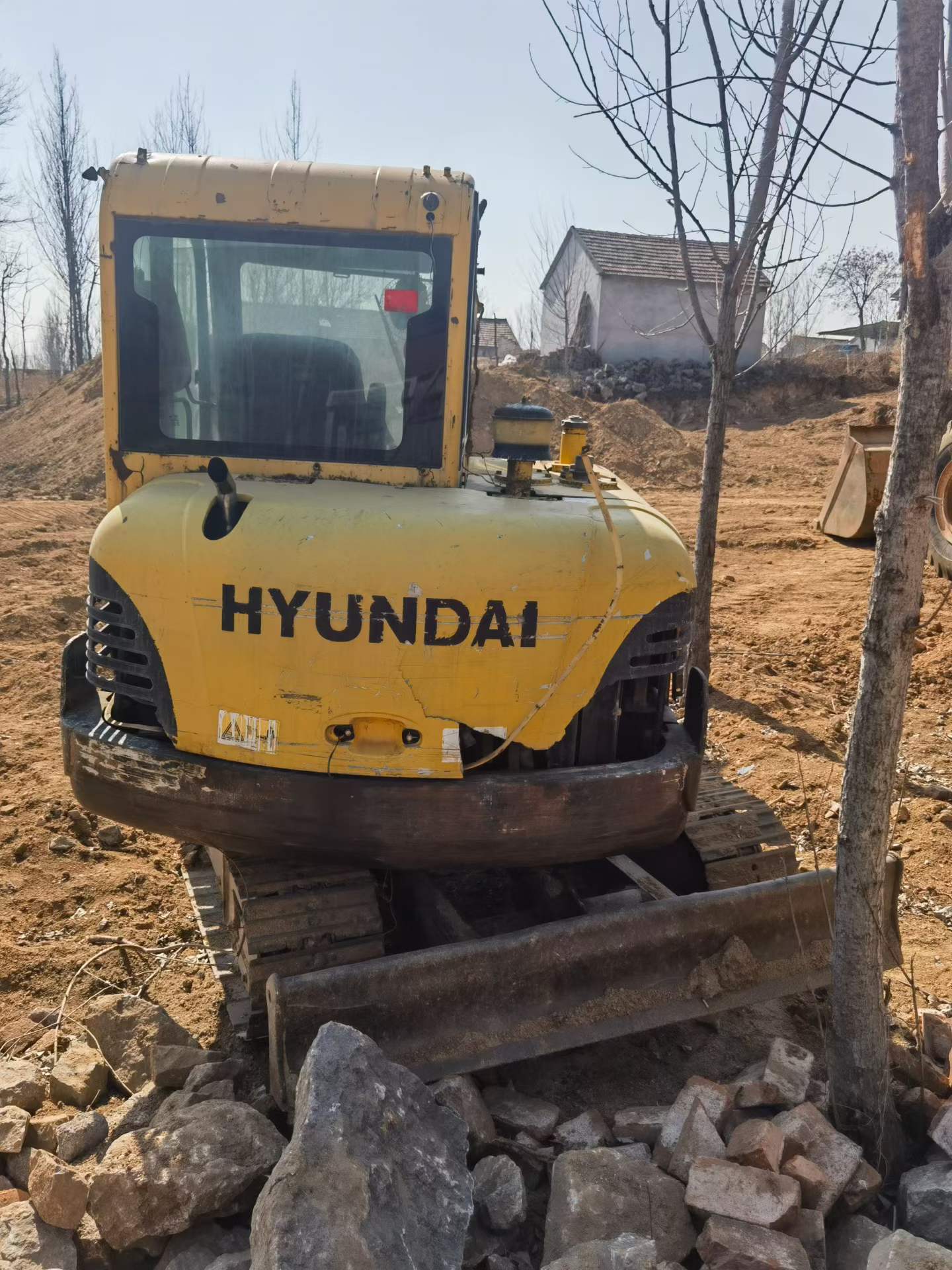

Maximize your equipment budget with this 2016 Hyundai R60-7 mini excavator from Shandong, China. Powered by a reliable Yanmar 4TNV94L engine delivering 40kW at 2200rpm, this 6-ton compact workhorse offers exceptional value compared to new machinery costs. Built for versatility, it handles bucket capacities from 0.06 to 0.21m³ with impressive digging force—37.7kN bucket force and 28.4kN arm force—making it ideal for utility work, landscaping, and confined job sites.
- Maximum digging depth: 3,820mm with 6,150mm maximum reach
- Compact dimensions: 5,900mm length × 1,920mm width for tight access
- Proven hydraulics: dual variable axial piston pumps plus gear pump
- Efficient operation: 120L fuel tank, water-cooled 4-cylinder engine
- Strong climbing ability: 70% (35°) grade capability
- Quick rotation: 9.6rpm swing speed for productivity
Acquire proven Japanese-engineered performance at a fraction of new equipment pricing. This joint-venture manufactured unit delivers reliable productivity without the premium cost, making it a strategic choice for contractors seeking dependable excavation capacity and rapid ROI.
| Specifications | Value |
|---|---|
| No. | 1029745 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.06-0.21 |
| Country of origin | Peking |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar Yanma 4TNV94L |
| Rated power (kw/rpm) | 40/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 37.7 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.2-4.0 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2× variable axial piston pump + gear pump |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 70 |
| Total transport length (mm) | 5900 |
| Total transport width (mm) | 1920 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 2550 |
| Minimum ground clearance (mm) | 380 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1520 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 1920 |
| Track ground length (mm) | 1990 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3820 |
| Maximum excavation height (mm) | 5780 |
| Maximum unloading height (mm) | 4050 |
| Maximum vertical digging depth (mm) | 3200 |
| Dodging plate width × height (mm) | 1920 x 350 |
| Maximum excavation radius of stop surface (mm) | 6010 |
| Maximum effective digging depth (mm) | 3420 |
