Product Description
Built to last and backed by one of the world's most trusted equipment manufacturers, this 2015 Hyundai R60-9 mini excavator represents a smart, low-risk investment in the used machinery market. Hyundai's global parts network ensures straightforward maintenance access, minimizing costly downtime — a critical advantage when sourcing used iron. Strong resale value and proven engineering make this 6-ton machine a dependable asset for contractors, rental fleets, and infrastructure operators alike.

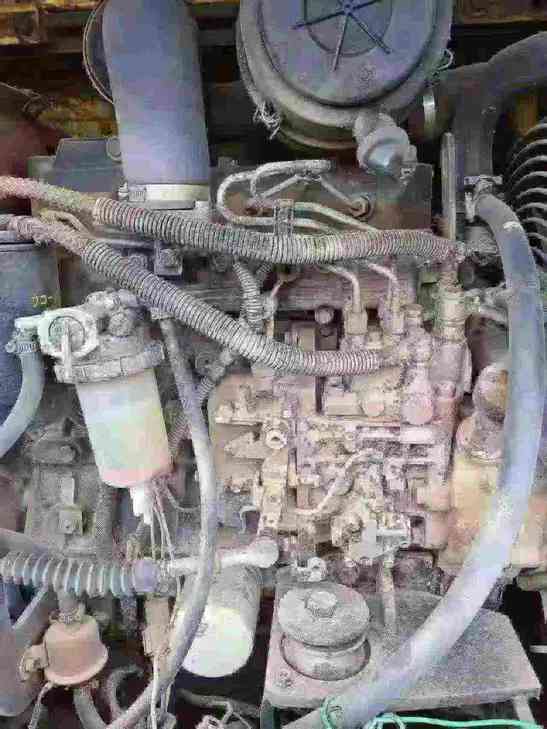

Powered by a Yanmar 4TNV94L water-cooled 4-cylinder engine rated at 39 kW/2200 rpm, this unit delivers consistent performance across demanding applications. Dual variable axial piston pumps optimize hydraulic efficiency, while a 125L fuel tank supports extended operational cycles with fewer interruptions.
- Working Weight: 5,660 kg | Bucket Capacity: 0.07–0.21 m³
- Maximum Digging Depth: 3,820 mm | Maximum Digging Radius: 6,150 mm
- Bucket Digging Force: 38.5 kN | Rod Digging Force: 29 kN
- Travel Speed: 2.2–4.0 km/h | Climbing Ability: 70% / 35°
- Track Plate Width: 400 mm | Transport Dimensions: 5,900 x 1,920 x 2,550 mm
- Location: Sichuan, China — available for global export
| Specifications | Value |
|---|---|
| No. | 1089272 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5660 |
| Bucket capacity (m³) | 0.07-0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Peking |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar Yanma 4TNV94L |
| Rated power (kw/rpm) | 39/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 38.5 |
| Rod digging force (kN) | 29 |
| Travel speed (km/h) | 2.2-4.0 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2× variable axial piston pump + gear pump |
| Fuel Tank (L) | 125 |
| Hydraulic Tank (L) | 70 |
| Total transport length (mm) | 5900 |
| Total transport width (mm) | 1920 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 2550 |
| Minimum ground clearance (mm) | 380 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1520 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 1920 |
| Track ground length (mm) | 1990 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3820 |
| Maximum excavation height (mm) | 5780 |
| Maximum unloading height (mm) | 4050 |
| Maximum vertical digging depth (mm) | 3200 |
| Dodging plate width × height (mm) | 1920 x 350 |
| Maximum excavation radius of stop surface (mm) | 6010 |
