Product Description

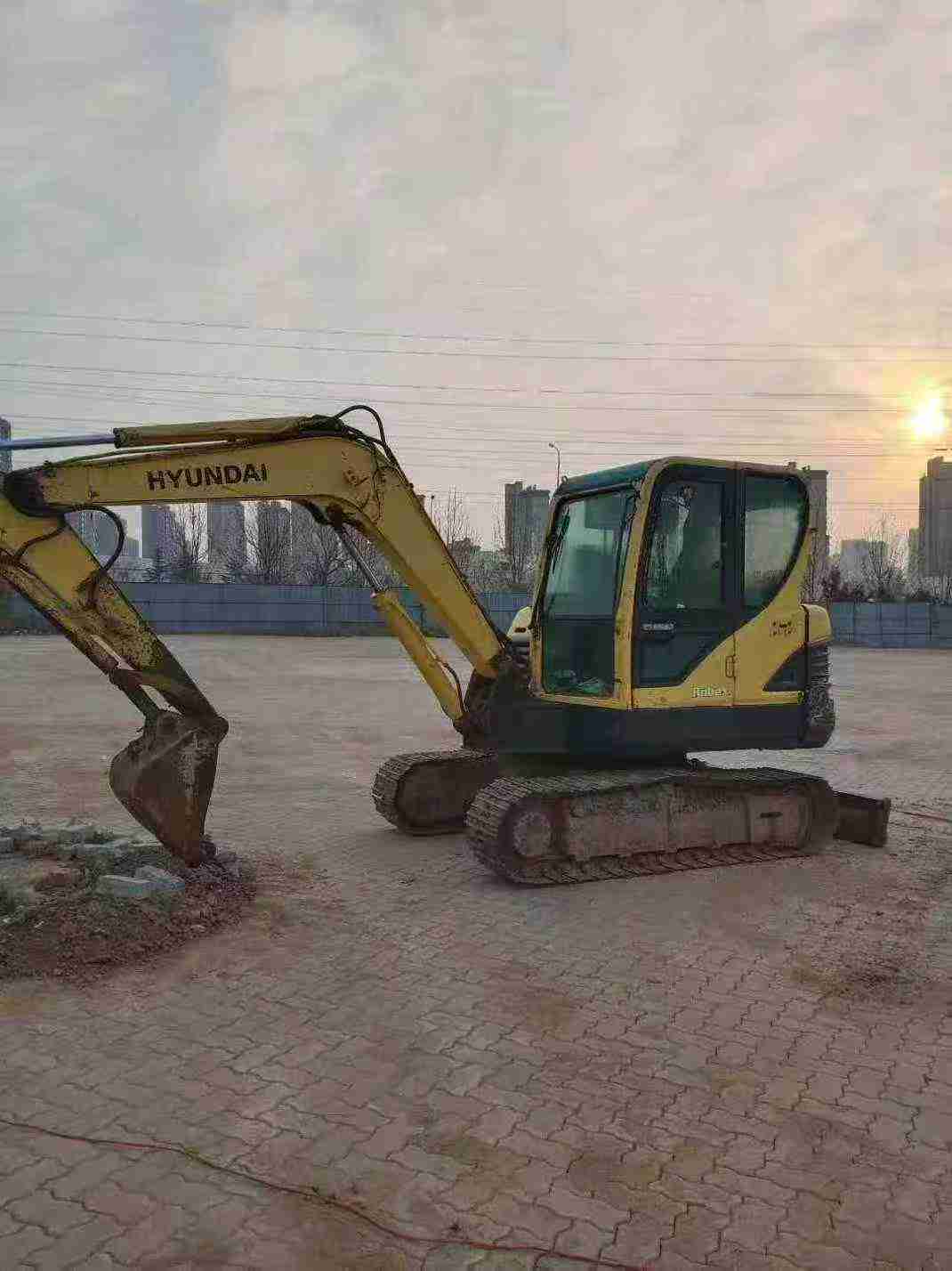

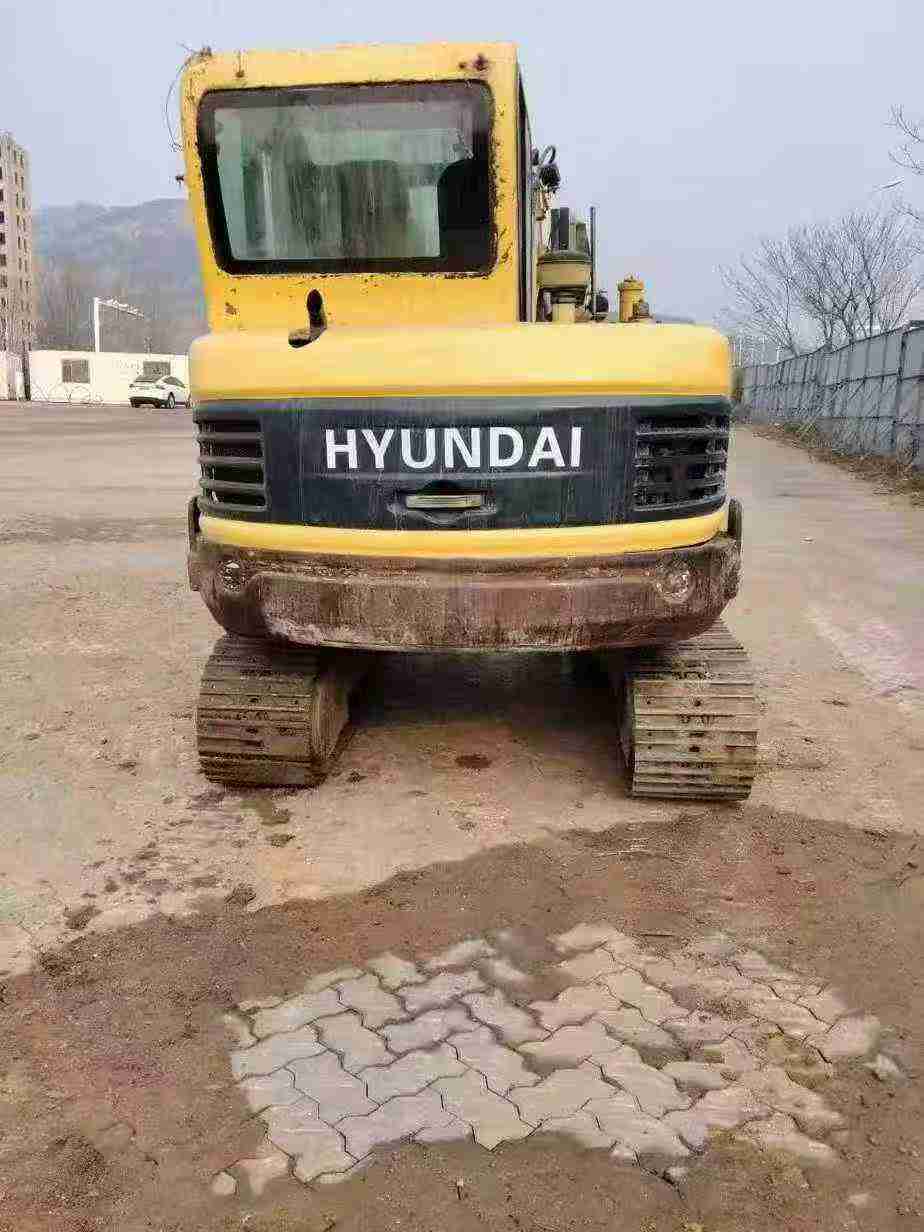

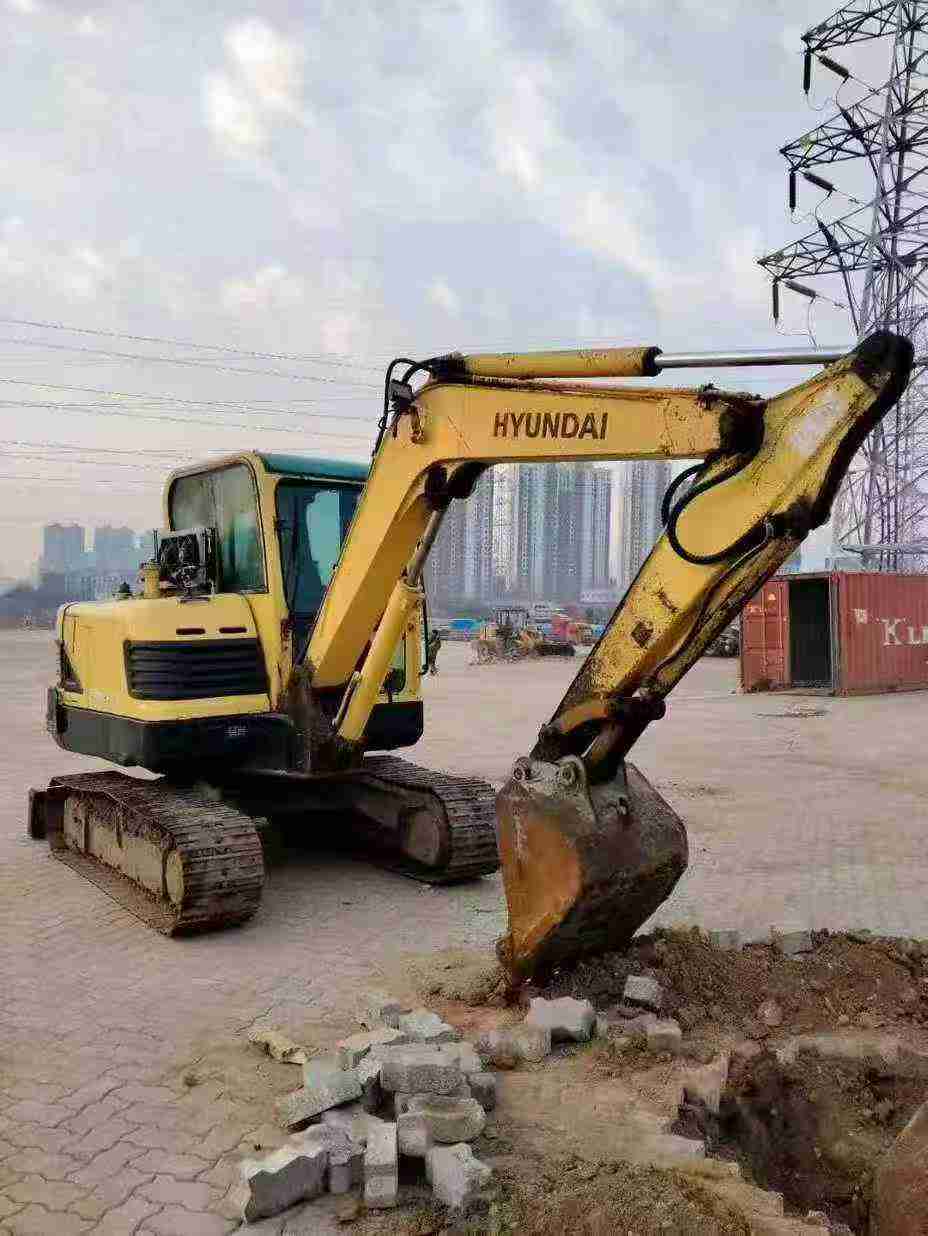

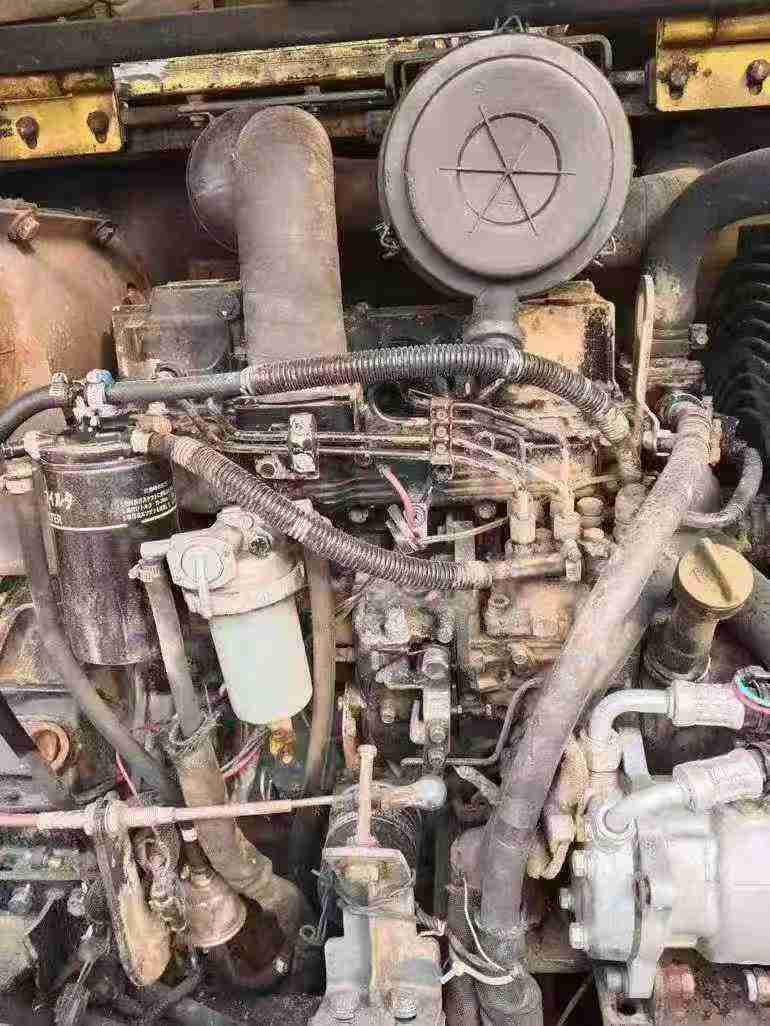

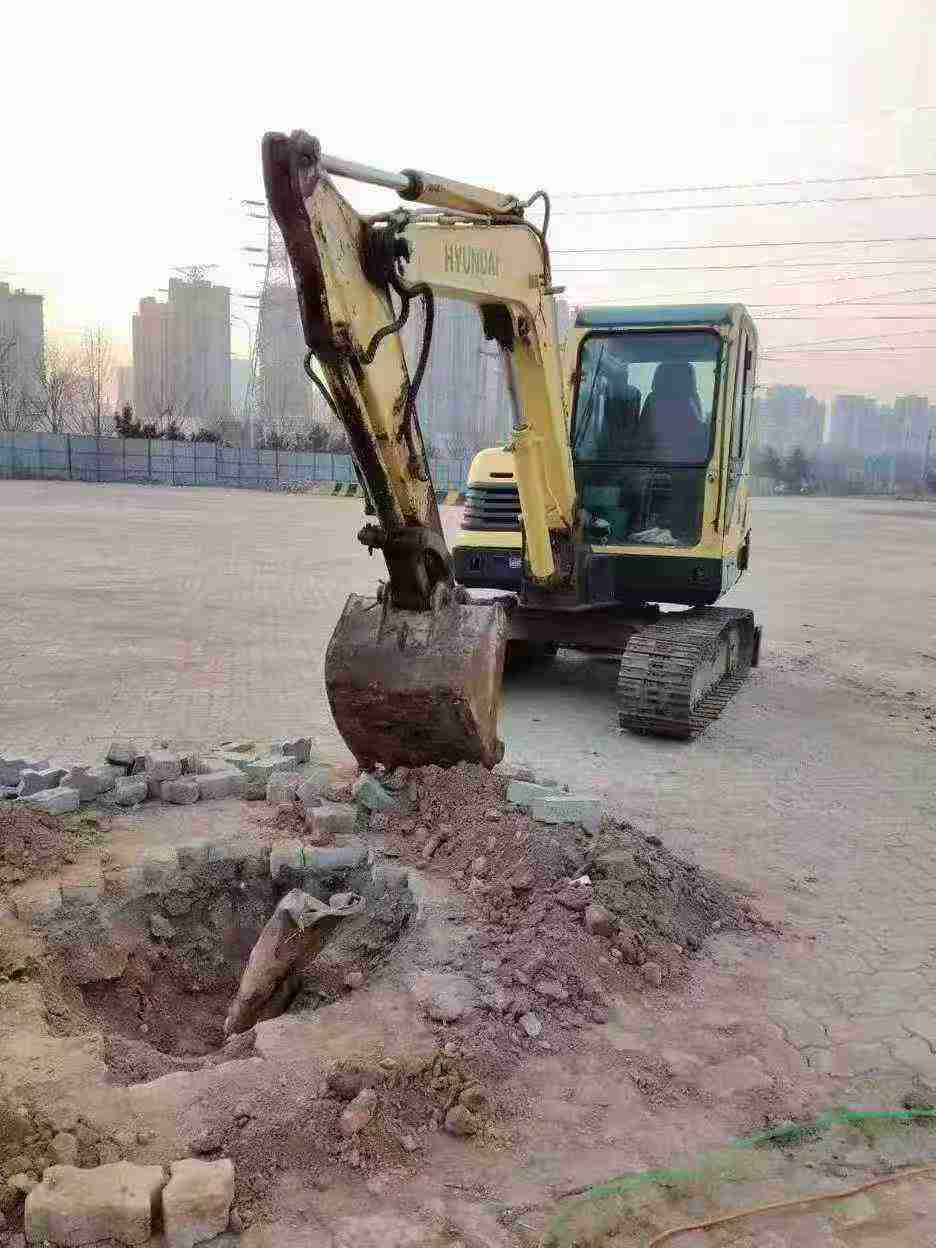

Built in 2016, this Hyundai R60-9 mini excavator represents a proven investment in reliable construction equipment. Operating at 5,660 kg with a Yanmar 4TNV94L engine delivering 39 kW at 2,200 rpm, this 6-ton machine combines compact dimensions with serious digging capability. Maximum digging depth reaches 3,820 mm while maintaining a 6,150 mm working radius—ideal for confined jobsites and utility work.
Hyundai's reputation in the used equipment market stems from widespread parts availability and strong resale retention. Joint venture manufacturing ensures quality control standards that translate to long-term durability. The R60-9's dual variable axial piston pumps provide 38.5 kN bucket digging force and 29 kN arm force, backed by a water-cooled 4-cylinder configuration designed for extended service intervals.
Currently located in Qingdao, Shandong, this unit features:
- Bucket capacity range: 0.07-0.
| Specifications | Value |
|---|---|
| No. | 1010798 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5660 |
| Bucket capacity (m³) | 0.07-0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Peking |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar Yanma 4TNV94L |
| Rated power (kw/rpm) | 39/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 38.5 |
| Rod digging force (kN) | 29 |
| Travel speed (km/h) | 2.2-4.0 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2× variable axial piston pump + gear pump |
| Fuel Tank (L) | 125 |
| Hydraulic Tank (L) | 70 |
| Total transport length (mm) | 5900 |
| Total transport width (mm) | 1920 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 2550 |
| Minimum ground clearance (mm) | 380 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1520 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 1920 |
| Track ground length (mm) | 1990 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3820 |
| Maximum excavation height (mm) | 5780 |
| Maximum unloading height (mm) | 4050 |
| Maximum vertical digging depth (mm) | 3200 |
| Dodging plate width × height (mm) | 1920 x 350 |
| Maximum excavation radius of stop surface (mm) | 6010 |
