Product Description

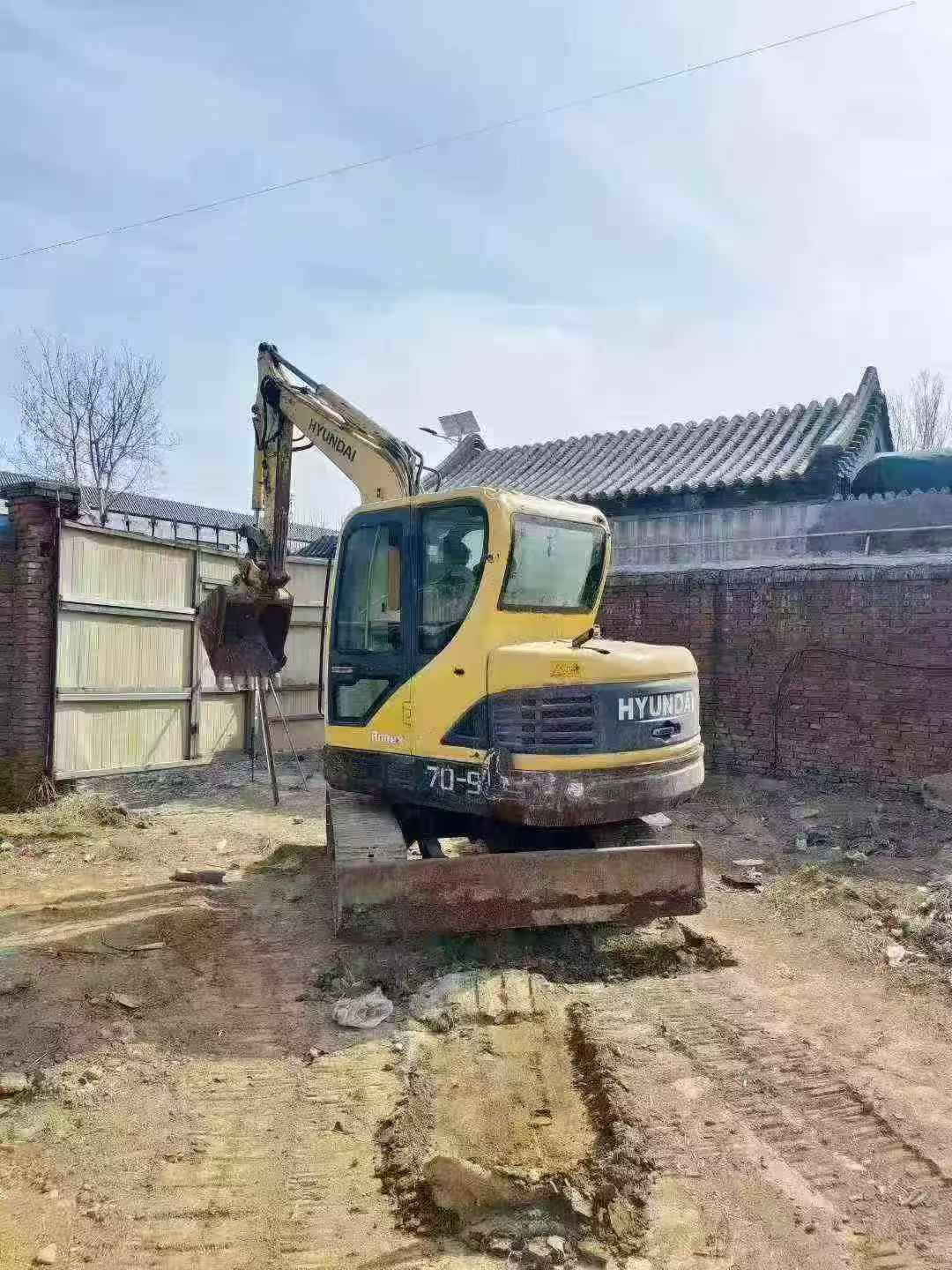

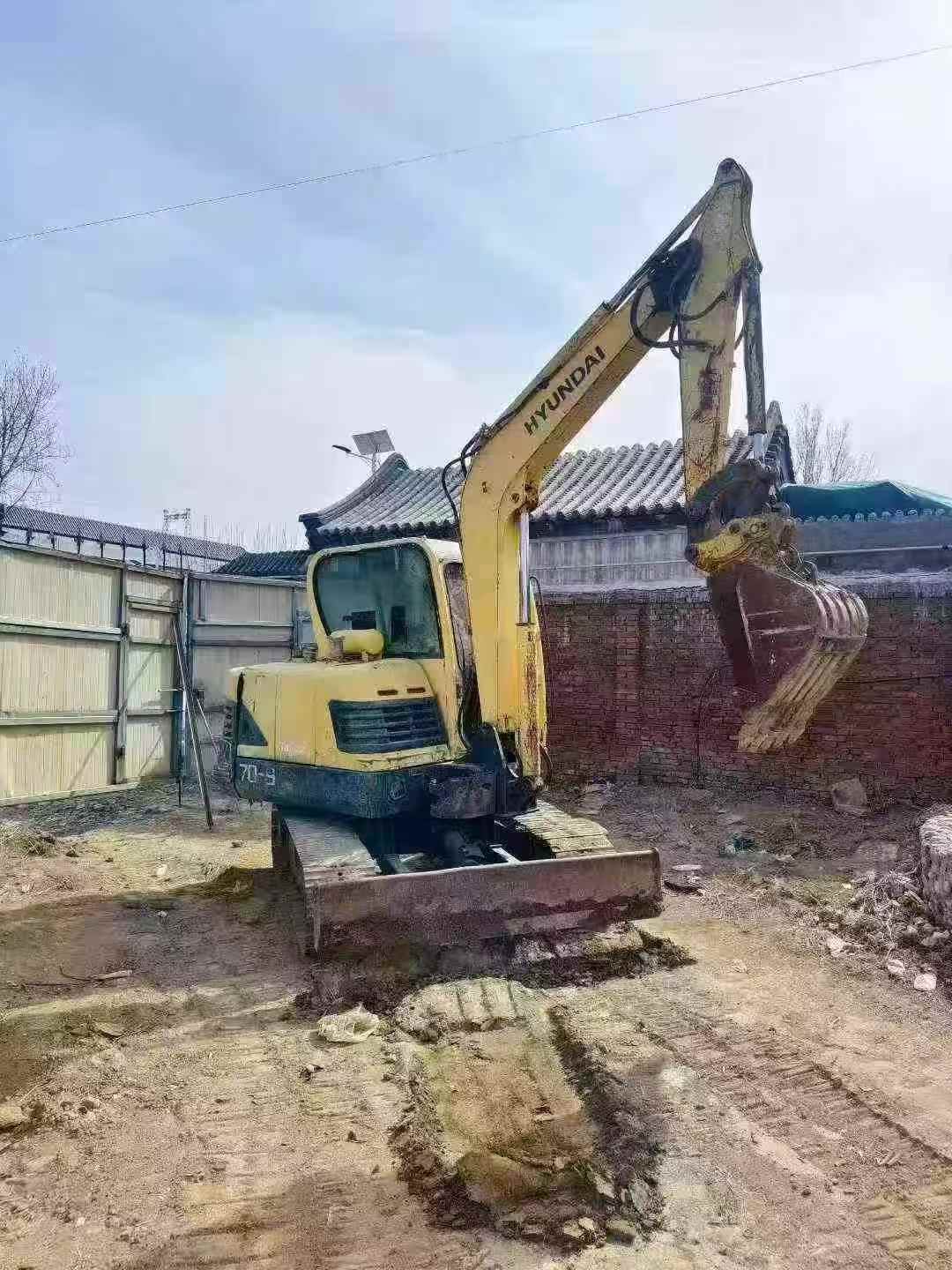

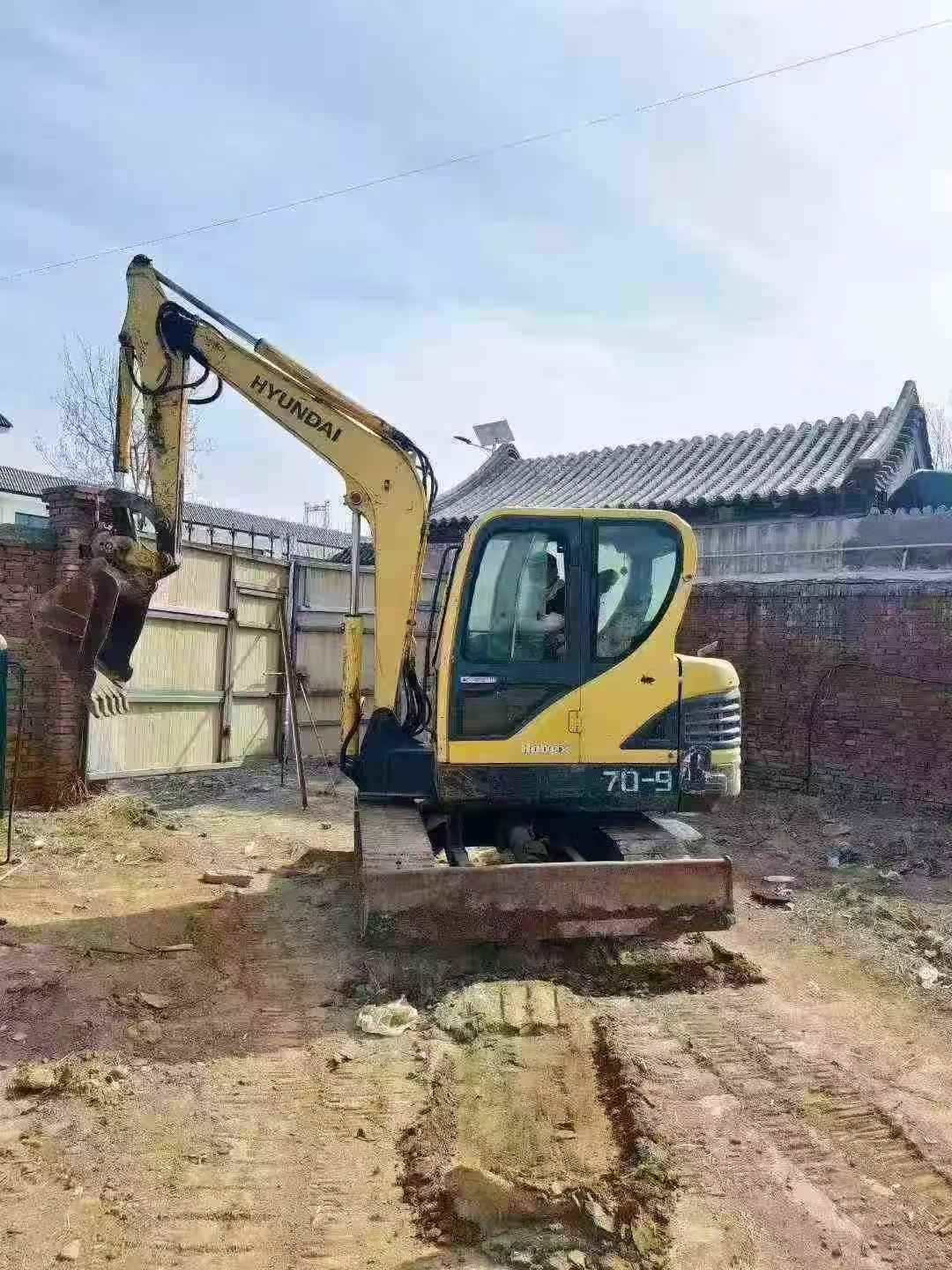

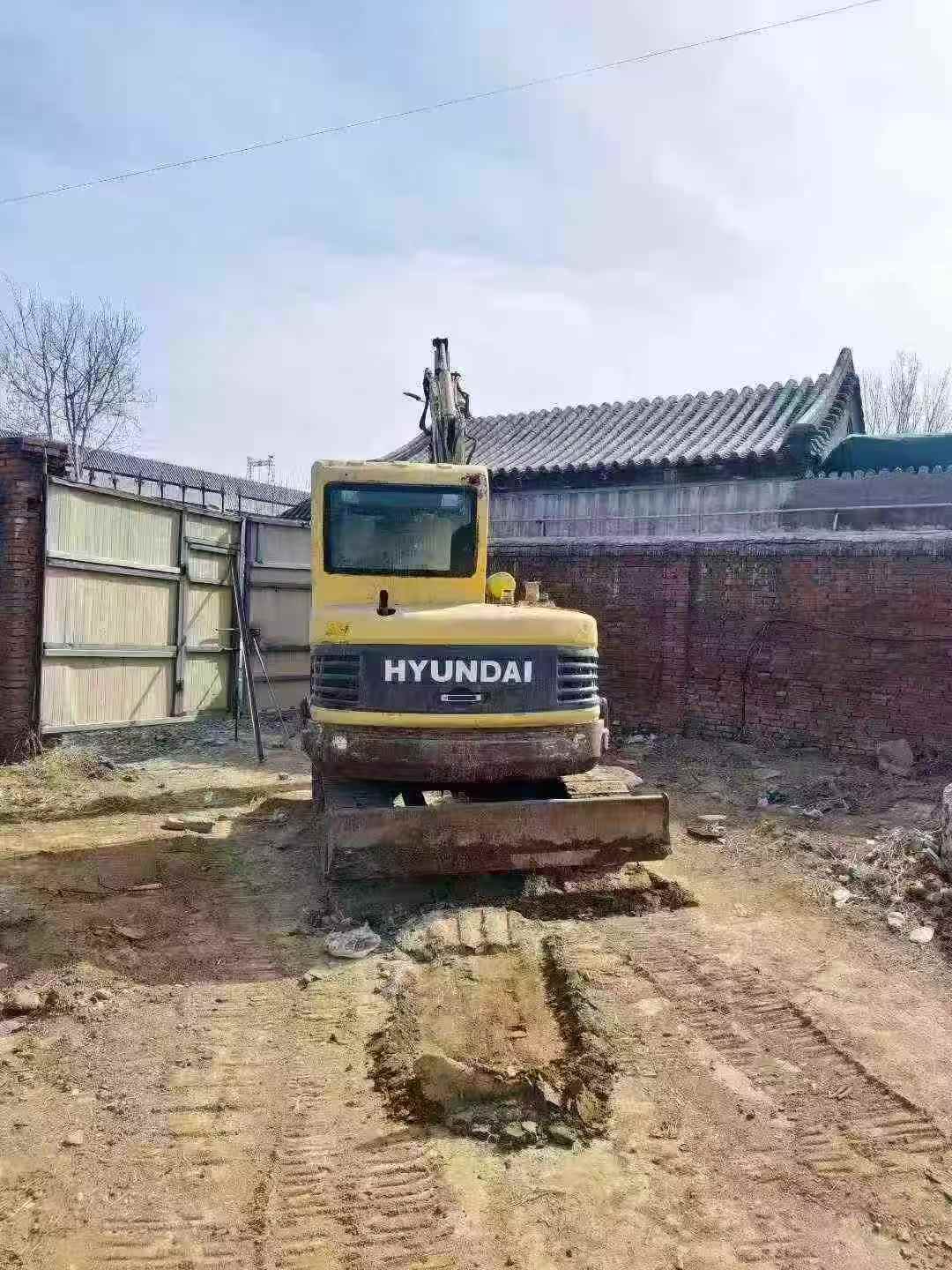

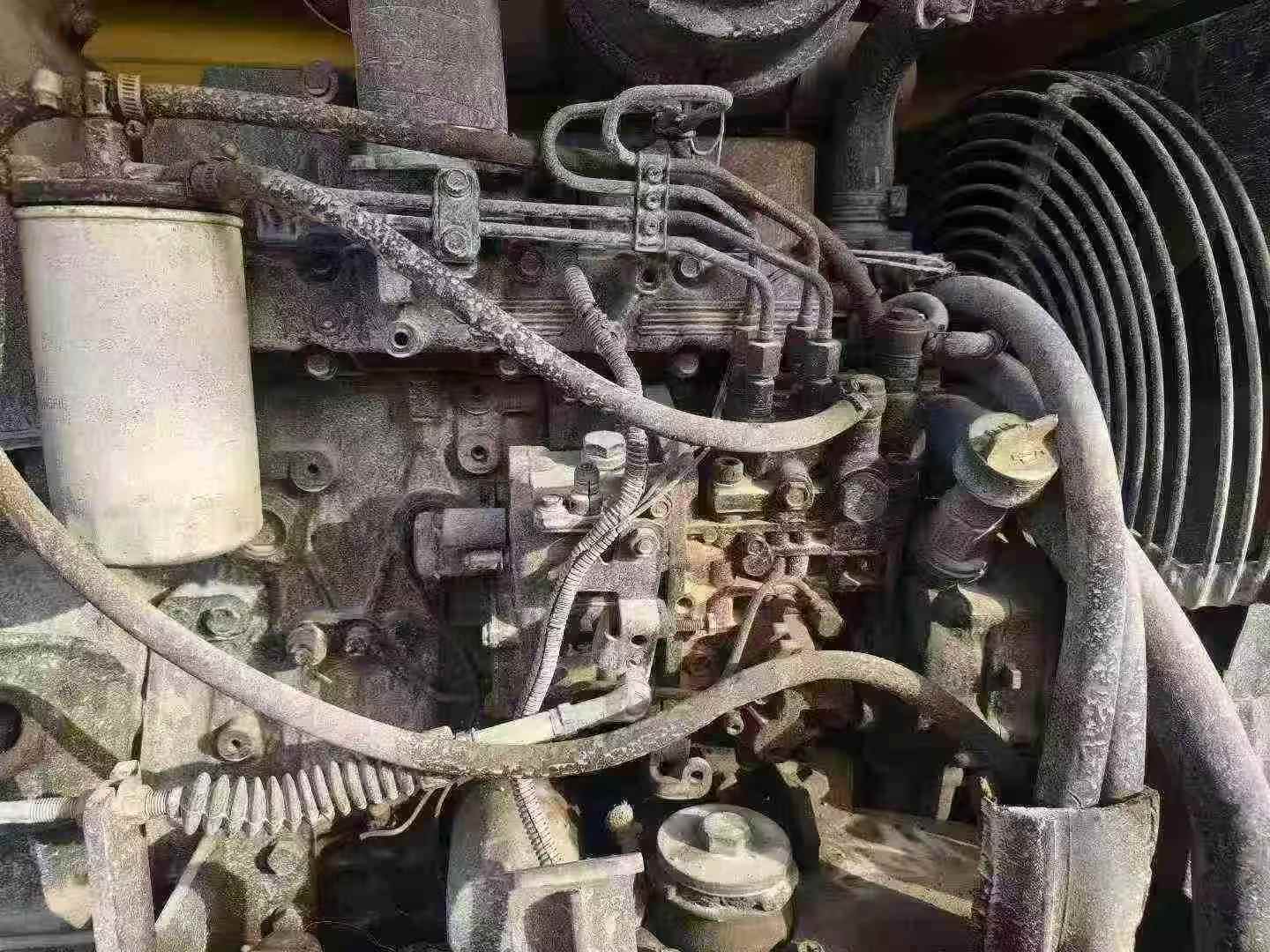

Built for precision work in confined spaces, this 2016 Hyundai R60-9 mini excavator delivers reliable performance across digging, grading, and loading operations. Powered by a robust Yanmar 4TNV94L engine producing 39 kW at 2200 rpm, this 5,660 kg machine combines compact dimensions with impressive excavation capabilities—reaching a maximum digging depth of 3,820 mm and digging radius of 6,150 mm.
Key specifications include:
- Bucket capacity: 0.07-0.21 m³ with 38.5 kN digging force
- 3,000 mm boom and 1,600 mm arm for optimal reach
- Compact transport size: 5,900 mm (L) × 1,920 mm (W) × 2,550 mm (H)

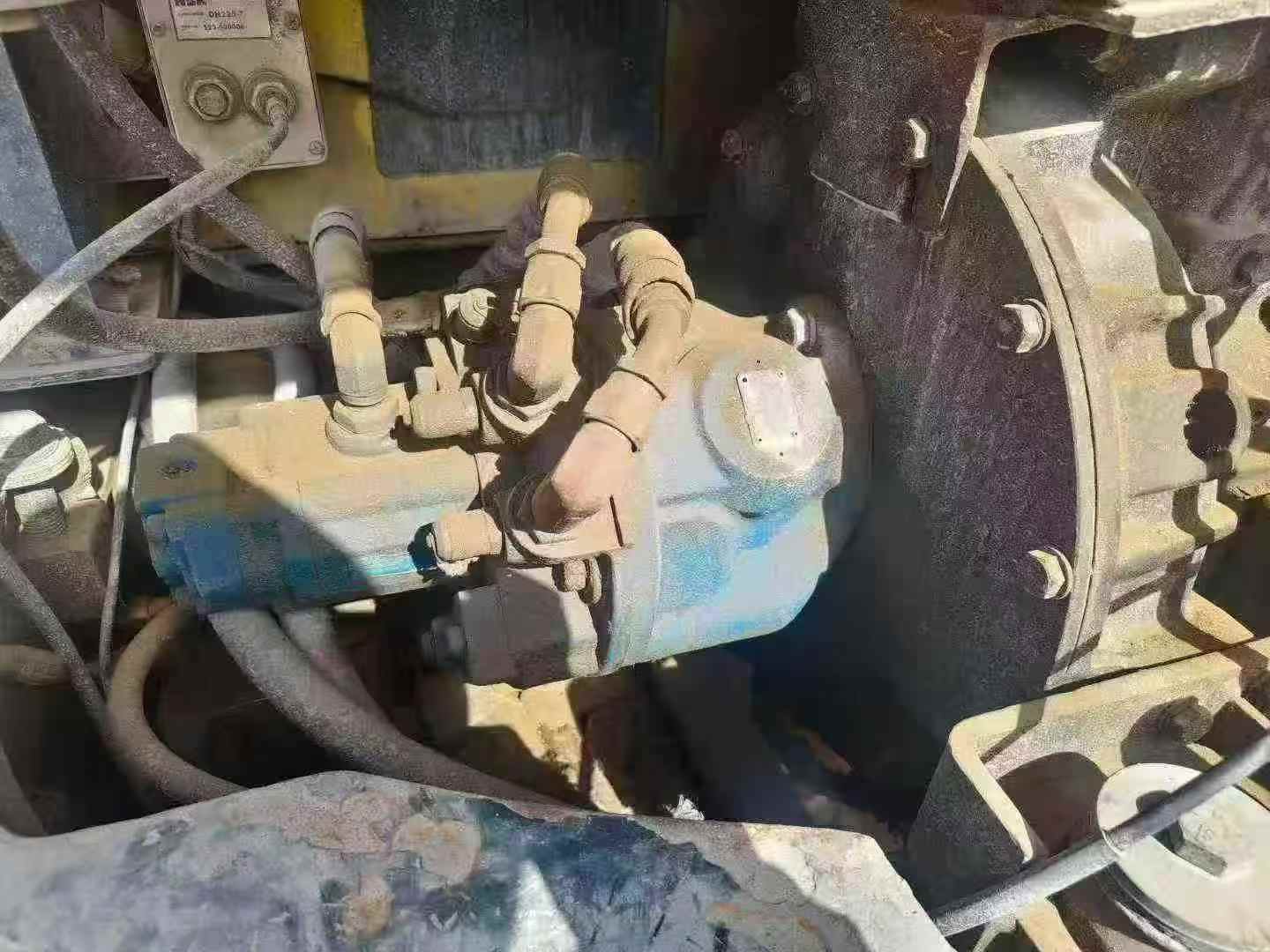

- Dual variable axial piston pumps for responsive hydraulics
- 70% gradeability and 9.3 rpm rotation speed
- Water-cooled 4-cylinder engine with 125L fuel capacity
Currently located in Jiangsu, this site-ready excavator requires no modifications. Ideal for utility installation, foundation work, and urban construction projects where space is limited but productivity cannot be compromised.
| Specifications | Value |
|---|---|
| No. | 1019398 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5660 |
| Bucket capacity (m³) | 0.07-0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Peking |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar Yanma 4TNV94L |
| Rated power (kw/rpm) | 39/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 38.5 |
| Rod digging force (kN) | 29 |
| Travel speed (km/h) | 2.2-4.0 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2× variable axial piston pump + gear pump |
| Fuel Tank (L) | 125 |
| Hydraulic Tank (L) | 70 |
| Total transport length (mm) | 5900 |
| Total transport width (mm) | 1920 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 2550 |
| Minimum ground clearance (mm) | 380 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1520 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 1920 |

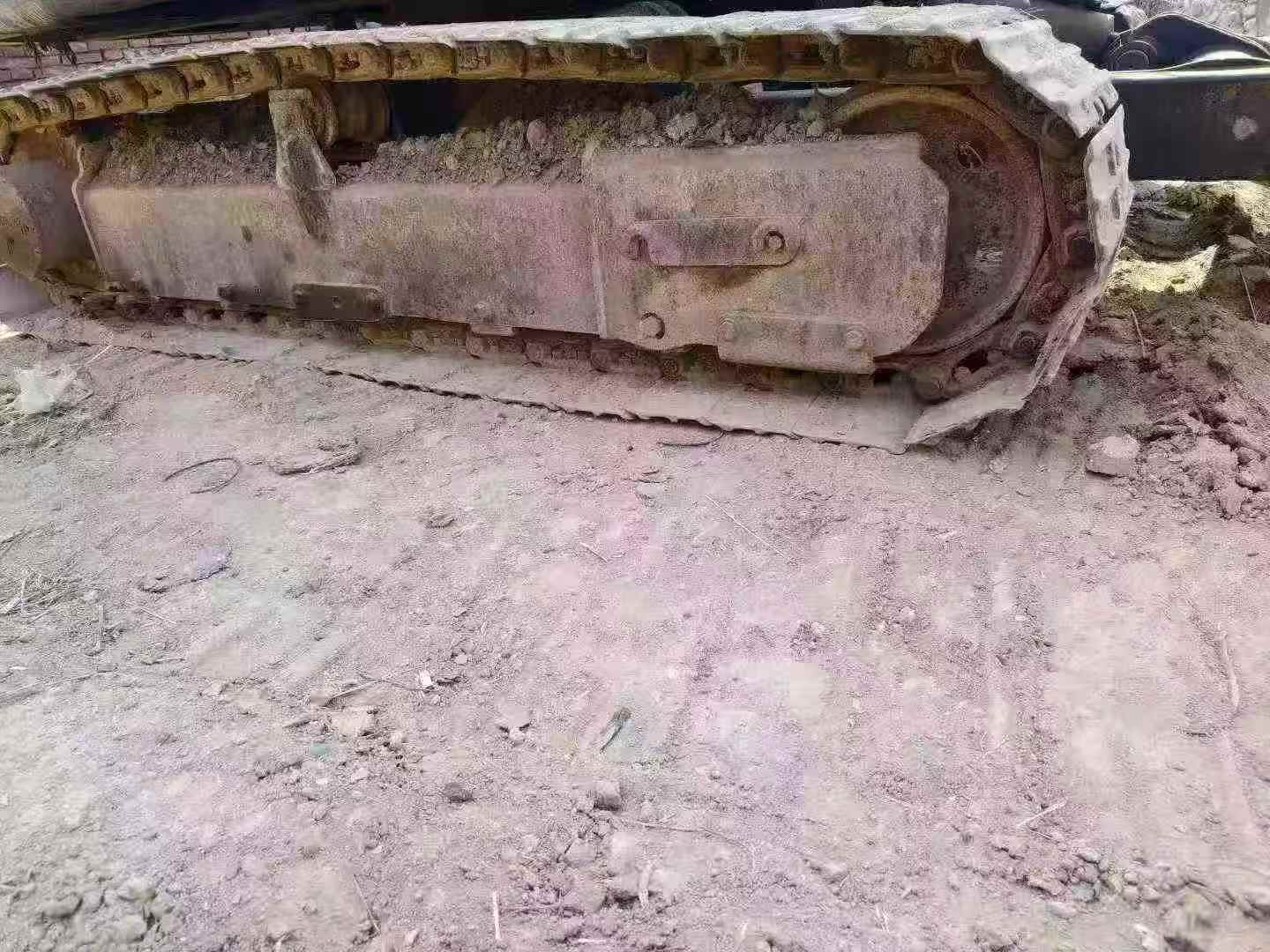

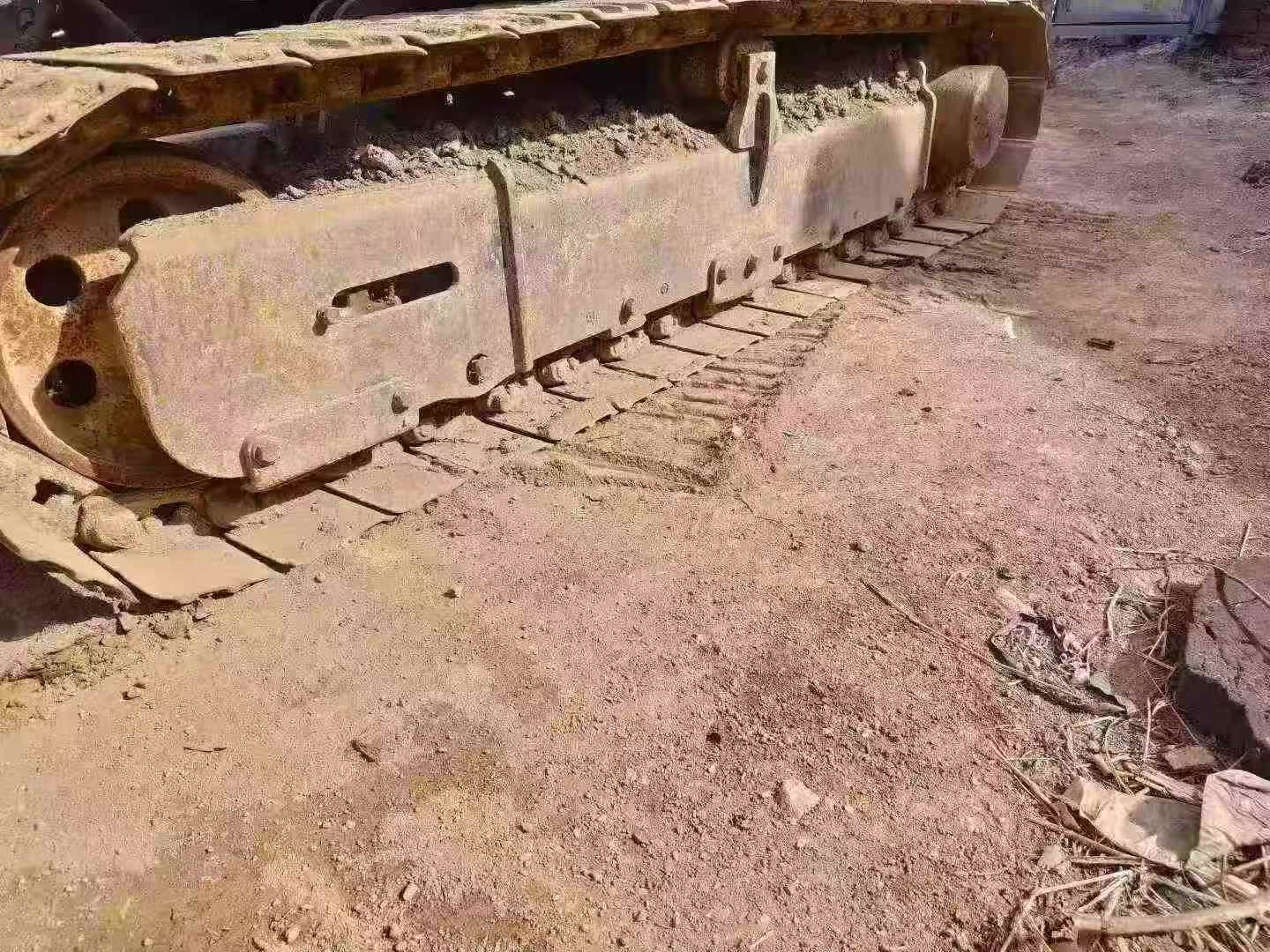

| Track ground length (mm) | 1990 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3820 |
| Maximum excavation height (mm) | 5780 |
| Maximum unloading height (mm) | 4050 |
| Maximum vertical digging depth (mm) | 3200 |
| Dodging plate width × height (mm) | 1920 x 350 |
| Maximum excavation radius of stop surface (mm) | 6010 |
