2016 Hyundai R60-9

1/4
Buy Hyundai R60-9 Used Excavator / 1

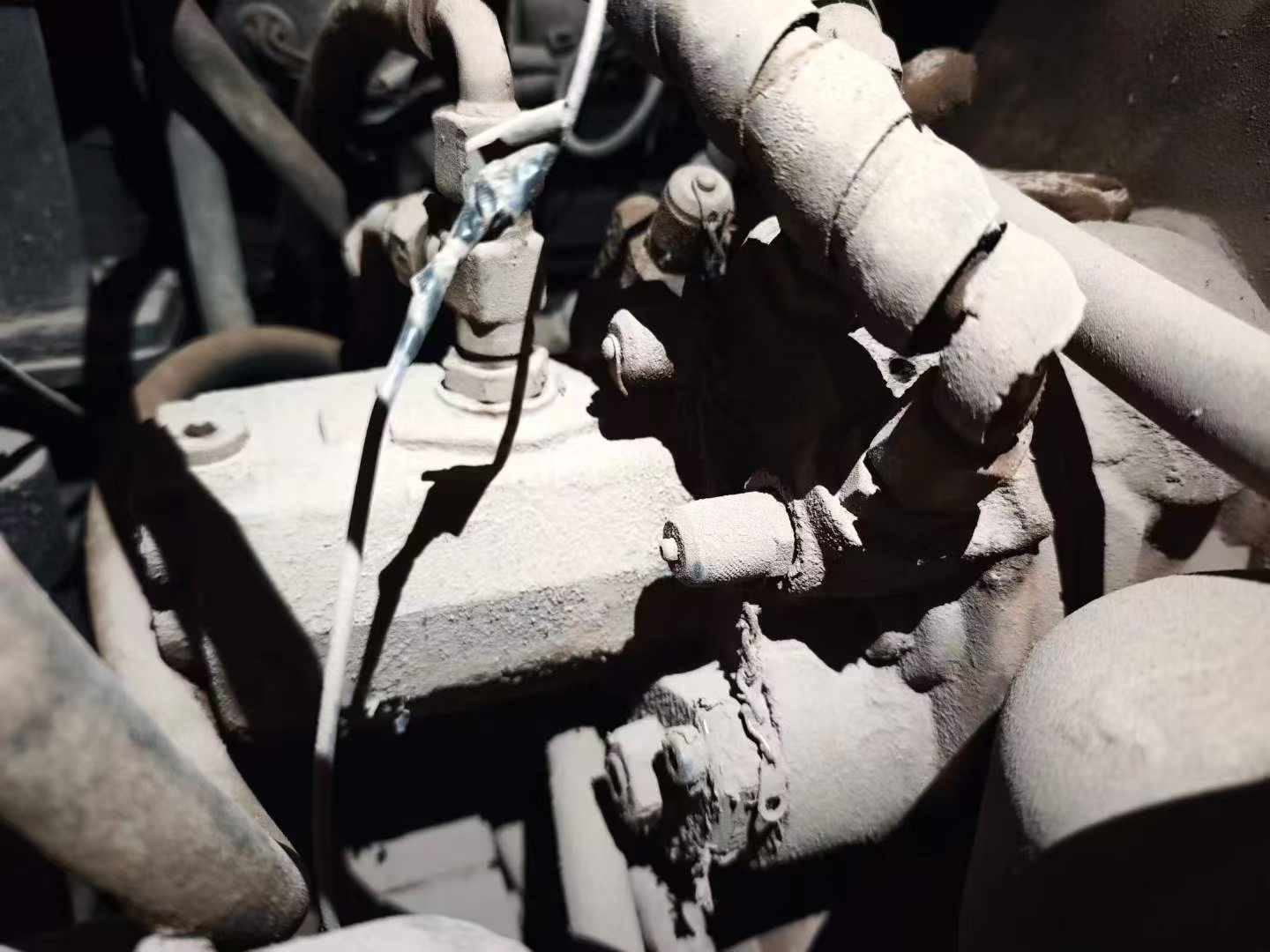

Buy Hyundai R60-9 Used Excavator / 2

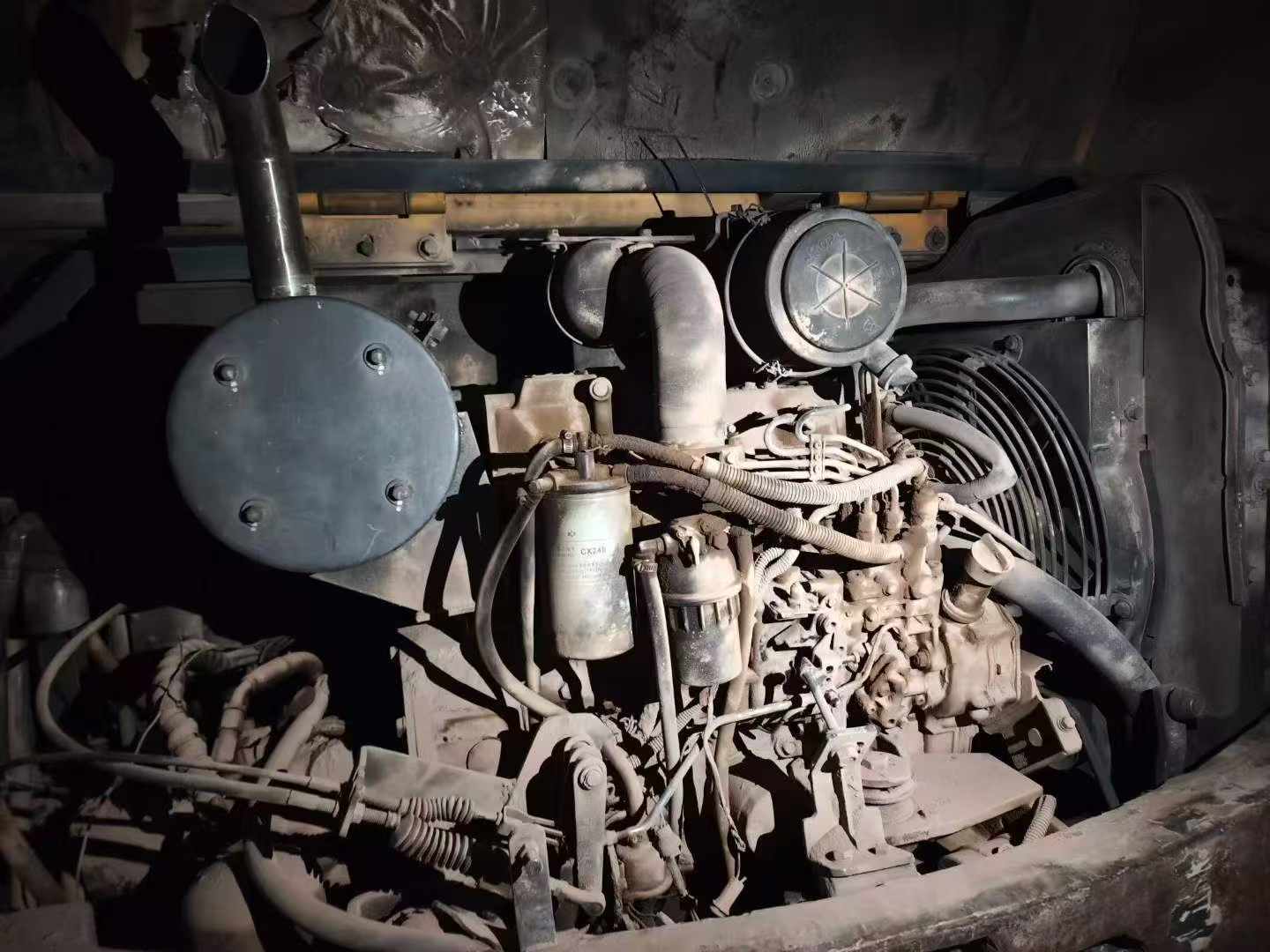

Buy Hyundai R60-9 Used Excavator / 3

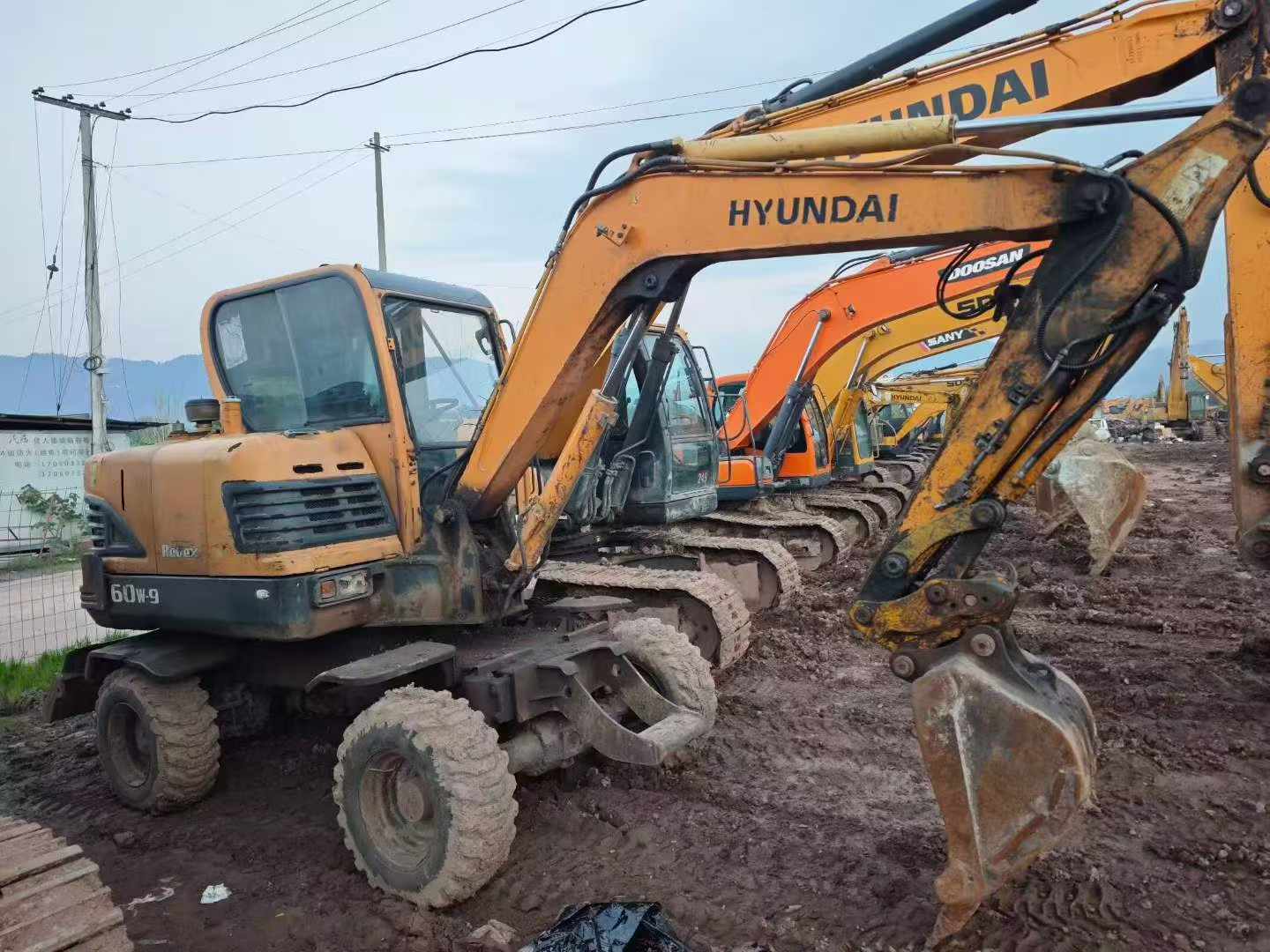

Buy Hyundai R60-9 Used Excavator / 4

Product Description

Built for precision work in confined spaces, this 2016 Hyundai R60-9 mini excavator delivers reliable performance across digging, grading, and demolition tasks. Powered by a robust Yanmar 4TNV94L engine producing 39kW at 2200rpm, this 6-ton machine combines compact dimensions with impressive reach capabilities. Maximum digging depth extends to 3,820mm, while the 6,150mm working radius ensures versatile site coverage without constant repositioning.

  • Operating weight: 5,660kg with 0.07-0.21m³ bucket capacity range
  • Powerful hydraulics: 38.5kN bucket digging force, 29kN arm digging force
  • Efficient fuel system: 125L tank for extended runtime
  • Transport-friendly: 5,900mm length × 1,920mm width × 2,550mm height
  • Superior maneuverability: 1,650mm rear swing radius, 9.3rpm rotation speed
  • Proven climbing ability: 70% gradient capability (35°)

Currently located in Fujian Putian, this water-cooled, four-cylinder excavator is field-ready for immediate deployment on construction sites, utility projects, or landscaping operations requiring dependable compact equipment.

SpecificationsValue
No.1046987
Tonnage (tons)6
Working weight (kg)5660
Bucket capacity (m³)0.07-0.21
Boom length (mm)3000
Rod length (mm)1600
Country of originPeking
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeYanmar Yanma 4TNV94L
Rated power (kw/rpm)39/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Rotation speed (rpm)9.3
Climbing ability (%)70/35 °
Bucket digging force (kN)38.5
Rod digging force (kN)29
Travel speed (km/h)2.2-4.0
Hydraulic crushing pipeline is standardno
Main pump type2× variable axial piston pump + gear pump
Fuel Tank (L)125
Hydraulic Tank (L)70
Total transport length (mm)5900
Total transport width (mm)1920
Total transport height (mm)2550
Full cab height (mm)2550
Minimum ground clearance (mm)380
Back end turning radius (mm)1650
Track gauge (mm)1520
Track plate width (mm)400
Total track width (mm)1920
Track ground length (mm)1990
Maximum digging radius (mm)6150
Maximum digging depth (mm)3820
Maximum excavation height (mm)5780
Maximum unloading height (mm)4050
Maximum vertical digging depth (mm)3200
Dodging plate width × height (mm)1920 x 350
Maximum excavation radius of stop surface (mm)6010
see more

Overview

No.1046987

Brand Name:

Hyundai

Model Number:

R60-9

Year:

2016

Location:

Fujian China

Pub Date
