Product Description
Discover the reliability and efficiency of the 2020 Hyundai R60-9, a compact excavator designed for versatility and performance. Located in Sichuan, China, this used machine is an excellent choice for construction and utility work, offering robust capabilities at an attractive price point. Ideal for tight spaces, the R60-9 provides ease of operation and maintenance, ensuring minimal downtime and maximum productivity on your job site.
- Year: 2020
- Brand: Hyundai
- Model: R60-9
- Location: Sichuan, China
- Price: 30,000 CNY
| Specifications | Value |
|---|---|
| No. | 1139808 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5660 |
| Bucket capacity (m³) | 0.07-0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Peking |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

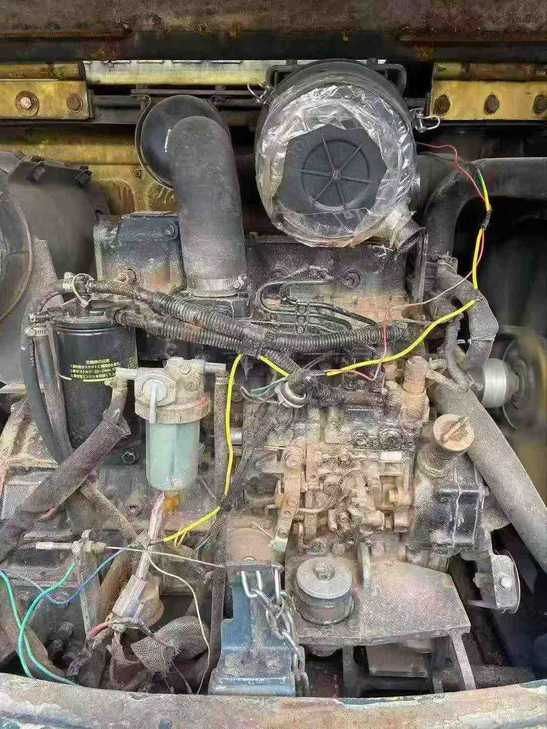

| Engine type | Yanmar Yanma 4TNV94L |
| Rated power (kw/rpm) | 39/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 38.5 |
| Rod digging force (kN) | 29 |
| Travel speed (km/h) | 2.2-4.0 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2× variable axial piston pump + gear pump |
| Fuel Tank (L) | 125 |
| Hydraulic Tank (L) | 70 |
| Total transport length (mm) | 5900 |
| Total transport width (mm) | 1920 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 2550 |
| Minimum ground clearance (mm) | 380 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1520 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 1920 |
| Track ground length (mm) | 1990 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3820 |
| Maximum excavation height (mm) | 5780 |
| Maximum unloading height (mm) | 4050 |
| Maximum vertical digging depth (mm) | 3200 |
| Dodging plate width × height (mm) | 1920 x 350 |
| Maximum excavation radius of stop surface (mm) | 6010 |
