Product Description

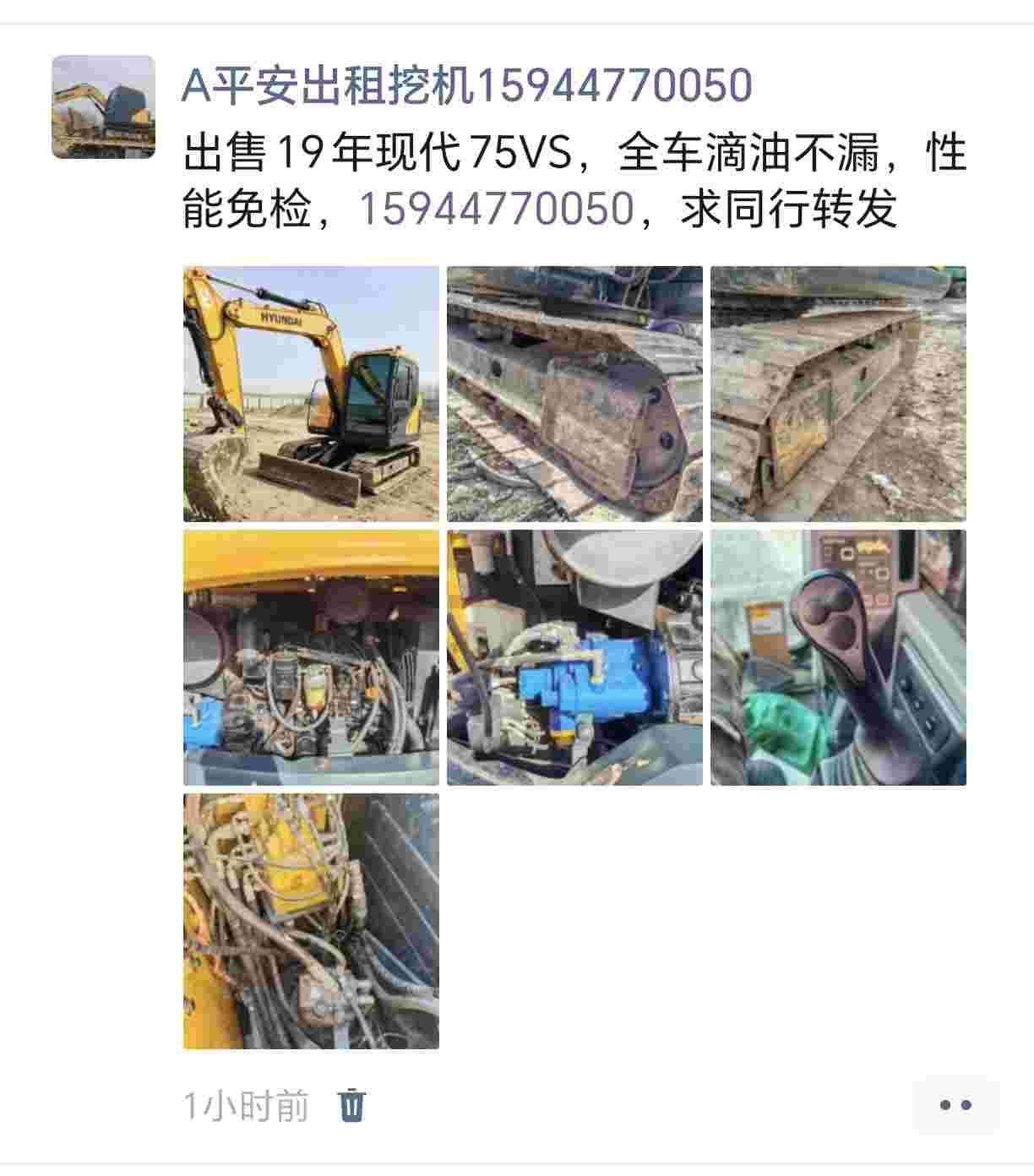

This 2019 Hyundai R75BVS mini excavator offers reliable performance for compact construction applications. Currently located in Jilin, China, this well-maintained unit represents a cost-effective solution for contractors seeking dependable equipment in the 7-ton class.
The machine features premium configuration specifications and has recently undergone comprehensive maintenance by the current owner. Recent service includes fresh engine oil and gear oil changes, ensuring optimal mechanical condition. The unit comes equipped with newly installed hydraulic quick coupler for enhanced versatility, along with narrow bucket and ripper attachments for varied jobsite requirements.
Additional benefits include current insurance coverage, providing peace of mind for immediate deployment. The owner-operator has maintained this excavator with care and is selling due to project completion.
- Year: 2019
- Model: Hyundai R75BVS
- Location: Jilin, China
- Recent maintenance: Engine oil and gear oil serviced
- Includes: Hydraulic quick coupler, narrow bucket, ripper attachment
- Insurance: Current and valid
| Specifications | Value |
|---|---|
| No. | 1055307 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7240 |
| Bucket capacity (m³) | 0.32 |
| Boom length (mm) | 3700 |
| Rod length (mm) | 1670 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV98-Z |
| Rated power (kw/rpm) | 44.4/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Maximum torque (N.m) | 24.5/1575 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.319 |
| Working form | 4 stroke, direct injection engine |
| Rotation speed (rpm) | 12.2 |
| Climbing ability (%) | 58 |
| Travel speed (km/h) | 4.7 / 2.9 |
| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 2 x 75.6 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | 2 variable piston pumps |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-90 * 55 * 665 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-95 * 60 * 860 |
| Boom cylinders - Number × diameter × stroke (mm) | 1-115 x 70 x 980 |
| Fuel Tank (L) | 140 |
| Hydraulic Tank (L) | 75 |
| Engine Oil changes (L) | 12 |
| Coolant (L) | 11 |
| Hydraulic System (L) | 130 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2650 |
| Full cab height (mm) | 2650 |
| Counterweight ground clearance (mm) | 755 |
| Minimum turning radius of front working device (mm) | 1750 |
| Back end turning radius (mm) | 1750 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 38 |
| Maximum digging radius (mm) | 6330 |
| Maximum digging depth (mm) | 4150 |
| Maximum excavation height (mm) | 7260 |
| Maximum unloading height (mm) | 5170 |
| Maximum vertical digging depth (mm) | 3700 |
| Bulldozer lift or depth (mm) | 400/280 |
| Dodging plate width × height (mm) | 2200 x 460 |
| Maximum excavation radius of stop surface (mm) | 6190 |
| Maximum effective digging depth (mm) | 3810 |
