Product Description

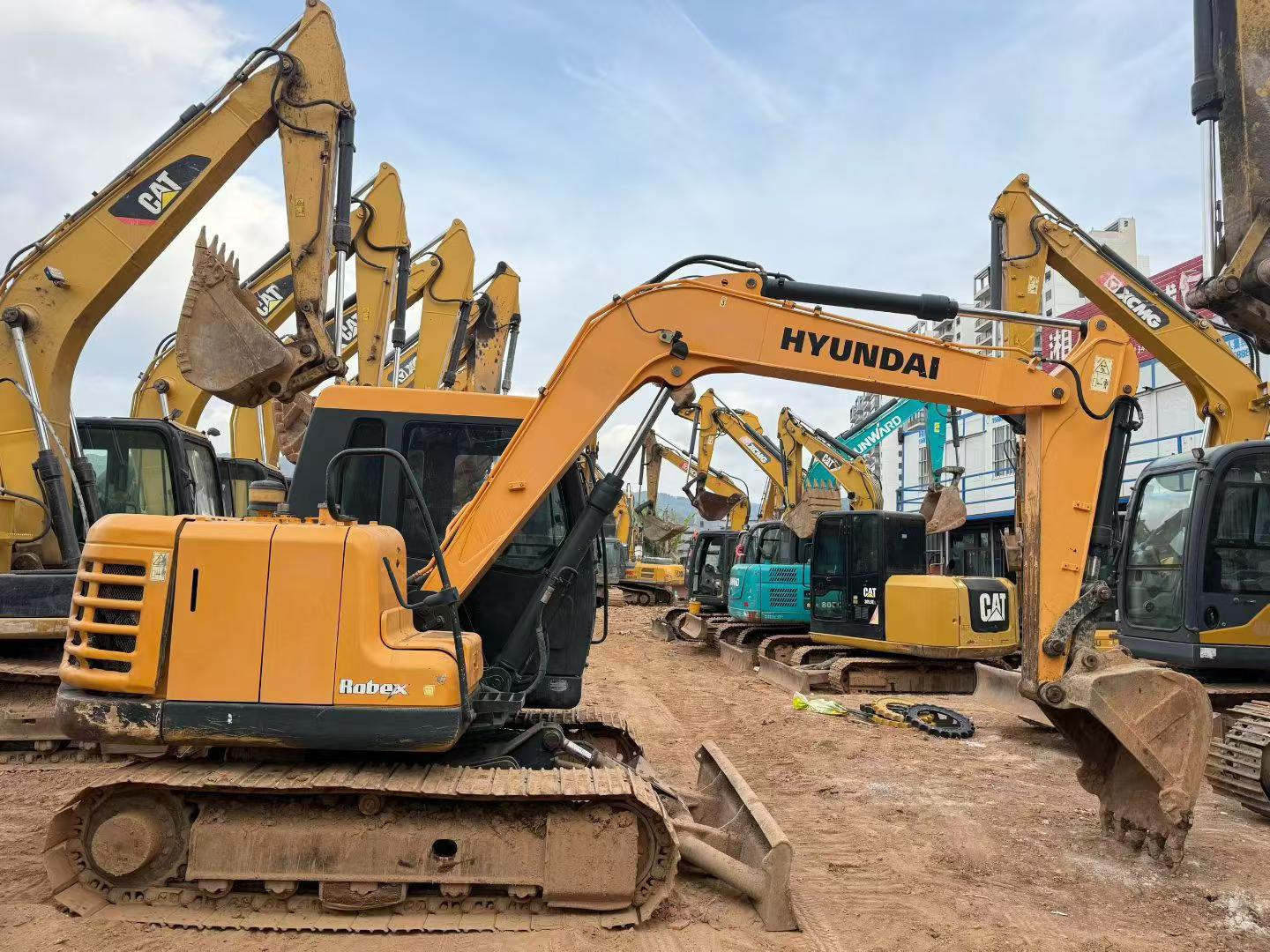

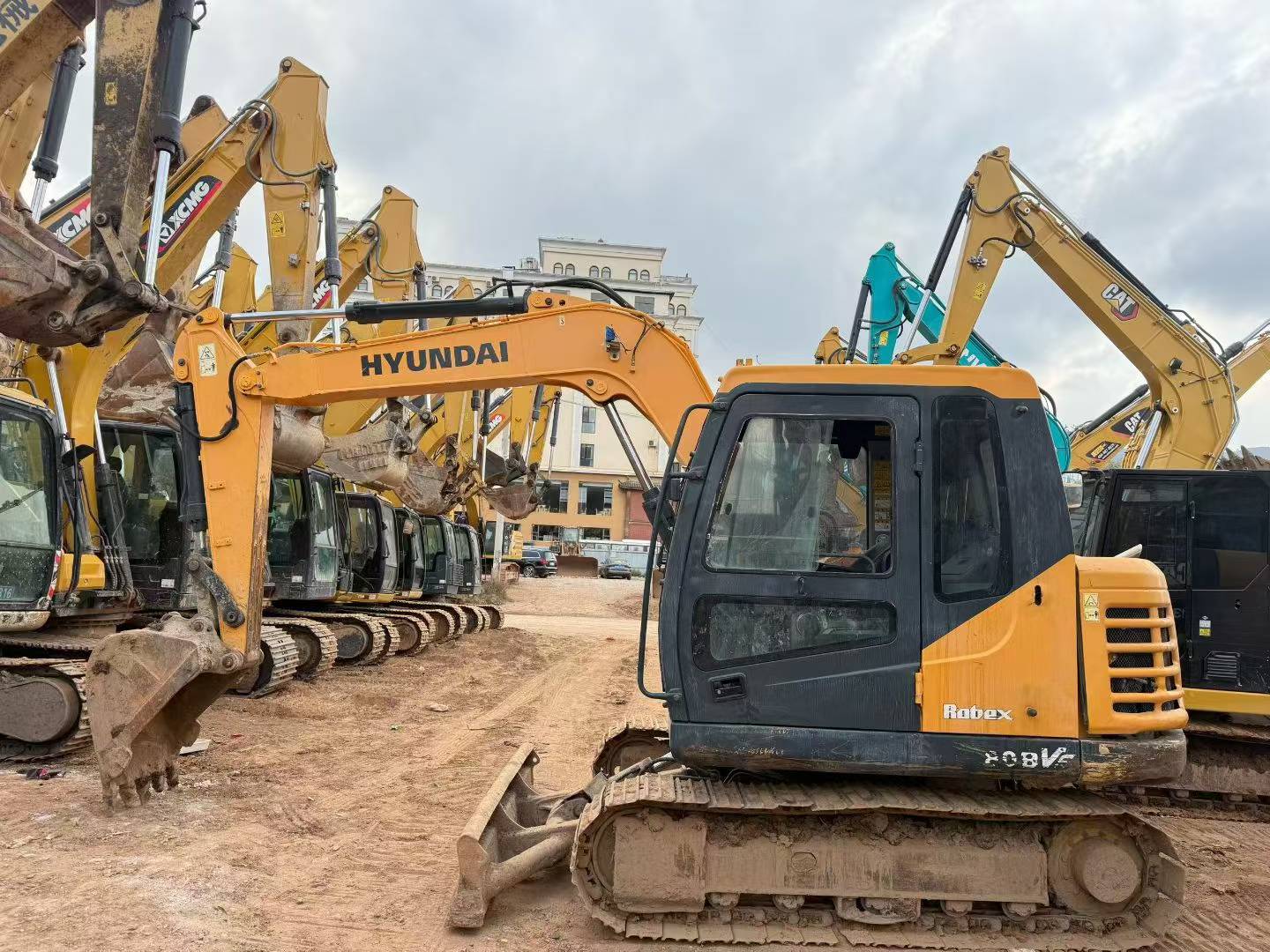

Engineered with precision for mid-range excavation tasks, this 2017 Hyundai R75VS delivers robust performance through its dual variable plunger pump system, each providing 75.6 l/min maximum flow for responsive hydraulic control. Powered by a Yanmar 4TNV98-z engine generating 44.4 kW at 2100 rpm, this 6,800 kg machine combines a compact footprint with serious digging capability—reaching 6,330 mm maximum excavation radius and 4,150 mm depth.
- Dual variable plunger pumps ensure precise hydraulic distribution across all functions
- Water-cooled 4-cylinder engine with 3.319L displacement provides consistent torque delivery

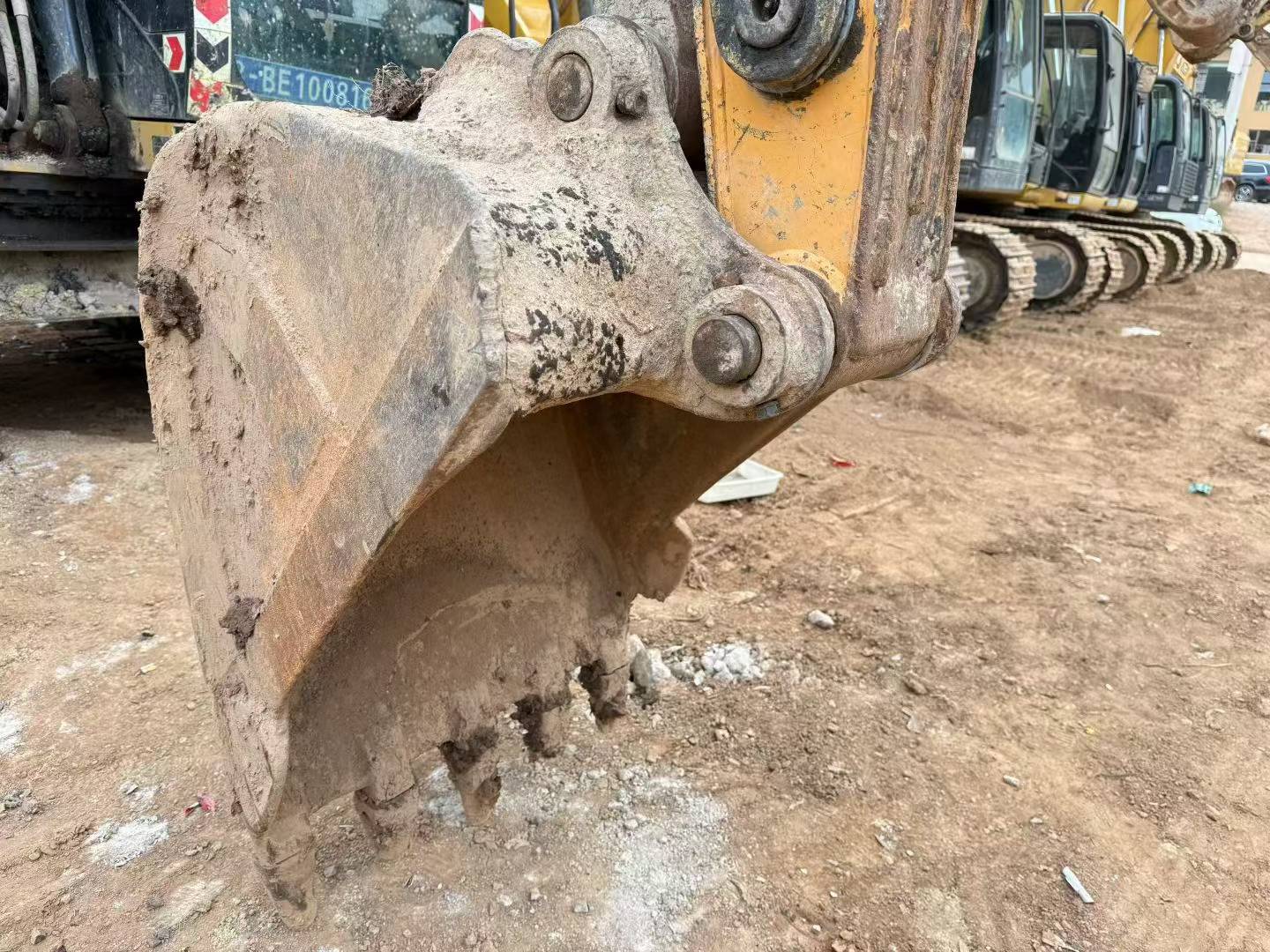

- 0.32 m³ bucket capacity optimized for utility and foundation work
- Two-speed axial plunger walking motors with integrated brake valve and parking brake
- 58% climbing ability and 12.2 rpm rotation speed for versatile site mobility
- 3,700 mm boom and 1,670 mm rod configuration balances reach with breakout force
Currently located in Hunan, this joint-venture manufactured excavator represents Hyundai's commitment to durable construction equipment backed by proven Japanese engine technology. Comprehensive hydraulic system capacity of 130L ensur
| Specifications | Value |
|---|---|
| No. | 1038806 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6800 |
| Bucket capacity (m³) | 0.32 |
| Boom length (mm) | 3700 |
| Rod length (mm) | 1670 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

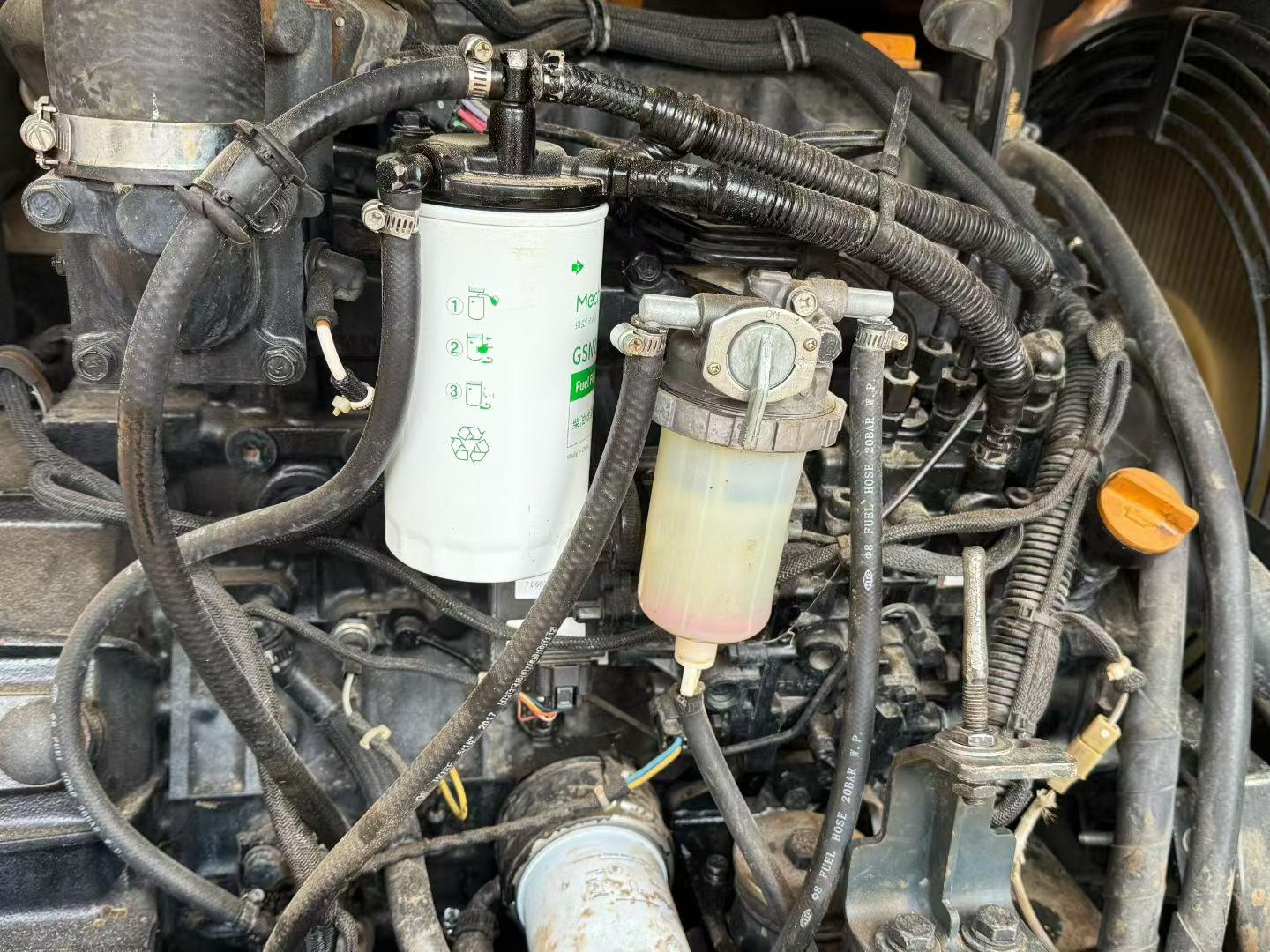

| Engine type | Yanmar 4TNV98-z |
| Rated power (kw/rpm) | 44.4 / 2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Maximum torque (N.m) | 24.5/1575 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.319 |
| Working form | 4 cylinder 4 stroke water cooled direct injection engine |
| Rotation speed (rpm) | 12.2 |
| Climbing ability (%) | 58 |
| Travel speed (km/h) | 4.7 / 2.9 |
| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 2 x 75.6 (2 x 20) |

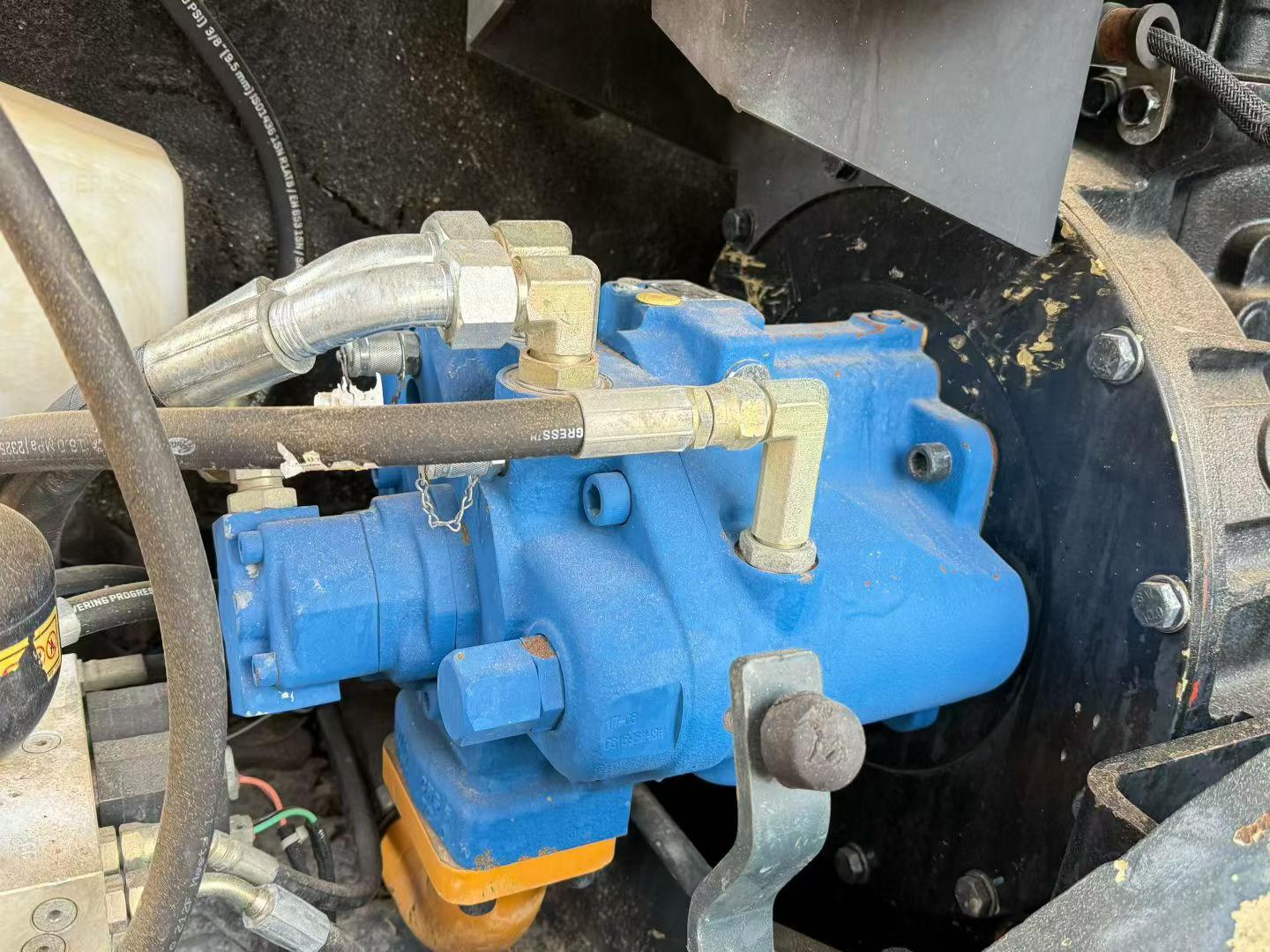

| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 90 * 55 * 665 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 95 * 60 * 860 |
| Boom cylinders - Number × diameter × stroke (mm) | 115 * 70 * 980 |
| Fuel Tank (L) | 140 |
| Hydraulic Tank (L) | 75 |
| Engine Oil changes (L) | 12 |
| Coolant (L) | 11 |
| Hydraulic System (L) | 130 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2690 |

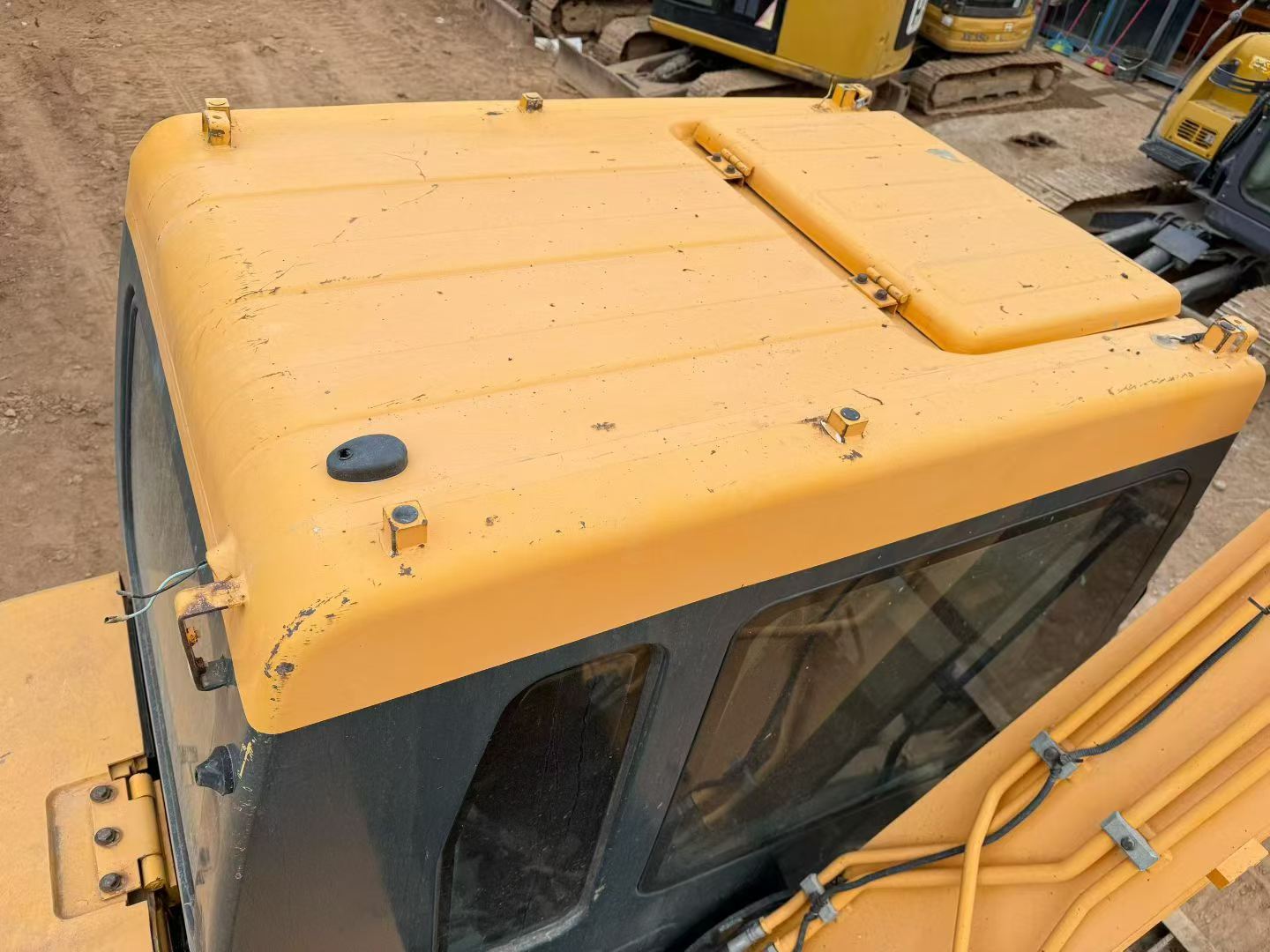

| Full cab height (mm) | 2650 |
| Counterweight ground clearance (mm) | 755 |
| Minimum turning radius of front working device (mm) | 1750 |
| Back end turning radius (mm) | 1750 |
| Onboard width (mm) | 2250 |
| Track plate width (mm) | 450/600 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 38 |
| Maximum digging radius (mm) | 6330 |
| Maximum digging depth (mm) | 4150 |
| Maximum excavation height (mm) | 7260 |
| Maximum unloading height (mm) | 5170 |
| Maximum vertical digging depth (mm) | 3200 |

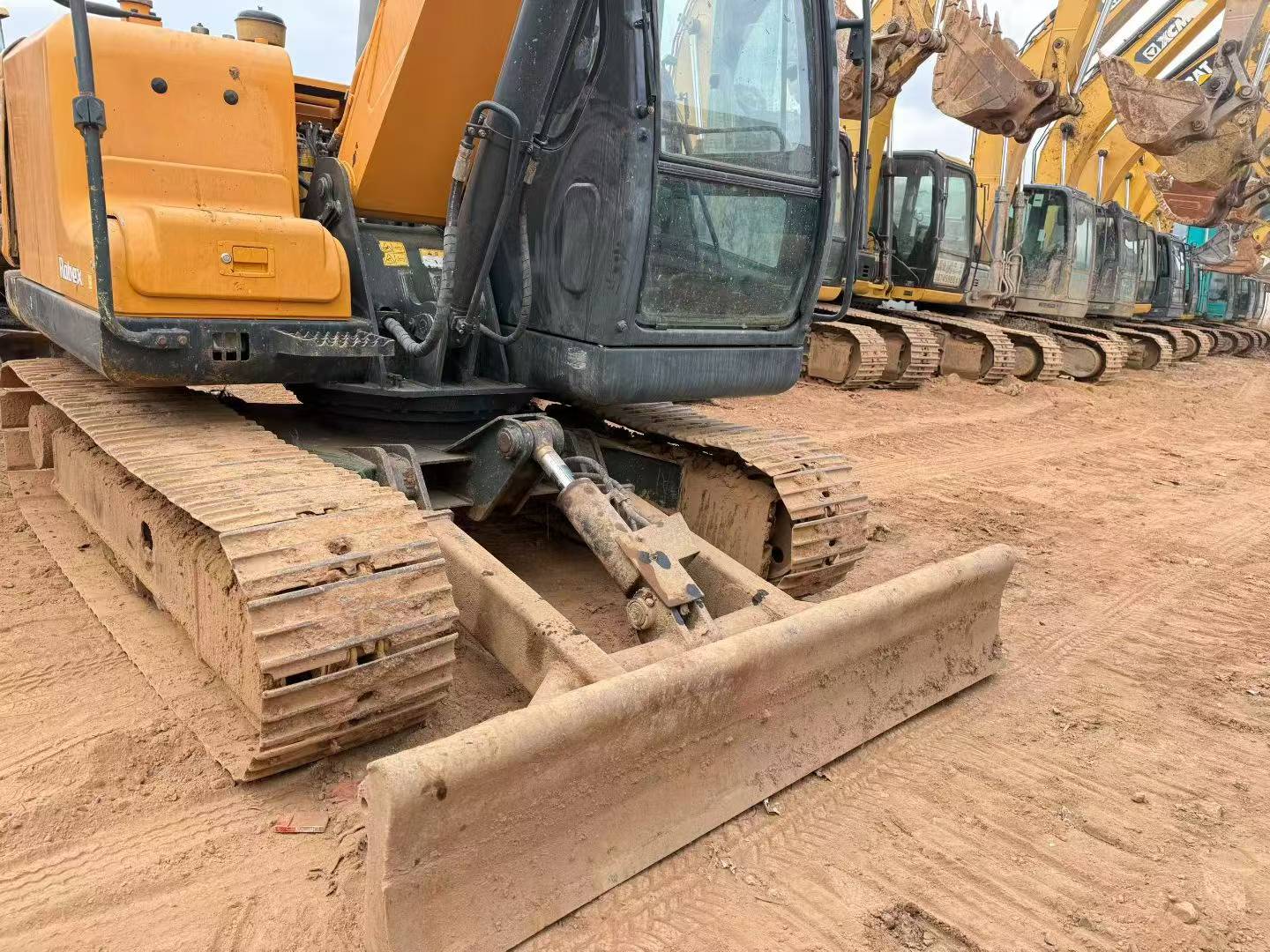

| Bulldozer lift or depth (mm) | 400/280 |
| Dodging plate width × height (mm) | 2200*460 |
| Maximum excavation radius of stop surface (mm) | 6190 |
| Maximum effective digging depth (mm) | 3810 |
