Product Description

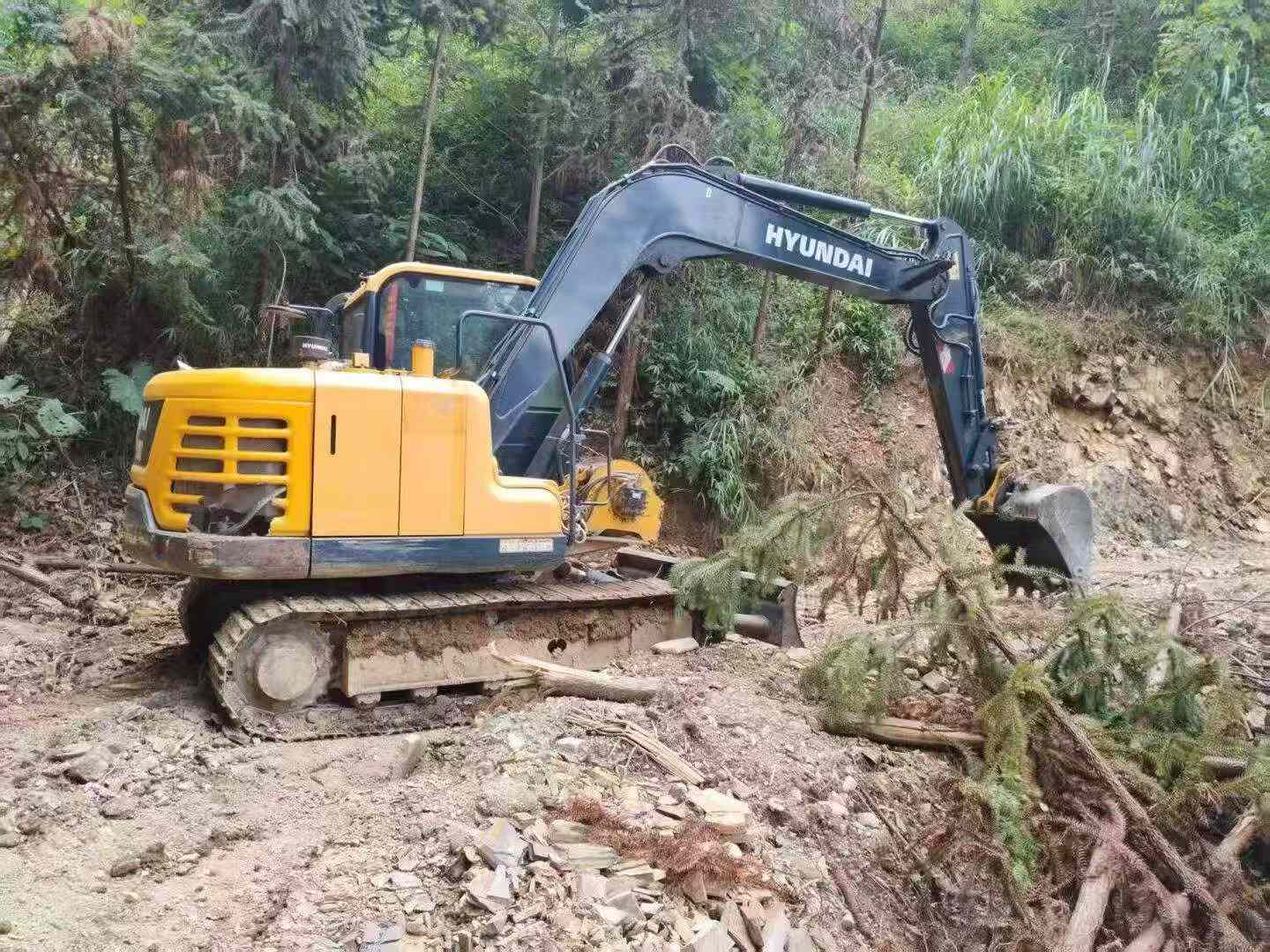

Discover the 2021 Hyundai R75VS, a robust and versatile excavator available for purchase from Guangxi, China. This machine is well-equipped with a bucket, grapple, and a winch, making it an ideal choice for a variety of construction and excavation tasks. With just over 110,000 kilometers on the clock, this R75VS has been maintained to high standards, ensuring reliability and performance. Ideal for contractors and construction firms looking for a dependable and multi-functional piece of equipment, this Hyundai model is ready to meet the demands of your next project.
- Year: 2021
- Brand: Hyundai
- Model: R75VS
- Location: Guangxi, China

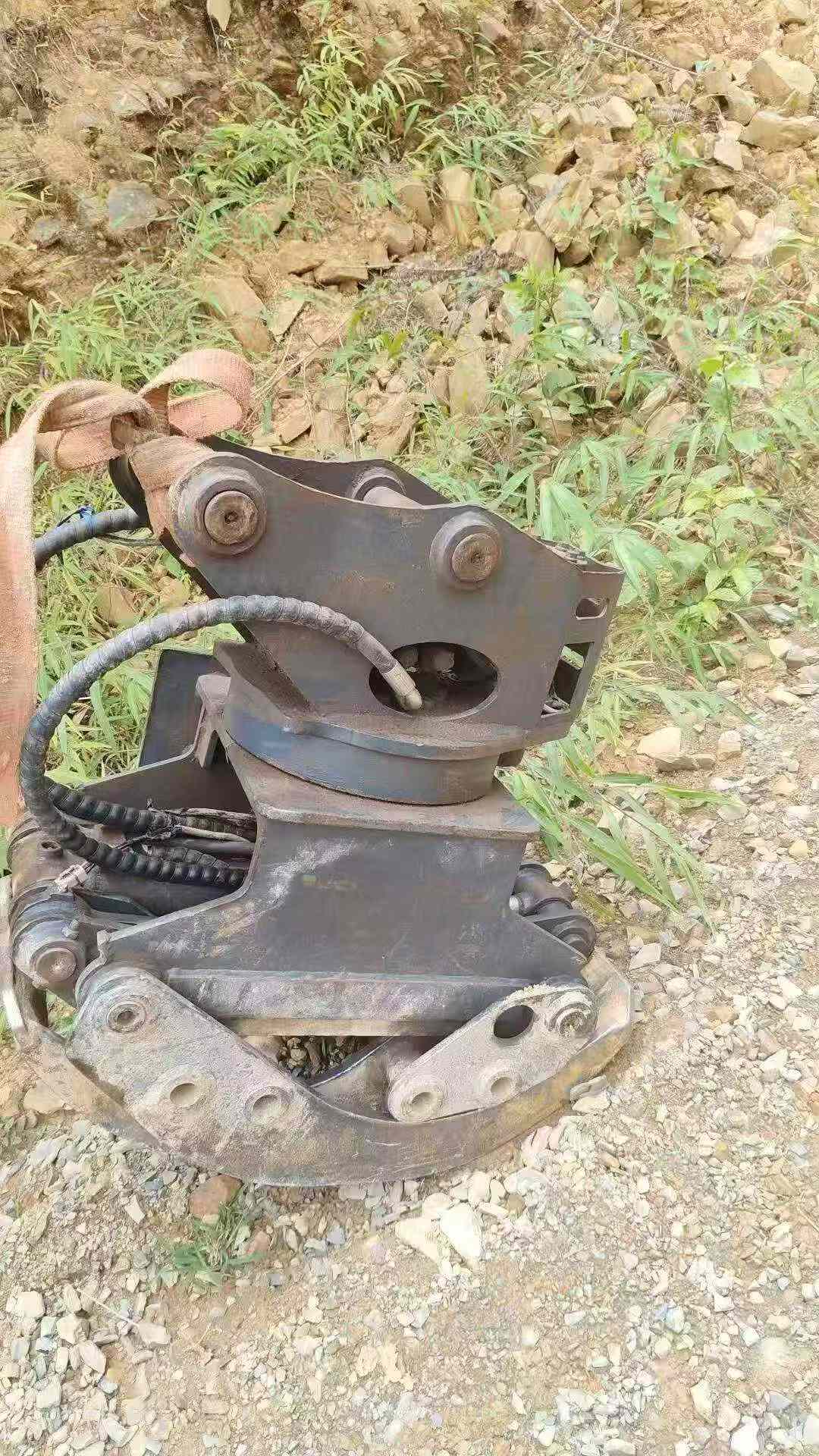

- Features: Bucket, Grapple, Winch
- Mileage: Over 110,000 km
| Specifications | Value |
|---|---|
| No. | 1085117 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6800 |
| Bucket capacity (m³) | 0.32 |
| Boom length (mm) | 3700 |
| Rod length (mm) | 1670 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

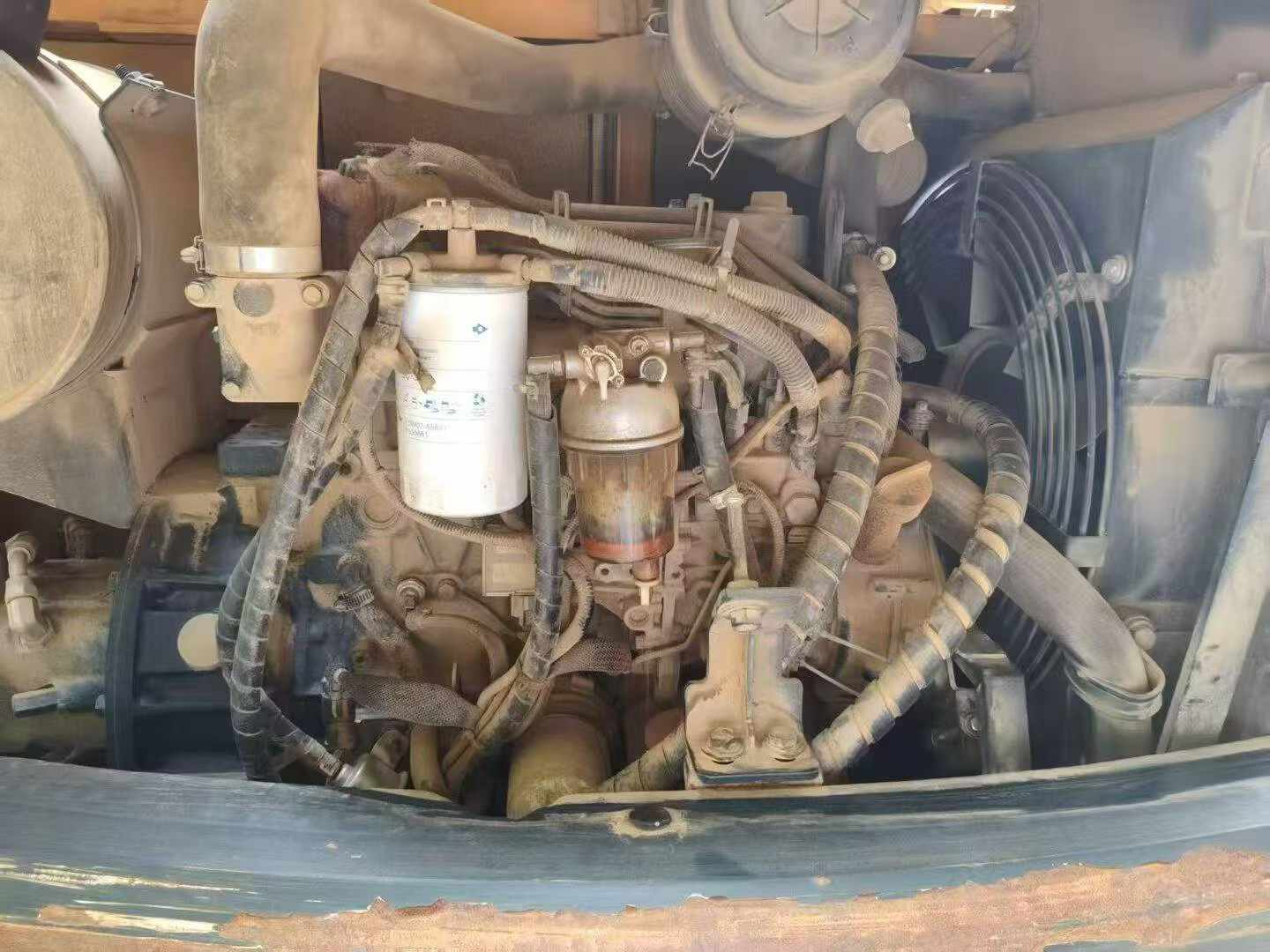

| Engine type | Yanmar 4TNV98-z |
| Rated power (kw/rpm) | 44.4 / 2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Maximum torque (N.m) | 24.5/1575 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.319 |
| Working form | 4 cylinder 4 stroke water cooled direct injection engine |
| Rotation speed (rpm) | 12.2 |
| Climbing ability (%) | 58 |
| Travel speed (km/h) | 4.7 / 2.9 |
| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 2 x 75.6 (2 x 20) |

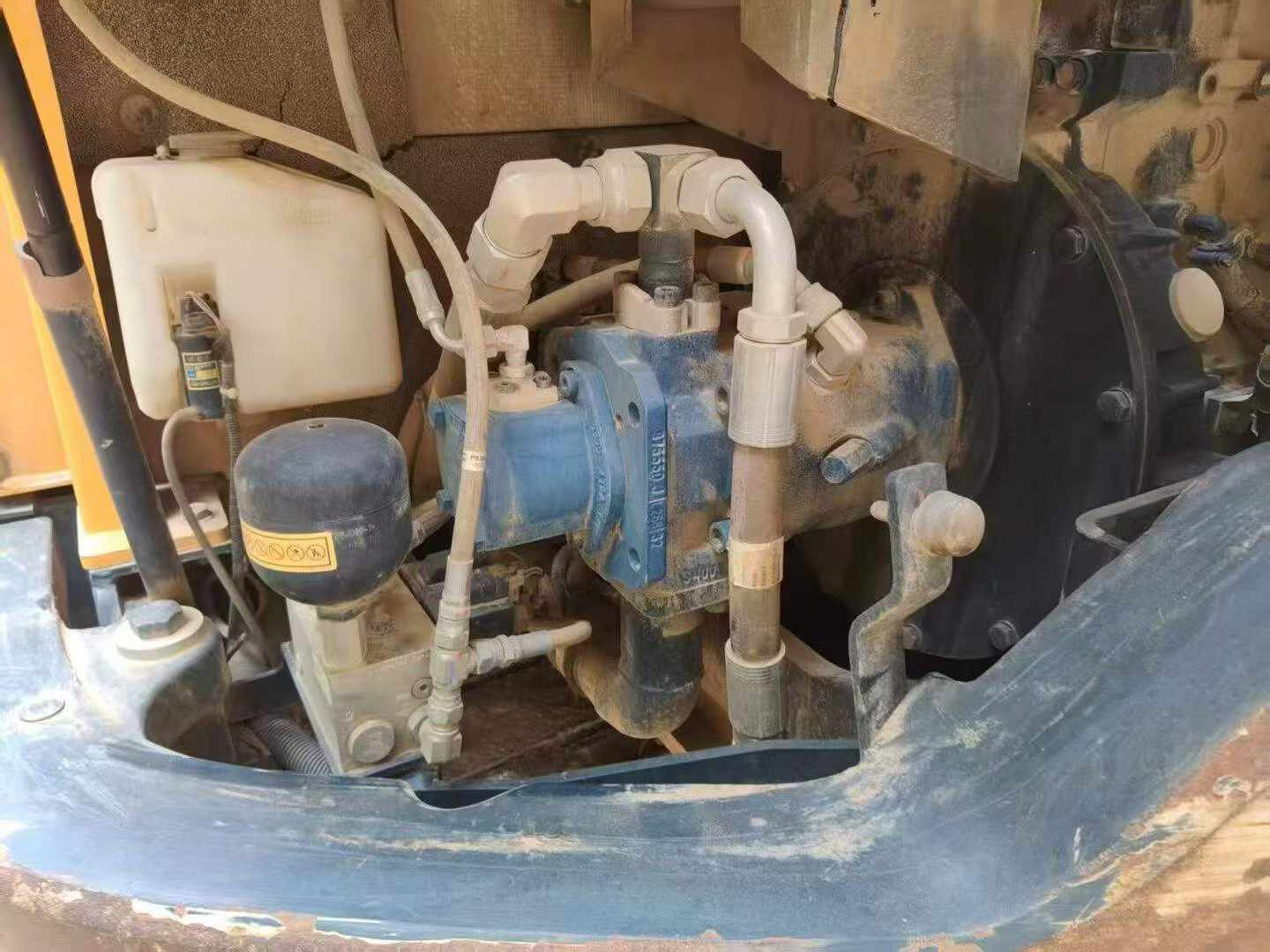

| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 90 * 55 * 665 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 95 * 60 * 860 |
| Boom cylinders - Number × diameter × stroke (mm) | 115 * 70 * 980 |
| Fuel Tank (L) | 140 |
| Hydraulic Tank (L) | 75 |
| Engine Oil changes (L) | 12 |
| Coolant (L) | 11 |
| Hydraulic System (L) | 130 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2690 |
| Full cab height (mm) | 2650 |
| Counterweight ground clearance (mm) | 755 |
| Minimum turning radius of front working device (mm) | 1750 |
| Back end turning radius (mm) | 1750 |
| Onboard width (mm) | 2250 |
| Track plate width (mm) | 450/600 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 38 |
| Maximum digging radius (mm) | 6330 |
| Maximum digging depth (mm) | 4150 |
| Maximum excavation height (mm) | 7260 |
| Maximum unloading height (mm) | 5170 |
| Maximum vertical digging depth (mm) | 3200 |
| Bulldozer lift or depth (mm) | 400/280 |
| Dodging plate width × height (mm) | 2200*460 |
| Maximum excavation radius of stop surface (mm) | 6190 |
| Maximum effective digging depth (mm) | 3810 |
