Product Description

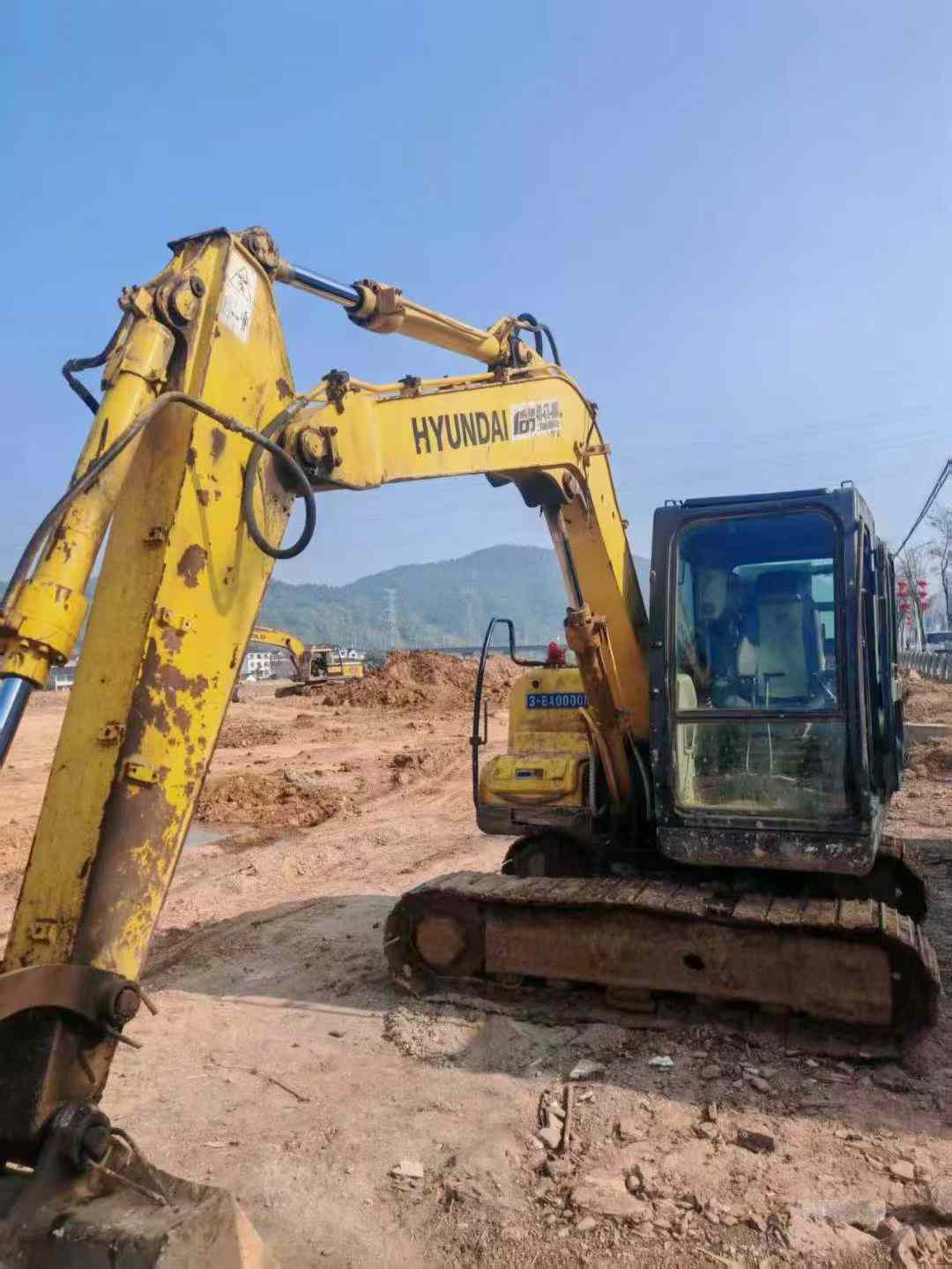

With a working weight of 7801.8 kg and an 8-ton capacity, this 2016 Hyundai R80-7 excavator is a robust addition to any contractor's fleet. Ideal for both primary and backup roles, it offers a bucket capacity of 0.28 m³ and a boom length of 3700 mm, ensuring versatility in various construction tasks. Powered by a Yanmar 4TNV94L engine, delivering 44.7 kW, this machine provides reliable performance with water-cooling technology. Its 4-cylinder, 3.3 L displacement engine ensures efficient operation, while the axial variable piston motor enhances its rotary and travel capabilities. Featuring a maximum digging radius of 6330 mm and a maximum digging depth of 4150 mm, this excavator is well-suited for demanding projects. Located in 浙江杭州, this unit is ready to integrate seamlessly into your existing fleet, providing the necessary support during peak workloads.
| Specifications | Value |
|---|---|
| No. | 1027942 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7801.8 |
| Bucket capacity (m³) | 0.28 |
| Boom length (mm) | 3700 |
| Rod length (mm) | 1670 |
| Country of origin | Peking |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

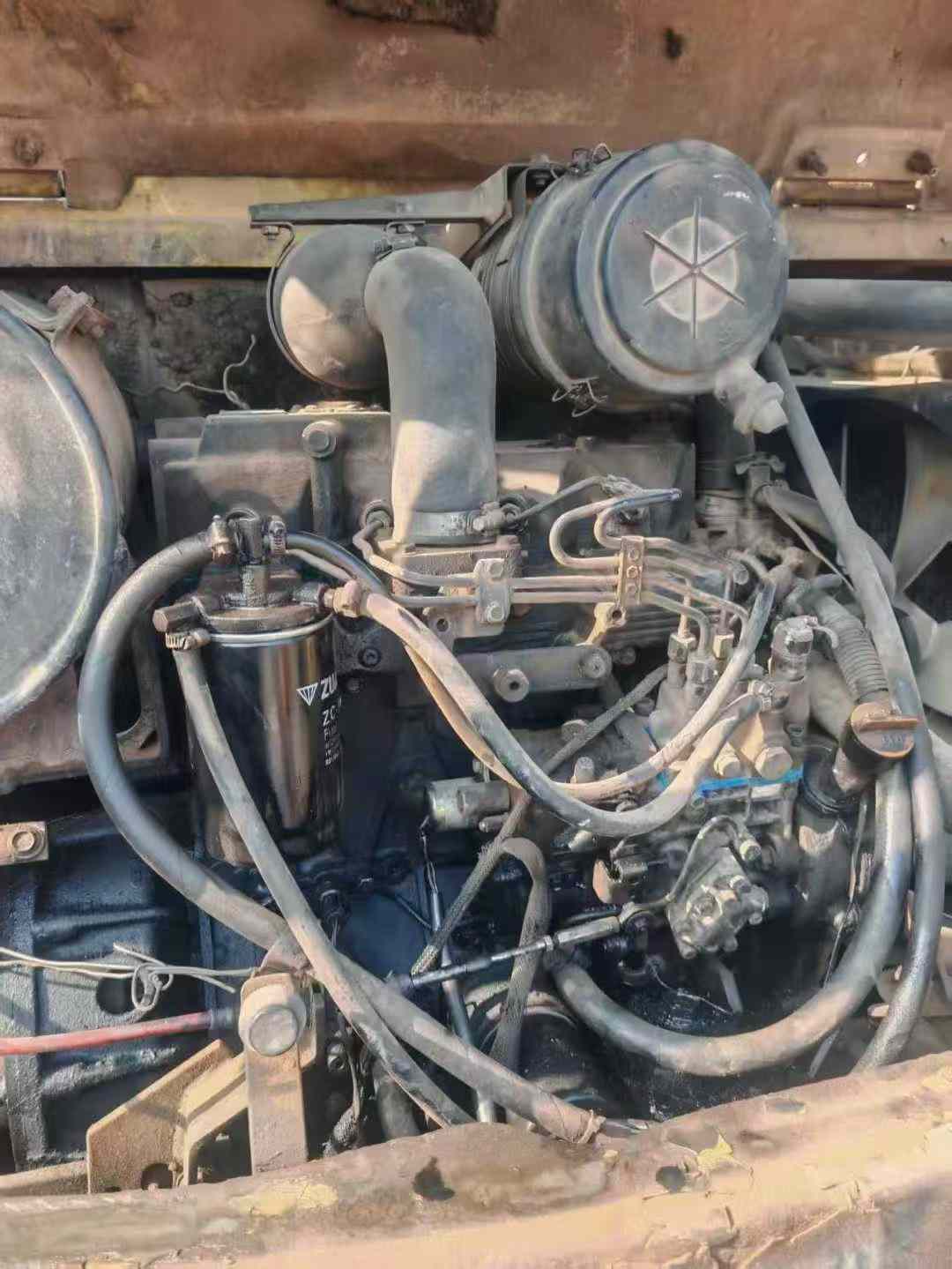

| Engine type | Yanmar Yanma 4TNV94L |
| Rated power (kw/rpm) | 44.7 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.3 |
| Ground specific pressure (Kpa) | 32.3 |
| Rotation speed (rpm) | 12 |
| Bucket digging force (kN) | 44.1 |
| Rod digging force (kN) | 38.2 |
| Travel speed (km/h) | 4.8 |
| Rotary hydraulic motor type | Axial quantitative plunger motor |
| Type of walking hydraulic motor | Axial variable piston motor |
| Maximum flow of main pump (l/min) | 2 x 75.6 |
| Traveling Hydraulic Circuit (Mpa) | 30 |
| Rotary Hydraulic Circuit (Mpa) | 190 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2× variable axial piston pump |
| Working Hydraulic Circuit (Mpa) | 28 |
| Pilot Oil Circuit (MPa) | 3.5 |
| Fuel Tank (L) | 135 |
| Engine Oil changes (L) | 12 |
| Coolant (L) | 10.8 |
| Hydraulic System (L) | 130 |
| Total transport length (mm) | 6325 |
| Total transport width (mm) | 2200 |
| Total transport height (mm) | 2640 |
| Full cab height (mm) | 2640 |
| Counterweight ground clearance (mm) | 760 |
| Minimum ground clearance (mm) | 360 |
| Back end turning radius (mm) | 1750 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2200 |
| Track ground length (mm) | 2130 |
| Maximum digging radius (mm) | 6330 |
| Maximum digging depth (mm) | 4150 |
| Maximum excavation height (mm) | 7260 |
| Maximum unloading height (mm) | 5170 |
| Maximum vertical digging depth (mm) | 3200 |
| Maximum excavation radius of stop surface (mm) | 6190 |
