Product Description
Available now in 江西赣州, this 2016 Hyundai R80-7 excavator eliminates factory lead times and delivers immediate productivity to your jobsite. Powered by a reliable Yanmar 4TNV94L engine producing 44.7kW, this 8-ton machine combines proven performance with rapid deployment capability. Skip the waiting—secure this ready-to-work unit and maintain your project timeline without compromise.
- Working weight: 7,801.8 kg with 0.28 m³ bucket capacity
- Maximum digging depth: 4,150 mm; maximum reach: 6,330 mm
- Dual variable axial piston pumps: 2 × 75.6 l/min flow rate
- Water-cooled 4-cylinder engine: 3.3L displacement, 4.8 km/h travel speed
- Compact transport dimensions: 6,325 mm × 2,200 mm × 2,640 mm
- Bucket digging force: 44.1 kN; rod digging force: 38.2 kN
- Located in 江西赣州 for fast deployment to your site
Hydraulic system capacity of 130L and 135L fuel tank ensure extended operation between services. This joint venture-manufactured unit represents immediate availability in the 赣州 region—contact us today for rapid site delivery.
| Specifications | Value |
|---|---|
| No. | 999136 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7801.8 |
| Bucket capacity (m³) | 0.28 |
| Boom length (mm) | 3700 |
| Rod length (mm) | 1670 |
| Country of origin | Peking |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

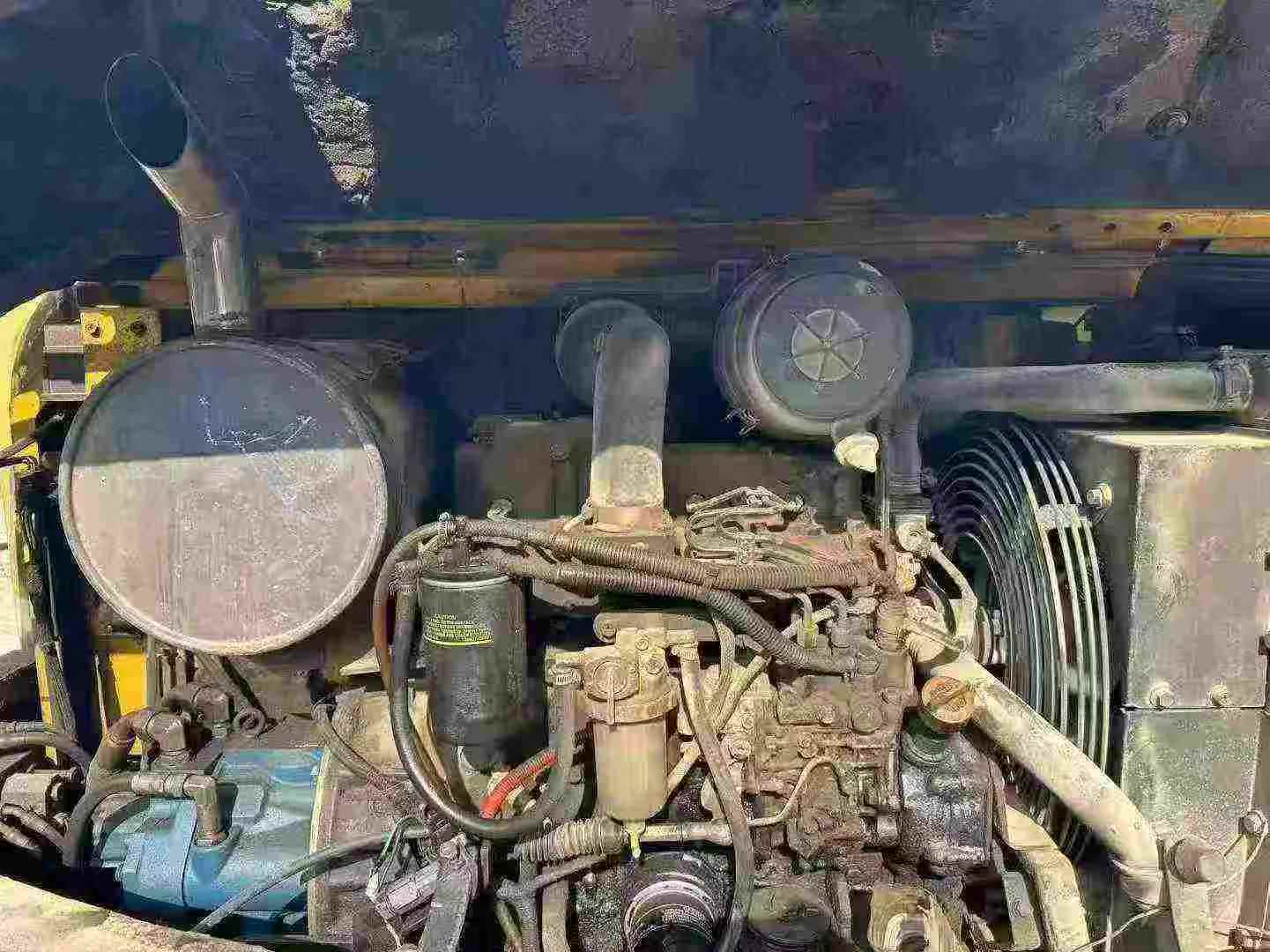

| Engine type | Yanmar Yanma 4TNV94L |
| Rated power (kw/rpm) | 44.7 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.3 |
| Ground specific pressure (Kpa) | 32.3 |
| Rotation speed (rpm) | 12 |
| Bucket digging force (kN) | 44.1 |
| Rod digging force (kN) | 38.2 |
| Travel speed (km/h) | 4.8 |
| Rotary hydraulic motor type | Axial quantitative plunger motor |
| Type of walking hydraulic motor | Axial variable piston motor |
| Maximum flow of main pump (l/min) | 2 x 75.6 |
| Traveling Hydraulic Circuit (Mpa) | 30 |
| Rotary Hydraulic Circuit (Mpa) | 190 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2× variable axial piston pump |
| Working Hydraulic Circuit (Mpa) | 28 |
| Pilot Oil Circuit (MPa) | 3.5 |
| Fuel Tank (L) | 135 |
| Engine Oil changes (L) | 12 |
| Coolant (L) | 10.8 |
| Hydraulic System (L) | 130 |
| Total transport length (mm) | 6325 |
| Total transport width (mm) | 2200 |
| Total transport height (mm) | 2640 |
| Full cab height (mm) | 2640 |
| Counterweight ground clearance (mm) | 760 |
| Minimum ground clearance (mm) | 360 |
| Back end turning radius (mm) | 1750 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2200 |
| Track ground length (mm) | 2130 |
| Maximum digging radius (mm) | 6330 |
| Maximum digging depth (mm) | 4150 |
| Maximum excavation height (mm) | 7260 |
| Maximum unloading height (mm) | 5170 |
| Maximum vertical digging depth (mm) | 3200 |
| Maximum excavation radius of stop surface (mm) | 6190 |
