Product Description
Built for precision work in demanding environments, this 2024 Hyundai R80G mini excavator combines responsive handling with proven reliability. Operating at 7,400 kg working weight with a 0.32 m³ bucket capacity, operators benefit from the Yanmar 4TNV98-T turbocharged engine delivering 76.8 kW at 2,200 rpm. Smooth rotation at 10.44 rpm enables efficient positioning without constant track adjustment.
Cabin design prioritizes visibility across a 6,330 mm maximum digging radius, while the compact 1,750 mm back-end turning radius allows confident maneuvering in restricted spaces. Maximum digging depth reaches 4,150 mm, suitable for utility trenching and foundation work. The machine's 1,750 mm track gauge provides stable footing on uneven terrain, reducing operator fatigue during extended shifts.
- Location: Kunming, Yunnan

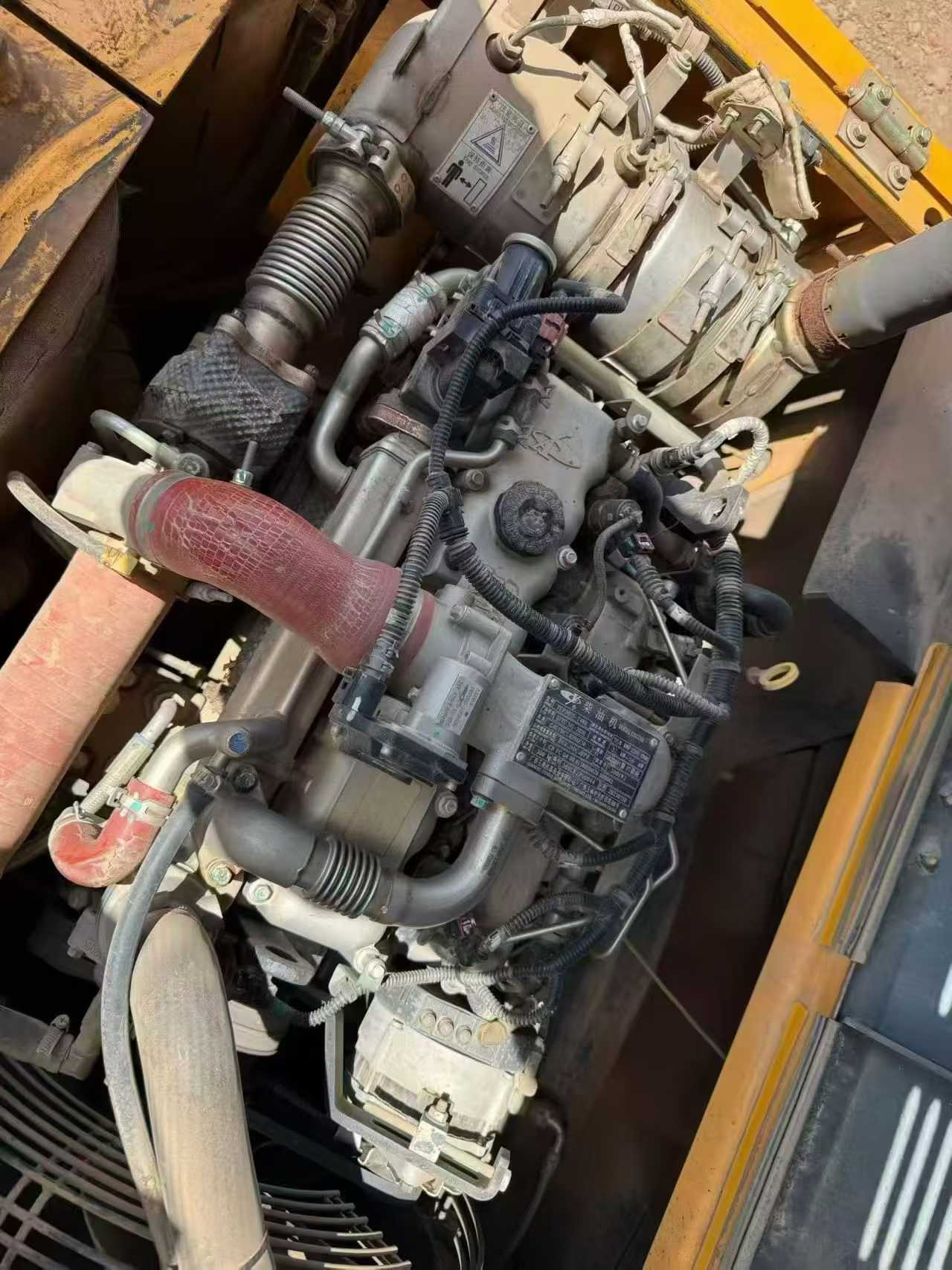

- Engine: Yanmar 4TNV98-T turbocharged, 3.319 L displacement
- Transport Dimensions: 6,080 mm (L) × 2,690 mm (H)
- Maximum Torque: 310 N·m at 1,500 rpm
Currently available in Kunming, this joint venture-manufactured excavator represents modern compact equipment standards with straightforward main
| Specifications | Value |
|---|---|
| No. | 1036738 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7400 |
| Bucket capacity (m³) | 0.32 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV98 T |
| Rated power (kw/rpm) | 76.8/2200 |
| Maximum torque (N.m) | 31/1500 |
| Displacement (L) | 3319 |
| Working form | turbocharging |
| Rotation speed (rpm) | 10.44 |
| Total transport length (mm) | 6080 |
| Total transport height (mm) | 2690 |
| Back end turning radius (mm) | 1750 |
| Track gauge (mm) | 1750 |
| Maximum digging radius (mm) | 6330 |
| Maximum digging depth (mm) | 4150 |
