Product Description

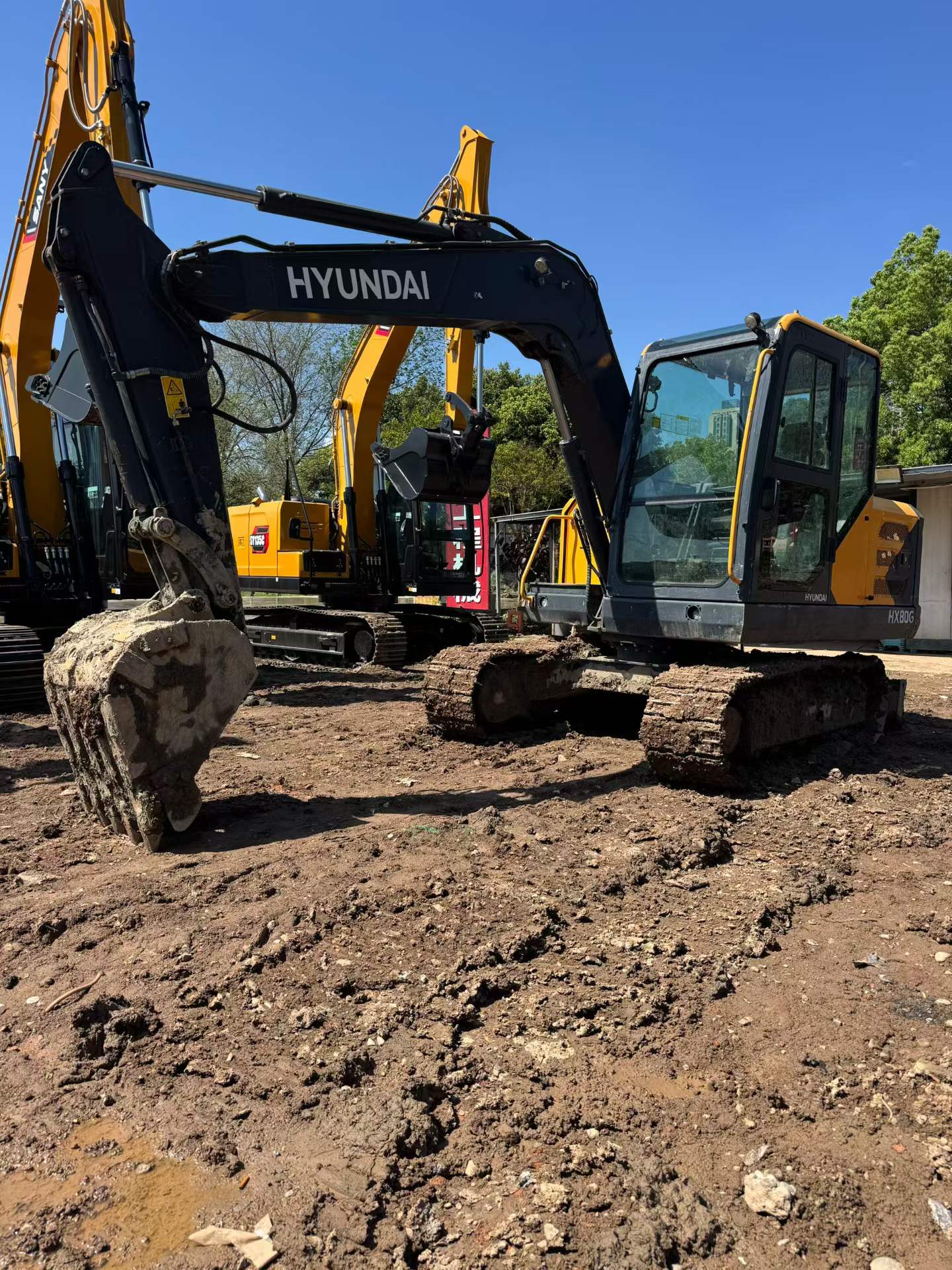

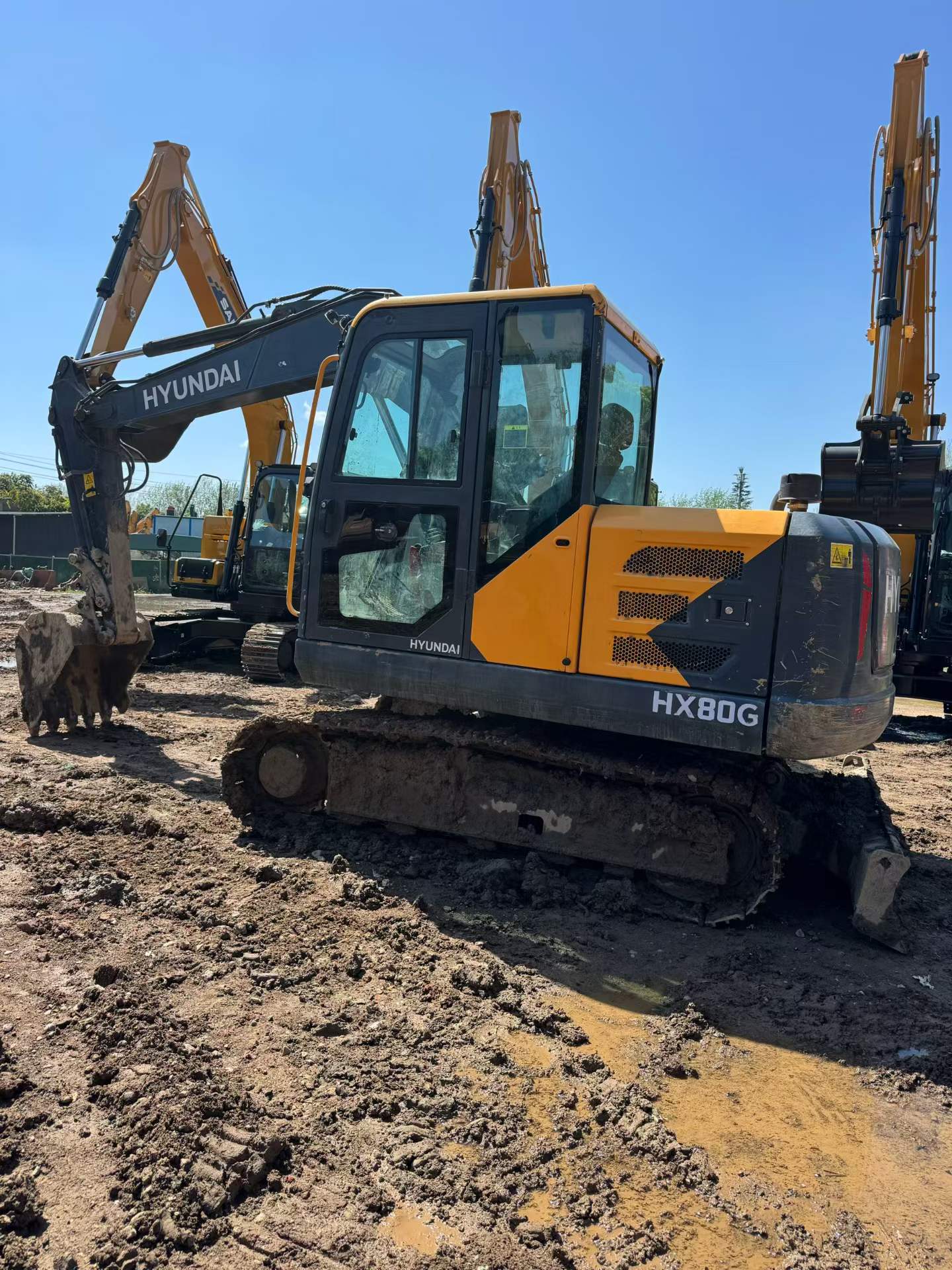

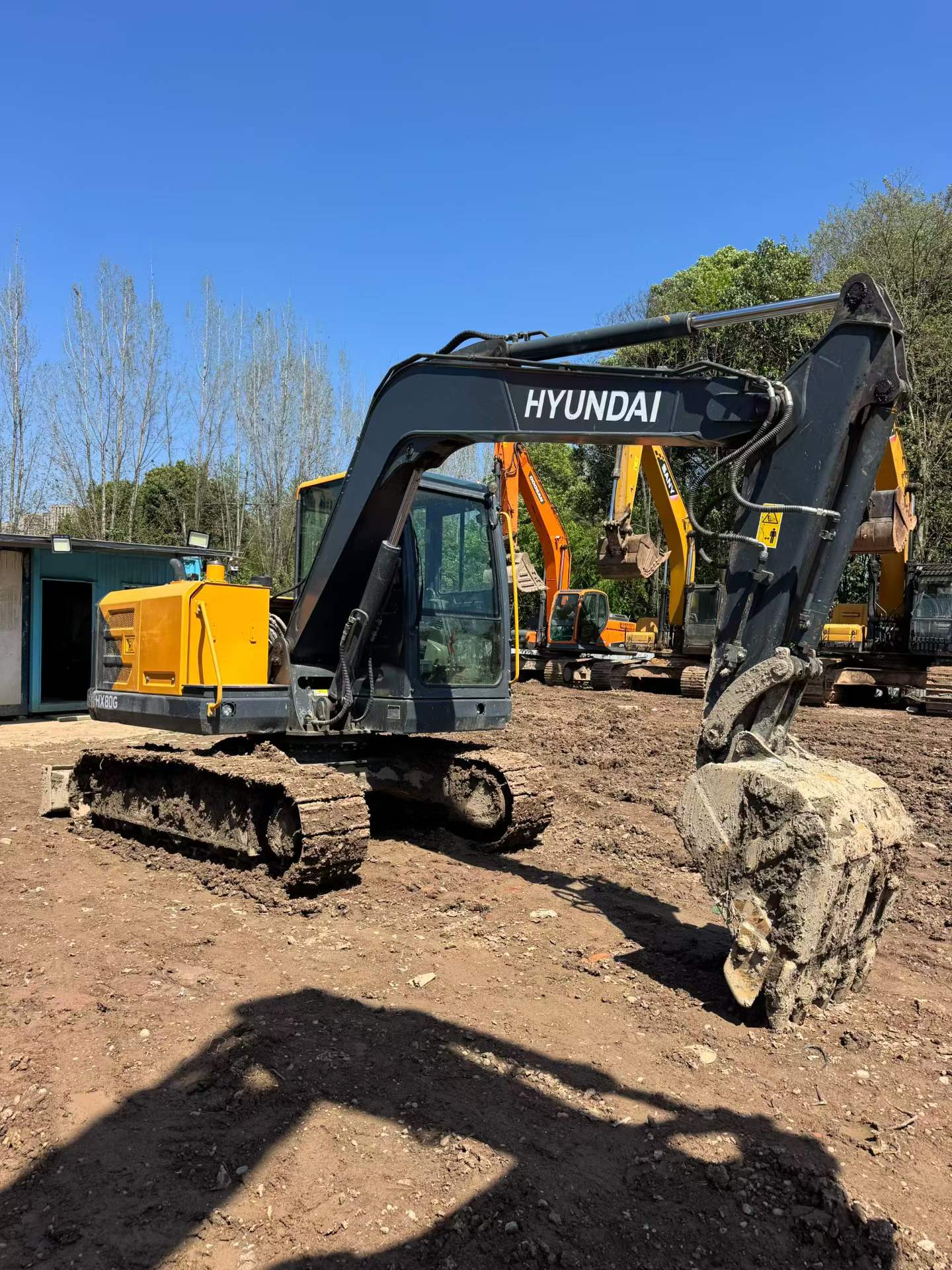

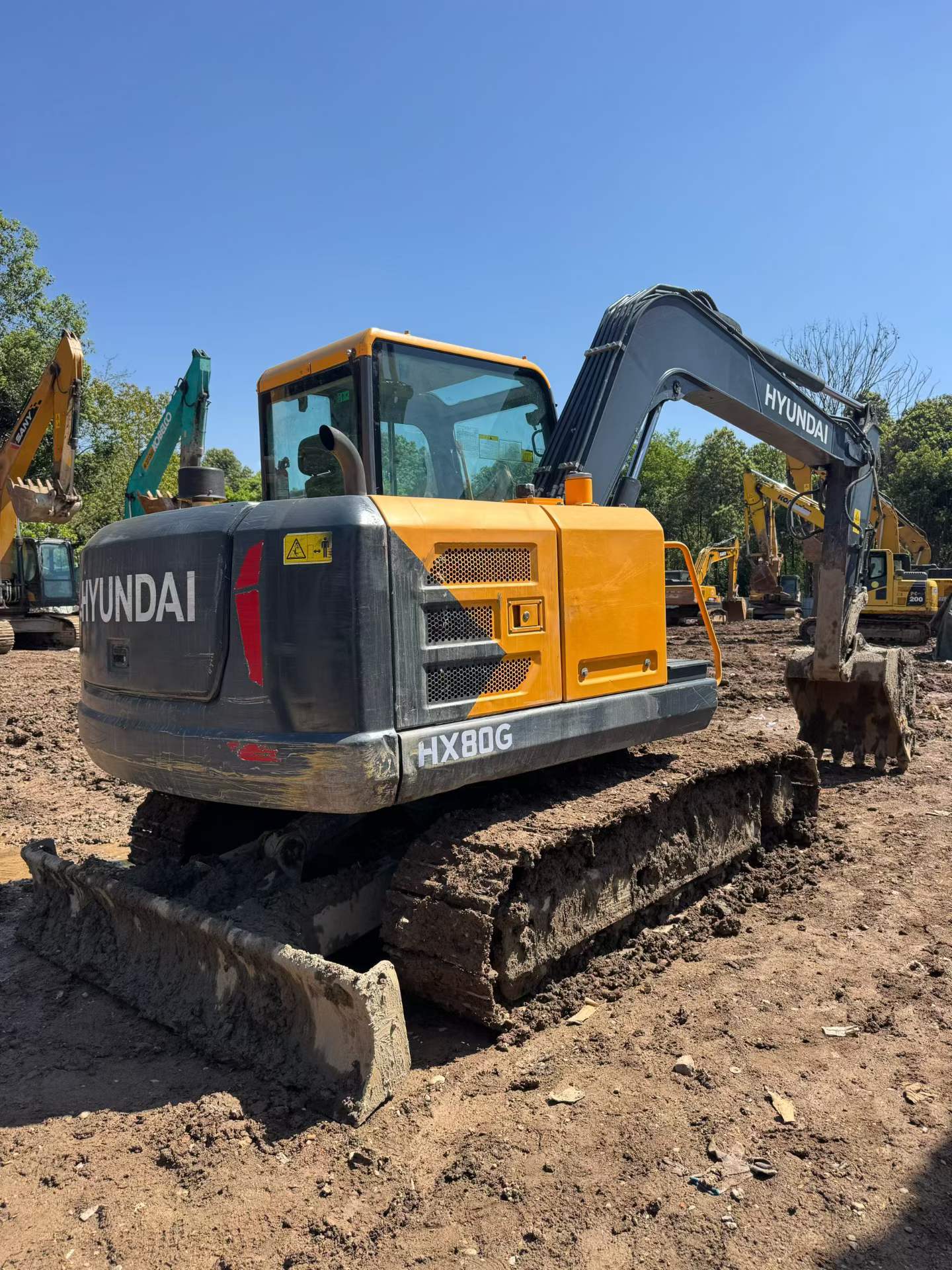

Built for precision and daily reliability, this 2024 Hyundai R80G mini excavator delivers exceptional operator control across demanding jobsites. Powered by a Yanmar 4TNV98-T turbocharged engine producing 76.8 kW at 2200 rpm, this 8-ton machine combines responsive hydraulics with a compact 1750 mm back-end turning radius for work in confined spaces. Operators benefit from enhanced cabin visibility and intuitive controls that reduce fatigue during extended shifts.
- Working weight: 7,400 kg with 0.32 m³ bucket capacity
- Maximum digging depth: 4,150 mm; digging radius: 6,330 mm

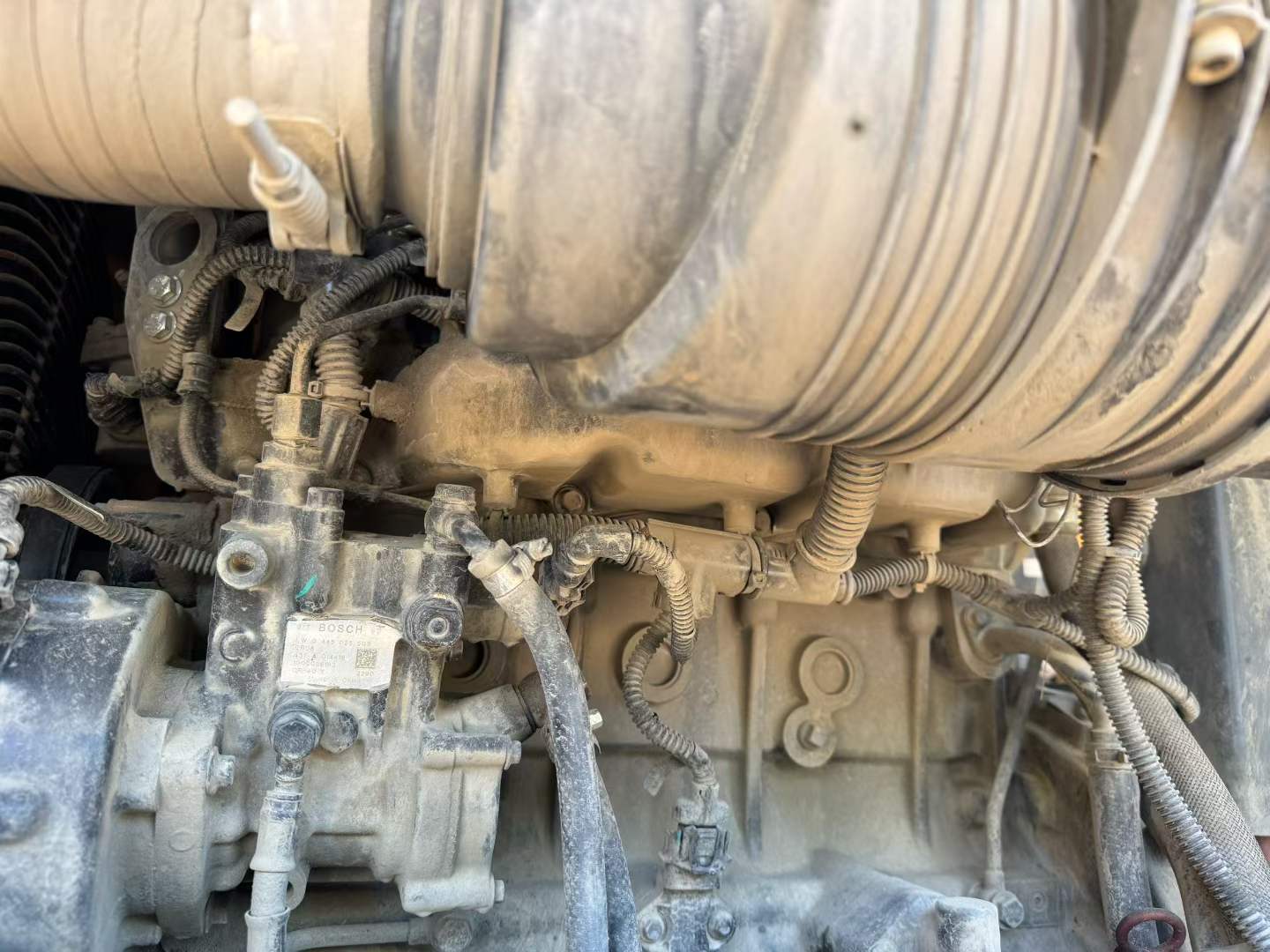

- Yanmar turbocharged diesel: 310 N·m torque at 1500 rpm, 3.319 L displacement
- Rotation speed: 10.44 rpm for smooth, controlled swing performance
- Compact transport dimensions: 6,080 mm length × 2,690 mm height
- 1,750 mm track gauge ensures stable operation on slopes and uneven terrain
- Currently located in Sichuan, China—ready for immediate deployment
Designed with operator comfort in mind, this R80G offers superior handling stability and clear sightlines to bucket and trench, minimizing blind spots and maximizing productivity on every project.
| Specifications | Value |
|---|---|
| No. | 1046081 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7400 |
| Bucket capacity (m³) | 0.32 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV98 T |
| Rated power (kw/rpm) | 76.8/2200 |
| Maximum torque (N.m) | 31/1500 |
| Displacement (L) | 3319 |
| Working form | turbocharging |
| Rotation speed (rpm) | 10.44 |
| Total transport length (mm) | 6080 |
| Total transport height (mm) | 2690 |
| Back end turning radius (mm) | 1750 |
| Track gauge (mm) | 1750 |
| Maximum digging radius (mm) | 6330 |
| Maximum digging depth (mm) | 4150 |
