Product Description

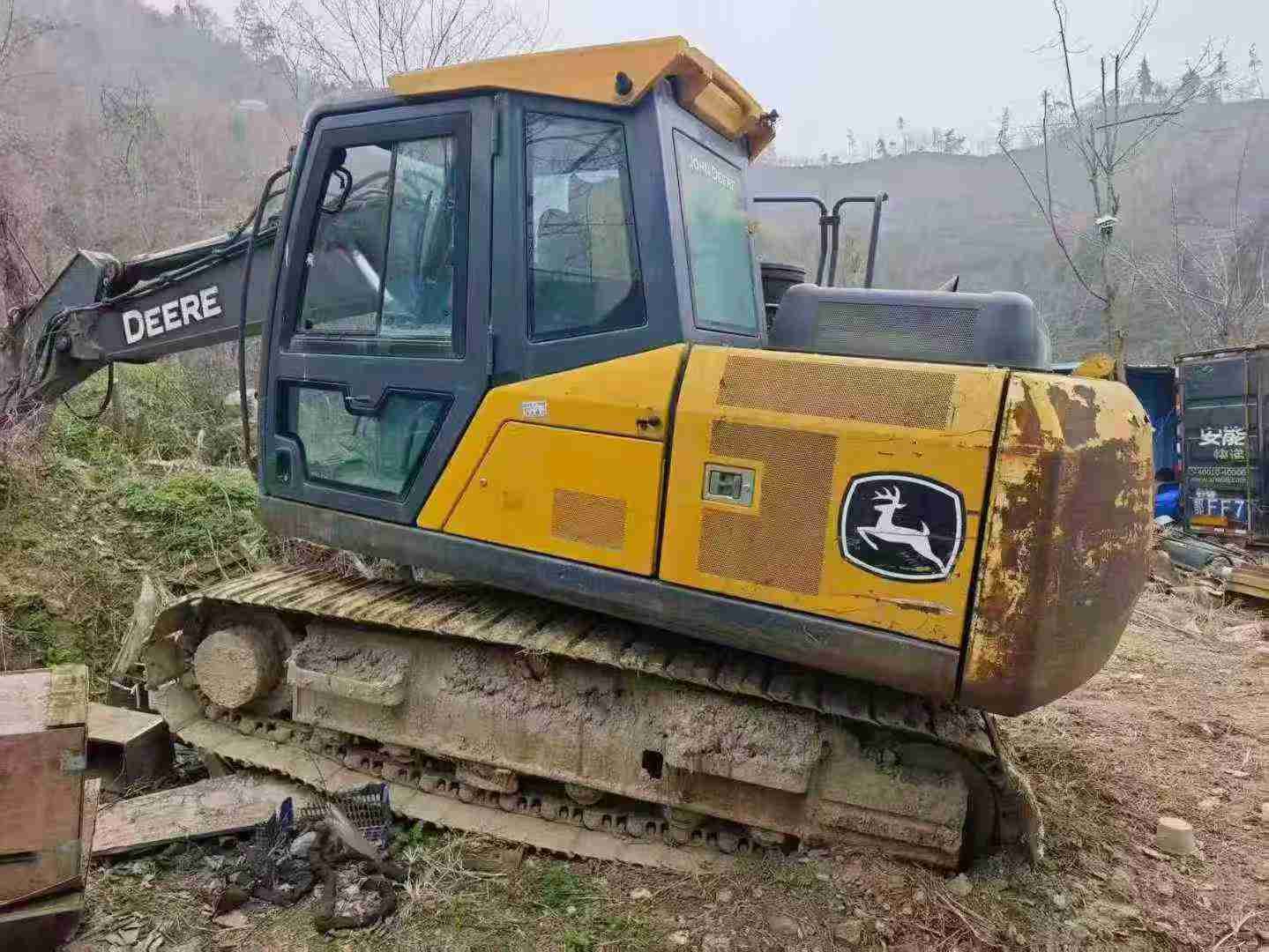

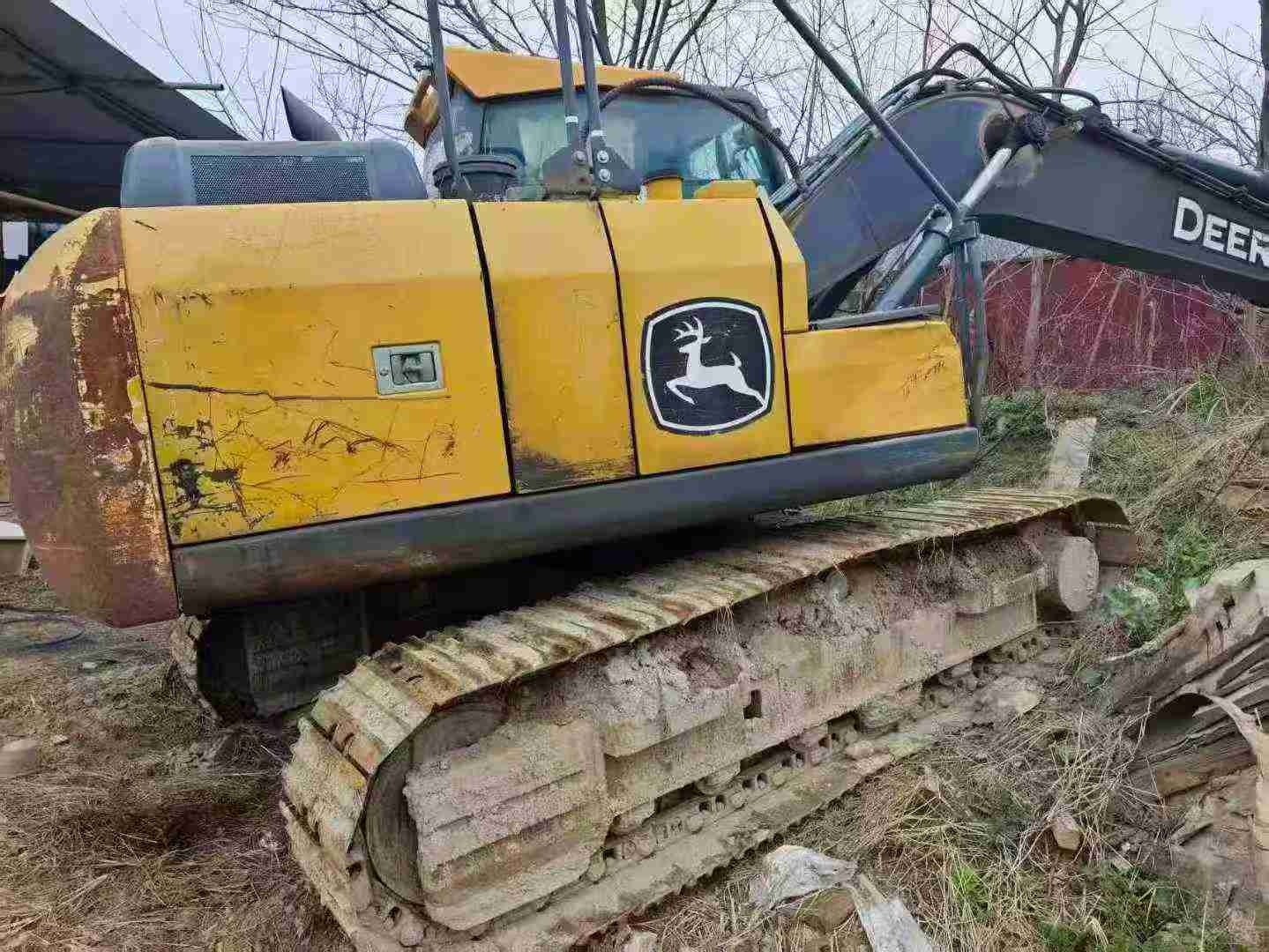

Maximize your excavation budget with this 2018 John Deere E130 crawler excavator, currently located in Luzhou, Sichuan. Delivering 13-ton performance at a fraction of new equipment costs, this machine combines proven reliability with immediate ROI potential. Powered by a robust 80kW engine producing 445 N.m of maximum torque, it tackles demanding jobsites with 101kN bucket digging force and 70kN rod digging force.
Engineered for productivity, the E130 features a 4600mm boom and 2520mm rod configuration, achieving an impressive 8351mm maximum digging radius and 5764mm maximum digging depth. Twin hydraulic pumps deliver 126 L/min each for responsive operation, while the 240L fuel tank ensures extended working periods between refills.
- Working weight: 13,480 kg with excellent 43.6 kPa ground pressure
- Superior mobility: 70% climbing ability and 5.8 km/h travel speed
- Generous reach: 8568mm maximum excavation height
- Compact transport dimensions: 7632mm × 2500mm × 2841mm
- Joint venture/import quality standards
Invest smart. Acquire proven performance without the premium new-equipment price tag.
| Specifications | Value |
|---|---|
| No. | 1024544 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13480 |
| Bucket capacity (m³) | |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2520 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 80 / 1800 |
| Maximum torque (N.m) | 445 / 1400 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.5 |
| Working form | |
| Ground specific pressure (Kpa) | 43.6 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70 (35°) |
| Bucket digging force (kN) | 101 |
| Rod digging force (kN) | 70 |
| Maximum tractive force (kN) | 139 |
| Travel speed (km/h) | 5.8 / 3.1 |
| Turning torque (Nm) | 35.8 |
| Maximum flow of main pump (l/min) | 126 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 35.3 |
| Rotary Hydraulic Circuit (Mpa) | 27 |
| Main pump type | |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 18 x 1 |
| Fuel Tank (L) | 240 |
| Hydraulic Tank (L) | 125 |
| Engine Oil changes (L) | 14.7 |
| Coolant (L) | 18.2 |
| Hydraulic System (L) | 185 |
| Total transport length (mm) | 7632 |
| Total transport width (mm) | 2500 |
| Total transport height (mm) | 2841 |
| Full cab height (mm) | 2841 |
| Counterweight ground clearance (mm) | 888 |
| Minimum ground clearance (mm) | 434 |
| Minimum turning radius of front working device (mm) | 2626 |
| Back end turning radius (mm) | 2236 |
| Onboard width (mm) | 2500 |
| Total track length (mm) | 3501 |
| Track gauge (mm) | 2000 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2780 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 6 |
| Number of track plates (single side) (PCS) | 43 |
| Maximum digging radius (mm) | 8351 |
| Maximum digging depth (mm) | 5764 |
| Maximum excavation height (mm) | 8568 |
| Maximum unloading height (mm) | 6030 |
| Maximum vertical digging depth (mm) | 5107 |
| Maximum excavation radius of stop surface (mm) | 8214 |
