2018 JohnDeere E130

1/9

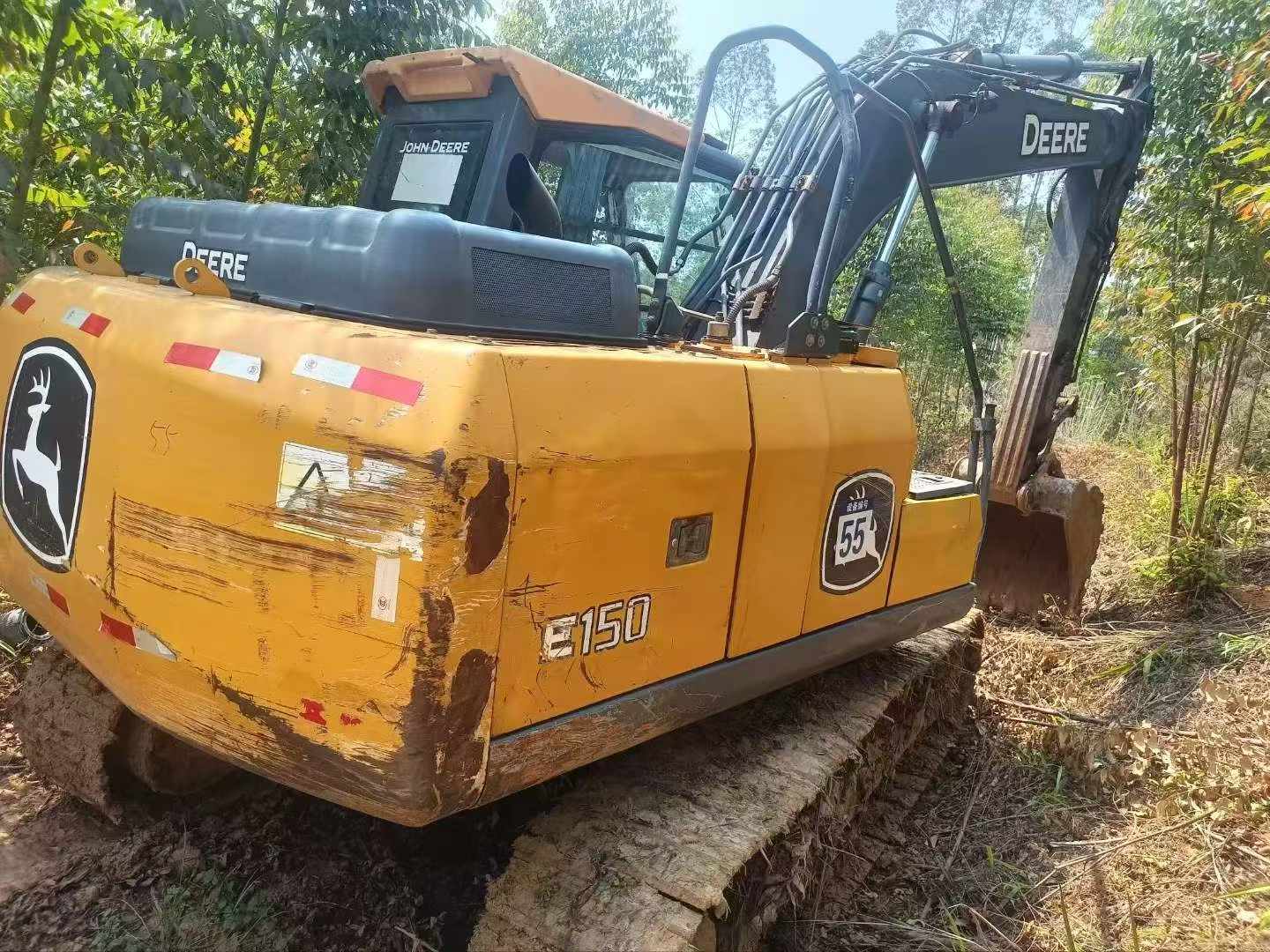

Buy JohnDeere E130 Used Excavator / 1

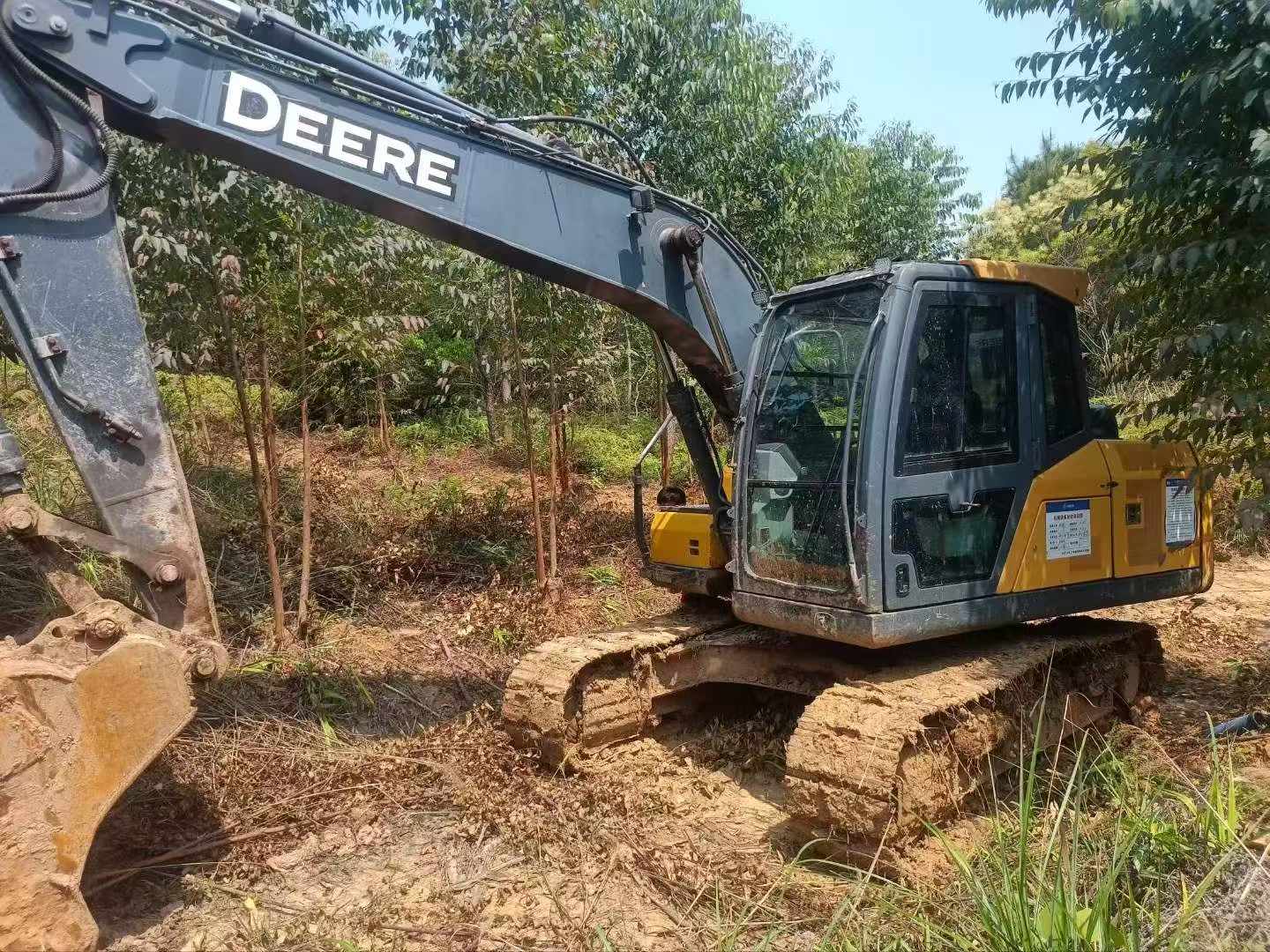

Buy JohnDeere E130 Used Excavator / 2

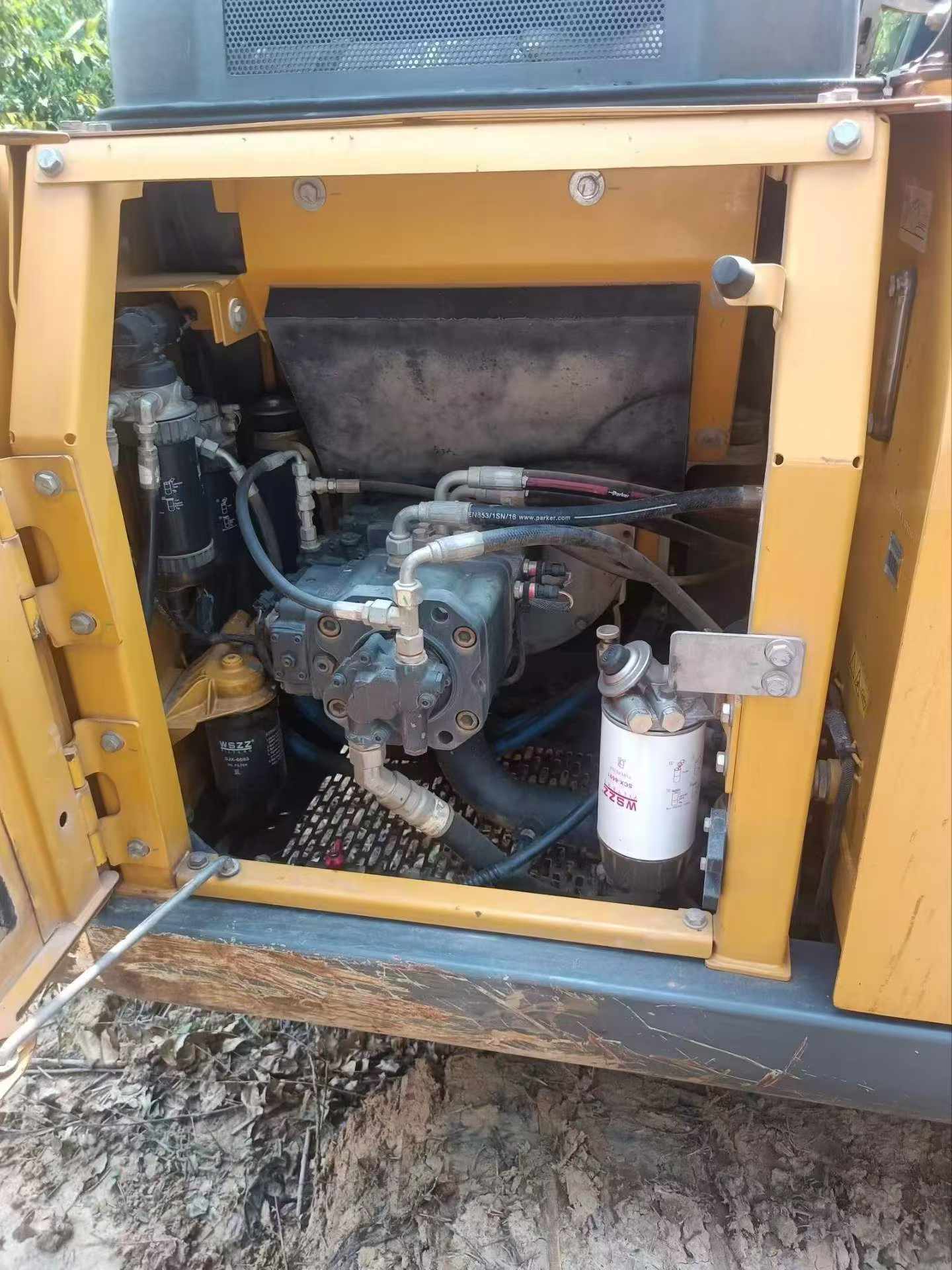

Buy JohnDeere E130 Used Excavator / 3

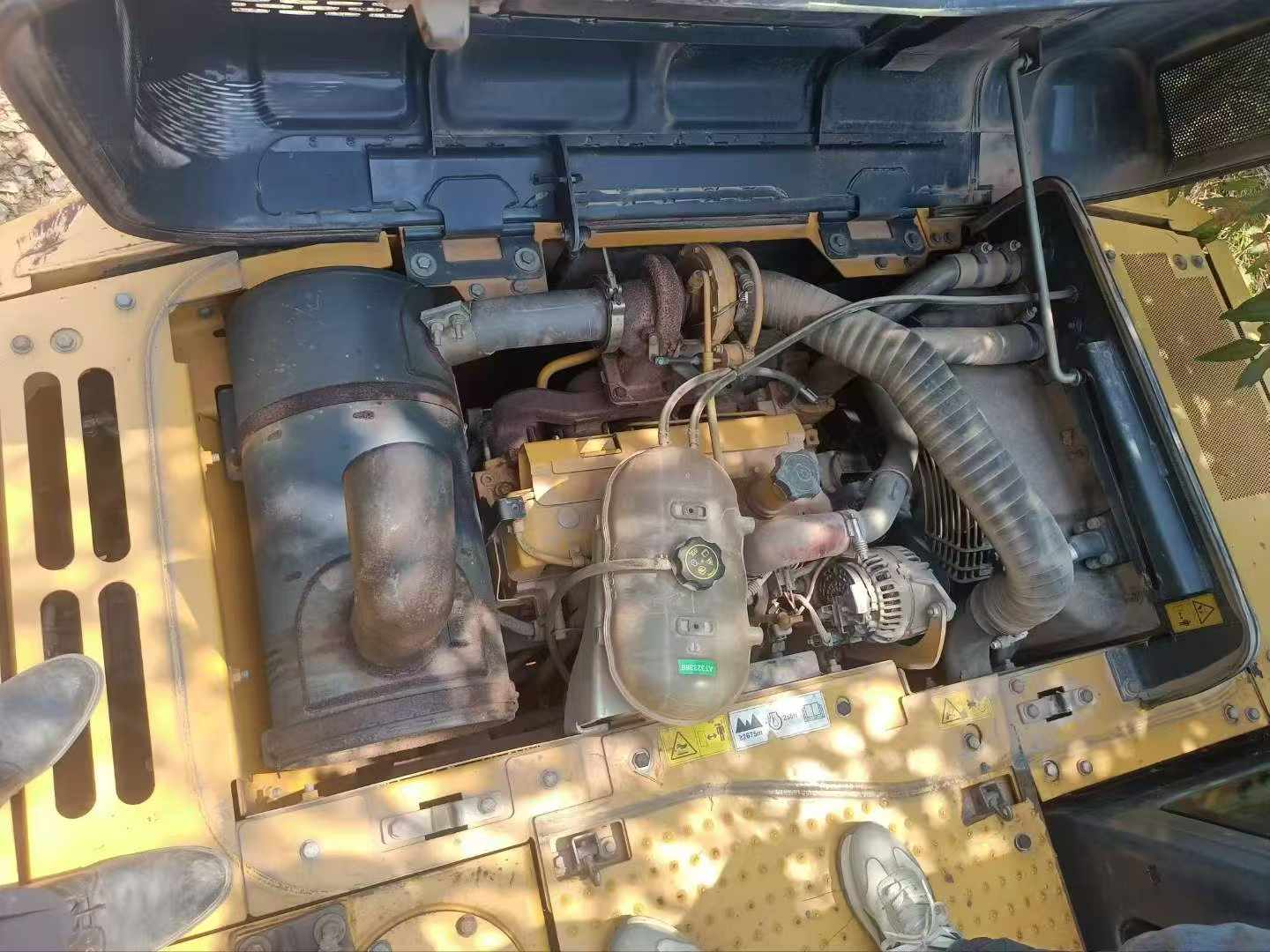

Buy JohnDeere E130 Used Excavator / 4

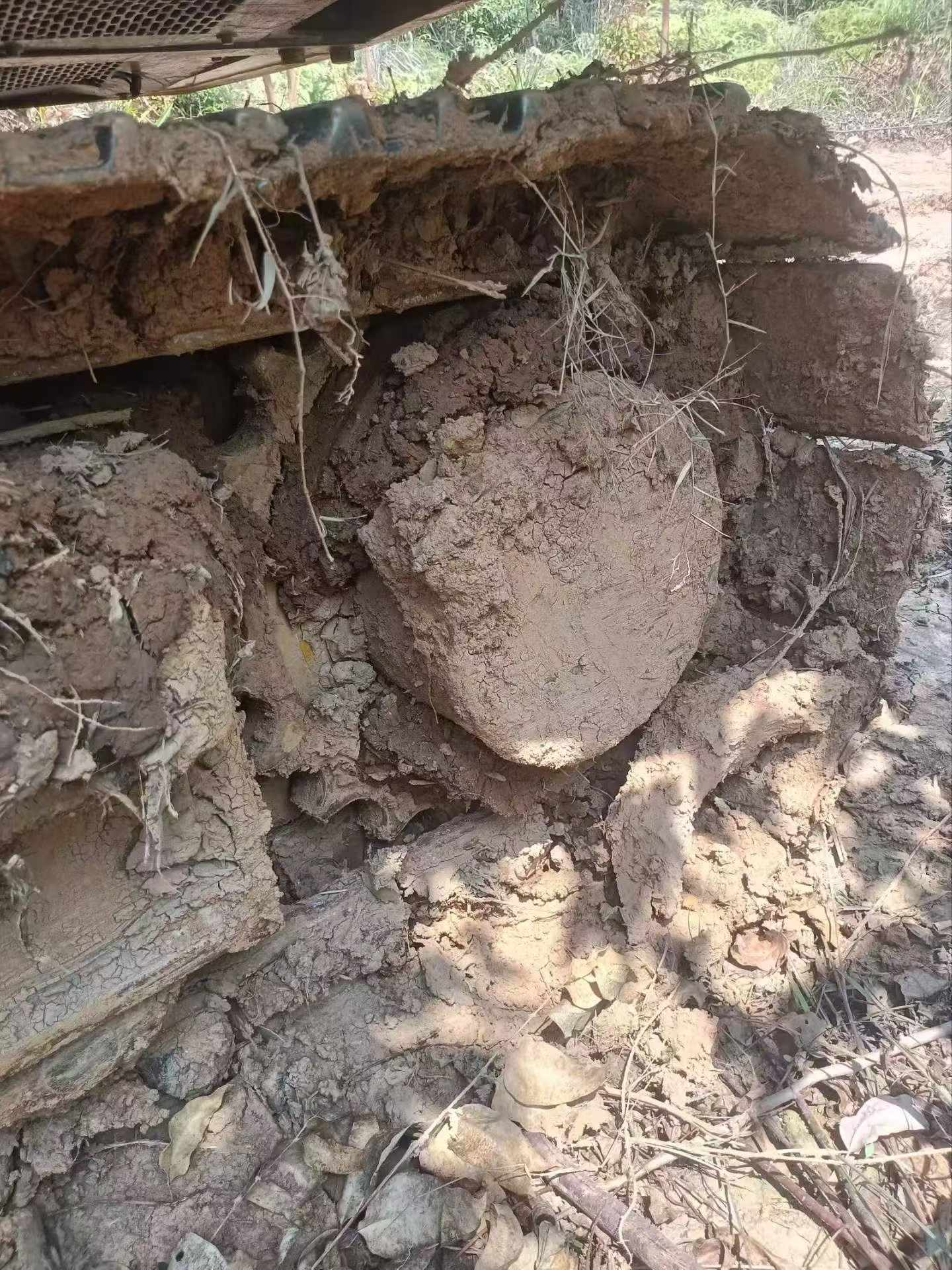

Buy JohnDeere E130 Used Excavator / 5

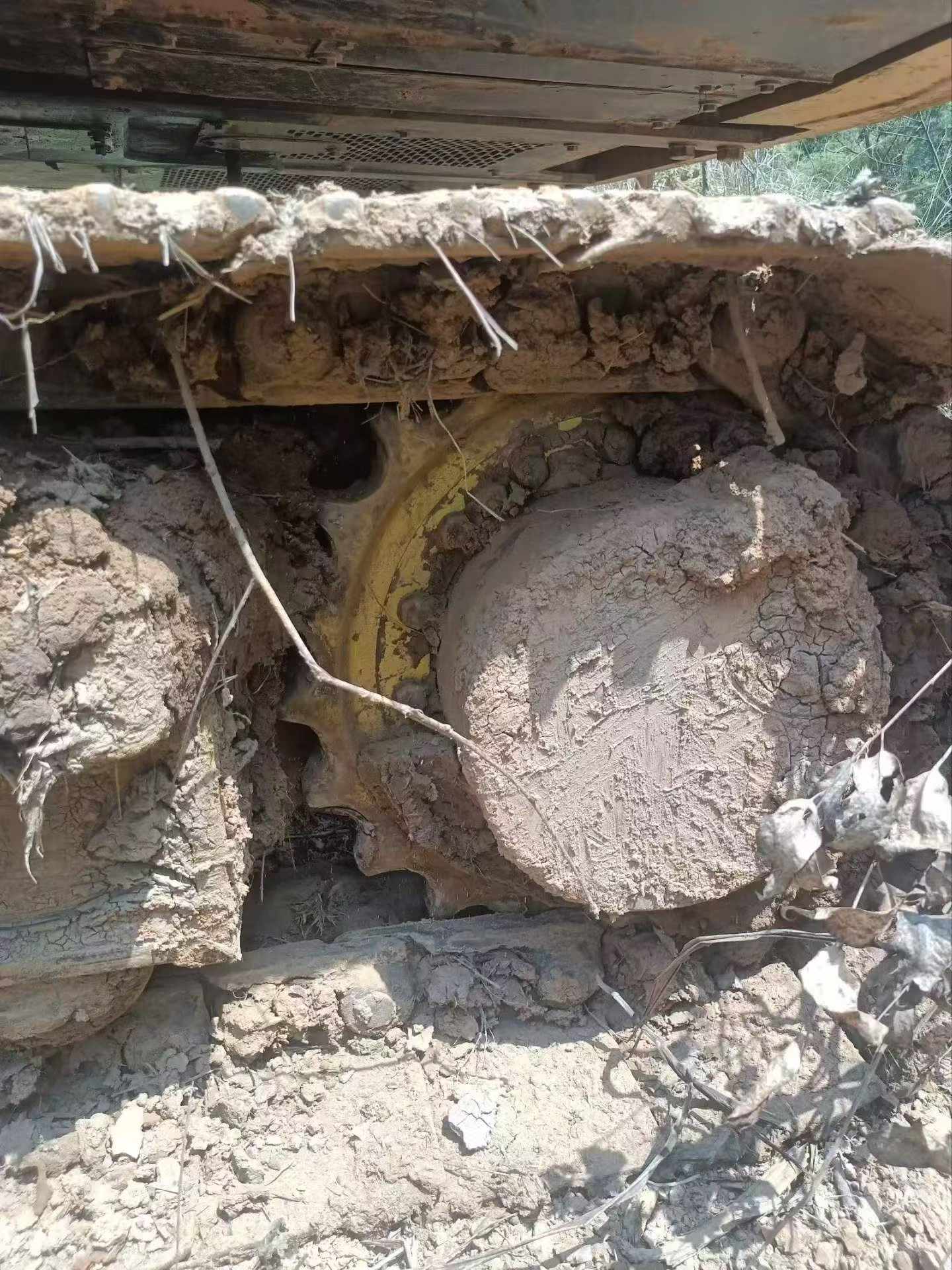

Buy JohnDeere E130 Used Excavator / 6

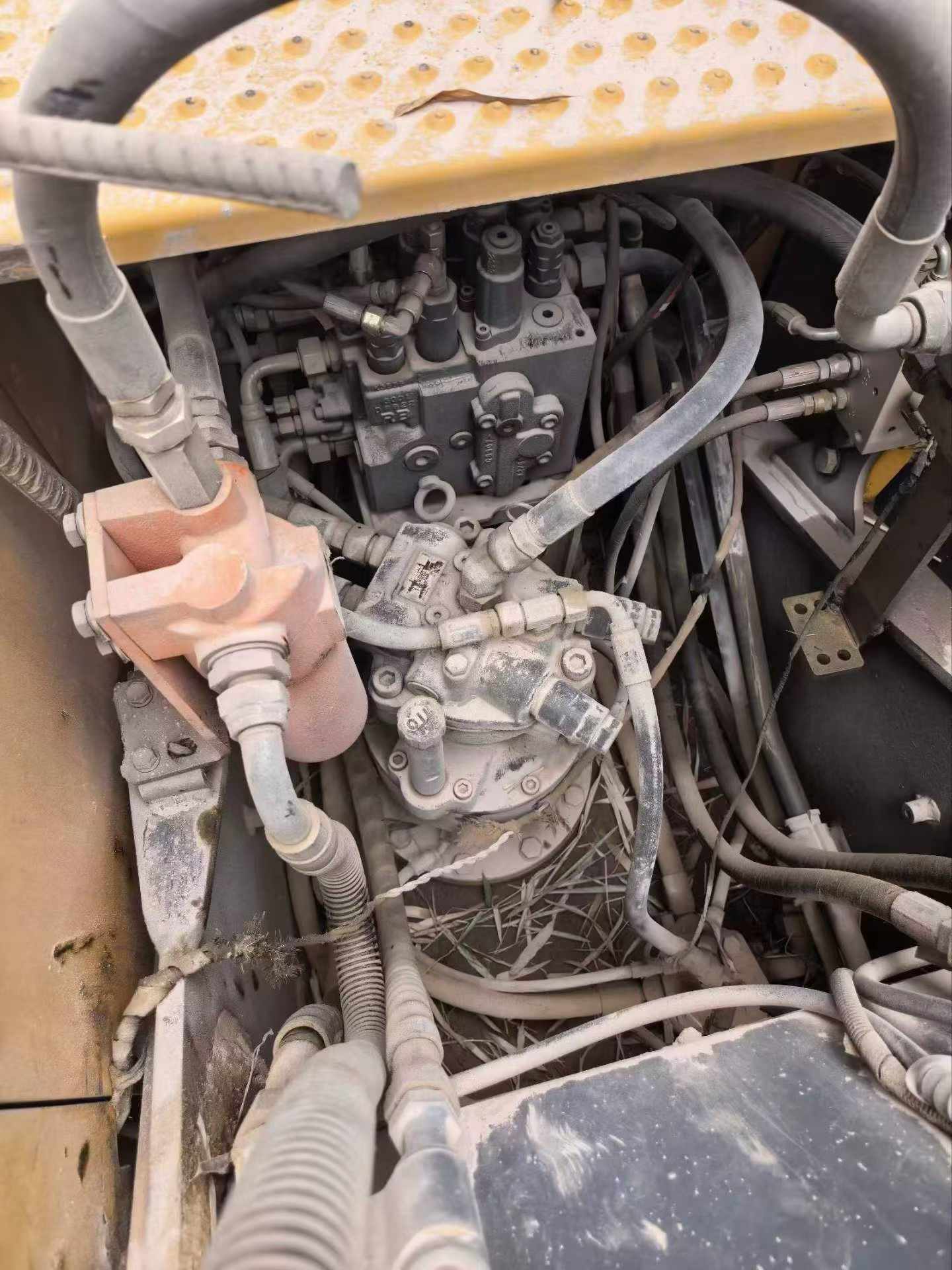

Buy JohnDeere E130 Used Excavator / 7

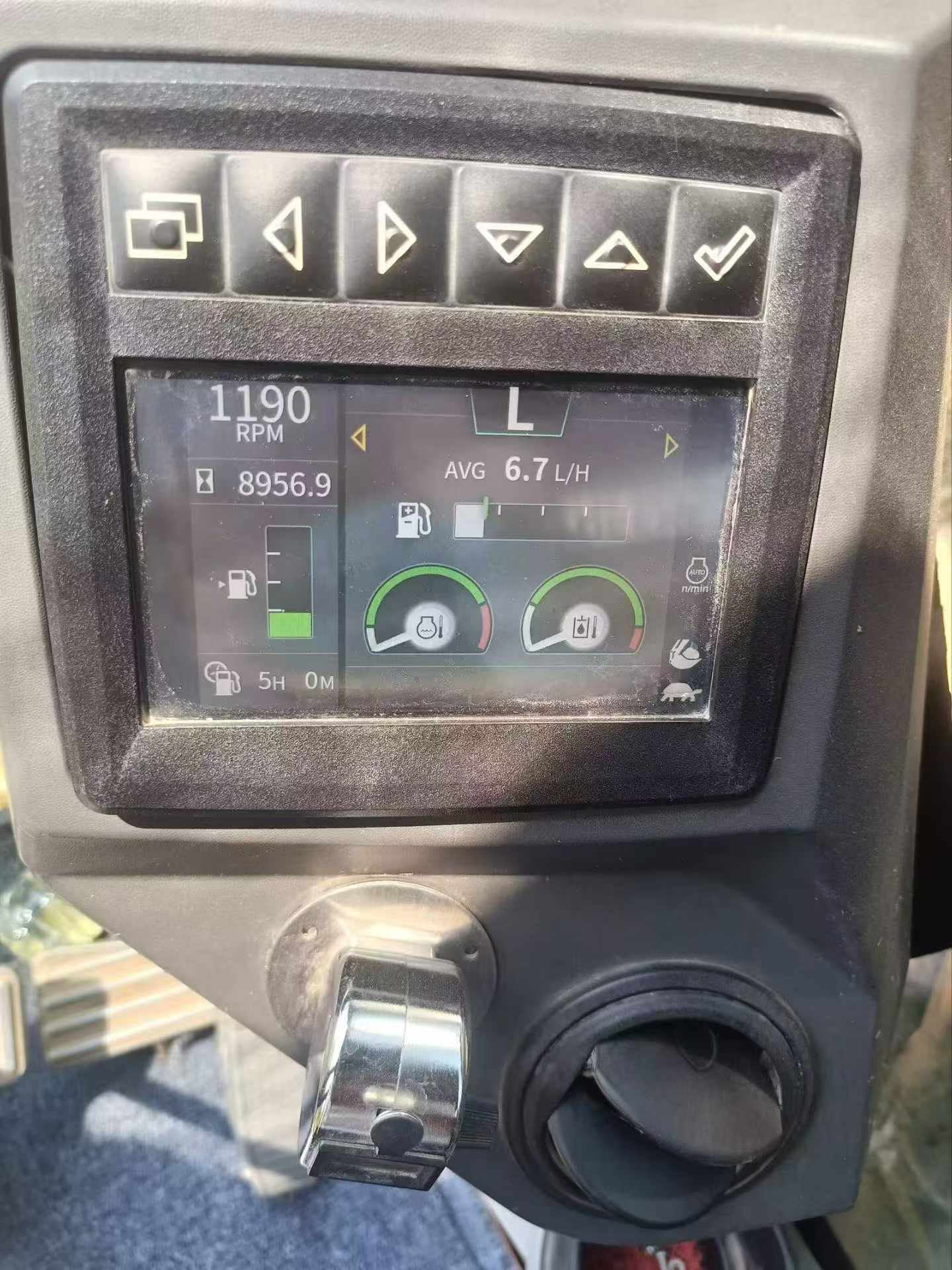

Buy JohnDeere E130 Used Excavator / 8

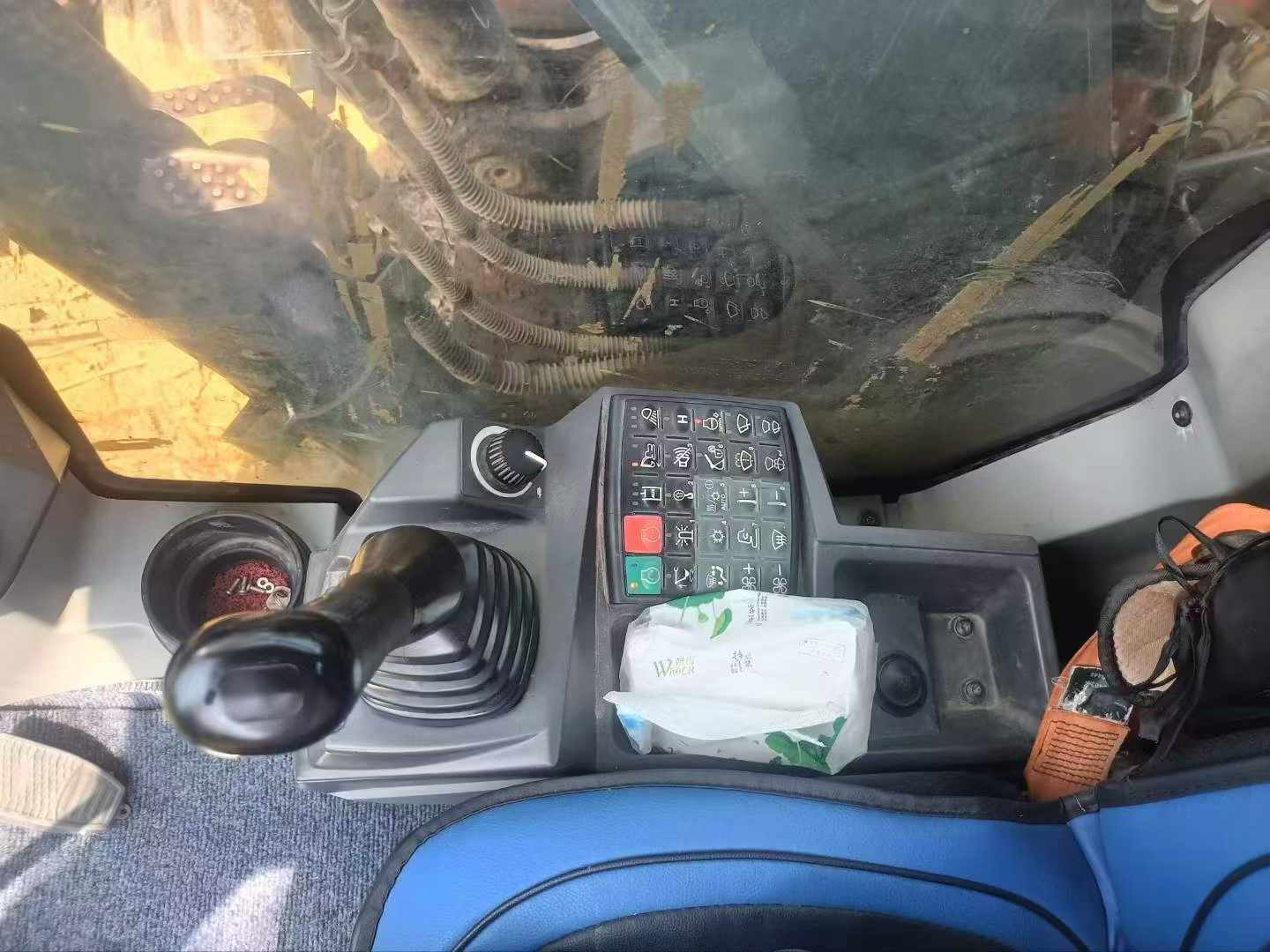

Buy JohnDeere E130 Used Excavator / 9

Product Description

Expand your operational capacity with this 2018 John Deere E130 excavator, a 13-ton workhorse engineered for reliable fleet performance. Powered by an 80 kW engine delivering 445 N·m of maximum torque, this machine provides consistent output across demanding jobsites. With 8,351 mm maximum digging reach and 5,764 mm digging depth, it handles medium-scale earthmoving, trenching, and utility work with proven efficiency.

  • Dual main pumps: 126 L/min each for responsive hydraulic performance
  • 101 kN bucket digging force and 70 kN arm digging force tackle tough materials
  • Compact transport dimensions (7,632 × 2,500 × 2,841 mm) facilitate easy mobilization
  • 12.5 rpm rotation speed and 2,626 mm front turning radius enable precise maneuvering
  • 240 L fuel capacity supports extended operation between refills
  • Currently located in Guangxi, ready for immediate deployment

Built under John Deere's joint venture manufacturing standards, this E130 serves as an ideal backup unit or fleet addition for contractors managing multiple projects simultaneously. Reduce downtime and maintain project momentum with this dependable 2018 model.

SpecificationsValue
No.1047705
Tonnage (tons)13
Working weight (kg)13480
Bucket capacity (m³)
Boom length (mm)4600
Rod length (mm)2520
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine type
Rated power (kw/rpm)80 / 1800
Maximum torque (N.m)445 / 1400
Number of cylinders (PCS)4
Displacement (L)4.5
Working form
Ground specific pressure (Kpa)43.6
Rotation speed (rpm)12.5
Climbing ability (%)70 (35°)
Bucket digging force (kN)101
Rod digging force (kN)70
Maximum tractive force (kN)139
Travel speed (km/h)5.8 / 3.1
Turning torque (Nm)35.8
Maximum flow of main pump (l/min)126 x 2
Traveling Hydraulic Circuit (Mpa)35.3
Rotary Hydraulic Circuit (Mpa)27
Main pump type
Pilot Oil Circuit (MPa)3.9
Pilot pump flow (L/min)18 x 1
Fuel Tank (L)240
Hydraulic Tank (L)125
Engine Oil changes (L)14.7
Coolant (L)18.2
Hydraulic System (L)185
Total transport length (mm)7632
Total transport width (mm)2500
Total transport height (mm)2841
Full cab height (mm)2841
Counterweight ground clearance (mm)888
Minimum ground clearance (mm)434
Minimum turning radius of front working device (mm)2626
Back end turning radius (mm)2236
Onboard width (mm)2500
Total track length (mm)3501
Track gauge (mm)2000
Track plate width (mm)500
Track ground length (mm)2780
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)6
Number of track plates (single side) (PCS)43
Maximum digging radius (mm)8351
Maximum digging depth (mm)5764
Maximum excavation height (mm)8568
Maximum unloading height (mm)6030
Maximum vertical digging depth (mm)5107
Maximum excavation radius of stop surface (mm)8214
see more

Overview

No.1047705

Brand Name:

JohnDeere

Model Number:

E130

Year:

2018

Location:

Guangxi China
