Product Description

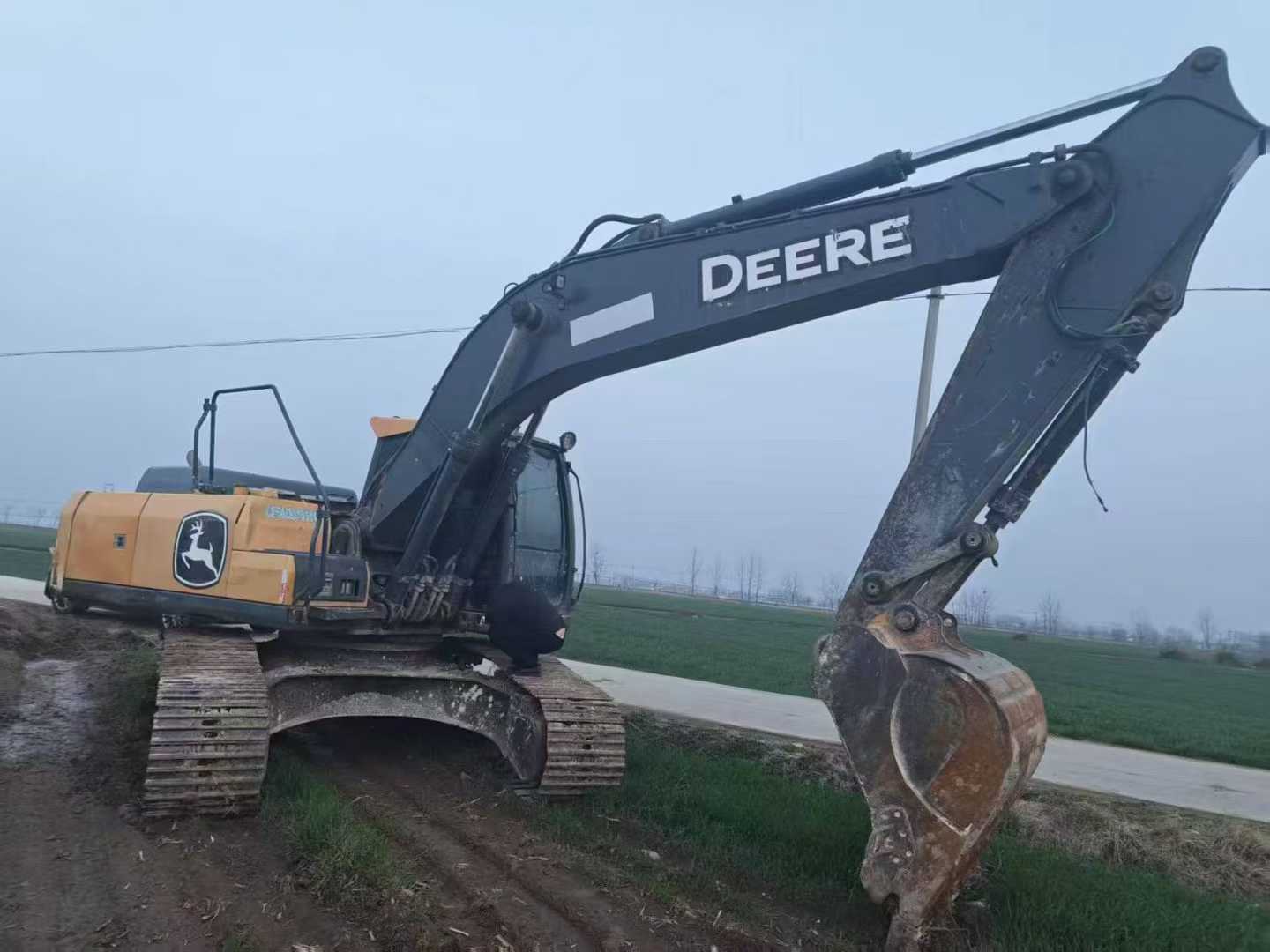

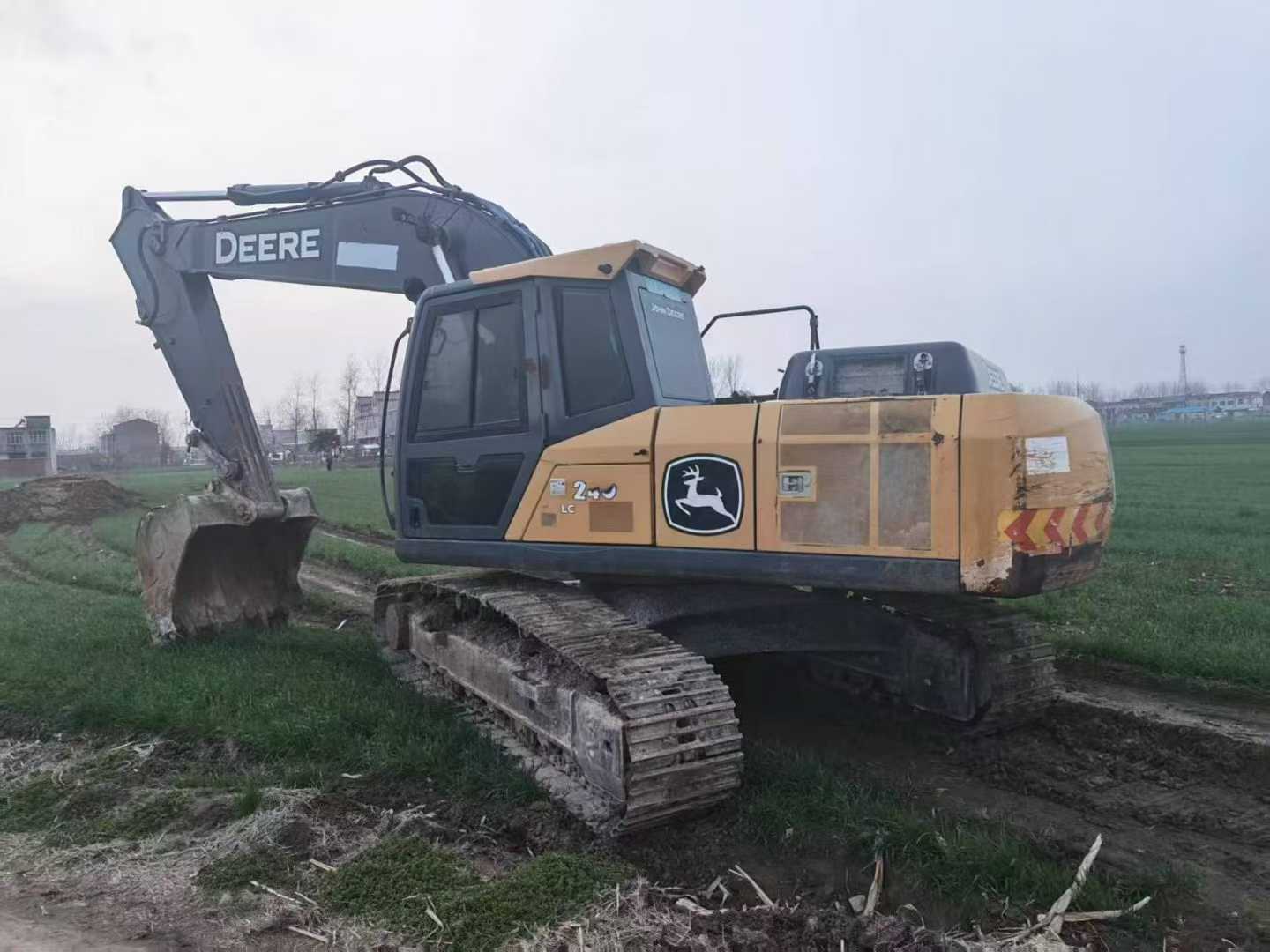

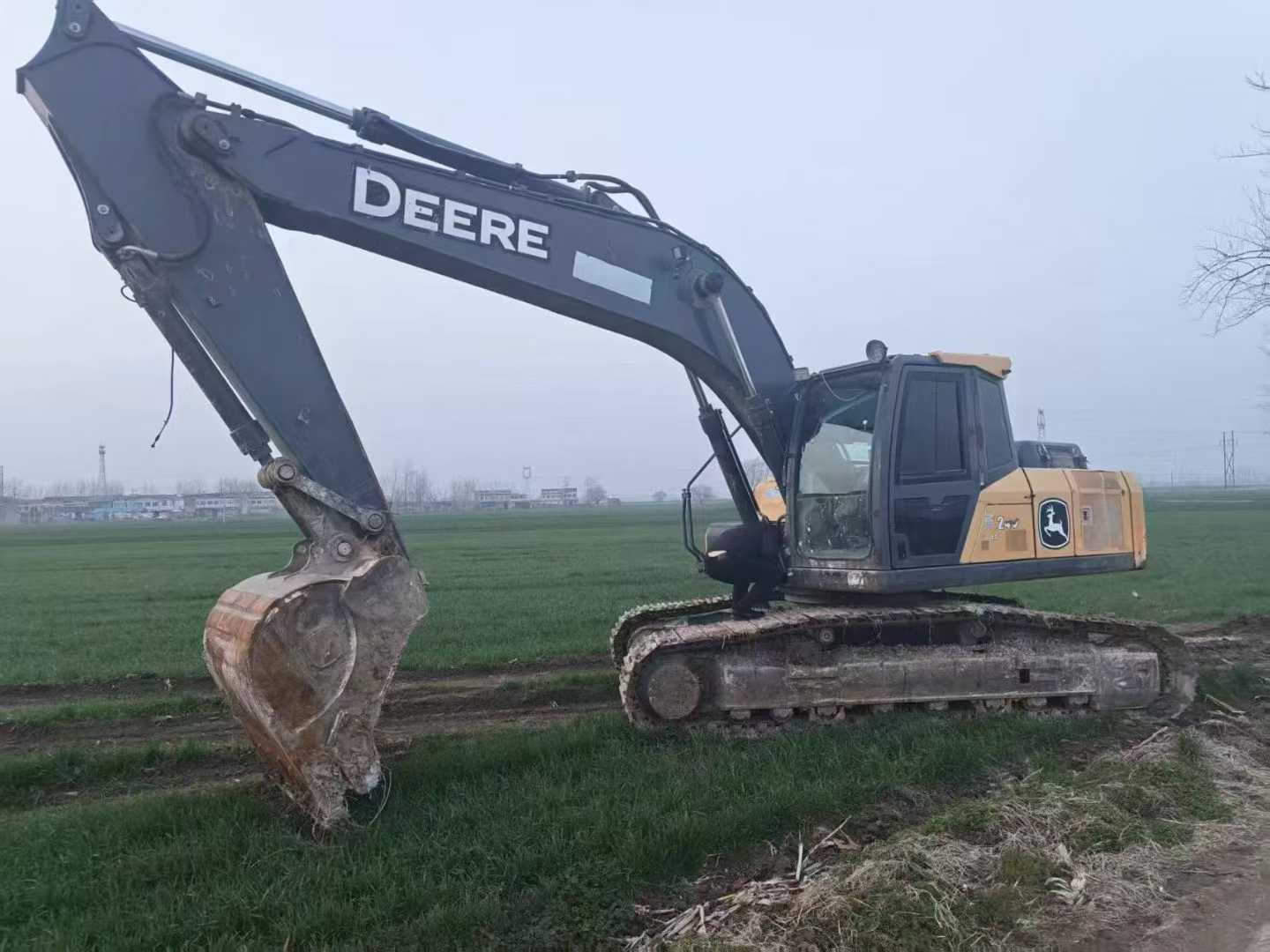

Strengthen your fleet capacity with this 2017 John Deere E210 excavator, currently located in Putian, Fujian. Built for contractors managing multiple jobsites simultaneously, this 21-ton machine delivers consistent performance when your primary equipment is deployed elsewhere. Powered by a robust 117 kW engine producing 639 N·m of torque, it tackles demanding excavation tasks with 150 kN bucket digging force and reaches 10,040 mm maximum digging radius.
- Operating weight: 21,100–23,100 kg with 1.0 m³ bucket capacity

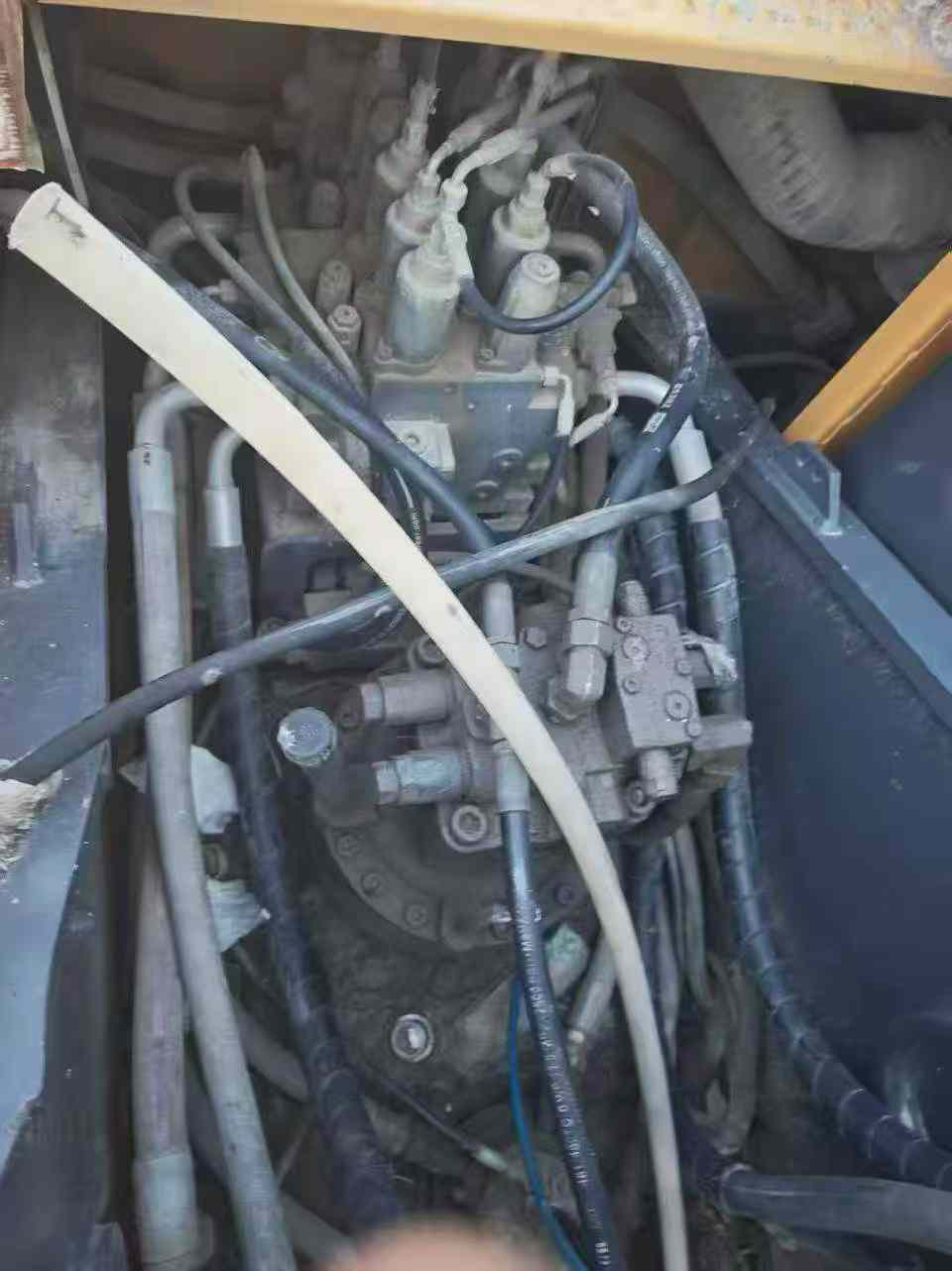

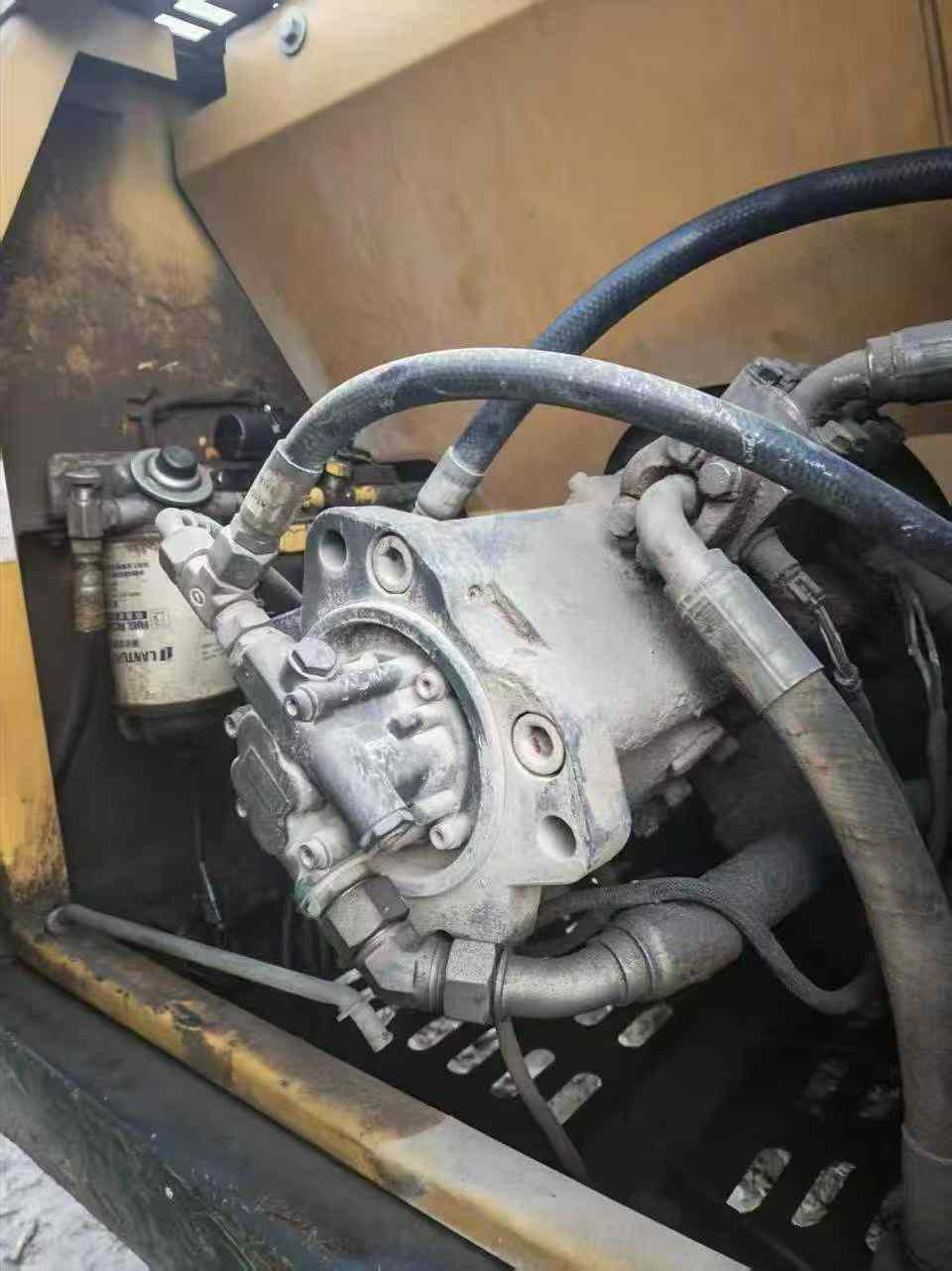

- Proven hydraulic system: dual 224 L/min pumps, 34.3 MPa working pressure
- Extended reach configuration: 5,680 mm boom, 2,900 mm arm
- Efficient fuel management: 390 L tank supports extended shifts
- Versatile transport dimensions: 9,790 mm length, 2,800 mm width
Designed as a joint venture/import model, this E210 integrates seamlessly into established John Deere fleets while providing operational redundancy. Whether covering scheduled maintenance downtime or expanding project capacity, it maintains productivity standards across your entire operation. Ready for immediate deployment in heavy construction, earthmoving, and infrastructure projects requiring
| Specifications | Value |
|---|---|
| No. | 1029355 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21100~23100 |
| Bucket capacity (m³) | 1.0 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 117/2000 |
| Maximum torque (N.m) | 639/1500 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.5 |
| Working form | |
| Ground specific pressure (Kpa) | 38-58.3 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 150 |
| Rod digging force (kN) | 111 |
| Maximum tractive force (kN) | 216 |
| Travel speed (km/h) | 3.2/5.5 |
| Turning torque (Nm) | 61 |
| Maximum flow of main pump (l/min) | 224 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.3 |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 20*1 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 141 |
| Engine Oil changes (L) | 14.7 |
| Coolant (L) | 26 |
| Hydraulic System (L) | 260 |
| Total transport length (mm) | 9790 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3299 |
| Full cab height (mm) | 3024 |
| Counterweight ground clearance (mm) | 1089 |
| Minimum ground clearance (mm) | 469 |
| Minimum turning radius of front working device (mm) | 3660 |
| Back end turning radius (mm) | 3042 |
| Total track length (mm) | 4072 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 10040 |
| Maximum digging depth (mm) | 6730 |
| Maximum excavation height (mm) | 9810 |
| Maximum unloading height (mm) | 6790 |
| Maximum vertical digging depth (mm) | 6090 |
| Maximum excavation radius of stop surface (mm) | 9820 |
