Product Description

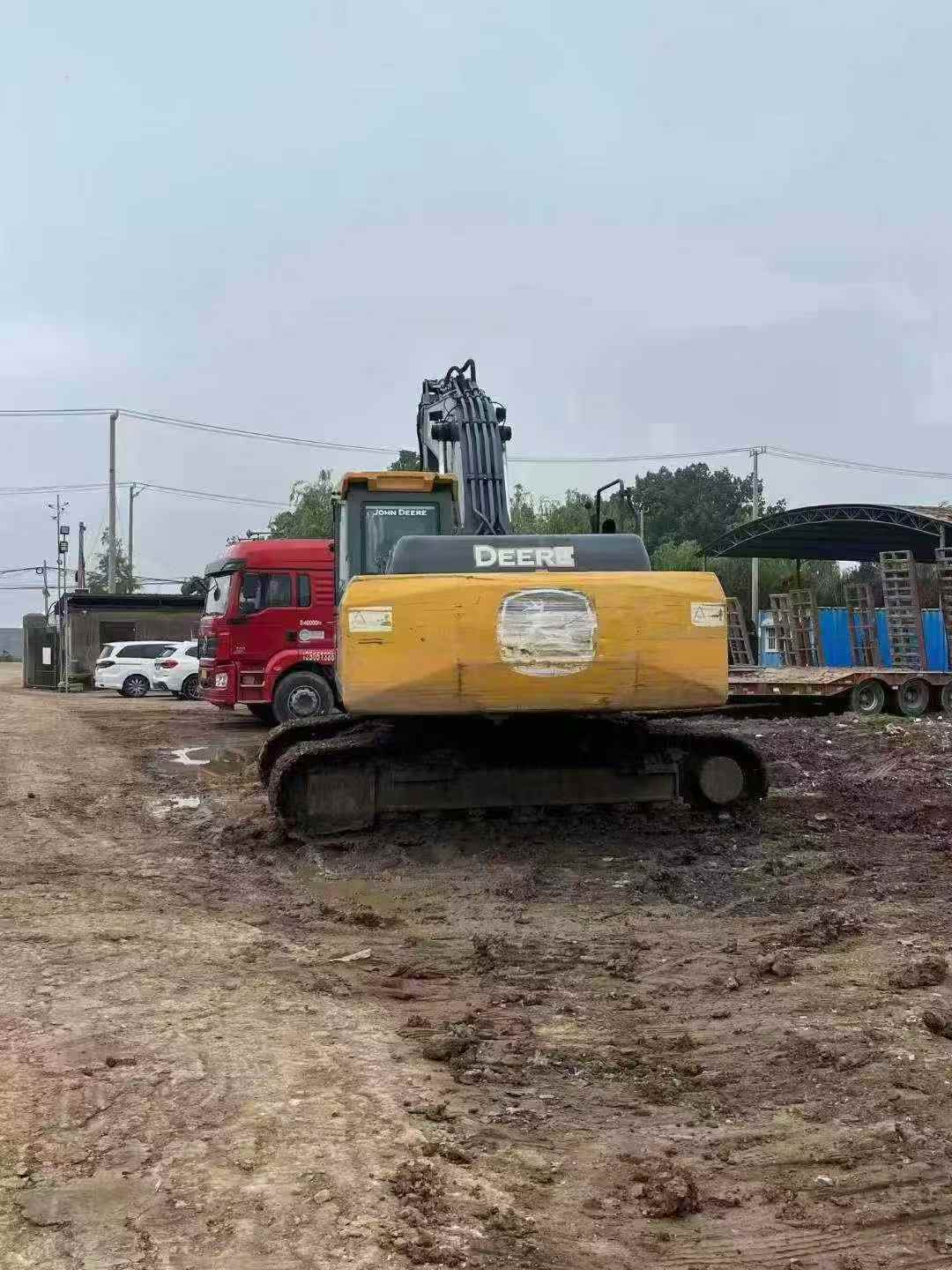

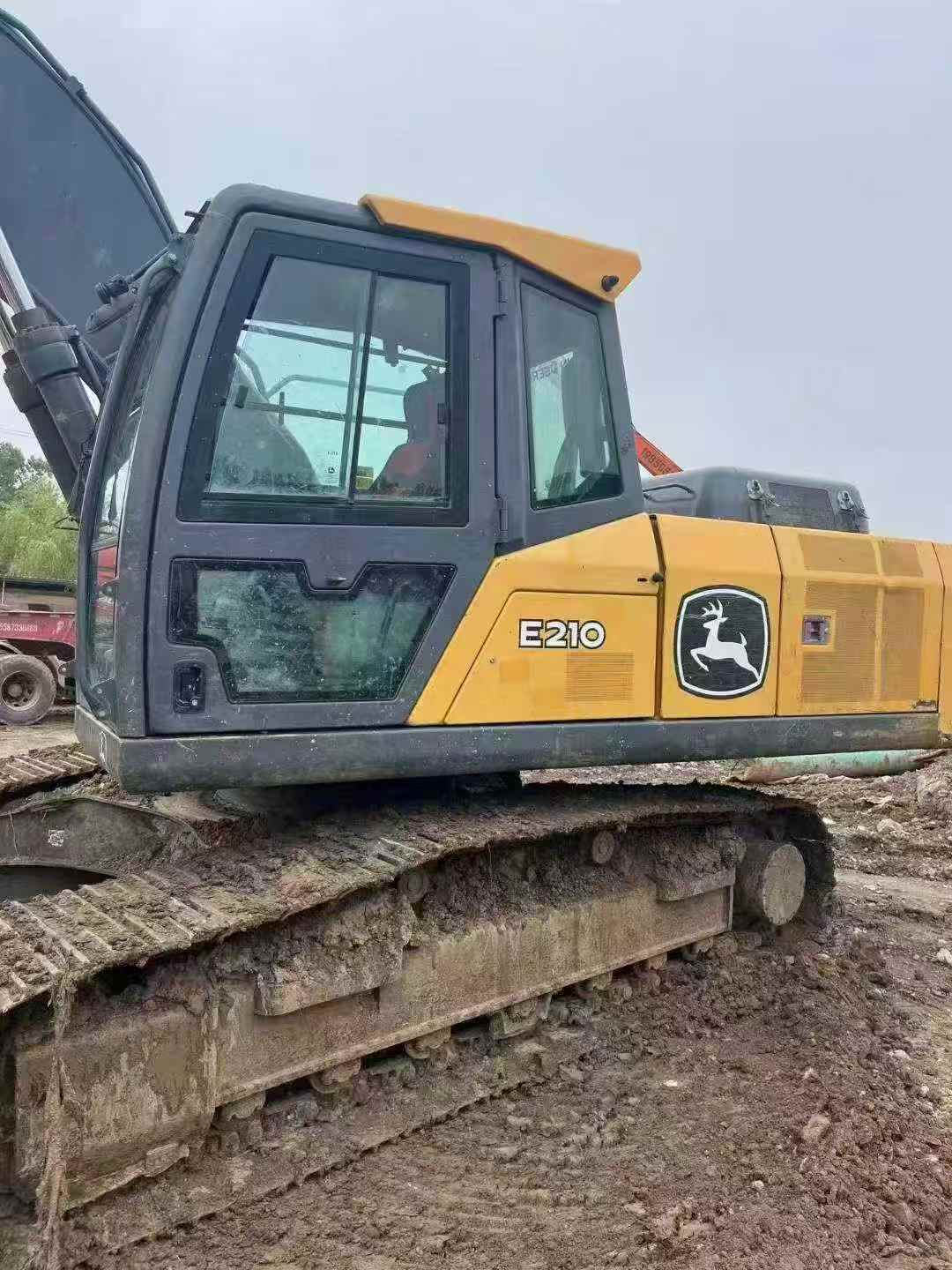

2017 John Deere E210 excavator available in Jiangsu, China. This machine was manufactured in late 2017 and purchased new in 2018, offering minimal operational history. The unit has been primarily used for earthmoving applications and remains in excellent overall condition.
- Original factory configuration with no major modifications

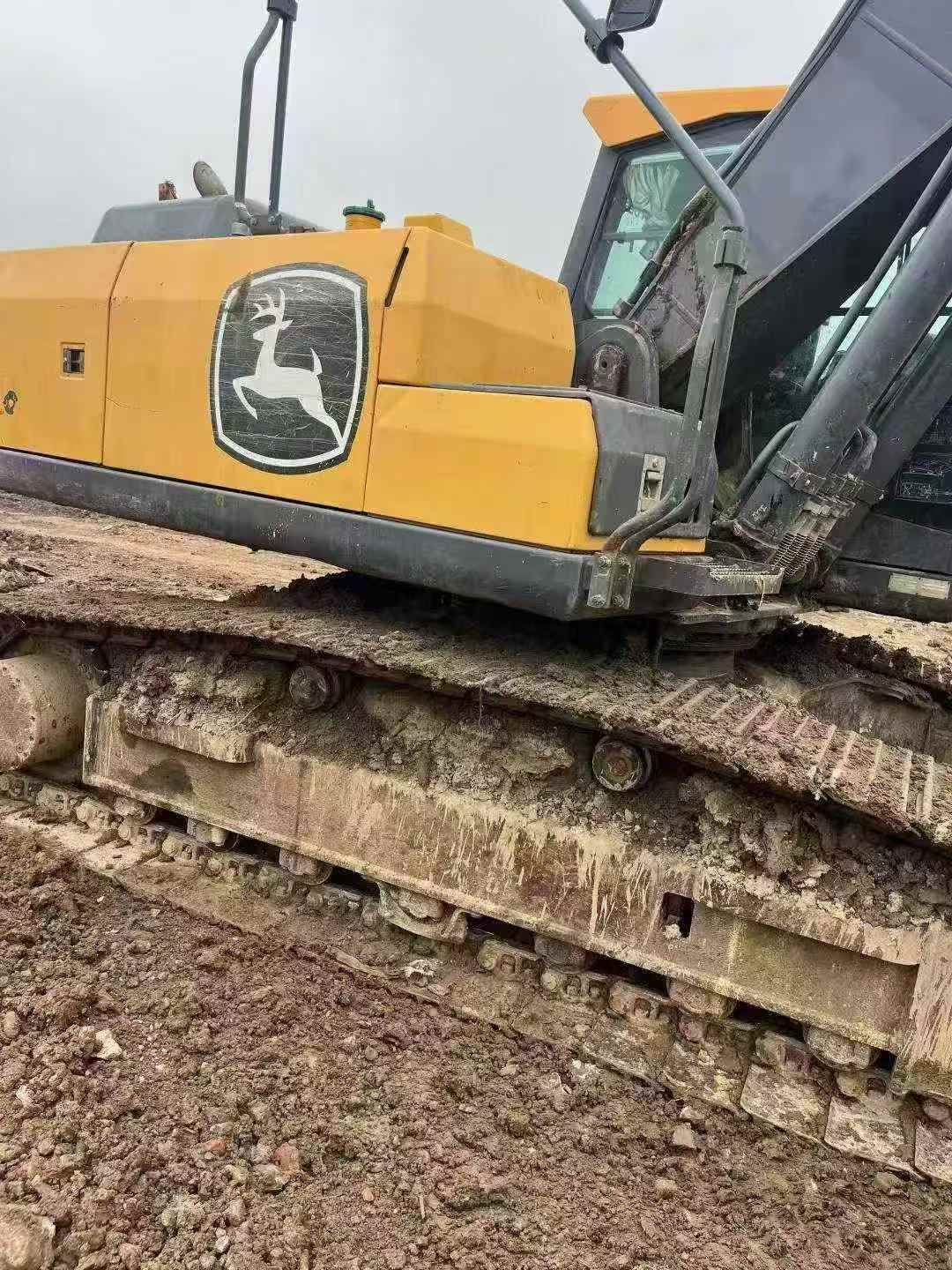

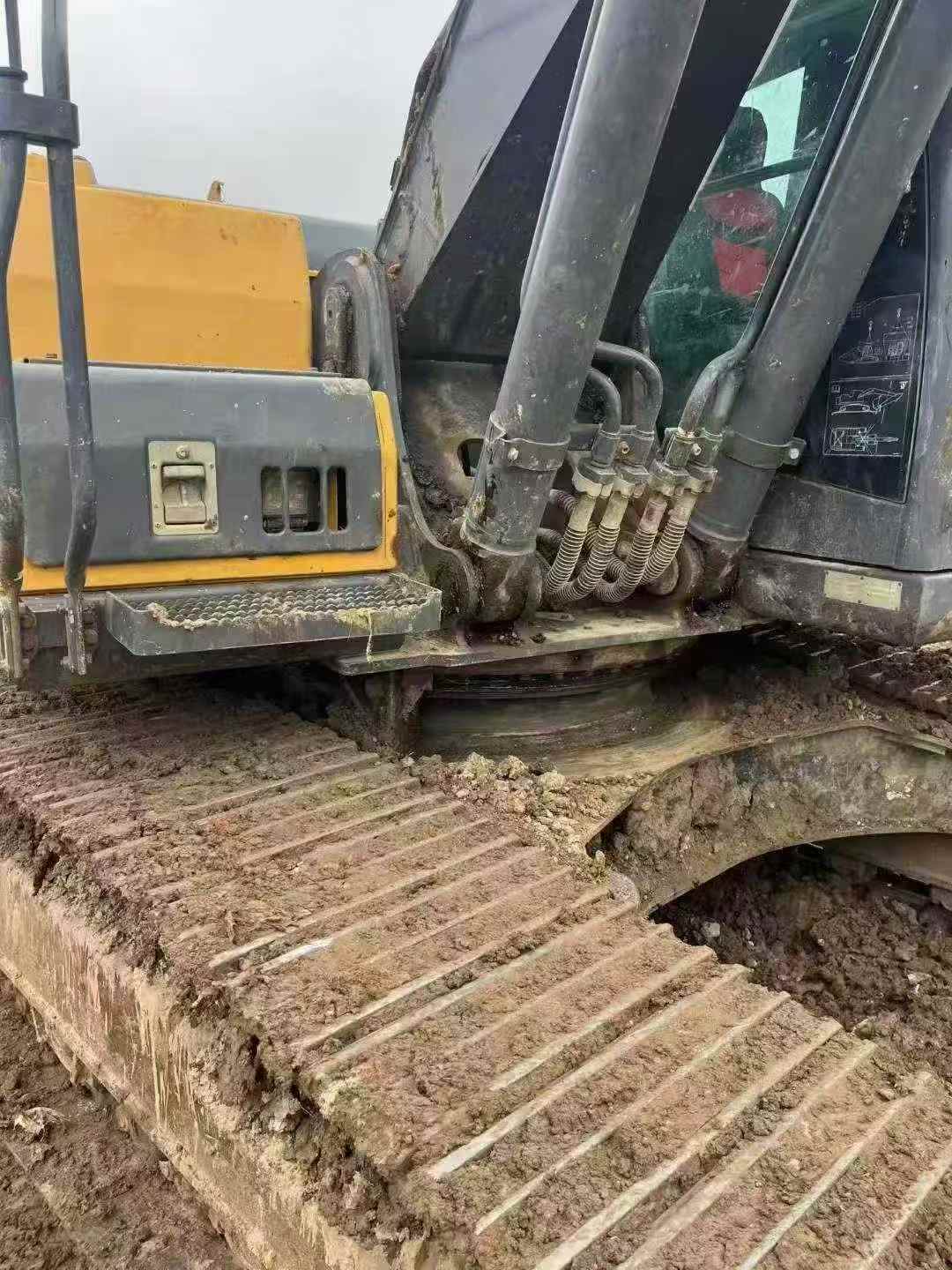

- Clean undercarriage with minimal wear

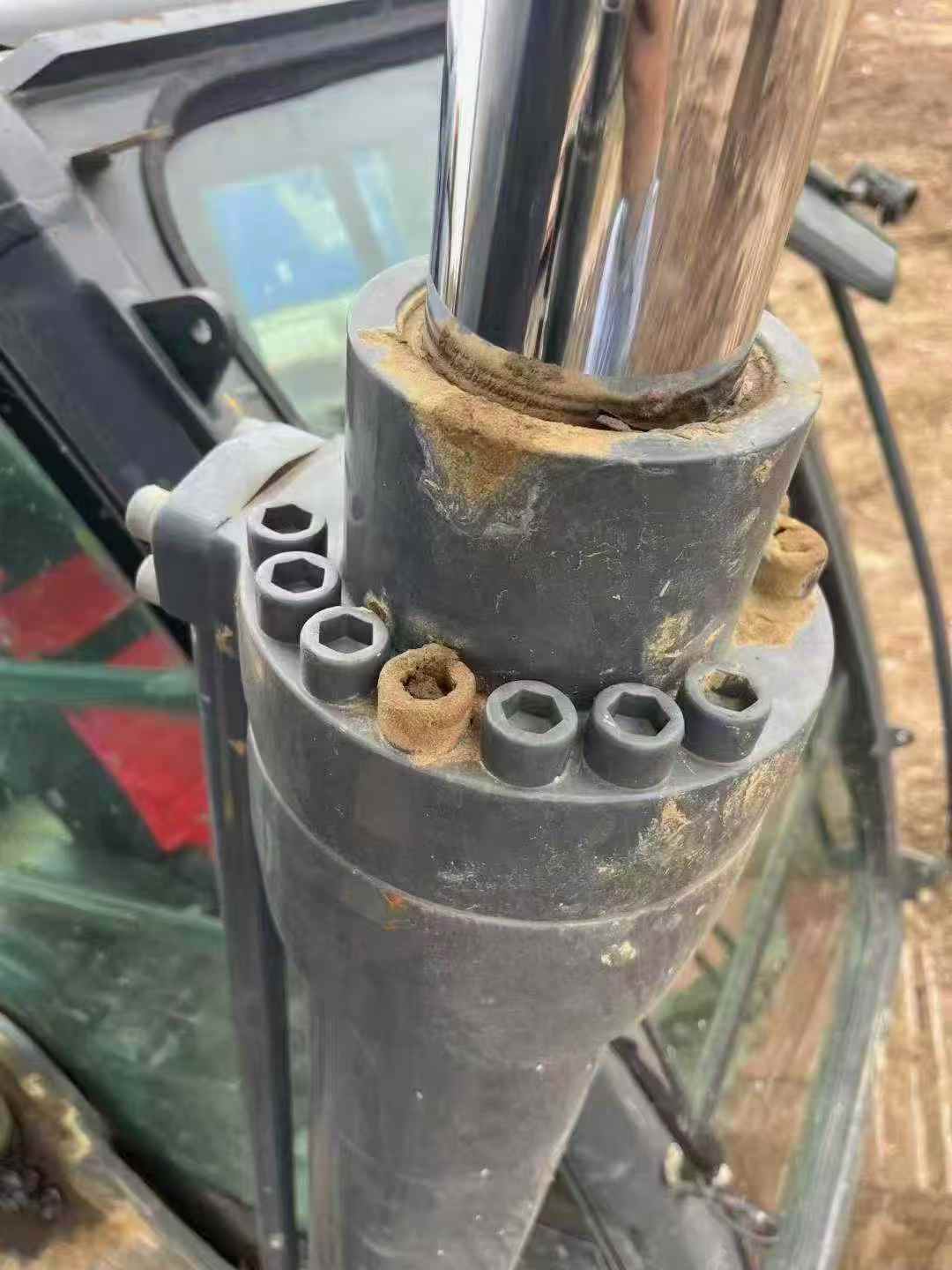

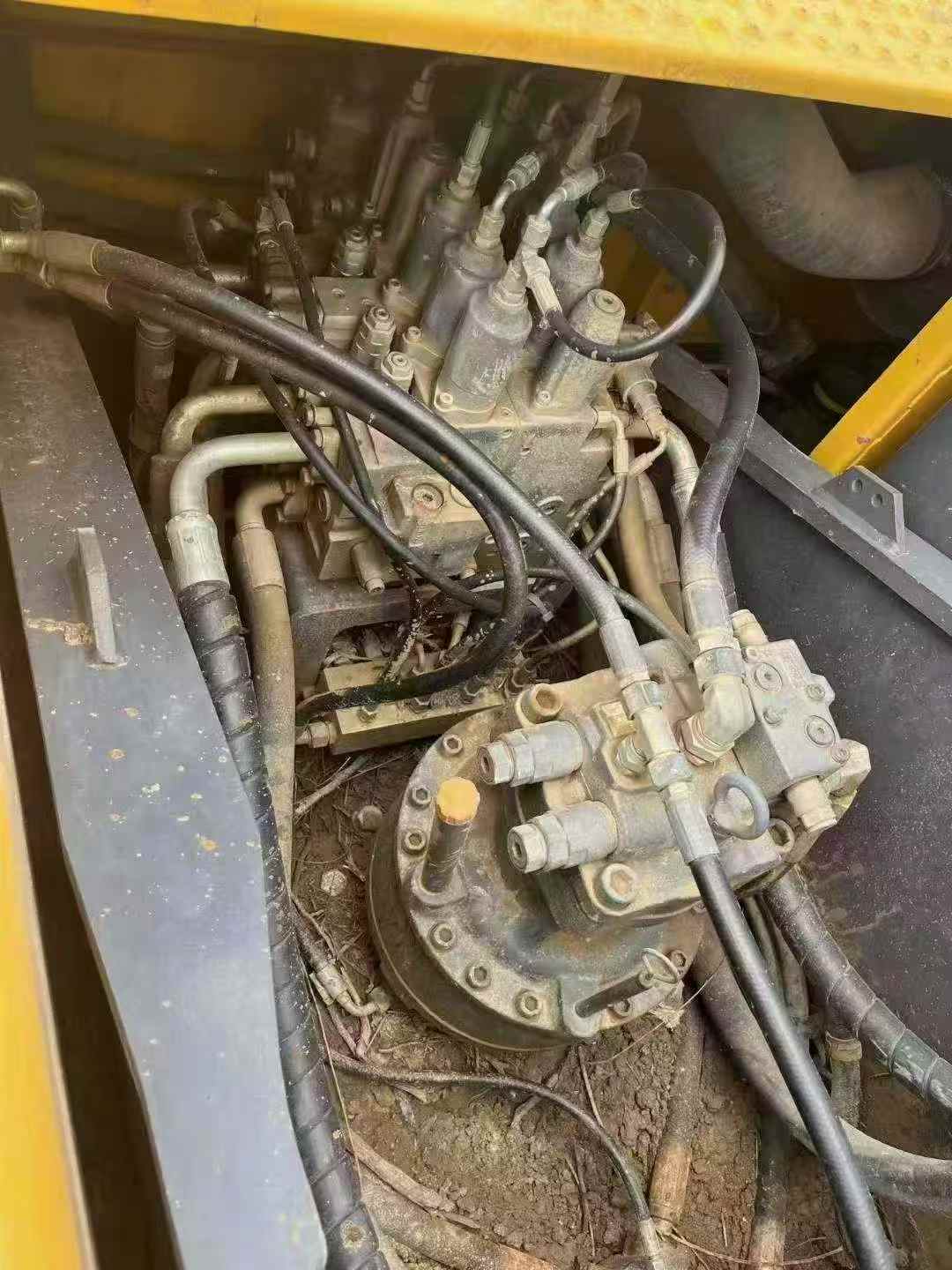

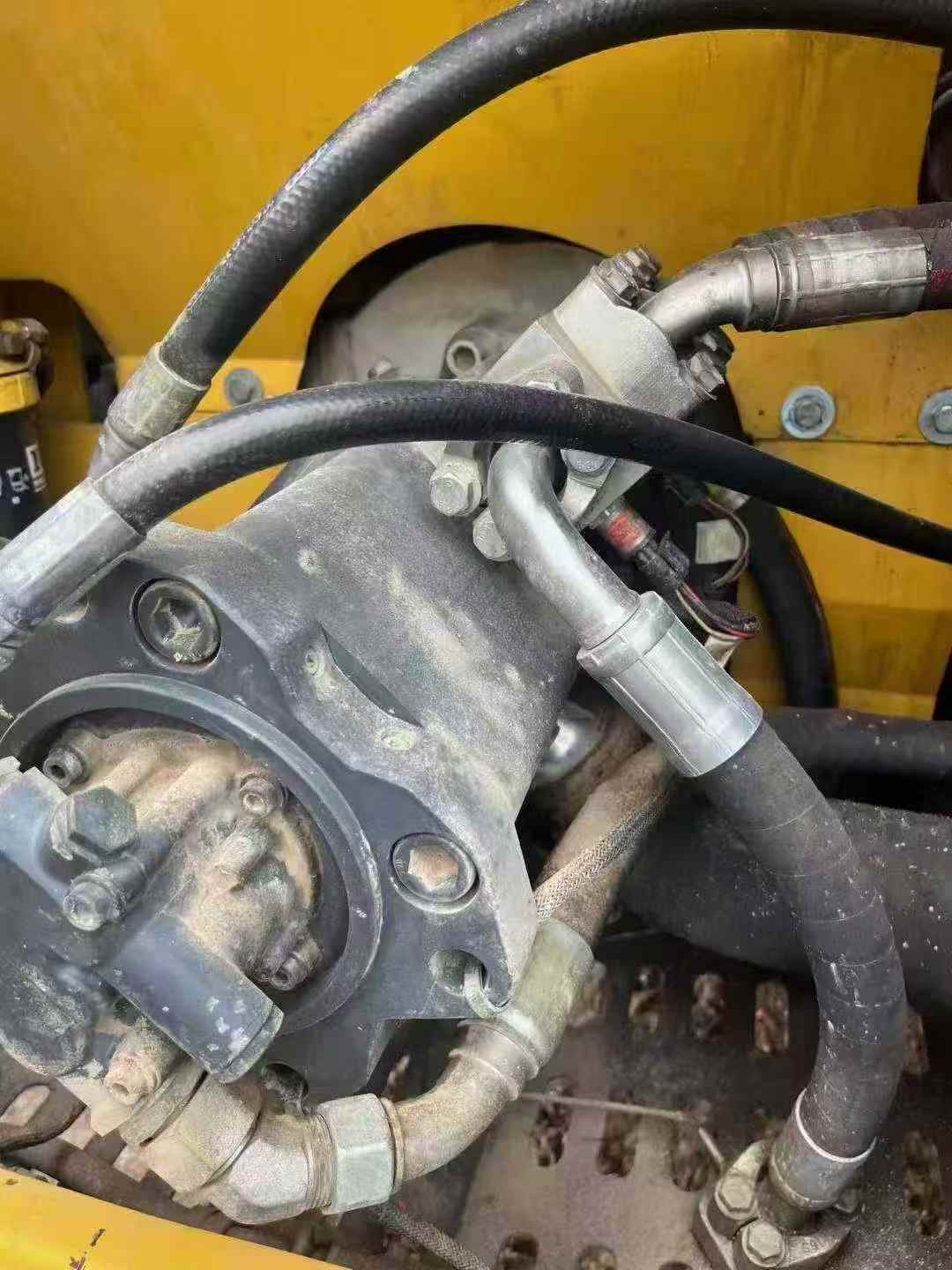

- Major components show no signs of oil leakage
- Strong operational performance across all systems
- Well-maintained throughout its service life
This E210 represents a solid investment for contractors seeking reliable mid-size excavation equipment. The machine's documented maintenance history and original parts configuration reduce long-term operating costs. Suitable for general construction, site development, and earthmoving operations.
| Specifications | Value |
|---|---|
| No. | 1075301 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21100~23100 |
| Bucket capacity (m³) | 1.0 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 117/2000 |
| Maximum torque (N.m) | 639/1500 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.5 |
| Working form | |
| Ground specific pressure (Kpa) | 38-58.3 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 150 |
| Rod digging force (kN) | 111 |
| Maximum tractive force (kN) | 216 |
| Travel speed (km/h) | 3.2/5.5 |
| Turning torque (Nm) | 61 |
| Maximum flow of main pump (l/min) | 224 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.3 |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 20*1 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 141 |
| Engine Oil changes (L) | 14.7 |
| Coolant (L) | 26 |
| Hydraulic System (L) | 260 |
| Total transport length (mm) | 9790 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3299 |
| Full cab height (mm) | 3024 |
| Counterweight ground clearance (mm) | 1089 |
| Minimum ground clearance (mm) | 469 |
| Minimum turning radius of front working device (mm) | 3660 |
| Back end turning radius (mm) | 3042 |
| Total track length (mm) | 4072 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 10040 |
| Maximum digging depth (mm) | 6730 |
| Maximum excavation height (mm) | 9810 |
| Maximum unloading height (mm) | 6790 |
| Maximum vertical digging depth (mm) | 6090 |
| Maximum excavation radius of stop surface (mm) | 9820 |
