Product Description

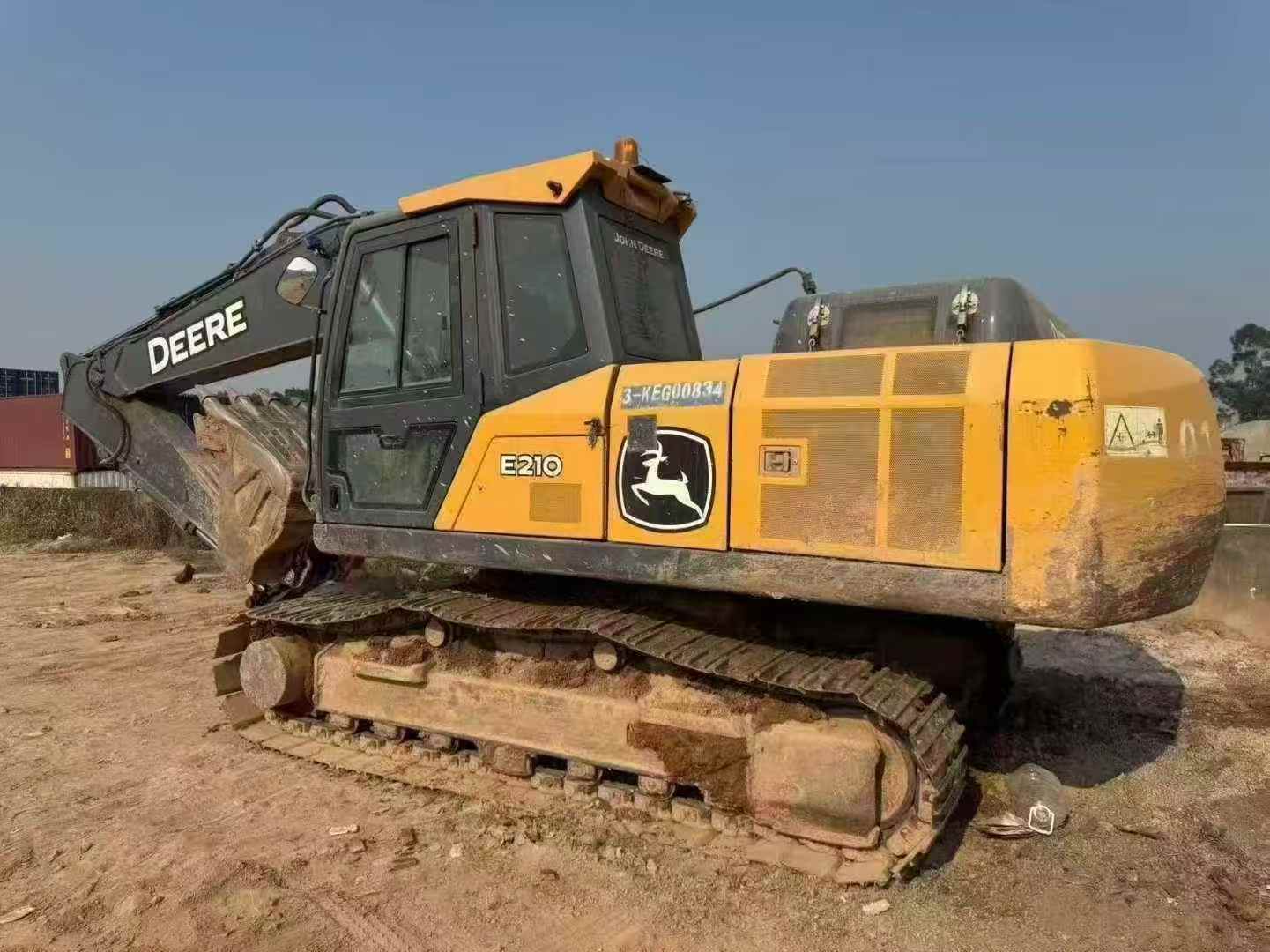

Expand your excavator fleet with this 2019 John Deere E210, a 21-ton workhorse engineered for consistent performance across demanding jobsites. Powered by a 117 kW engine delivering 639 N·m of torque, this crawler excavator brings proven reliability to projects requiring a mid-size machine with premium output. Currently positioned in Guizhou, this unit offers immediate deployment capability for contractors managing multiple operations.
- Maximum digging reach: 10,040 mm with 6,730 mm depth capability
- Dual hydraulic pumps: 224 L/min each for responsive multi-function control
- Bucket digging force: 150 kN for challenging excavation conditions
- Operating weight: 21,100–23,100 kg for stability without transport restrictions
- Fuel capacity: 390 L tank supports extended shift operations
Built for integration into established fleets, the E210 shares parts commonality and service protocols with existing John Deere equipment. The 1.0 m³ bucket capacity and 12.5 rpm slew speed maintain productivity during loading cycles, while 70% gradeability ensures access to difficult terrain. Add proven backup capacity to your operation without disrupting current workflows.
| Specifications | Value |
|---|---|
| No. | 1017634 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21100~23100 |
| Bucket capacity (m³) | 1.0 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 117/2000 |
| Maximum torque (N.m) | 639/1500 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.5 |
| Working form | |
| Ground specific pressure (Kpa) | 38-58.3 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 150 |
| Rod digging force (kN) | 111 |
| Maximum tractive force (kN) | 216 |
| Travel speed (km/h) | 3.2/5.5 |
| Turning torque (Nm) | 61 |
| Maximum flow of main pump (l/min) | 224 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.3 |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 20*1 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 141 |
| Engine Oil changes (L) | 14.7 |
| Coolant (L) | 26 |
| Hydraulic System (L) | 260 |
| Total transport length (mm) | 9790 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3299 |
| Full cab height (mm) | 3024 |
| Counterweight ground clearance (mm) | 1089 |
| Minimum ground clearance (mm) | 469 |
| Minimum turning radius of front working device (mm) | 3660 |
| Back end turning radius (mm) | 3042 |
| Total track length (mm) | 4072 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 10040 |
| Maximum digging depth (mm) | 6730 |
| Maximum excavation height (mm) | 9810 |
| Maximum unloading height (mm) | 6790 |
| Maximum vertical digging depth (mm) | 6090 |
| Maximum excavation radius of stop surface (mm) | 9820 |
