Product Description
Engineered with a robust 143 kW powerplant delivering 927 N·m of maximum torque at 1,400 rpm, this 2016 John Deere E240 excavator demonstrates exceptional hydraulic performance through its dual 234 L/min main pumps and 34.3 MPa working circuit pressure. Operating at 24 tons with a working weight range of 24,200–25,600 kg, this Chinese-manufactured unit combines proven mechanical design with field-tested reliability for demanding earthmoving operations.
- Bucket digging force: 176 kN with 1.3 m³ capacity for aggressive material penetration
- Maximum digging reach: 10,370 mm with 7,160 mm depth capability

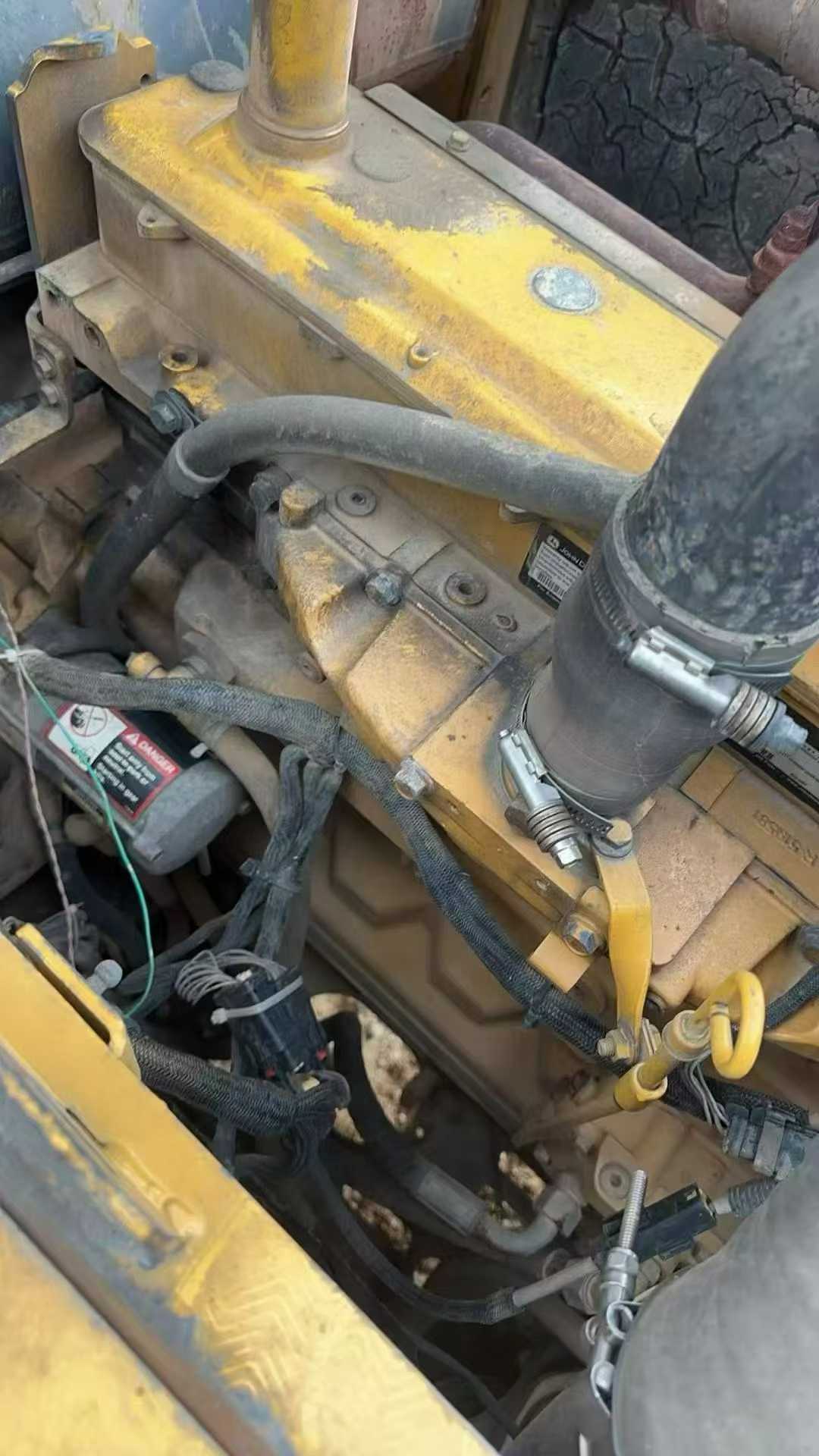

- 6.8L six-cylinder engine paired with 390L fuel tank for extended operational intervals
- 70% gradeability (35°) and 228 kN maximum tractive force ensure superior mobility
- 5,900 mm boom and 3,000 mm arm configuration optimized for versatile excavation tasks
- Dual-speed travel system: 3.4/5.7 km/h for precision and productivity
Currently located in Kunming, Yunnan, this E240 represents John Deere's commitment to hydraulic efficiency and structural durability. Complete technical documentation available upon request for qualified buyers.
| Specifications | Value |
|---|---|
| No. | 1047620 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 24200-25600 |
| Bucket capacity (m³) | 1.3 |
| Boom length (mm) | 5900 |
| Rod length (mm) | 3000 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 143/2000 |
| Maximum torque (N.m) | 927/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.8 |
| Working form | |
| Ground specific pressure (Kpa) | 53.1 |
| Rotation speed (rpm) | 10.8 |
| Climbing ability (%) | 70 (35°) |
| Bucket digging force (kN) | 176 |
| Rod digging force (kN) | 134 |
| Maximum tractive force (kN) | 228 |
| Travel speed (km/h) | 3.4/5.7 |
| Turning torque (Nm) | 69 |
| Maximum flow of main pump (l/min) | 2 x 234 |
| Traveling Hydraulic Circuit (Mpa) | 36.4 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 20 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 141 |
| Engine Oil changes (L) | 20 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 260 |
| Total transport length (mm) | 10180 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3346 |
| Full cab height (mm) | 3027 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 445 |
| Minimum turning radius of front working device (mm) | 4010 |
| Back end turning radius (mm) | 3100 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4262 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3834 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10370 |
| Maximum digging depth (mm) | 7160 |
| Maximum excavation height (mm) | 9810 |
| Maximum unloading height (mm) | 6870 |
| Maximum vertical digging depth (mm) | 6200 |
| Maximum excavation radius of stop surface (mm) | 10140 |
