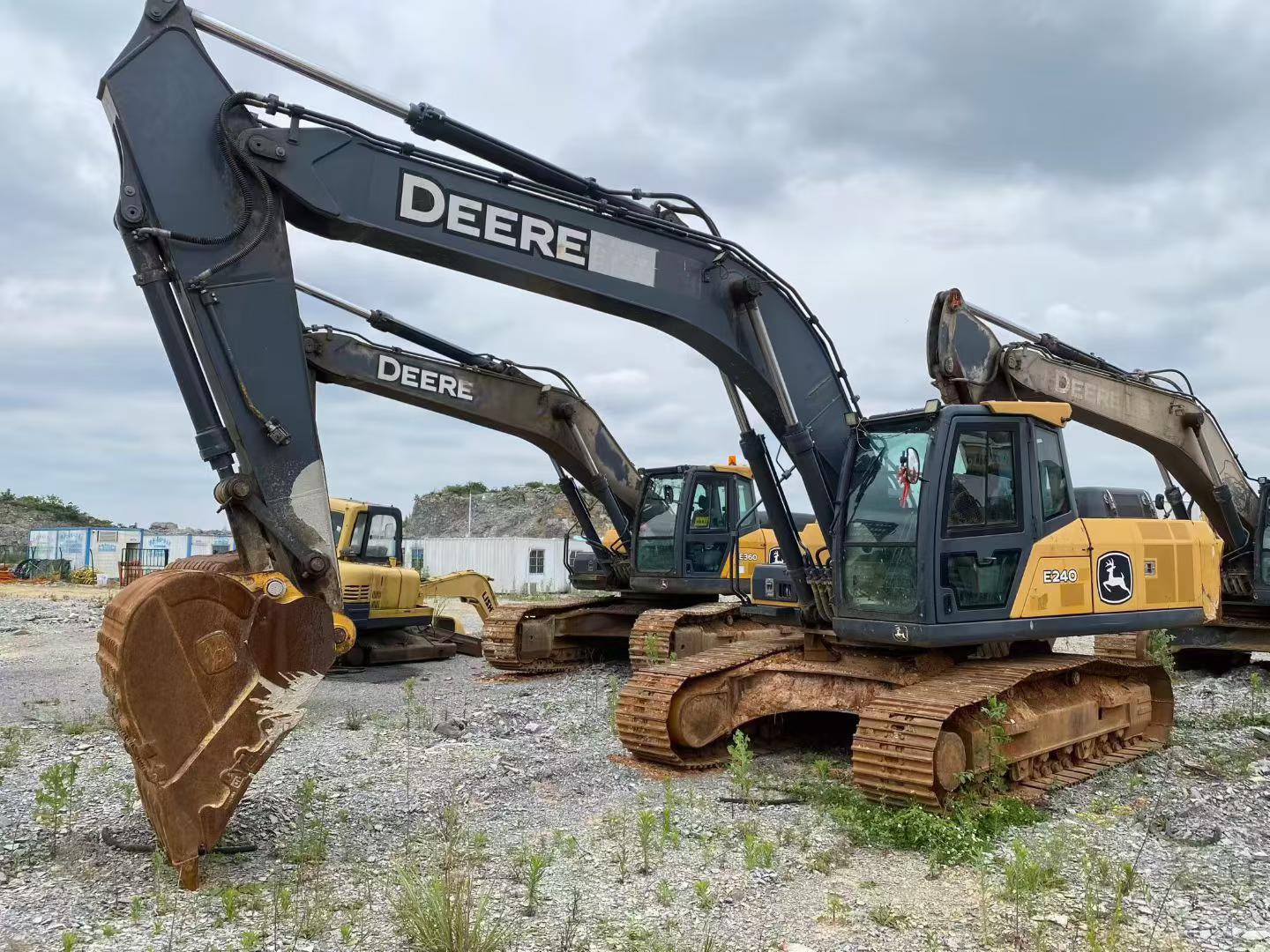

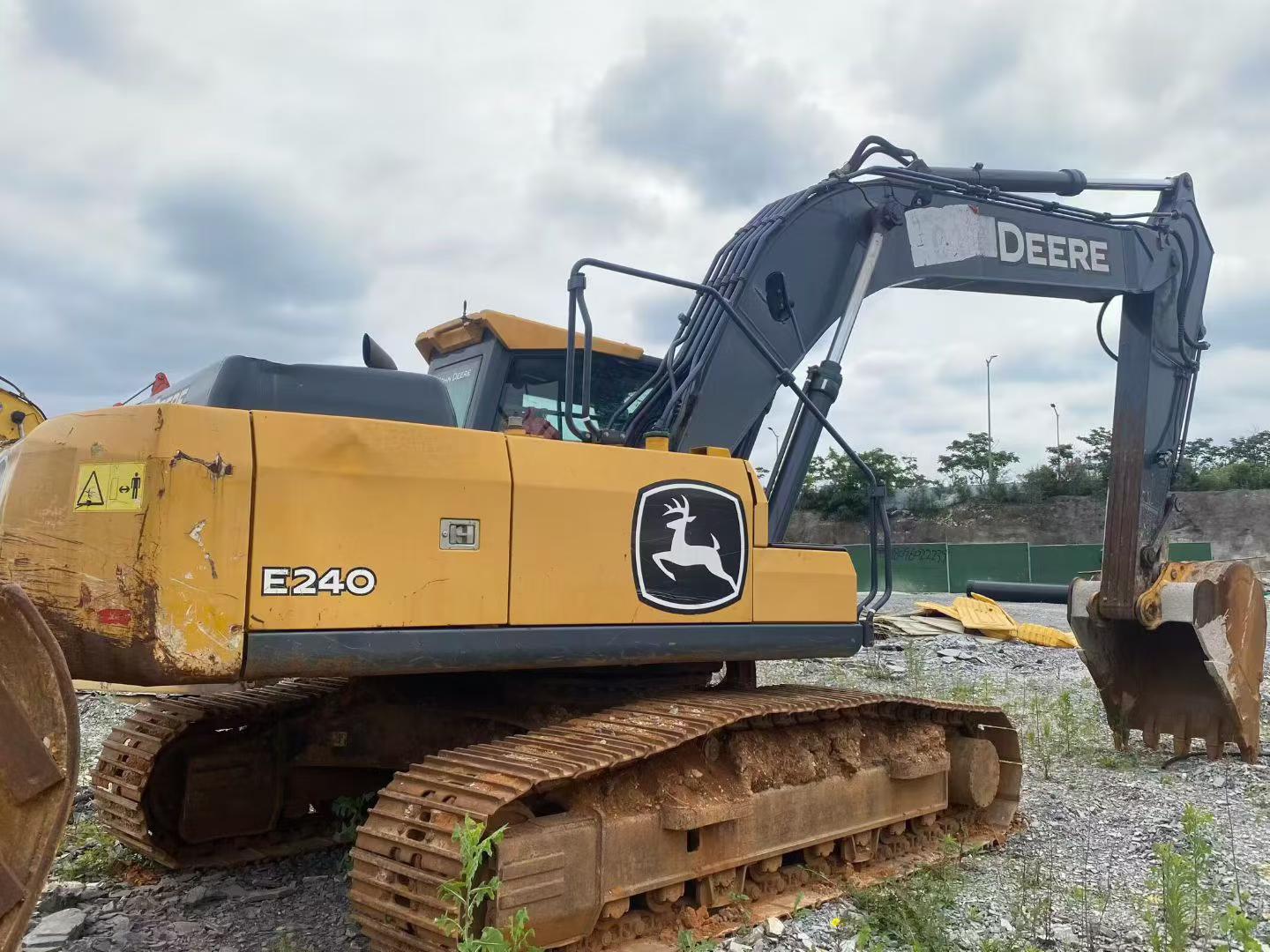

2017 JohnDeere E240

1/6
Buy JohnDeere E240 Used Excavator / 1
Buy JohnDeere E240 Used Excavator / 2
Buy JohnDeere E240 Used Excavator / 3
Buy JohnDeere E240 Used Excavator / 4
Buy JohnDeere E240 Used Excavator / 5
Buy JohnDeere E240 Used Excavator / 6

Product Description

Expand your fleet capacity with this 2017 John Deere E240 excavator, a proven 24-ton workhorse engineered for contractors managing multiple jobsites simultaneously. Powered by a robust 143 kW engine delivering 927 N·m of torque, this Chinese-manufactured unit provides reliable backup when primary equipment is deployed elsewhere. The 1.3 m³ bucket and 10.37-meter maximum digging radius handle everything from foundation work to utility trenching without downtime.

  • Hydraulic Performance: Dual 234 L/min pumps with 34.3 MPa working pressure ensure consistent cycle times across your equipment lineup
  • Mobility: 10.8 rpm swing speed and 5.7 km/h travel speed maintain productivity during rapid site transitions
  • Operator Efficiency: 3.9 MPa pilot controls reduce fatigue during extended shifts when covering for other machines
  • Serviceability: 390L fuel tank and accessible 260L hydraulic system minimize maintenance interruptions

Currently located in Hunan, this E240 integrates seamlessly into existing John Deere fleets while offering the flexibility to scale operations without capital investment in new machinery. Ideal for con

SpecificationsValue
No.1039332
Tonnage (tons)24
Working weight (kg)24200-25600
Bucket capacity (m³)1.3
Boom length (mm)5900
Rod length (mm)3000
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine type
Rated power (kw/rpm)143/2000
Maximum torque (N.m)927/1400
Number of cylinders (PCS)6
Displacement (L)6.8
Working form
Ground specific pressure (Kpa)53.1
Rotation speed (rpm)10.8
Climbing ability (%)70 (35°)
Bucket digging force (kN)176
Rod digging force (kN)134
Maximum tractive force (kN)228
Travel speed (km/h)3.4/5.7
Turning torque (Nm)69
Maximum flow of main pump (l/min)2 x 234
Traveling Hydraulic Circuit (Mpa)36.4
Rotary Hydraulic Circuit (Mpa)25.5
Main pump type
Working Hydraulic Circuit (Mpa)34.3
Pilot Oil Circuit (MPa)3.9
Pilot pump flow (L/min)20
Fuel Tank (L)390
Hydraulic Tank (L)141
Engine Oil changes (L)20
Coolant (L)30
Hydraulic System (L)260
Total transport length (mm)10180
Total transport width (mm)2980
Total transport height (mm)3346
Full cab height (mm)3027
Counterweight ground clearance (mm)1090
Minimum ground clearance (mm)445
Minimum turning radius of front working device (mm)4010
Back end turning radius (mm)3100
Onboard width (mm)2710
Total track length (mm)4262
Track gauge (mm)2380
Track plate width (mm)600
Track ground length (mm)3834
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)8
Number of track plates (single side) (PCS)47
Maximum digging radius (mm)10370
Maximum digging depth (mm)7160
Maximum excavation height (mm)9810
Maximum unloading height (mm)6870
Maximum vertical digging depth (mm)6200
Maximum excavation radius of stop surface (mm)10140
see more

Overview

No.1039332

Brand Name:

JohnDeere

Model Number:

E240

Year:

2017

Location:

Hunan China
