Product Description

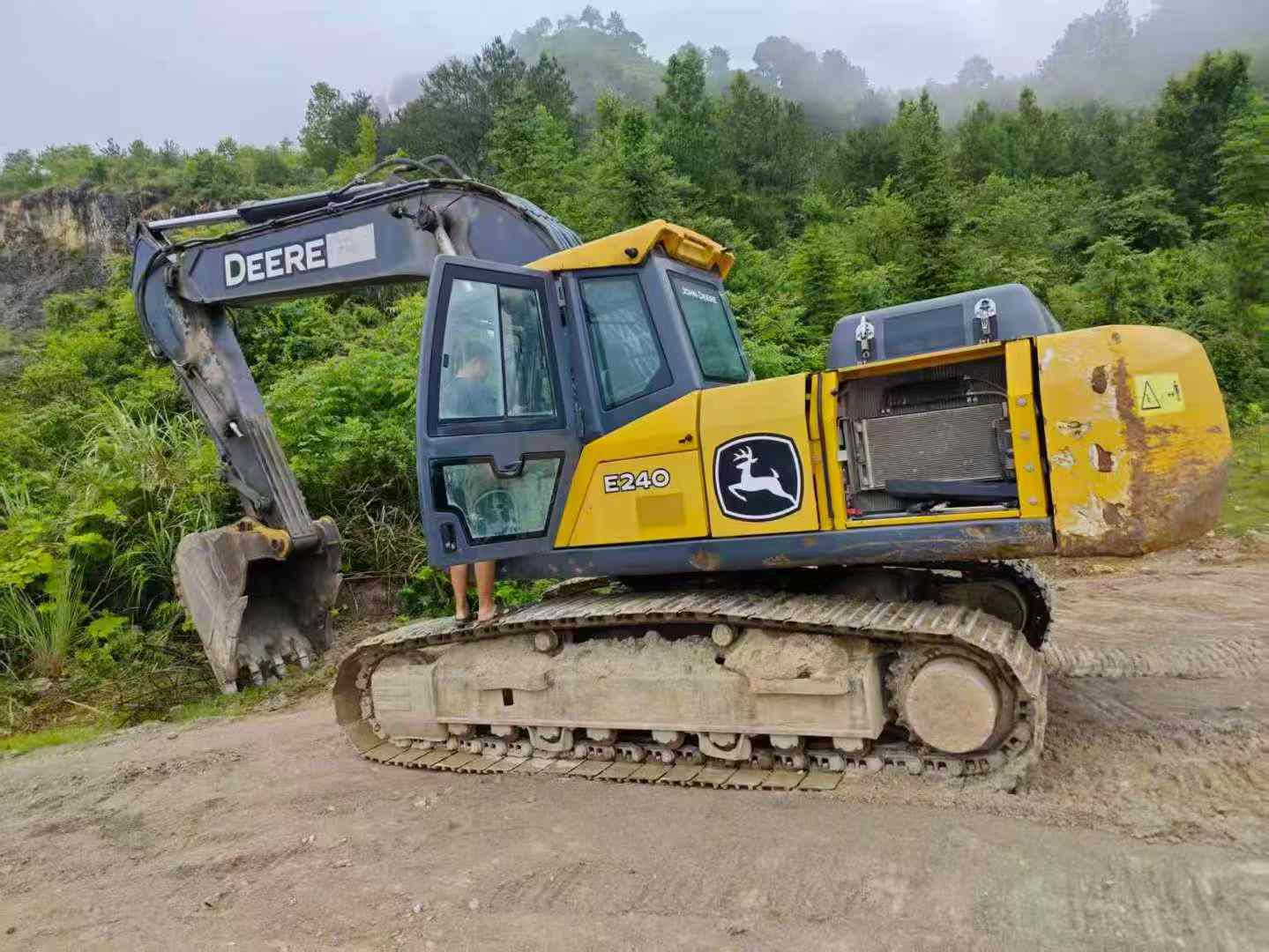

Built for demanding excavation work, this 2017 JohnDeere E240 delivers exceptional operator control with its 24-ton working capacity and precision hydraulic system. Operating from Guangxi, this machine combines robust 143kW power output with advanced cabin ergonomics designed for extended work cycles.
Superior handling characteristics define this excavator's performance profile:
- Enhanced stability through optimized 53.1 kPa ground pressure distribution

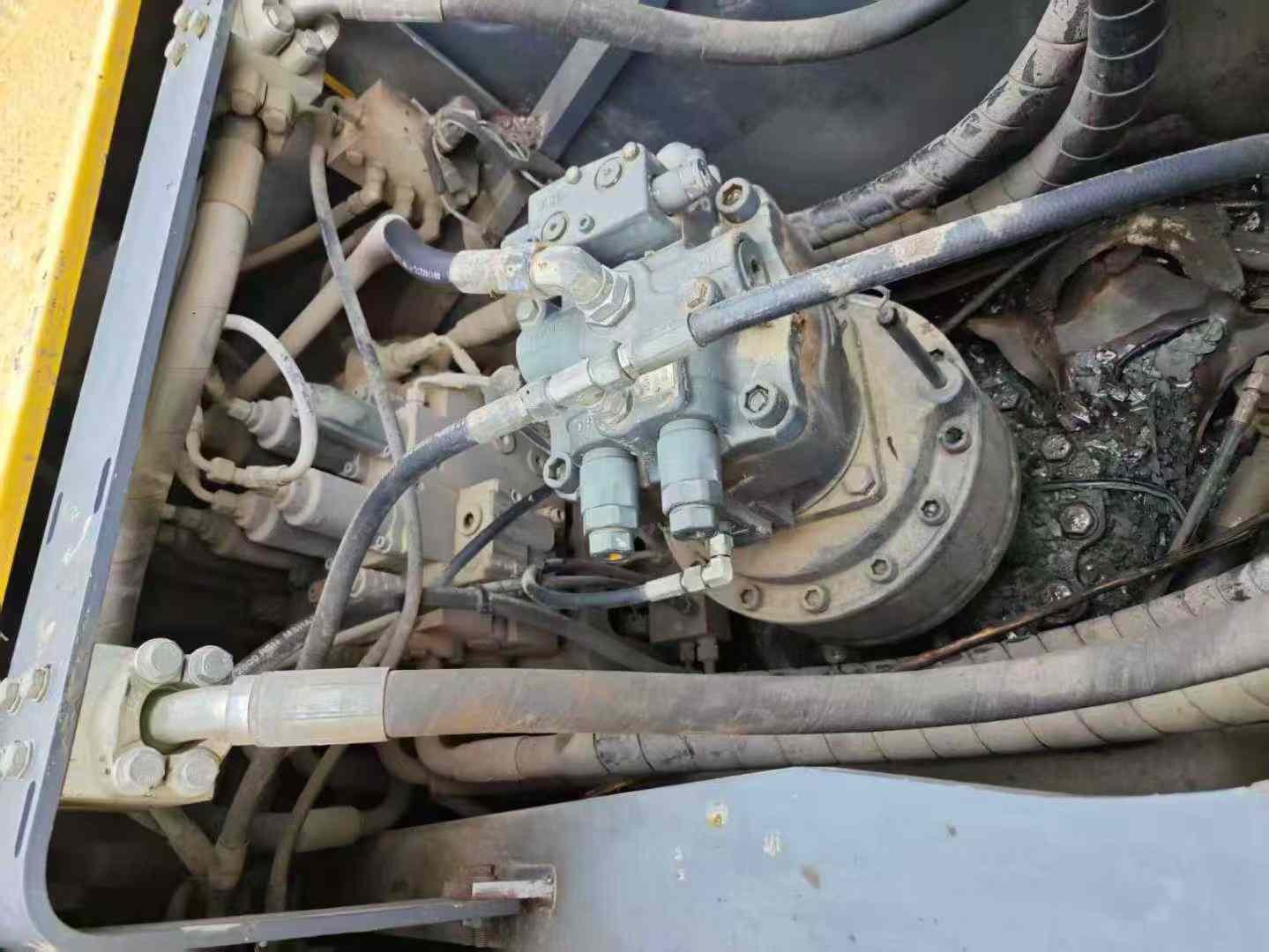

- Precise control via dual 234 L/min main pump hydraulic flow
- Excellent visibility with 3027mm full cab height and strategic window placement

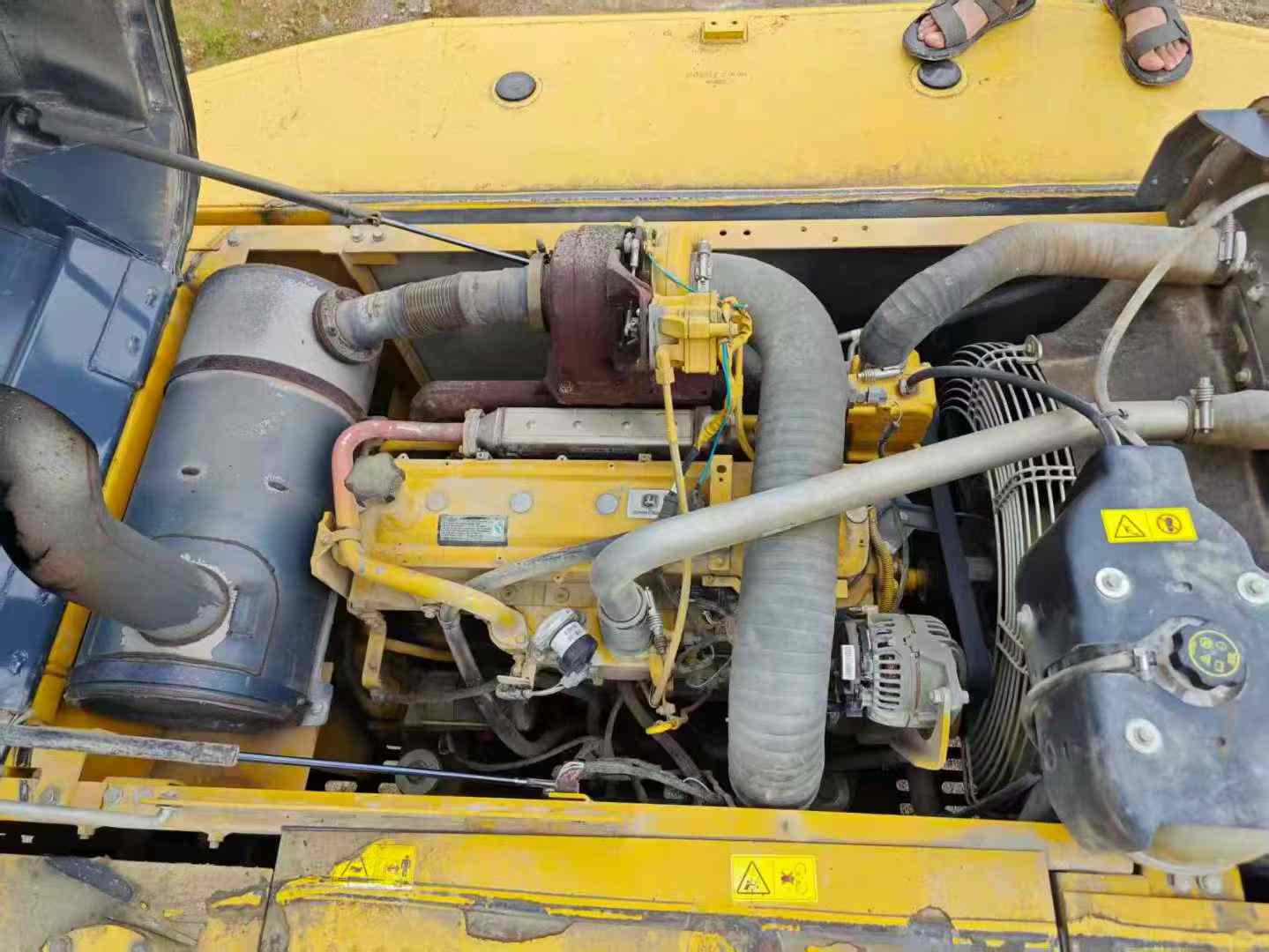

- Smooth operation enabled by 6.8L displacement engine delivering 927 N·m peak torque
Maximum digging reach extends to 10.37 meters while maintaining exceptional digging force of 176kN at the bucket. The spacious operator cabin provides commanding views of the 1.3m³ bucket and surrounding work area, ensuring accurate material placement and enhanced job site safety. With 70% climbing capability and 10.8 rpm rotation speed, operators maintain productive control across varied terrain conditions.
| Specifications | Value |
|---|---|
| No. | 992977 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 24200-25600 |
| Bucket capacity (m³) | 1.3 |
| Boom length (mm) | 5900 |
| Rod length (mm) | 3000 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 143/2000 |
| Maximum torque (N.m) | 927/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.8 |
| Working form | |
| Ground specific pressure (Kpa) | 53.1 |
| Rotation speed (rpm) | 10.8 |
| Climbing ability (%) | 70 (35°) |
| Bucket digging force (kN) | 176 |
| Rod digging force (kN) | 134 |
| Maximum tractive force (kN) | 228 |
| Travel speed (km/h) | 3.4/5.7 |
| Turning torque (Nm) | 69 |
| Maximum flow of main pump (l/min) | 2 x 234 |
| Traveling Hydraulic Circuit (Mpa) | 36.4 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 20 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 141 |
| Engine Oil changes (L) | 20 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 260 |
| Total transport length (mm) | 10180 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3346 |
| Full cab height (mm) | 3027 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 445 |
| Minimum turning radius of front working device (mm) | 4010 |
| Back end turning radius (mm) | 3100 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4262 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3834 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10370 |
| Maximum digging depth (mm) | 7160 |
| Maximum excavation height (mm) | 9810 |
| Maximum unloading height (mm) | 6870 |
| Maximum vertical digging depth (mm) | 6200 |
| Maximum excavation radius of stop surface (mm) | 10140 |
