Product Description

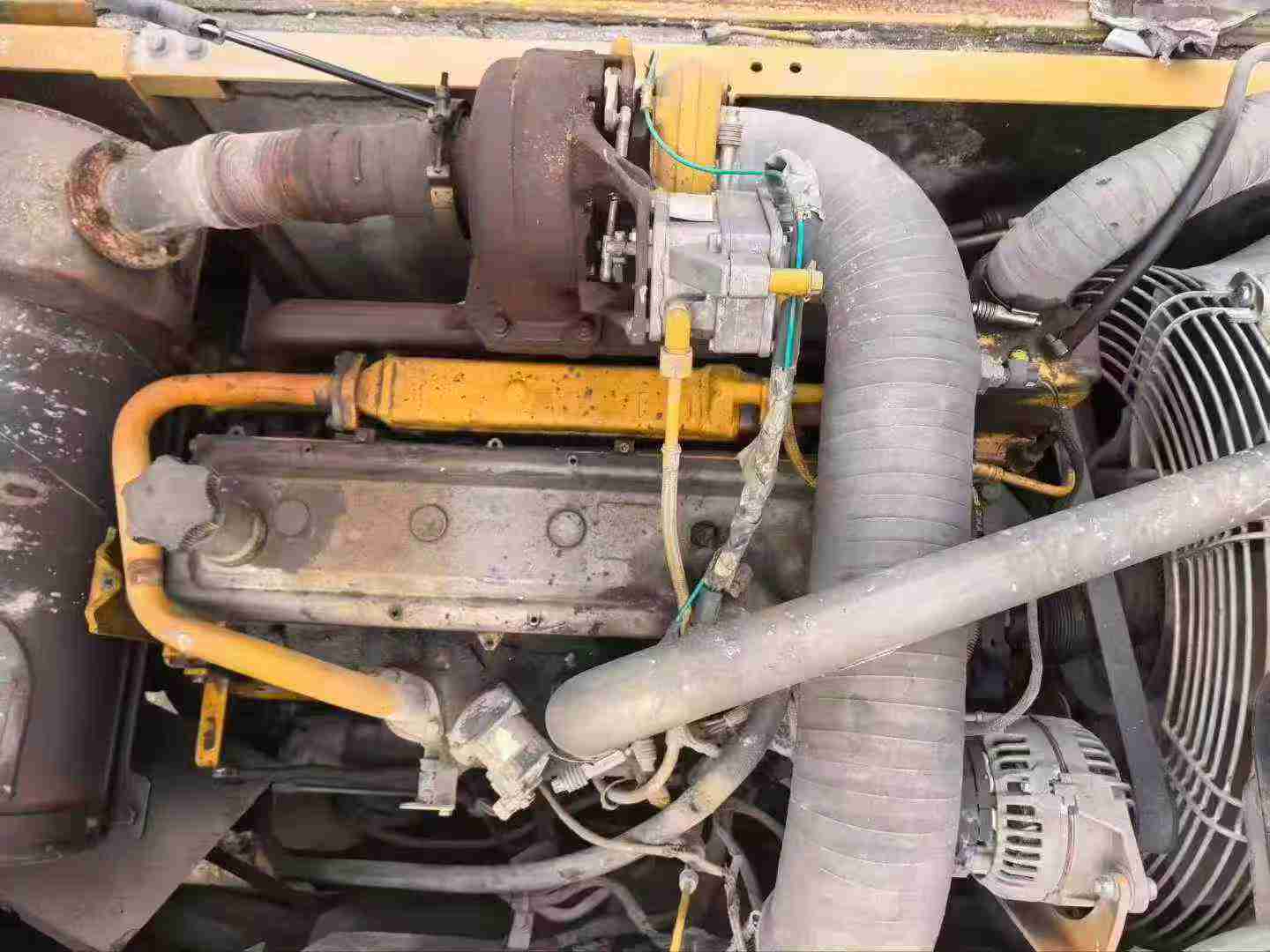

Available now in 四川泸州, this 2017 JohnDeere E240 excavator delivers 24-ton performance without factory wait times. Powered by a robust 6.8L engine producing 143kW at 2000rpm, this machine combines proven reliability with immediate deployment capability. Skip the lead times and put this hydraulic excavator to work on your site within days, not months.
Engineered for demanding applications, the E240 features a 1.3m³ bucket capacity, 10,370mm maximum digging radius, and 7,160mm maximum digging depth. The dual main pump system flows 2 x 234 L/min, ensuring responsive hydraulic performance across all functions. With 176kN bucket digging force and 228kN maximum tractive force, this China-manufactured unit handles heavy-duty excavation, loading, and grading operations efficiently.
Key specifications include:
- Working weight: 24,200-25,600kg with optimal 53.1kPa ground pressure
- Travel speeds: 3.4/5.7 km/h for flexible site mobility
- 70% climbing ability tackles challenging terrain
- 390L fuel tank and 141L hydraulic reservoir for extended operation
- Compact transport dimensions: 10,180mm length, 2,980mm width
Fast deployment to your 四川泸州 project site means immediate p
| Specifications | Value |
|---|---|
| No. | 993538 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 24200-25600 |
| Bucket capacity (m³) | 1.3 |
| Boom length (mm) | 5900 |
| Rod length (mm) | 3000 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 143/2000 |
| Maximum torque (N.m) | 927/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.8 |
| Working form | |
| Ground specific pressure (Kpa) | 53.1 |
| Rotation speed (rpm) | 10.8 |
| Climbing ability (%) | 70 (35°) |
| Bucket digging force (kN) | 176 |
| Rod digging force (kN) | 134 |
| Maximum tractive force (kN) | 228 |
| Travel speed (km/h) | 3.4/5.7 |
| Turning torque (Nm) | 69 |
| Maximum flow of main pump (l/min) | 2 x 234 |
| Traveling Hydraulic Circuit (Mpa) | 36.4 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 20 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 141 |
| Engine Oil changes (L) | 20 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 260 |
| Total transport length (mm) | 10180 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3346 |
| Full cab height (mm) | 3027 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 445 |
| Minimum turning radius of front working device (mm) | 4010 |
| Back end turning radius (mm) | 3100 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4262 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3834 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10370 |
| Maximum digging depth (mm) | 7160 |
| Maximum excavation height (mm) | 9810 |
| Maximum unloading height (mm) | 6870 |
| Maximum vertical digging depth (mm) | 6200 |
| Maximum excavation radius of stop surface (mm) | 10140 |
