Product Description

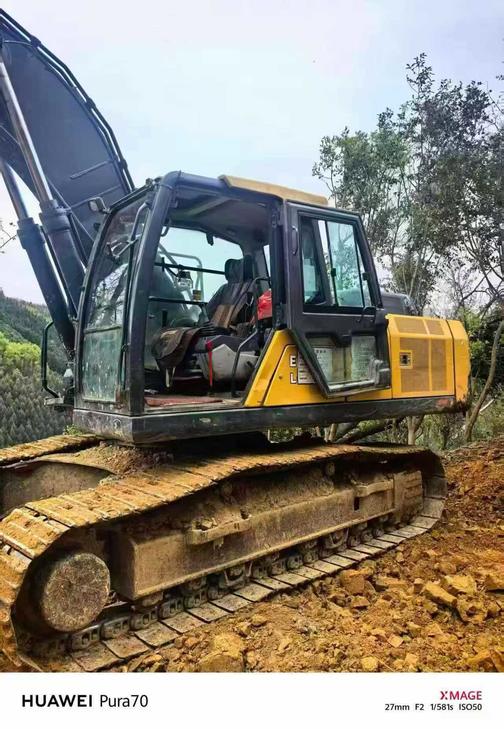

This 2018 John Deere E240 excavator represents a solid mid-sized solution for construction and earthmoving operations. Manufactured in November 2018, this machine has accumulated approximately 100,000 operating hours, demonstrating its durability in demanding applications. Currently located in Yunnan, China, this unit is positioned for buyers seeking proven John Deere reliability in the Asian market.

The E240 is known for its balance of power and efficiency in the 24-ton class. Key attributes include:

  • John Deere's established hydraulic system for responsive control
  • Robust undercarriage designed for extended service life
  • Operator cabin with ergonomic controls
  • Fuel-efficient engine meeting emission standards
  • Suitable for excavation, loading, and material handling tasks

This machine offers an opportunity to acquire a name-brand excavator with transparent operating history. Ideal for contractors requiring dependable performance without new equipment investment.

SpecificationsValue
No.1084249
Tonnage (tons)24
Working weight (kg)24200-25600
Bucket capacity (m³)1.3
Boom length (mm)5900
Rod length (mm)3000
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine type
Rated power (kw/rpm)143/2000
Maximum torque (N.m)927/1400
Number of cylinders (PCS)6
Displacement (L)6.8
Working form
Ground specific pressure (Kpa)53.1
Rotation speed (rpm)10.8
Climbing ability (%)70 (35°)
Bucket digging force (kN)176
Rod digging force (kN)134
Maximum tractive force (kN)228
Travel speed (km/h)3.4/5.7
Turning torque (Nm)69
Maximum flow of main pump (l/min)2 x 234
Traveling Hydraulic Circuit (Mpa)36.4
Rotary Hydraulic Circuit (Mpa)25.5
Main pump type
Working Hydraulic Circuit (Mpa)34.3
Pilot Oil Circuit (MPa)3.9
Pilot pump flow (L/min)20
Fuel Tank (L)390
Hydraulic Tank (L)141
Engine Oil changes (L)20
Coolant (L)30
Hydraulic System (L)260
Total transport length (mm)10180
Total transport width (mm)2980
Total transport height (mm)3346
Full cab height (mm)3027
Counterweight ground clearance (mm)1090
Minimum ground clearance (mm)445
Minimum turning radius of front working device (mm)4010
Back end turning radius (mm)3100
Onboard width (mm)2710
Total track length (mm)4262
Track gauge (mm)2380
Track plate width (mm)600
Track ground length (mm)3834
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)8
Number of track plates (single side) (PCS)47
Maximum digging radius (mm)10370
Maximum digging depth (mm)7160
Maximum excavation height (mm)9810
Maximum unloading height (mm)6870
Maximum vertical digging depth (mm)6200
Maximum excavation radius of stop surface (mm)10140
