Product Description

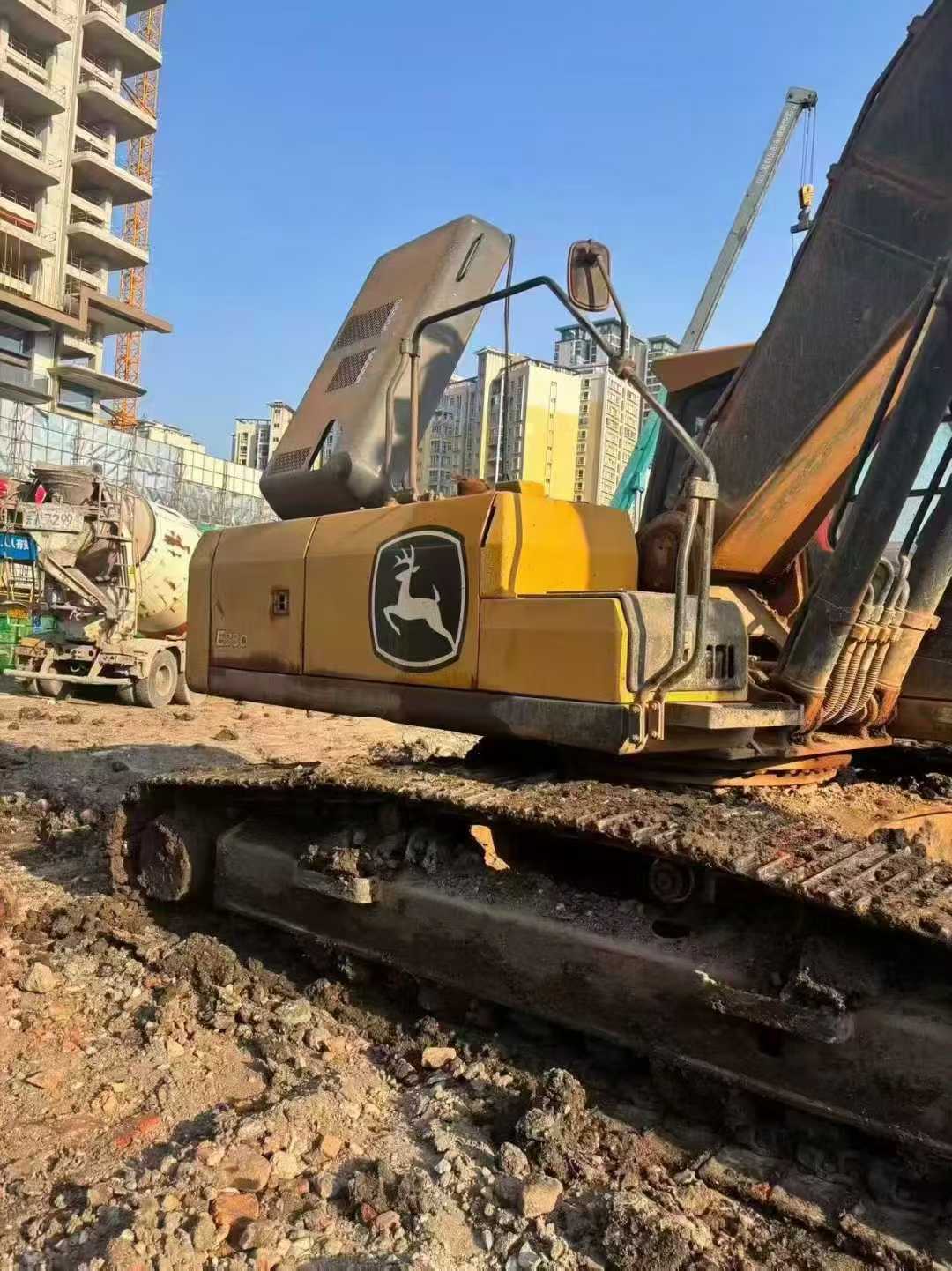

Built for precision and control, this 2016 John Deere E260LC excavator delivers 26 tons of reliable performance with operator-first engineering. Powered by a 143 kW engine producing 927 N·m of torque, it combines robust hydraulic flow (234×2 L/min dual pumps) with exceptional stability across challenging terrain. Operators benefit from superior cabin visibility and ergonomic controls, while the 600mm track plates and 52.2 kPa ground pressure ensure confident handling on soft or uneven surfaces.
- Operating Weight: 26,300–26,900 kg with 1.4–1.5 m³ bucket capacity
- Reach & Depth: 10,370mm max digging radius, 7,160mm digging depth
- Digging Force: 176 kN bucket force, 134 kN stick force for tough materials
- Boom/Arm: 5,900mm boom, 3,000mm stick for versatile working range
- Stability: 70% grading ability, 10.8 rpm swing speed, 3,100mm rear radius
- Hydraulics: 34.3 MPa working pressure with 390L fuel tank for extended shifts
Currently located in Kunming, Yunnan, this joint venture/import model offers proven durability for heavy-duty excavation, grading, and loading applications worldwide.
| Specifications | Value |
|---|---|
| No. | 1031831 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 26300-26900 |
| Bucket capacity (m³) | 1.4-1.5 |
| Boom length (mm) | 5900 |
| Rod length (mm) | 3000 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 143/2000 |
| Maximum torque (N.m) | 927/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.8 |
| Working form | |
| Ground specific pressure (Kpa) | 52.2 |
| Rotation speed (rpm) | 10.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 176 |
| Rod digging force (kN) | 134 |
| Maximum tractive force (kN) | 228 |
| Travel speed (km/h) | 3.4/5.7 |
| Turning torque (Nm) | 69 |
| Maximum flow of main pump (l/min) | 234x 2 |
| Traveling Hydraulic Circuit (Mpa) | 36.4 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 20 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 141 |
| Engine Oil changes (L) | 20 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 260 |
| Total transport length (mm) | 10180 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3346 |
| Full cab height (mm) | 3027 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 445 |
| Minimum turning radius of front working device (mm) | 4010 |
| Back end turning radius (mm) | 3100 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4643 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 10 |
| Number of track plates (single side) (PCS) | 51 |
| Maximum digging radius (mm) | 10370 |
| Maximum digging depth (mm) | 7160 |
| Maximum excavation height (mm) | 9810 |
| Maximum unloading height (mm) | 6870 |
| Maximum vertical digging depth (mm) | 6200 |
| Maximum excavation radius of stop surface (mm) | 10140 |
