Product Description

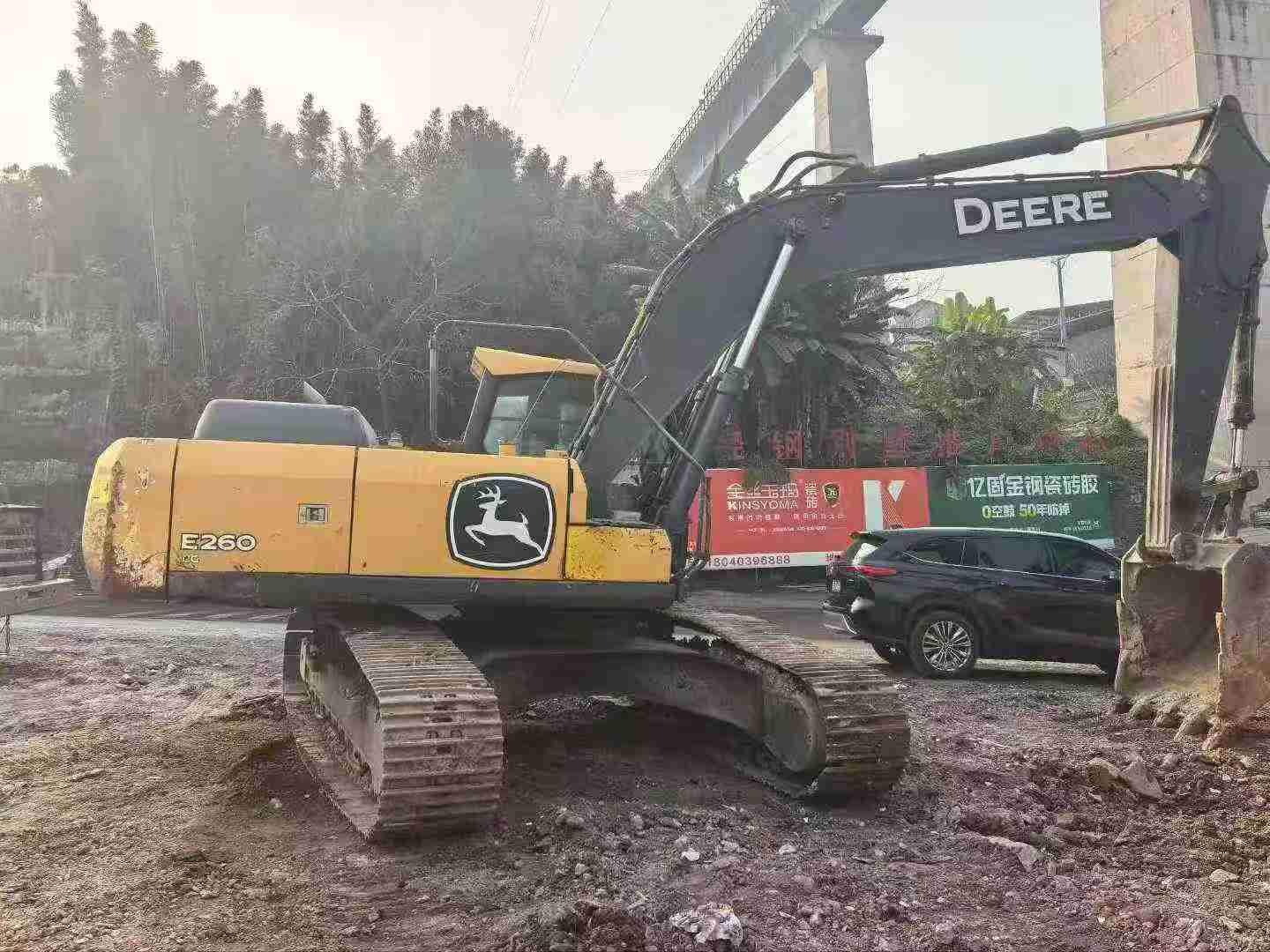

With a robust 26-ton working weight and a powerful 143 kW engine, this 2017 JohnDeere E260LC excavator is site-ready for your most demanding projects. Located in 四川泸州, it excels in digging, grading, and demolition tasks. Equipped with a 1.4-1.5 m³ bucket capacity and a 5900 mm boom length, it delivers precise and efficient performance. The machine features a maximum digging depth of 7160 mm and a maximum unloading height of 6870 mm, ensuring versatility on any job site.
- Bucket digging force: 176 kN
- Maximum tractive force: 228 kN
- Travel speed: 3.4/5.7 km/h
- Hydraulic system: 260 L
- Total transport dimensions: 10180 mm (length) x 3200 mm (width) x 3346 mm (height)
| Specifications | Value |
|---|---|
| No. | 1022813 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 26300-26900 |
| Bucket capacity (m³) | 1.4-1.5 |
| Boom length (mm) | 5900 |
| Rod length (mm) | 3000 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 143/2000 |
| Maximum torque (N.m) | 927/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.8 |
| Working form | |
| Ground specific pressure (Kpa) | 52.2 |
| Rotation speed (rpm) | 10.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 176 |
| Rod digging force (kN) | 134 |
| Maximum tractive force (kN) | 228 |
| Travel speed (km/h) | 3.4/5.7 |
| Turning torque (Nm) | 69 |
| Maximum flow of main pump (l/min) | 234x 2 |
| Traveling Hydraulic Circuit (Mpa) | 36.4 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 20 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 141 |
| Engine Oil changes (L) | 20 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 260 |
| Total transport length (mm) | 10180 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3346 |
| Full cab height (mm) | 3027 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 445 |
| Minimum turning radius of front working device (mm) | 4010 |
| Back end turning radius (mm) | 3100 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4643 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 10 |
| Number of track plates (single side) (PCS) | 51 |
| Maximum digging radius (mm) | 10370 |
| Maximum digging depth (mm) | 7160 |
| Maximum excavation height (mm) | 9810 |
| Maximum unloading height (mm) | 6870 |
| Maximum vertical digging depth (mm) | 6200 |
| Maximum excavation radius of stop surface (mm) | 10140 |
