Product Description

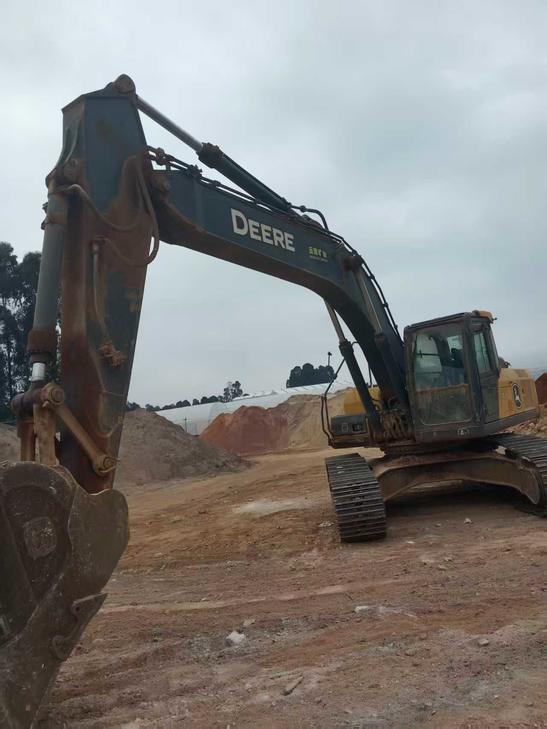

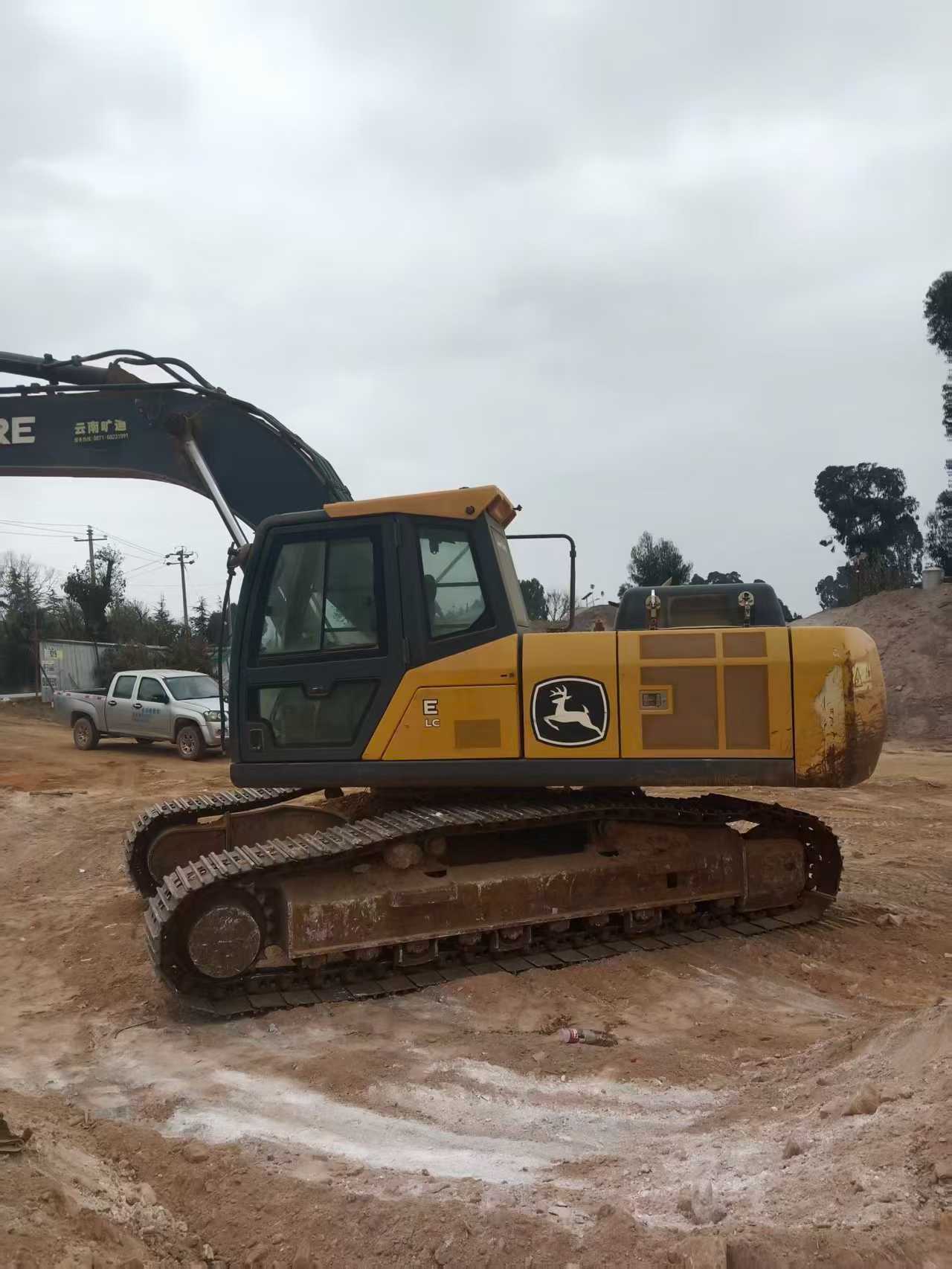

Built to endure the toughest job sites, this 2018 John Deere E260LC excavator demonstrates proven reliability with a track record that speaks for itself. Operating at 26 tons with a robust 143kW rated power output and 6.8L displacement engine, this workhorse delivers consistent performance across demanding applications. Currently located in Kunming, Yunnan, this machine combines joint venture/import manufacturing quality with field-tested durability.
Engineered for productivity, the E260LC features a 1.4-1.5m³ bucket capacity, 10,370mm maximum digging radius, and 7,160mm maximum digging depth. The dual main pump system (234L/min × 2) ensures responsive hydraulic performance, while the 176kN bucket digging force and 134kN rod digging force tackle heavy excavation with authority. With 390L fuel capacity and efficient 34.3MPa working hydraulic circuit, this excavator maintains operational uptime on extended projects.
Five years of proven service validate the E260LC's reputation as a dependable asset. Purpose-built components, including the 5,900mm boom and 3,000mm rod, deliver the reach and power required for infrastructure development, mining operations, and large-scale earthmoving projects across diverse terrain condi
| Specifications | Value |
|---|---|
| No. | 1030221 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 26300-26900 |
| Bucket capacity (m³) | 1.4-1.5 |
| Boom length (mm) | 5900 |
| Rod length (mm) | 3000 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 143/2000 |
| Maximum torque (N.m) | 927/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.8 |
| Working form | |
| Ground specific pressure (Kpa) | 52.2 |
| Rotation speed (rpm) | 10.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 176 |
| Rod digging force (kN) | 134 |
| Maximum tractive force (kN) | 228 |
| Travel speed (km/h) | 3.4/5.7 |
| Turning torque (Nm) | 69 |
| Maximum flow of main pump (l/min) | 234x 2 |
| Traveling Hydraulic Circuit (Mpa) | 36.4 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 20 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 141 |
| Engine Oil changes (L) | 20 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 260 |
| Total transport length (mm) | 10180 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3346 |
| Full cab height (mm) | 3027 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 445 |
| Minimum turning radius of front working device (mm) | 4010 |
| Back end turning radius (mm) | 3100 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4643 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 10 |
| Number of track plates (single side) (PCS) | 51 |
| Maximum digging radius (mm) | 10370 |
| Maximum digging depth (mm) | 7160 |
| Maximum excavation height (mm) | 9810 |
| Maximum unloading height (mm) | 6870 |
| Maximum vertical digging depth (mm) | 6200 |
| Maximum excavation radius of stop surface (mm) | 10140 |
