Product Description

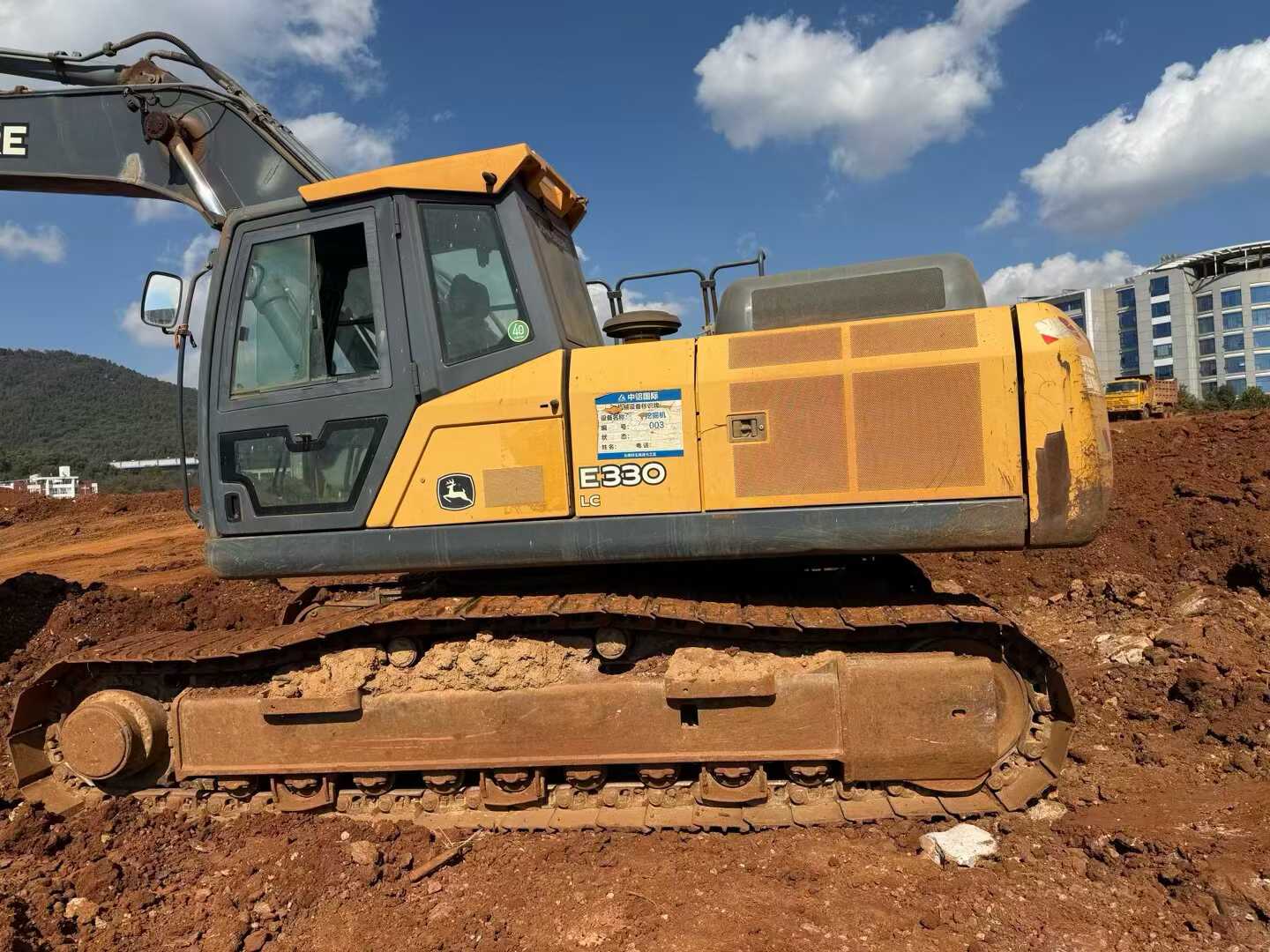

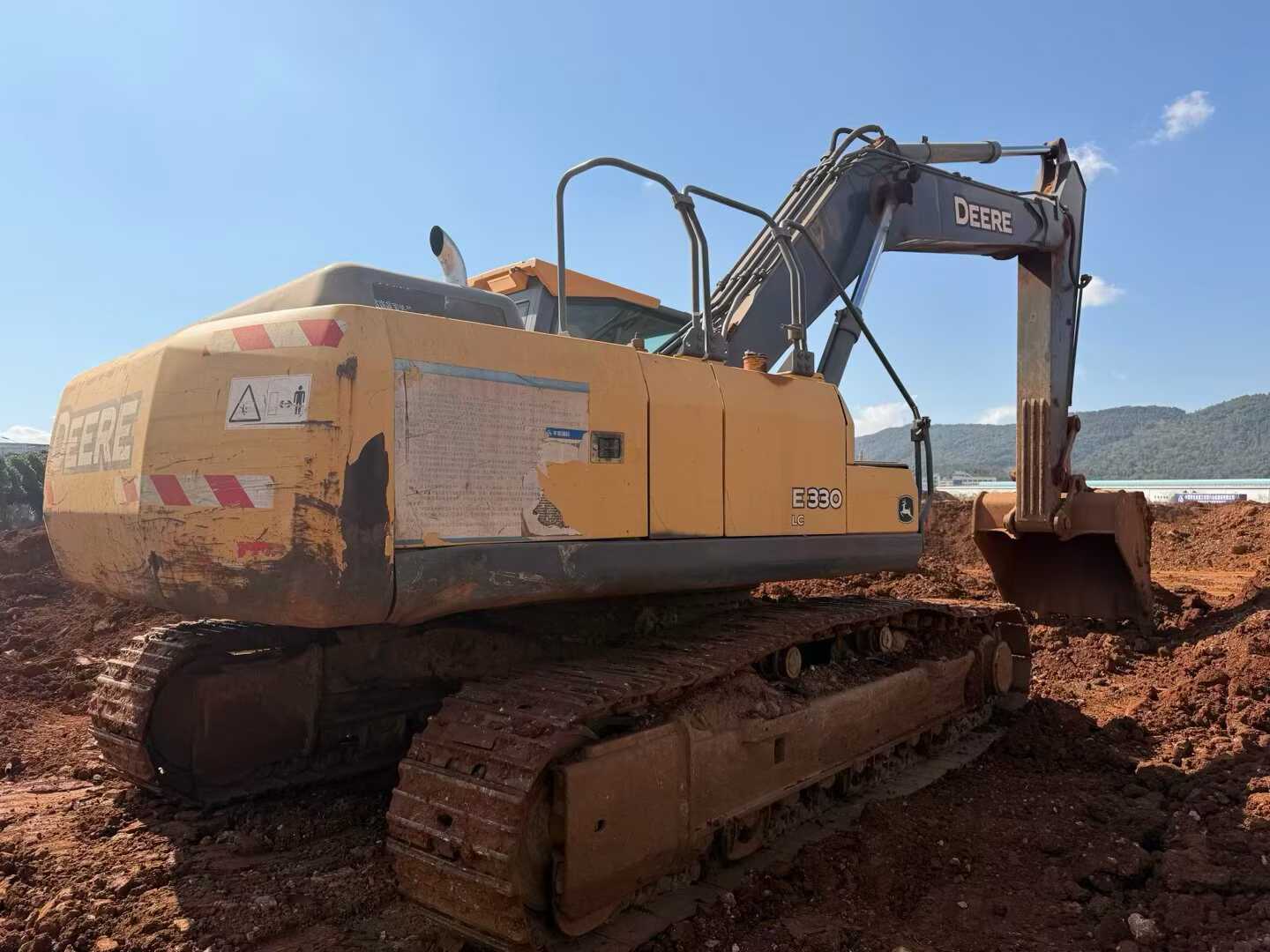

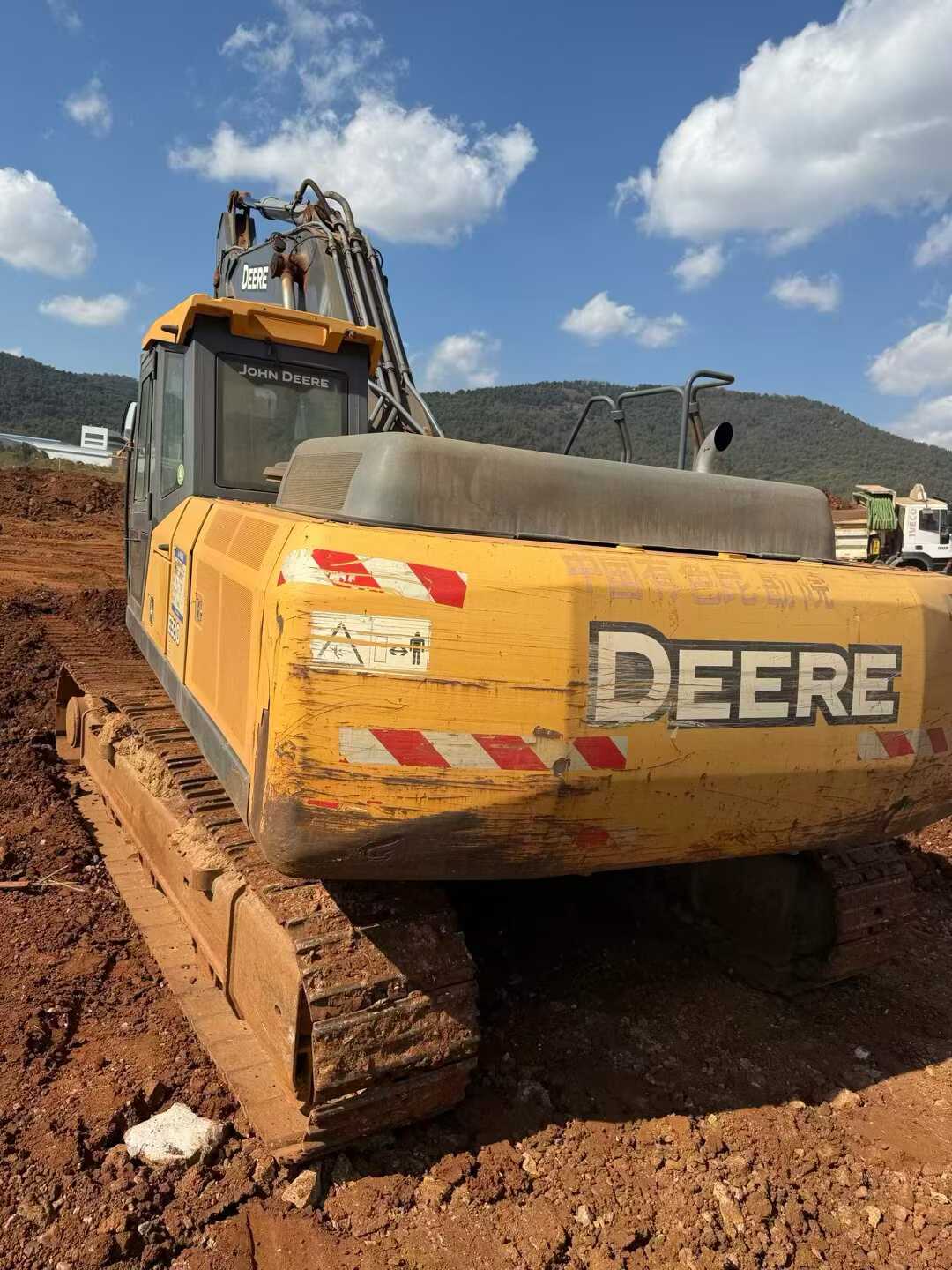

Engineered for precision and all-day productivity, this 2015 John Deere E300LC excavator delivers 30-ton performance with operator-centric design. Powered by a robust 159 kW engine producing 1026 N·m of torque, it combines formidable digging force—202.3 kN bucket and 145 kN arm—with smooth hydraulic control through dual 260 L/min pumps. Operators benefit from exceptional stability thanks to a 2600 mm track gauge and balanced 31,700 kg working weight, ensuring confident operation on slopes up to 70%.
Cabin visibility receives priority with a spacious design positioned 3181 mm high, offering clear sightlines to the 10,764 mm maximum digging radius. Intuitive pilot controls operating at 3.9 MPa provide responsive handling during precision work, while the 10.3 rpm swing speed maintains efficiency in confined spaces. Currently located in Kunming, Yunnan, this E300LC features a proven 1.3-1.6 m³ backhoe bucket configuration and comprehensive hydraulic systems totaling 358 liters for reliable performance across demanding jobsites.
- 30-ton class with 7235 mm maximum digging depth
- Advanced hydraulic system: 32.4 MPa working pressure
- Superior ground clearance: 480 mm minimum
- Fuel-efficient 6.8L,
| Specifications | Value |
|---|---|
| No. | 1039894 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 31000 - 31700 |
| Bucket capacity (m³) | 1.3-1.6 |
| Boom length (mm) | 6200 |
| Rod length (mm) | 3100 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 159/2000 |
| Maximum torque (N.m) | 1026/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.8 |
| Working form | |
| Ground specific pressure (Kpa) | 58.1 |
| Rotation speed (rpm) | 10.3 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 202.3 |
| Rod digging force (kN) | 145 |
| Maximum tractive force (kN) | 266 |
| Travel speed (km/h) | 5.2/3.1 |
| Turning torque (Nm) | 89 |
| Maximum flow of main pump (l/min) | 260*2 |
| Traveling Hydraulic Circuit (Mpa) | 35.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.4 |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 32.4 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 20*1 |
| Fuel Tank (L) | 600 |
| Hydraulic Tank (L) | 212 |
| Engine Oil changes (L) | 22 |
| Coolant (L) | 32 |
| Hydraulic System (L) | 358 |
| Total transport length (mm) | 10533 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3366 |
| Full cab height (mm) | 3181 |
| Counterweight ground clearance (mm) | 1166 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 4226 |
| Back end turning radius (mm) | 3099 |
| Onboard width (mm) | 2994 |
| Total track length (mm) | 4946 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | |
| Total track width (mm) | 3200 |
| Track ground length (mm) | 4031 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10764 |
| Maximum digging depth (mm) | 7235 |
| Maximum excavation height (mm) | 10076 |
| Maximum unloading height (mm) | 6844 |
| Maximum vertical digging depth (mm) | 4779 |
| Maximum excavation radius of stop surface (mm) | 10515 |
