2020 JohnDeere E300LC

1/9
Buy JohnDeere E300LC Used Excavator / 1

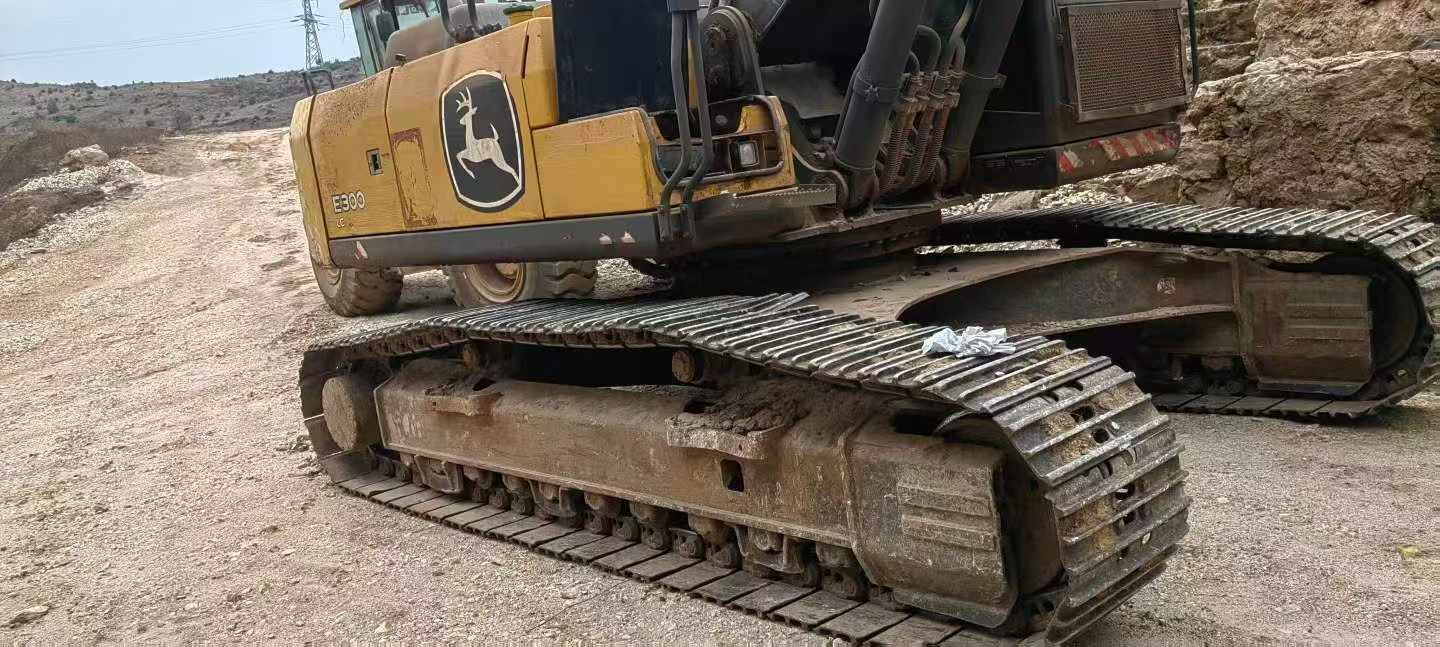

Buy JohnDeere E300LC Used Excavator / 2

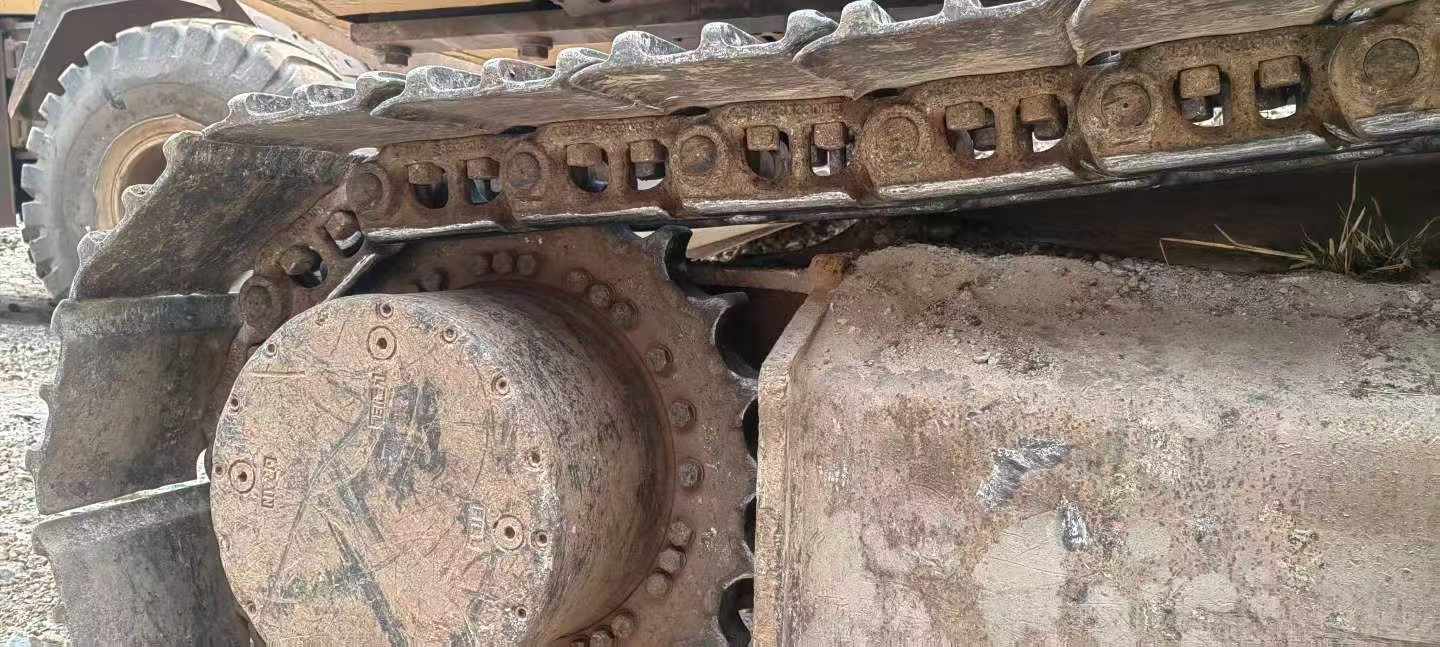

Buy JohnDeere E300LC Used Excavator / 3

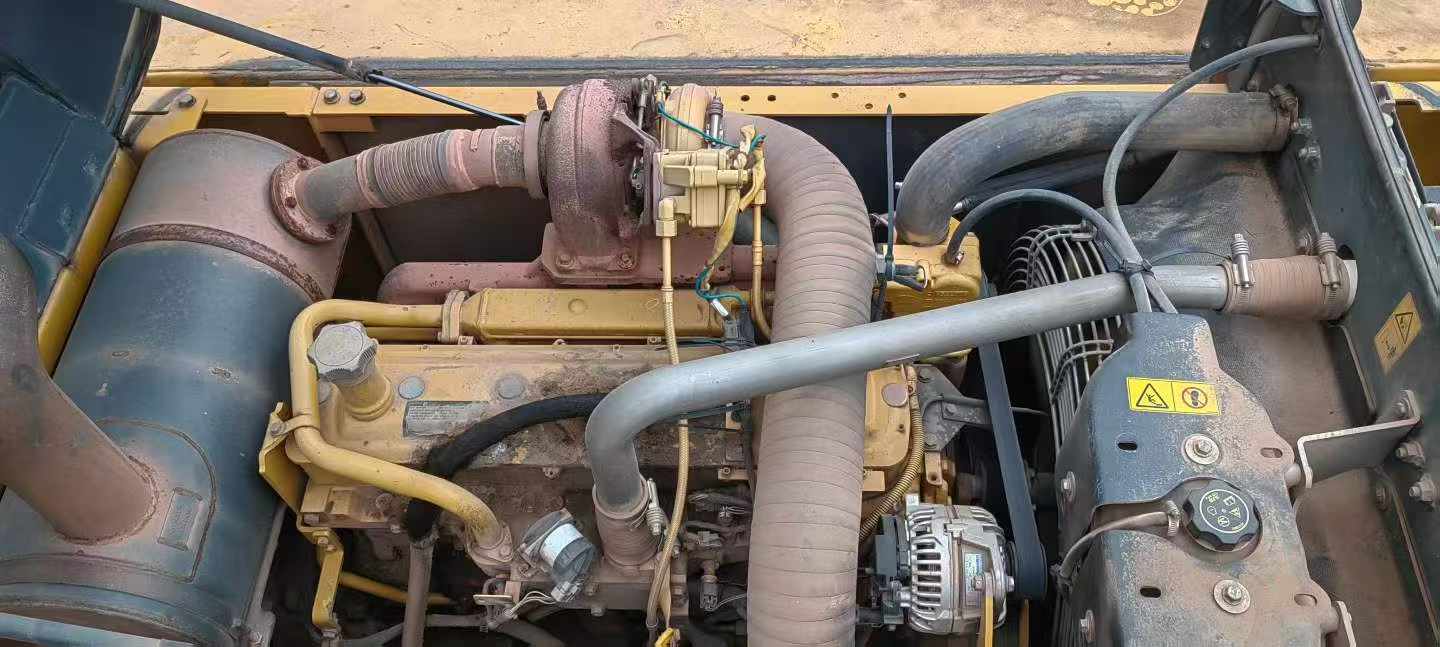

Buy JohnDeere E300LC Used Excavator / 4

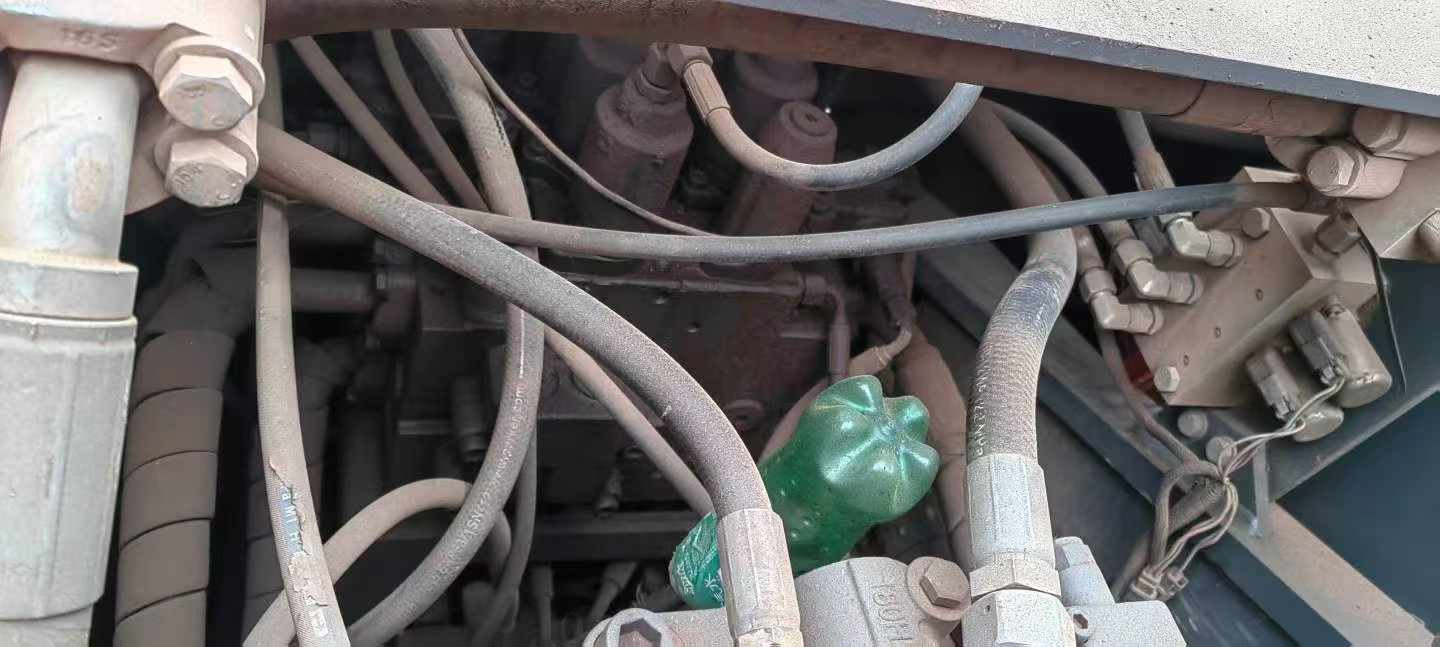

Buy JohnDeere E300LC Used Excavator / 5

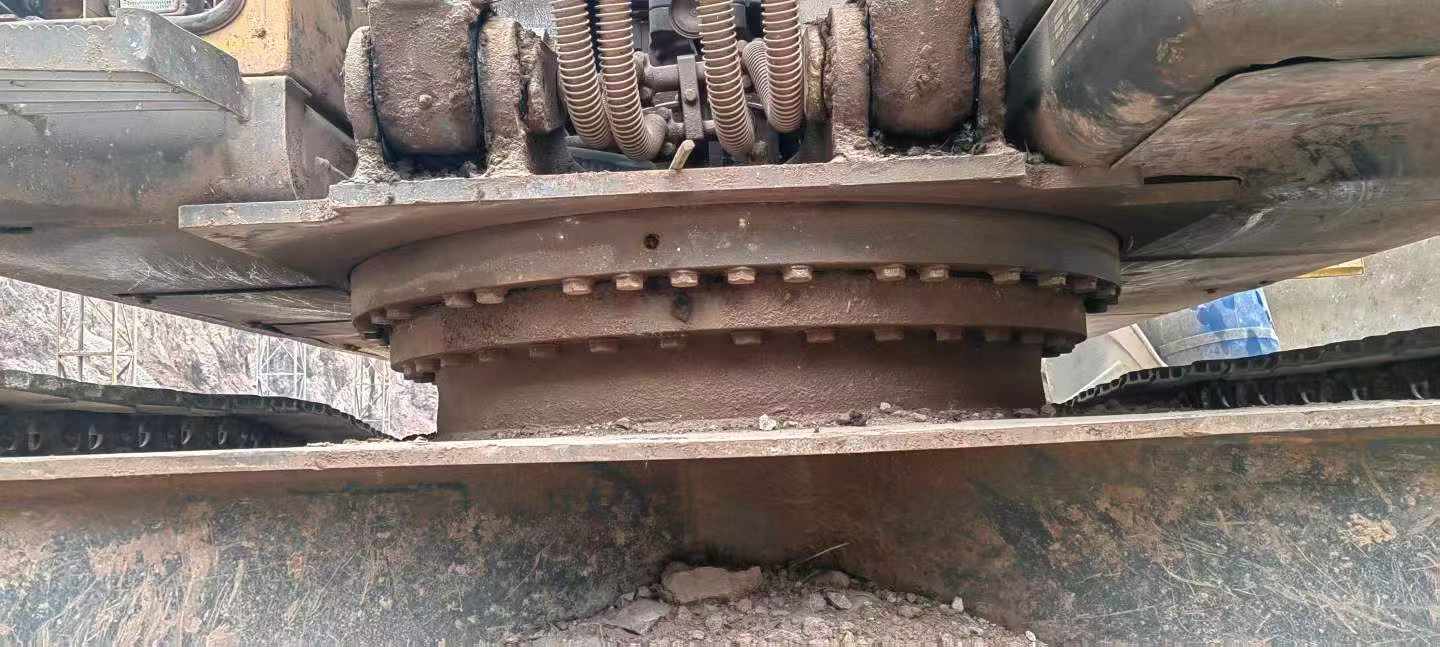

Buy JohnDeere E300LC Used Excavator / 6
Buy JohnDeere E300LC Used Excavator / 7

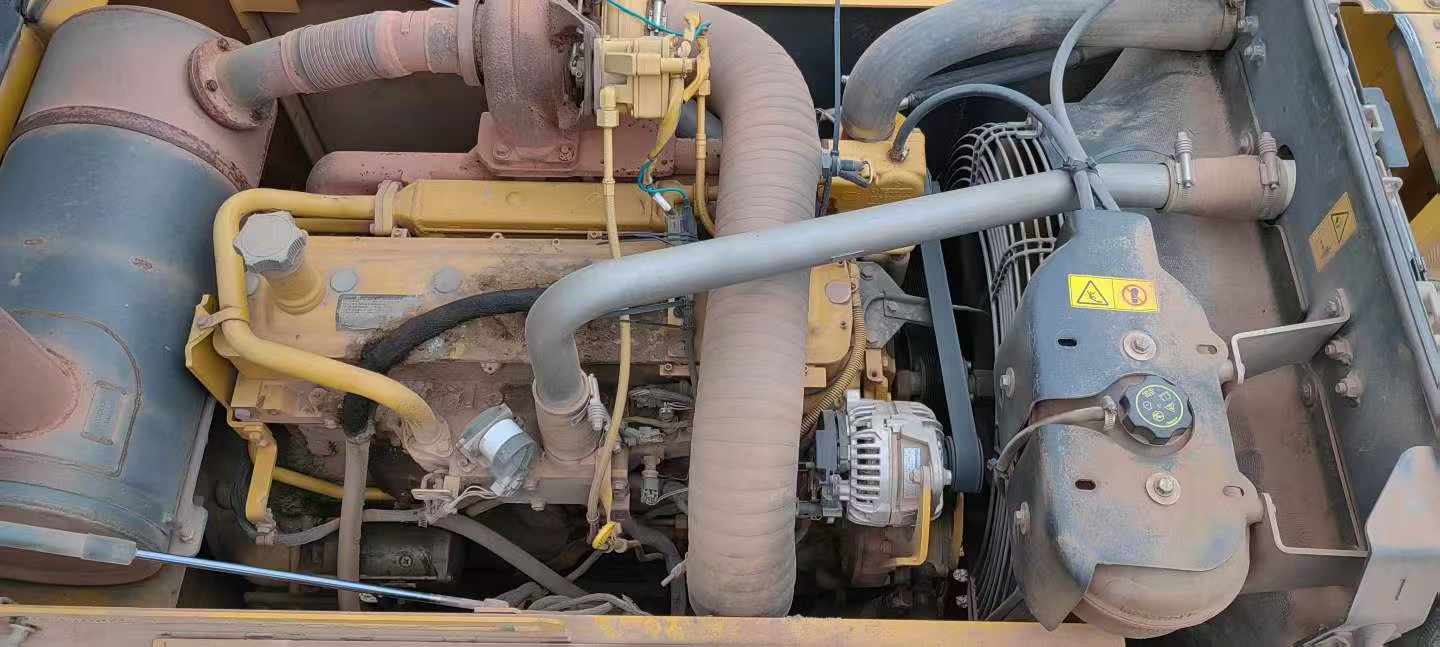

Buy JohnDeere E300LC Used Excavator / 8

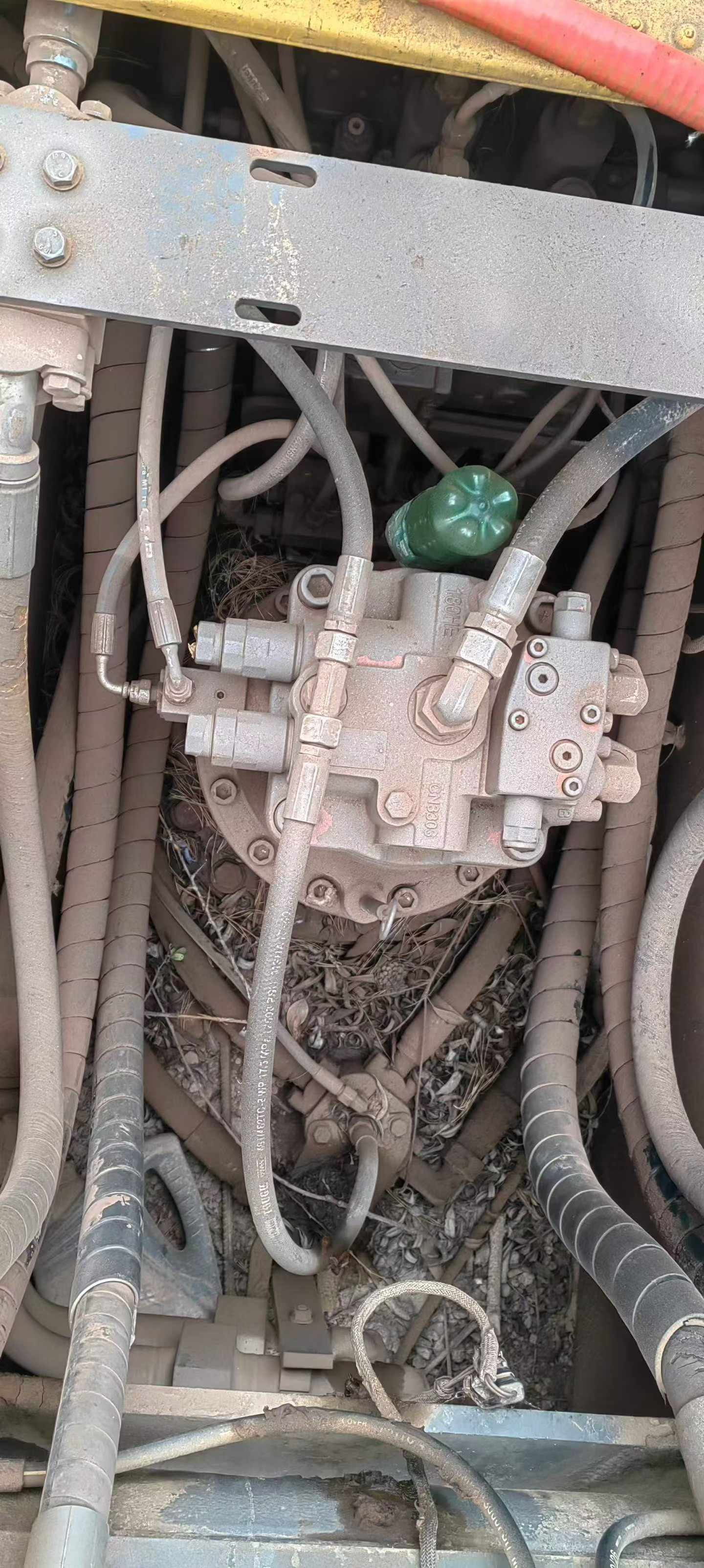

Buy JohnDeere E300LC Used Excavator / 9

Product Description

Available now in Fujian Putian, this 2020 John Deere E300LC hydraulic excavator eliminates factory lead times and delivers immediate deployment to your worksite. Powered by a robust 159kW engine producing 1026 N·m of maximum torque, this 30-ton machine combines proven reliability with impressive digging performance—202.3 kN bucket digging force and a maximum reach of 10,764mm make quick work of demanding excavation tasks.

  • Working weight: 31,000–31,700 kg with 1.3–1.6 m³ bucket capacity
  • Superior hydraulics: dual 260 L/min pumps, 32.4 MPa working circuit
  • Extended reach: 6,200mm boom, 3,100mm arm for versatile applications
  • Fast cycle times: 10.3 rpm rotation speed boosts productivity
  • Joint venture/import quality with proven John Deere engineering

Skip months of ordering delays. Positioned in Fujian Putian for rapid logistics throughout Asia-Pacific markets, this excavator is inspection-ready and prepared for immediate shipment. Secure your equipment advantage today with fast-track delivery that keeps your projects on schedule and your crews productive.

SpecificationsValue
No.1038387
Tonnage (tons)30
Working weight (kg)31000 - 31700
Bucket capacity (m³)1.3-1.6
Boom length (mm)6200
Rod length (mm)3100
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine type
Rated power (kw/rpm)159/2000
Maximum torque (N.m)1026/1400
Number of cylinders (PCS)6
Displacement (L)6.8
Working form
Ground specific pressure (Kpa)58.1
Rotation speed (rpm)10.3
Climbing ability (%)70
Bucket digging force (kN)202.3
Rod digging force (kN)145
Maximum tractive force (kN)266
Travel speed (km/h)5.2/3.1
Turning torque (Nm)89
Maximum flow of main pump (l/min)260*2
Traveling Hydraulic Circuit (Mpa)35.3
Rotary Hydraulic Circuit (Mpa)28.4
Main pump type
Working Hydraulic Circuit (Mpa)32.4
Pilot Oil Circuit (MPa)3.9
Pilot pump flow (L/min)20*1
Fuel Tank (L)600
Hydraulic Tank (L)212
Engine Oil changes (L)22
Coolant (L)32
Hydraulic System (L)358
Total transport length (mm)10533
Total transport width (mm)3200
Total transport height (mm)3366
Full cab height (mm)3181
Counterweight ground clearance (mm)1166
Minimum ground clearance (mm)480
Minimum turning radius of front working device (mm)4226
Back end turning radius (mm)3099
Onboard width (mm)2994
Total track length (mm)4946
Track gauge (mm)2600
Track plate width (mm)
Total track width (mm)3200
Track ground length (mm)4031
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)47
Maximum digging radius (mm)10764
Maximum digging depth (mm)7235
Maximum excavation height (mm)10076
Maximum unloading height (mm)6844
Maximum vertical digging depth (mm)4779
Maximum excavation radius of stop surface (mm)10515
see more

Overview

No.1038387

Brand Name:

JohnDeere

Model Number:

E300LC

Year:

2020

Location:

Fujian China

Pub Date
