Product Description

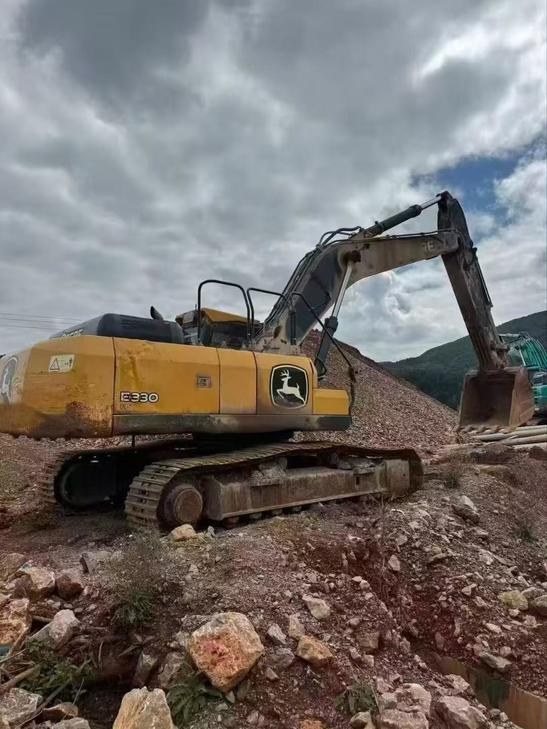

2017 John Deere E330LC hydraulic excavator available from Hunan, China. This machine has accumulated approximately 130,000 hours of operation, reflecting its role in demanding excavation and earthmoving projects. The E330LC is known for its robust construction and reliable performance in infrastructure and heavy civil applications.
Key features of this excavator include:
- Proven John Deere powertrain designed for fuel efficiency and uptime
- Hydraulic system engineered for precise digging and material handling
- Reinforced undercarriage components for extended service life
- Spacious operator cab with ergonomic controls
- Suitable for foundation work, trenching, and mass excavation
This pre-owned unit offers a cost-effective solution for contractors seeking reliable excavation capacity. Machine is sold as-is from its current location in Hunan Province. Inspection and shipping arrangements can be coordinated upon request.
| Specifications | Value |
|---|---|
| No. | 1084750 |
| Tonnage (tons) | 33 |
| Working weight (kg) | 34200 - 36600 |
| Bucket capacity (m³) | 1.6 |
| Boom length (mm) | 6450 |
| Rod length (mm) | 3200 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 204/2000 |
| Maximum torque (N.m) | 1310/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 9.0 |
| Working form | |
| Ground specific pressure (Kpa) | 63.4 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 218 |
| Rod digging force (kN) | 180-196 |
| Maximum tractive force (kN) | 297 |
| Travel speed (km/h) | 5.2/3.1 |
| Turning torque (Nm) | 106.3 |
| Maximum flow of main pump (l/min) | |
| Traveling Hydraulic Circuit (Mpa) | 35.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.4 |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 32.4 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 30 x 1 |
| Fuel Tank (L) | 600 |
| Hydraulic Tank (L) | 259 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 33 |
| Hydraulic System (L) | 484 |
| Total transport length (mm) | 11130 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3510 |
| Full cab height (mm) | 3180 |
| Counterweight ground clearance (mm) | 1170 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 4370 |
| Back end turning radius (mm) | 3400 |
| Onboard width (mm) | 2990 |
| Total track length (mm) | 4950 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 11250 |
| Maximum digging depth (mm) | 7660 |
| Maximum excavation height (mm) | 10470 |
| Maximum unloading height (mm) | 7140 |
| Maximum vertical digging depth (mm) | 6490 |
| Maximum excavation radius of stop surface (mm) | 10990 |
