Product Description

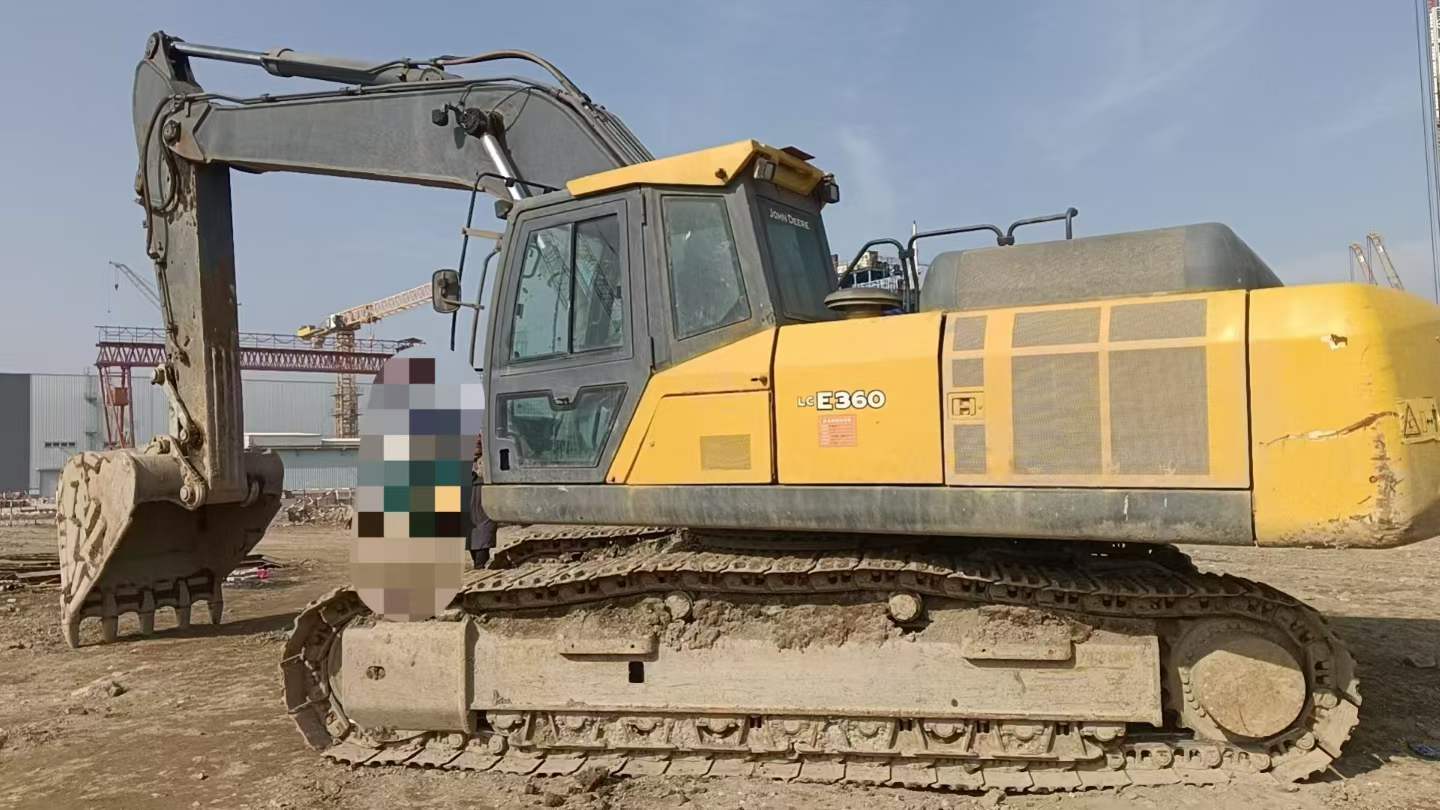

Available now in Shandong Qingdao, this 2016 John Deere E360 hydraulic excavator eliminates factory wait times and delivers immediate deployment to your worksite. Operating at 36 tons with a powerful 204kW engine producing 1310 N·m maximum torque, this machine handles demanding excavation tasks with a 1.6 m³ bucket capacity and 218 kN digging force. Dual main pumps flowing 294 L/min each ensure responsive hydraulic performance across all functions.
- Reach & Depth: 11,250 mm maximum digging radius, 7,660 mm maximum digging depth
- Power System: 9.0L 6-cylinder engine rated at 204 kW/2000 rpm
- Working Range: 6,450 mm boom, 3,200 mm arm for versatile positioning
- Transport Specs: 11,230 mm length × 3,200 mm width × 3,510 mm height
- Hydraulic Capacity: 600L fuel tank, 259L hydraulic reservoir for extended operation
Skip months of lead time. This joint-venture manufactured excavator ships fast from Qingdao port, reducing logistics costs and accelerating your project timeline. Inspect on-site before purchase.
| Specifications | Value |
|---|---|
| No. | 1018926 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 33400-34800 |
| Bucket capacity (m³) | 1.6 |
| Boom length (mm) | 6450 |
| Rod length (mm) | 3200 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 204/2000 |
| Maximum torque (N.m) | 1310/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 9.0 |
| Working form | |
| Ground specific pressure (Kpa) | 67.8 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | |
| Bucket digging force (kN) | 218 |
| Rod digging force (kN) | 180-196 |
| Maximum tractive force (kN) | 297 |
| Travel speed (km/h) | 3.1/5.2 |
| Turning torque (Nm) | 106.3 |
| Maximum flow of main pump (l/min) | 294x 2 |
| Traveling Hydraulic Circuit (Mpa) | 35.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.4 |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 32.4 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 30 |
| Fuel Tank (L) | 600 |
| Hydraulic Tank (L) | 259 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 33 |
| Hydraulic System (L) | 484 |
| Total transport length (mm) | 11230 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3510 |
| Full cab height (mm) | 3160 |
| Counterweight ground clearance (mm) | 1150 |
| Minimum ground clearance (mm) | 510 |
| Minimum turning radius of front working device (mm) | 4370 |
| Back end turning radius (mm) | 3400 |
| Onboard width (mm) | 2990 |
| Total track length (mm) | 4620 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 11250 |
| Maximum digging depth (mm) | 7260-7660 |
| Maximum excavation height (mm) | 10470 |
| Maximum unloading height (mm) | 7140 |
| Maximum vertical digging depth (mm) | 6490 |
| Maximum excavation radius of stop surface (mm) | 10990 |
