Product Description

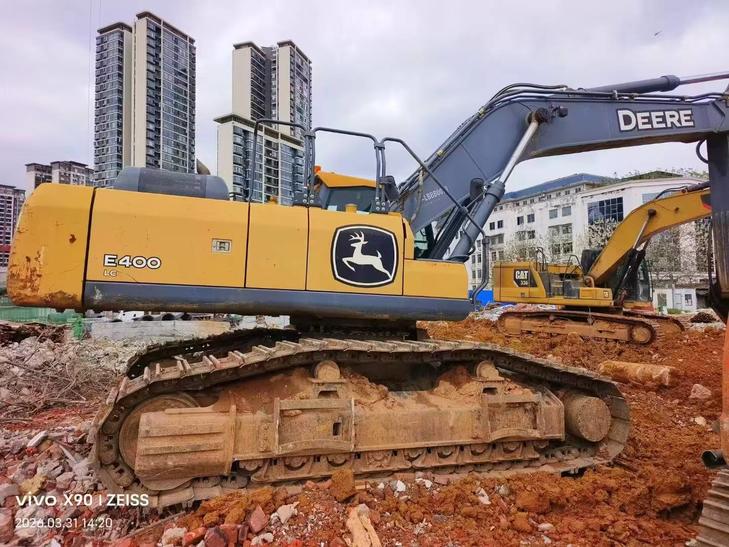

Discover the reliability and performance of the 2019 JohnDeere E400LC, available for purchase in Hunan, China. This excavator has been meticulously maintained and is ready to take on your most demanding projects. With over 3,000 genuine operating hours, it has proven its durability and efficiency in various construction environments. Ideal for businesses looking for a robust and versatile solution, this machine offers the power and precision you need to get the job done right. Contact us today to learn more about this exceptional piece of equipment.
- Year: 2019
- Brand: JohnDeere
- Model: E400LC
- Operating Hours: Over 3,000
- Location: Hunan, China
| Specifications | Value |
|---|---|
| No. | 1073149 |
| Tonnage (tons) | 40 |
| Working weight (kg) | 40900 - 41000 |
| Bucket capacity (m³) | 2.0-2.4 |
| Boom length (mm) | 6450 |
| Rod length (mm) | 3200/2800 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 232 / 1900 |
| Maximum torque (N.m) | 1337 / 1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 9.0 |
| Working form | |
| Ground specific pressure (Kpa) | 72.9 |
| Rotation speed (rpm) | 9.4 |
| Climbing ability (%) | |
| Bucket digging force (kN) | 243 |
| Rod digging force (kN) | 186-203 |
| Maximum tractive force (kN) | 336 |
| Travel speed (km/h) | 5.2 / 2.9 |
| Turning torque (Nm) | 118 |
| Maximum flow of main pump (l/min) | 2 x 304 |
| Traveling Hydraulic Circuit (Mpa) | 36.4 |
| Rotary Hydraulic Circuit (Mpa) | 28.9 |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 1 x 28.5 |
| Fuel Tank (L) | 600 |
| Hydraulic Tank (L) | 232 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 33 |
| Hydraulic System (L) | 466 |
| Total transport length (mm) | 11250 |
| Total transport width (mm) | 3520 |
| Total transport height (mm) | 3600 |
| Full cab height (mm) | 3440 |
| Counterweight ground clearance (mm) | 1550 |
| Minimum ground clearance (mm) | 770 |
| Minimum turning radius of front working device (mm) | 4370 |
| Back end turning radius (mm) | 3500 |
| Onboard width (mm) | 2990 |
| Total track length (mm) | 5210 |
| Track gauge (mm) | 2920 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3520 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 50 |
| Maximum digging radius (mm) | 11250/11040 |
| Maximum digging depth (mm) | 7400/7000 |
| Maximum excavation height (mm) | 10750/11010 |
| Maximum unloading height (mm) | 7391/7520 |
| Maximum vertical digging depth (mm) | 6210/6200 |
| Maximum excavation radius of stop surface (mm) | 10920/10720 |
