Product Description

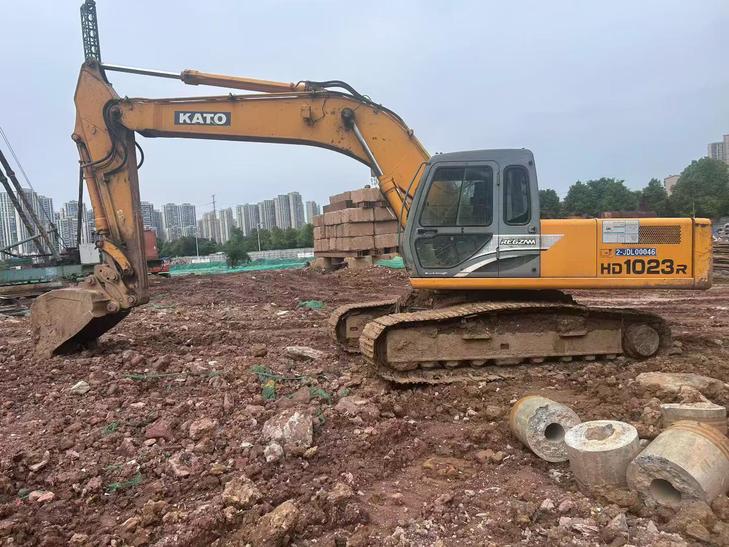

This 2014 Kato HD1023R excavator represents a solid opportunity for contractors seeking reliable performance in a proven platform. As a single-owner machine with approximately 10,000 operating hours, it has been maintained through consistent use rather than sitting idle. Currently located in Hunan, China, this unit is available for immediate inspection and acquisition.
The HD1023R is known for its balanced combination of digging force and fuel efficiency, making it suitable for general earthmoving, trenching, and site preparation work. The machine's operational condition has been verified and requires no major mechanical intervention prior to deployment.
- Year of Manufacture: 2014
- Manufacturer: Kato
- Model: HD1023R
- Approximate Hours: 10,000+
- Ownership History: Single owner
- Current Location: Hunan Province, China
Interested buyers are encouraged to arrange on-site inspection to verify machine condition and suitability for their operational requirements.
| Specifications | Value |
|---|---|
| No. | 1074895 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 23000 |
| Bucket capacity (m³) | 1 |
| Boom length (mm) | 5870 |
| Rod length (mm) | 2960 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi 6D16-TE1 |
| Rated power (kw/rpm) | 125/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 118 x 115 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.545 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 50 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 156.9 (Standard mode) /174.6 (Extra mode) |
| Rod digging force (kN) | 112.8 (Standard mode) /125.5 (Extra mode) |
| Travel speed (km/h) | 2.7/3.9/5.5 |
| Rotary hydraulic motor type | Constant piston motor |
| Type of walking hydraulic motor | Variable capacity piston motor |
| Maximum flow of main pump (l/min) | 249 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 32.9 |
| Hydraulic crushing pipeline is standard | no |

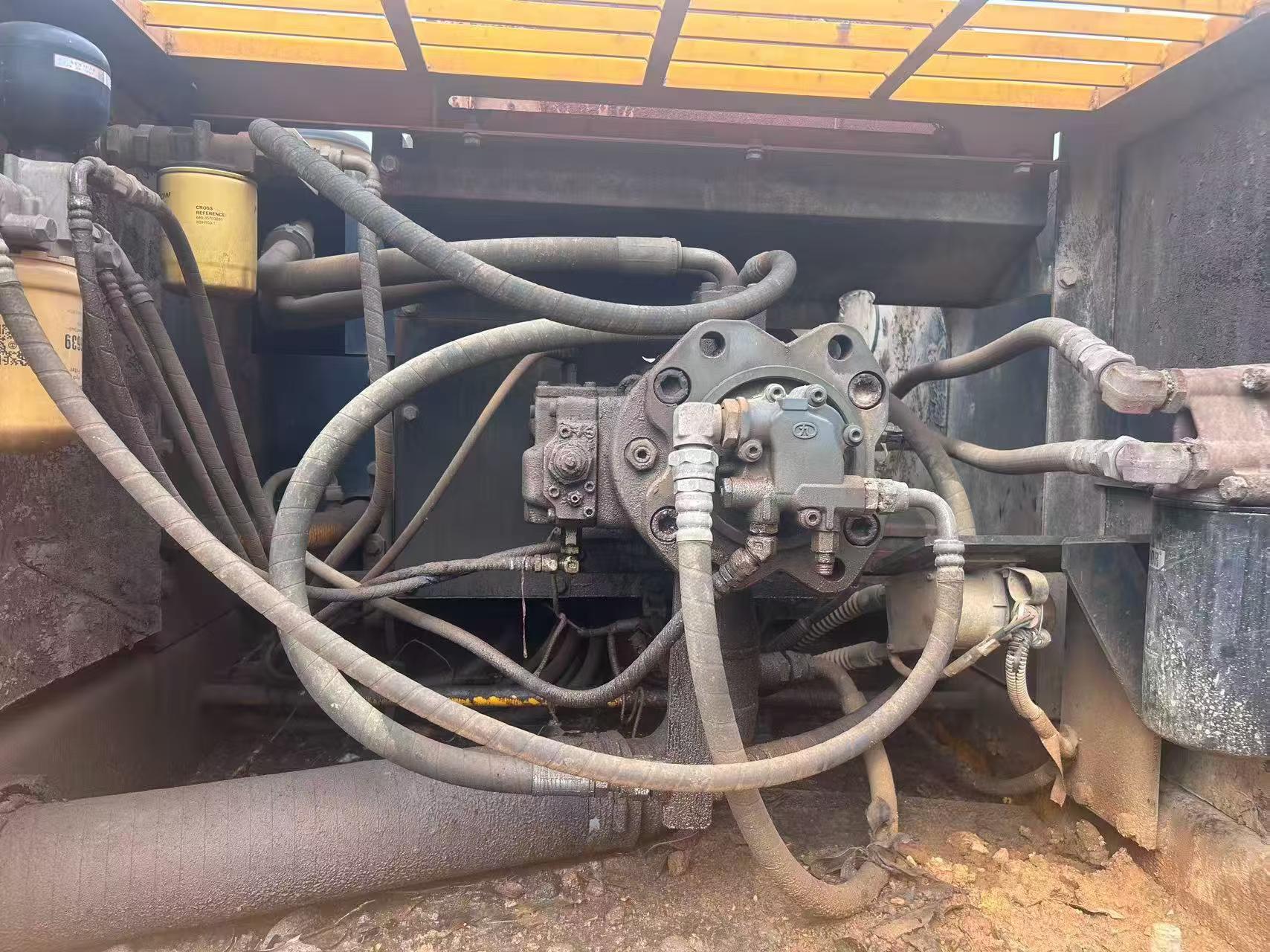

| Main pump type | Variable axial piston pump ×2+ gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-130 x 1155 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-150 x 1680 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-140 x 1370 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 165 |
| Engine Oil changes (L) | 28 |
| Coolant (L) | 25.5 |
| Hydraulic System (L) | 310 |
| Total transport length (mm) | 10080 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3120 |
| Full cab height (mm) | 2930 |
| Counterweight ground clearance (mm) | 1100 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 3880 |
| Back end turning radius (mm) | 3100 |
| Total track length (mm) | 4260 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3460 |
| Maximum digging radius (mm) | 10350 |
| Maximum digging depth (mm) | 7010 |
| Maximum excavation height (mm) | 10060 |
| Maximum unloading height (mm) | 6990 |
| Maximum vertical digging depth (mm) | 6250 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10170 |
| Maximum effective digging depth (mm) | 6850 |
