Product Description
Built to withstand the toughest job sites, this 2016 Kato HD1023R excavator represents eight years of proven performance in the field. Powered by a reliable Isuzu 6BG1 engine delivering 125kW at 2100rpm, this 23-ton workhorse combines robust Japanese engineering with practical functionality. The 1.0/1.1m³ bucket capacity and impressive 10,350mm maximum digging radius make quick work of demanding excavation tasks, while the standard 167kN bucket digging force ensures consistent productivity across varied soil conditions.
- Operating weight: 24,500kg with superior 70% climbing ability
- Maximum digging depth: 7,010mm for deep foundation work

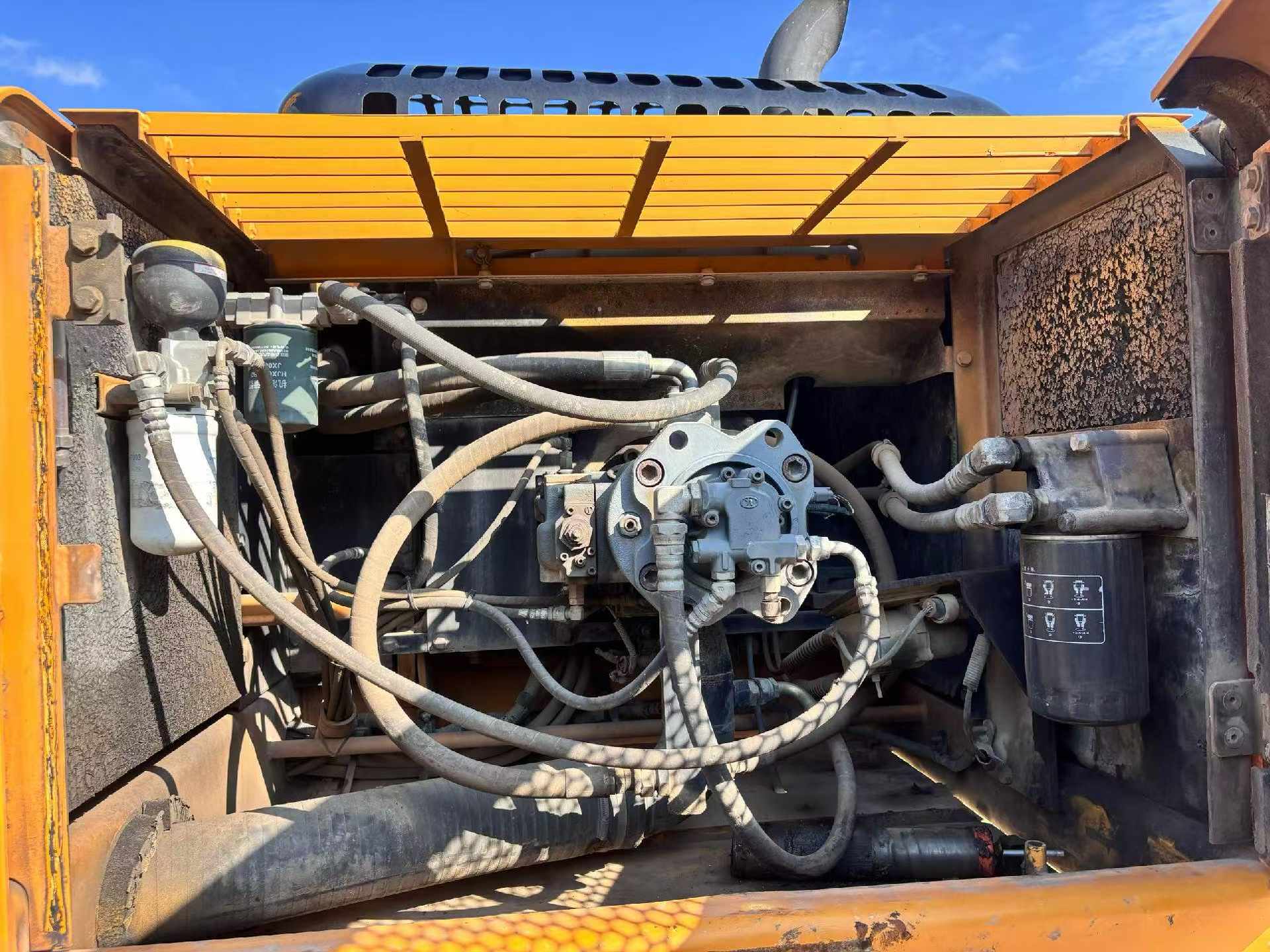

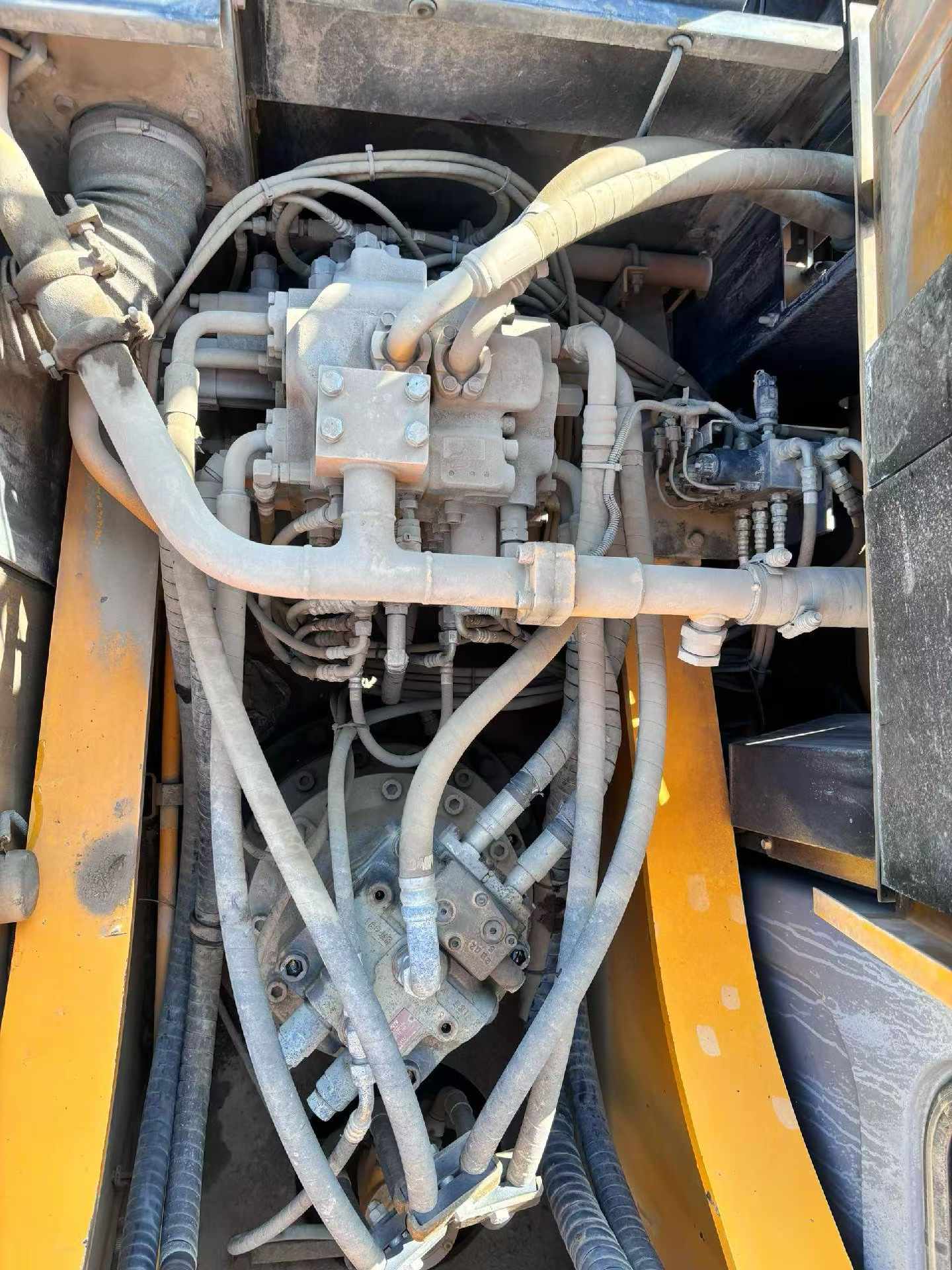

- Dual variable piston pumps (2 × 247 l/min) for responsive hydraulic performance

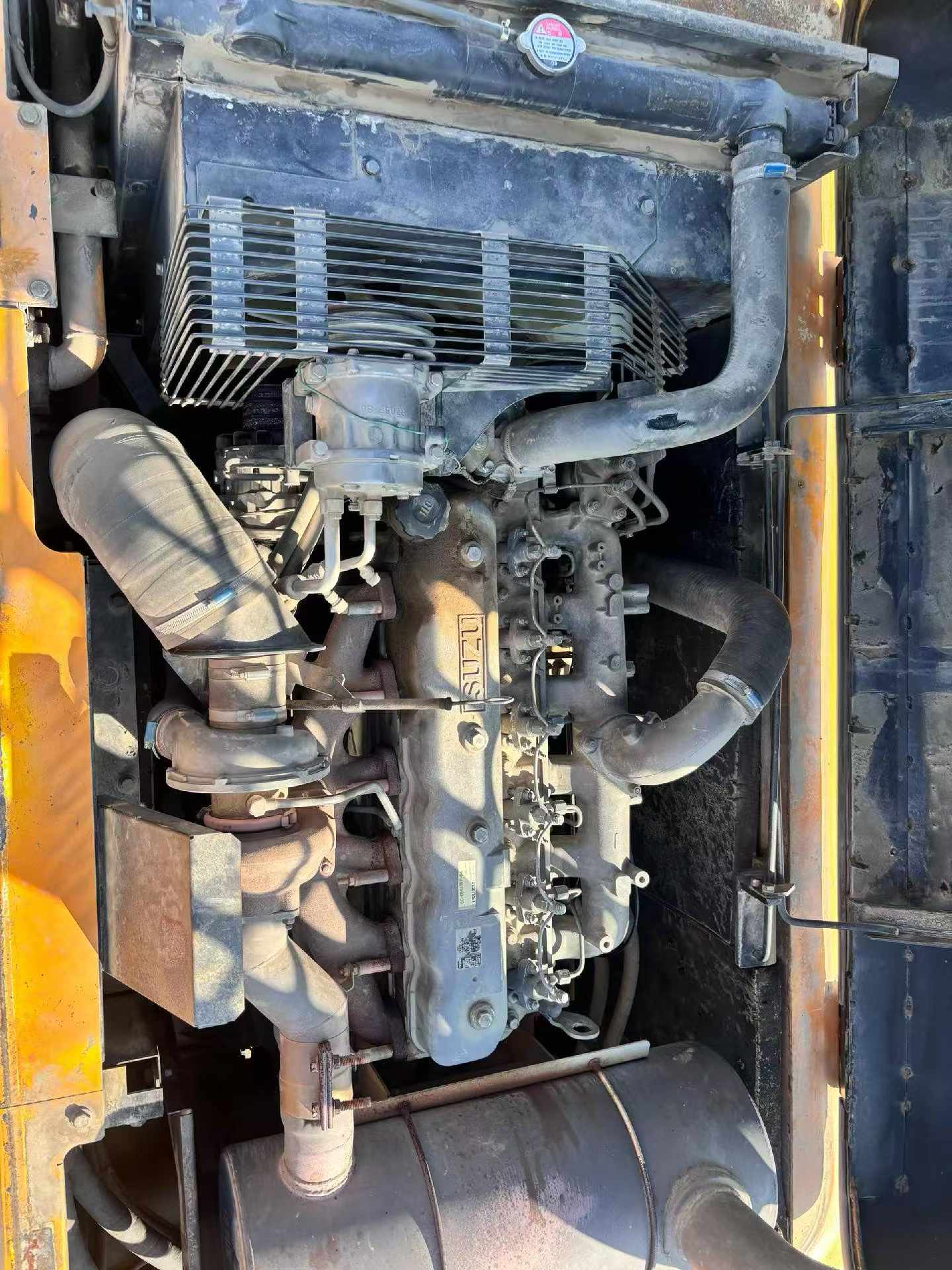

- Water-cooled 6-cylinder turbocharged engine with proven reliability
- 380L fuel tank capacity for extended operation cycles
- Currently located in Guangzhou, Guangdong—ready for global shipping

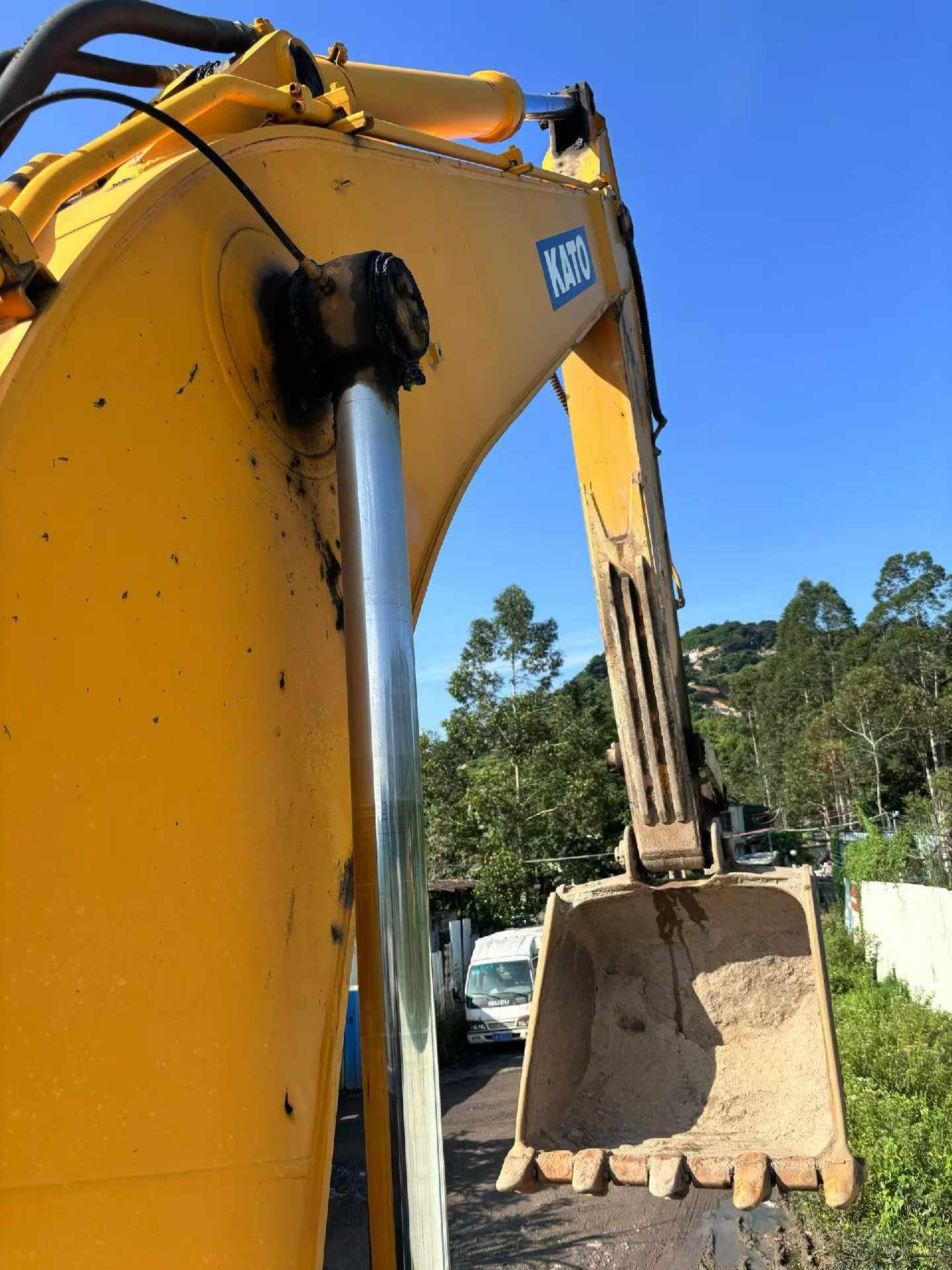

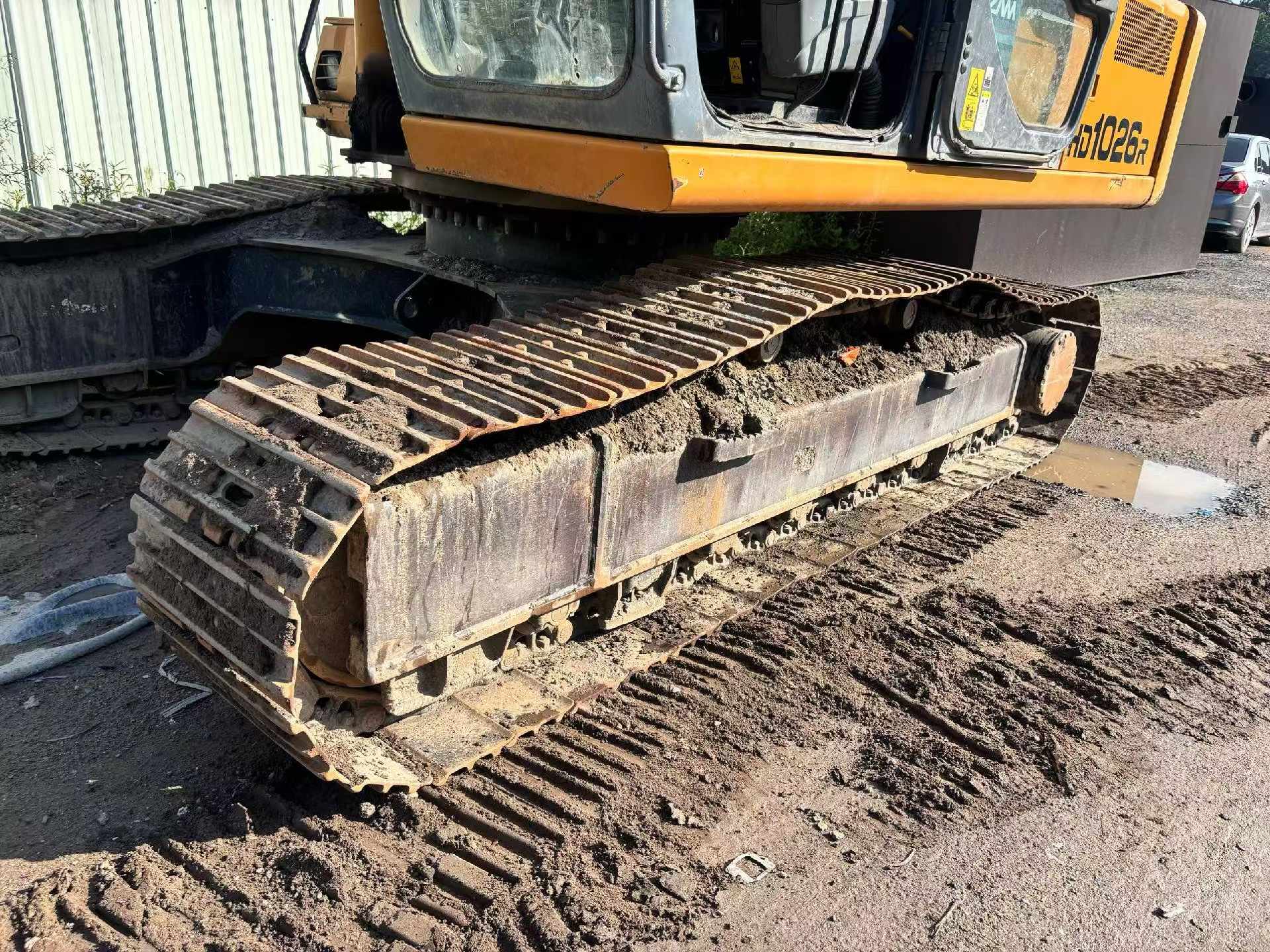

With its durable undercarriage, reinforced boom structure, and comprehensive hydraulic system, this HD1023R continues to deliver the dependable performance Kato is known for worldwide.
| Specifications | Value |
|---|---|
| No. | 1021744 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 24500 |
| Bucket capacity (m³) | 1.0/1.1 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu 6BG1 |
| Rated power (kw/rpm) | 125/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 105 x 125 |
| Maximum torque (N.m/rpm) | 637Nm/1800 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.494 |
| Working form | 4 cycle intercooler and turbocharged engine; Direct injection type |
| Ground specific pressure (Kpa) | 51/44 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | Standard 167/ High power 174 |
| Rod digging force (kN) | Standard 120/ High power 126 |
| Maximum tractive force (kN) | 186.3 |
| Travel speed (km/h) | 5.5/3.6 |
| Main overflow set pressure (Mpa) | 31.4 |
| Rotary hydraulic motor type | Fixed capacity piston motor with reverse prevention valve and reducer |
| Type of walking hydraulic motor | Variable capacity piston motor with reducers on both sides |
| Maximum flow of main pump (l/min) | 2 x 247 |
| Traveling Hydraulic Circuit (Mpa) | 32.9 |
| Main pump type | Variable capacity piston pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-130 x 1155 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-150 x 1680 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-140 x 1370 |
| Fuel Tank (L) | 380 |
| Hydraulic Tank (L) | 165 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 290 |
| Total transport length (mm) | 9970 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3120 (to top of boom) |
| Full cab height (mm) | 2940 |
| Counterweight ground clearance (mm) | 1100 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 3880 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4260 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600/700 |
| Total track width (mm) | 2990/3090 |
| Maximum digging radius (mm) | 10350 |
| Maximum digging depth (mm) | 7010 |
| Maximum excavation height (mm) | 10060 |
| Maximum unloading height (mm) | 6990 |
| Maximum vertical digging depth (mm) | 6250 |
