Product Description

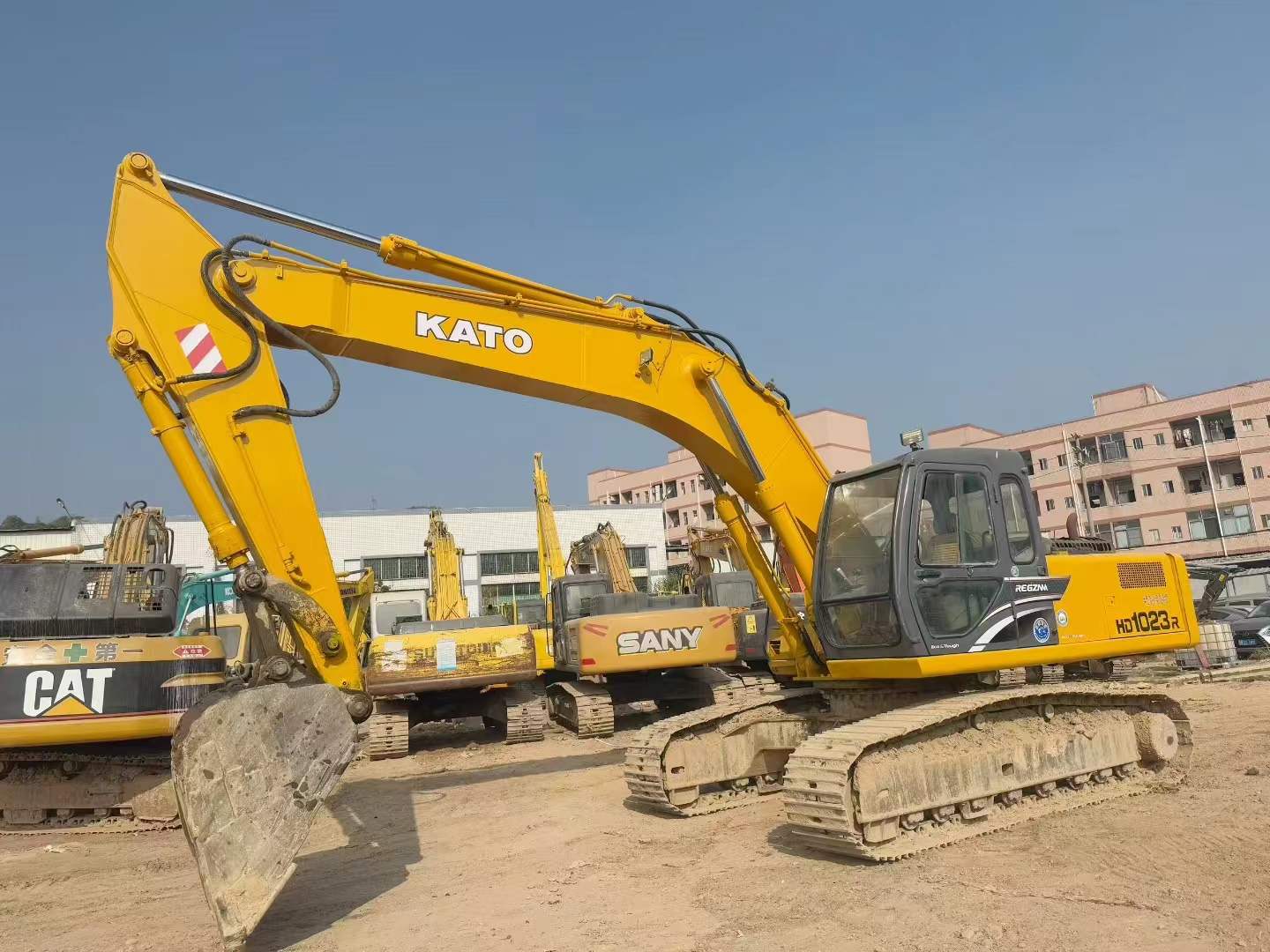

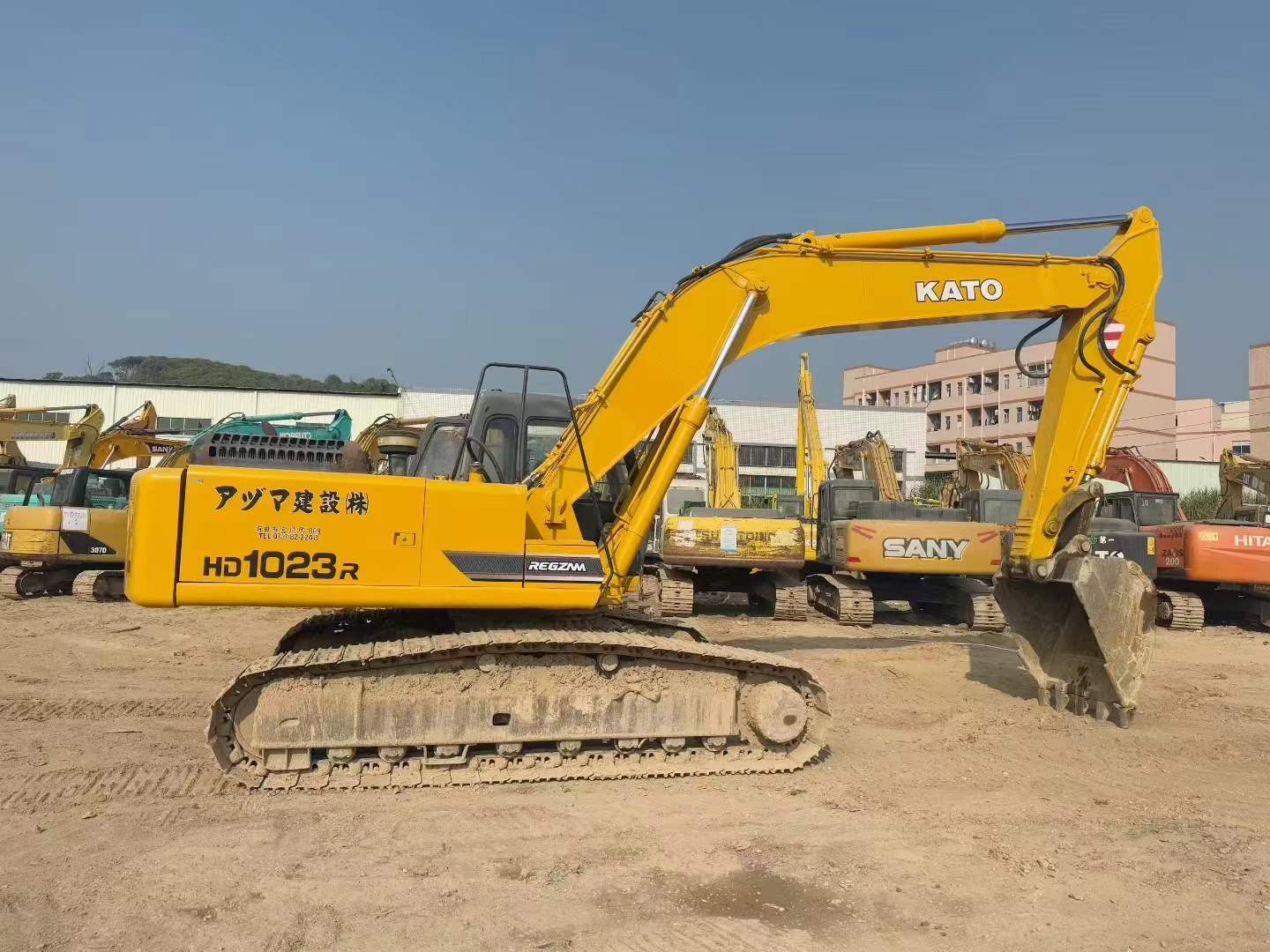

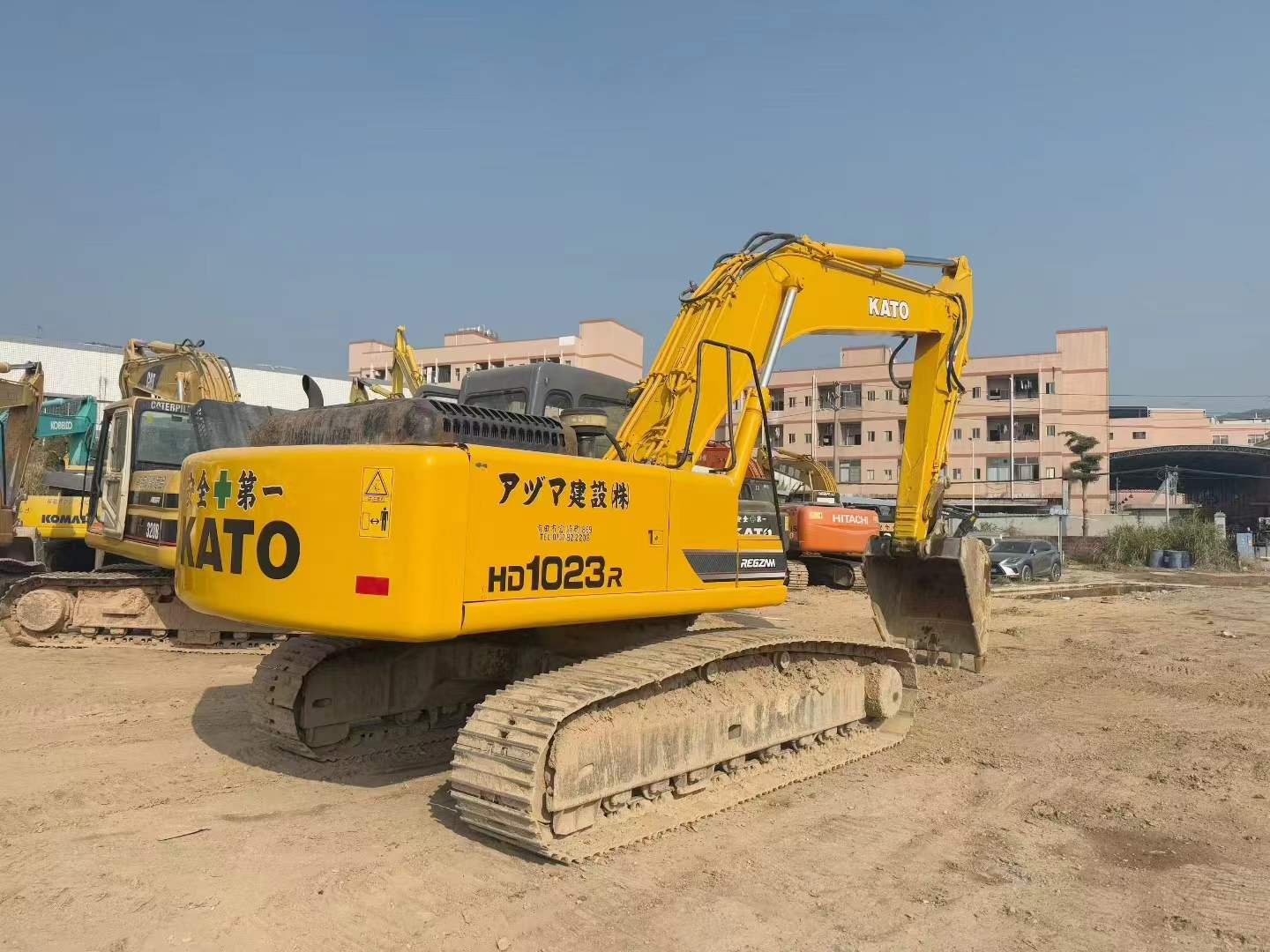

Engineered for precision and control, this 2016 Kato HD1023R delivers 23-ton performance with operator-centric design. Powered by a turbocharged Isuzu 6BG1 engine producing 125kW at 2100rpm, this excavator combines robust hydraulic power with refined handling characteristics. Dual variable piston pumps supply 2×247 L/min flow, enabling smooth simultaneous operations across boom, arm, and bucket functions.
Operator advantages include:
- Enhanced visibility from elevated cabin position (2940mm height) with panoramic sightlines to working envelope
- Stable platform with 51kPa ground pressure and 2390mm track gauge for confident positioning on variable terrain

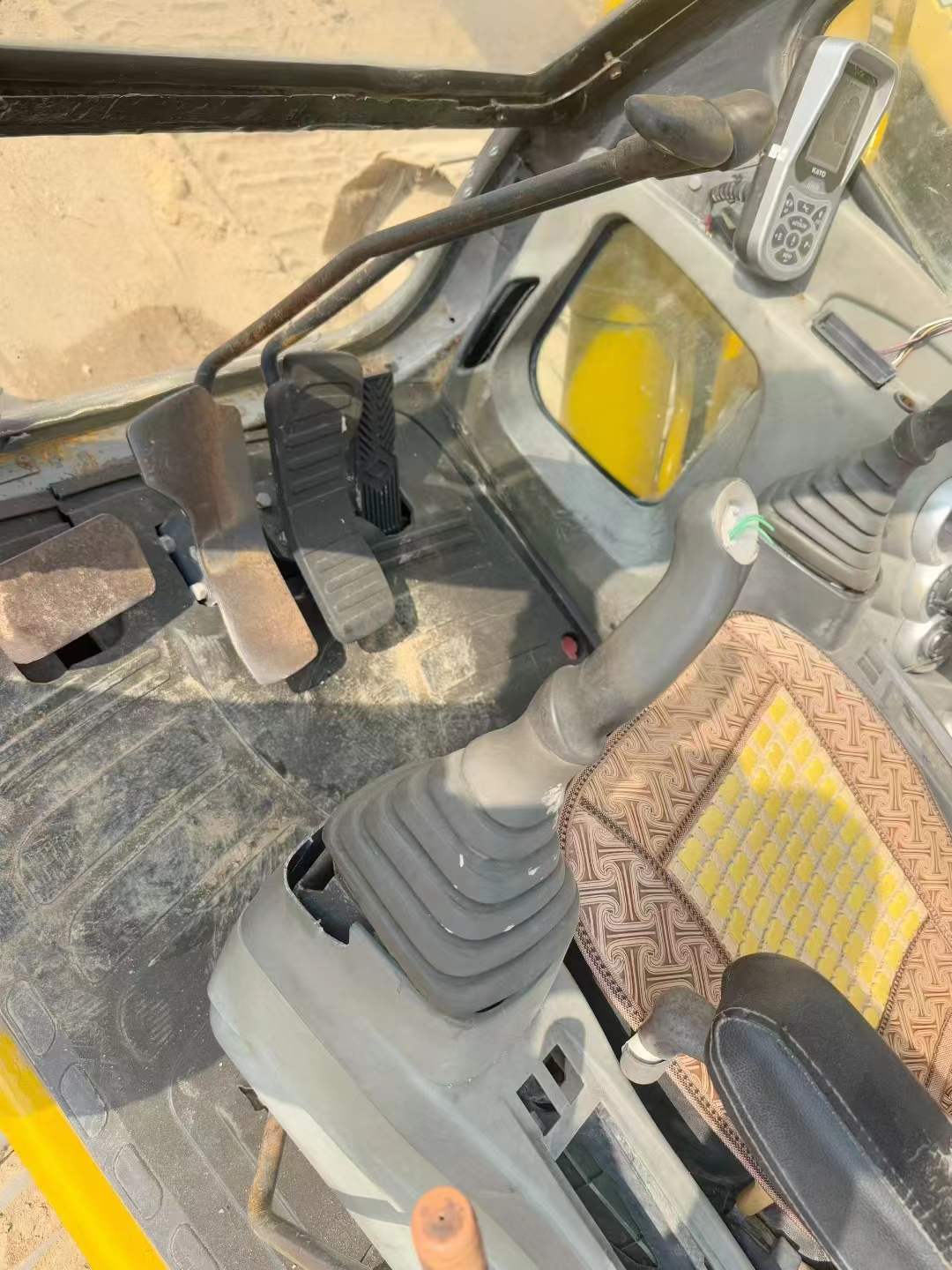

- Responsive hydraulic controls backed by 31.4MPa system pressure for precise load management
- Comfortable operation during extended shifts with water-cooled engine and climate-controlled environment
- Impressive 10,350mm digging reach and 7,010mm depth capability from a compact 9,970mm transport length
Currently located in Meizhou, Guangdong, this joint-venture manufactured machine represents proven Kato reliability with comprehensive hydraulic specifications suited for demanding earthmoving applications.
| Specifications | Value |
|---|---|
| No. | 1031246 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 24500 |
| Bucket capacity (m³) | 1.0/1.1 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu 6BG1 |
| Rated power (kw/rpm) | 125/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 105 x 125 |
| Maximum torque (N.m/rpm) | 637Nm/1800 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.494 |
| Working form | 4 cycle intercooler and turbocharged engine; Direct injection type |
| Ground specific pressure (Kpa) | 51/44 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | Standard 167/ High power 174 |
| Rod digging force (kN) | Standard 120/ High power 126 |
| Maximum tractive force (kN) | 186.3 |
| Travel speed (km/h) | 5.5/3.6 |
| Main overflow set pressure (Mpa) | 31.4 |

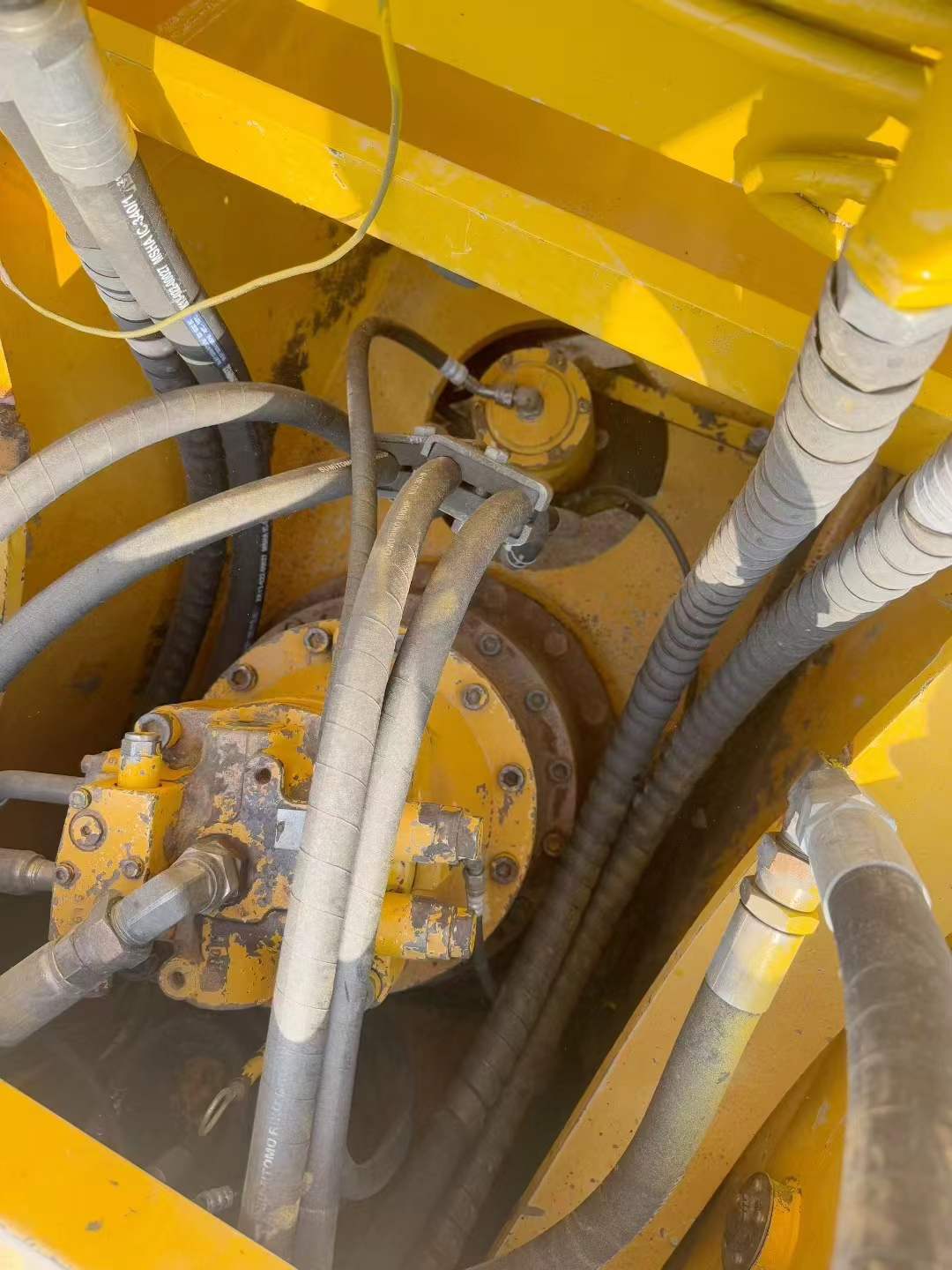

| Rotary hydraulic motor type | Fixed capacity piston motor with reverse prevention valve and reducer |
| Type of walking hydraulic motor | Variable capacity piston motor with reducers on both sides |

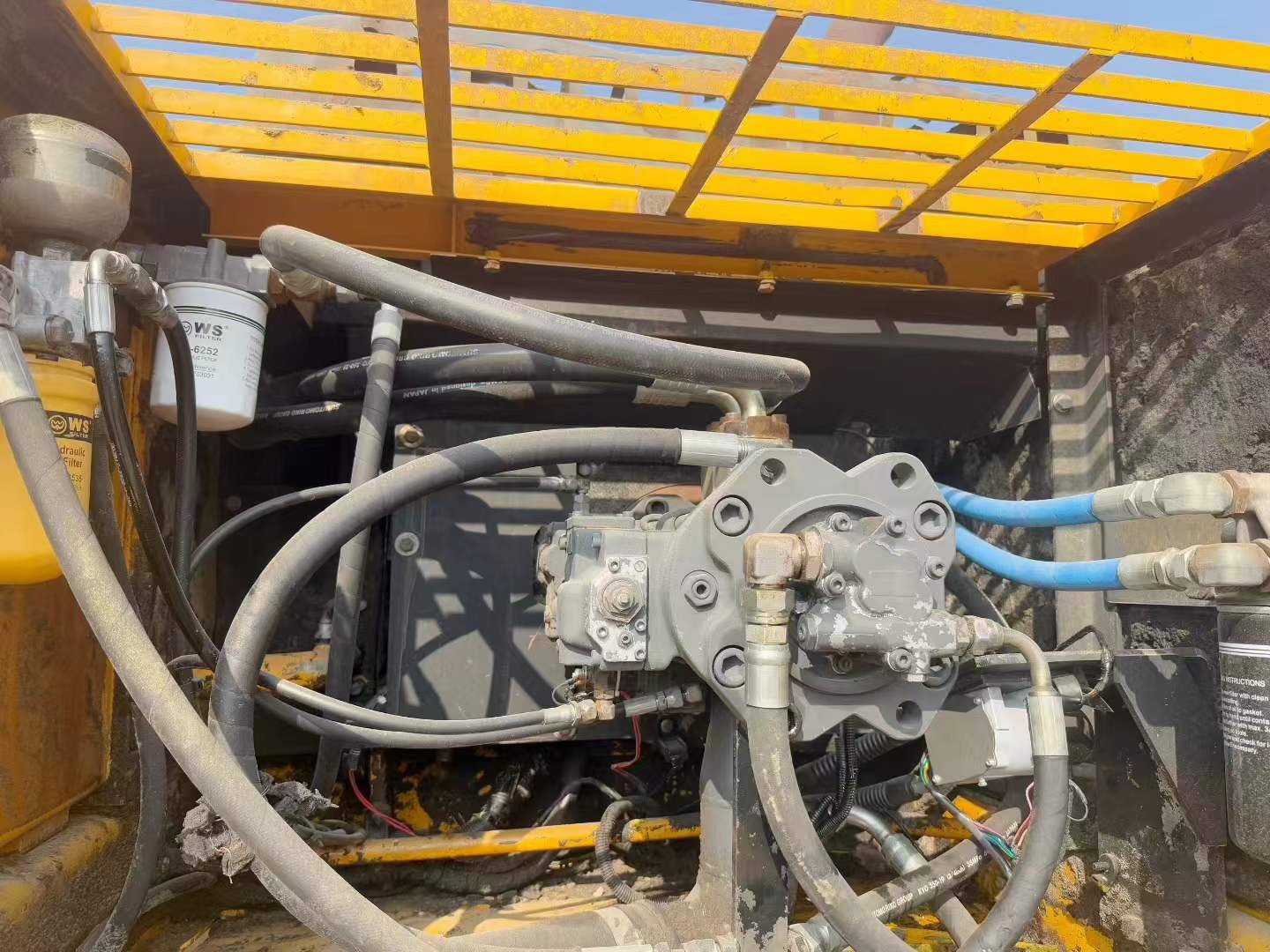

| Maximum flow of main pump (l/min) | 2 x 247 |
| Traveling Hydraulic Circuit (Mpa) | 32.9 |
| Main pump type | Variable capacity piston pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-130 x 1155 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-150 x 1680 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-140 x 1370 |
| Fuel Tank (L) | 380 |
| Hydraulic Tank (L) | 165 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 290 |
| Total transport length (mm) | 9970 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3120 (to top of boom) |
| Full cab height (mm) | 2940 |
| Counterweight ground clearance (mm) | 1100 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 3880 |
| Back end turning radius (mm) | 2940 |

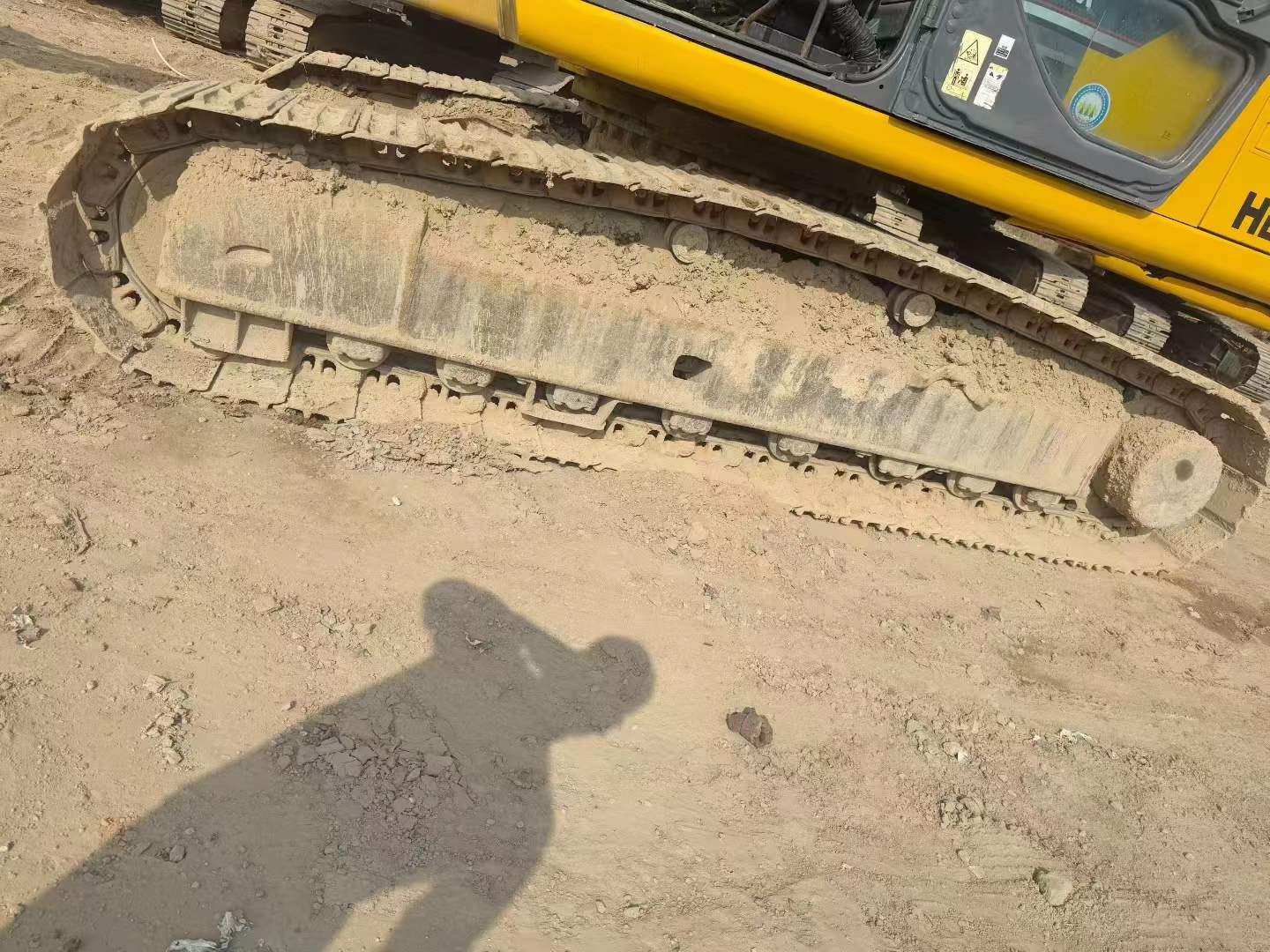

| Total track length (mm) | 4260 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600/700 |
| Total track width (mm) | 2990/3090 |
| Maximum digging radius (mm) | 10350 |
| Maximum digging depth (mm) | 7010 |
| Maximum excavation height (mm) | 10060 |
| Maximum unloading height (mm) | 6990 |
| Maximum vertical digging depth (mm) | 6250 |
