Product Description

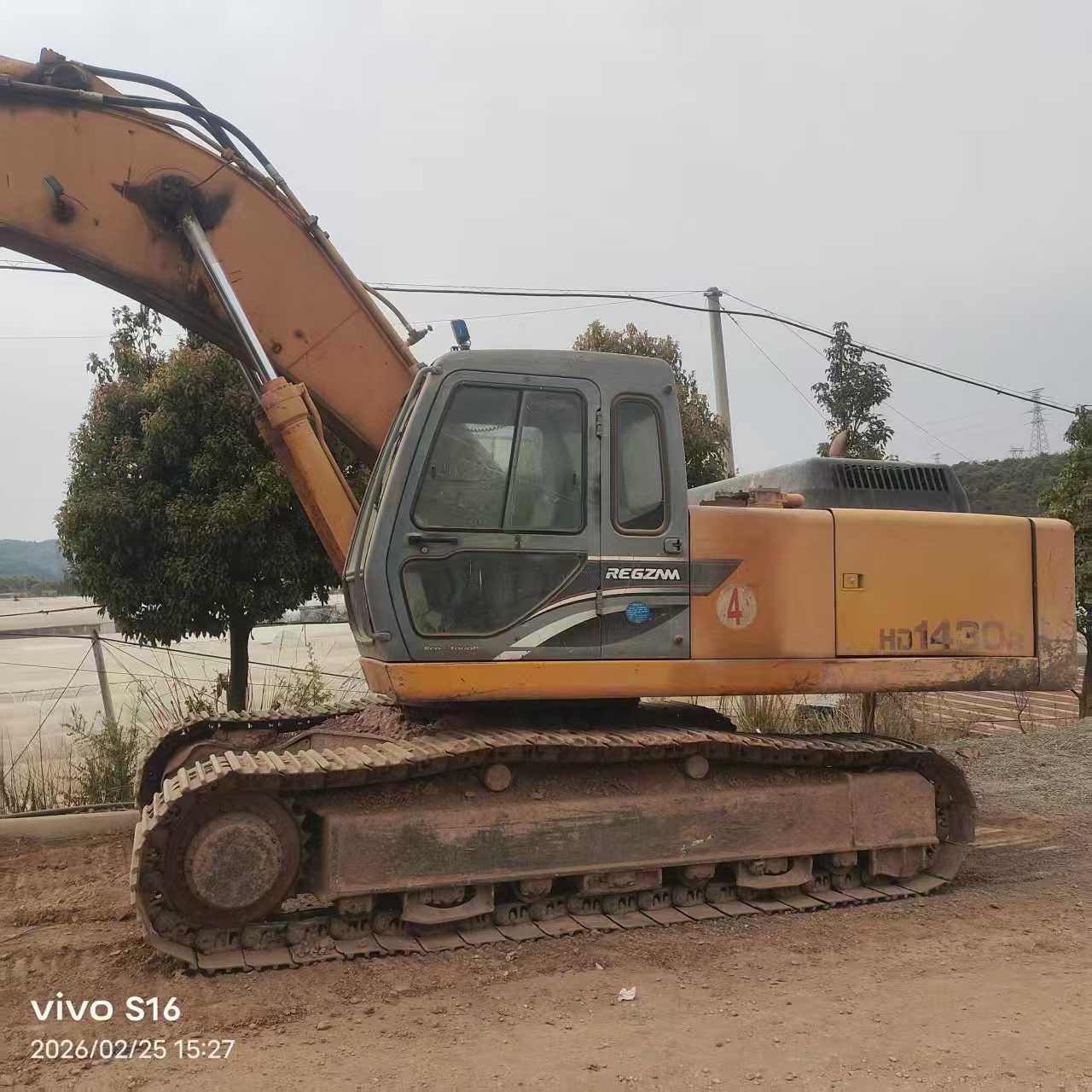

Powered by a robust Mitsubishi 6D16-TLC1A engine delivering 183 kW at 2150 rpm, this 2016 Kato HD1430R offers exceptional control and stability for demanding excavation projects. Operating at 30 tons with a working weight of 30,700 kg, operators benefit from superior visibility and responsive handling through its advanced hydraulic system featuring dual 301 L/min variable piston pumps. The spacious cabin provides excellent sightlines across the 11,160 mm maximum digging radius, while the machine's 62 kPa ground pressure ensures minimal site disturbance.
- Digging Performance: 225 kN bucket force (Standard) / 236 kN (Extra mode); 7,380 mm maximum depth
- Precision Control: 10 rpm rotation speed with constant piston hydraulic motor for smooth operation
- Operator Comfort: Water-cooled 7.54L engine, ergonomic cabin design with 3,020 mm full height
- Mobility: Dual travel speeds (3.7/5.5 km/h) with 70% climbing ability
- Location: Available in Kunming, Yunnan
| Specifications | Value |
|---|---|
| No. | 1015780 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 30700 |
| Bucket capacity (m³) | 1.4-1.6 |
| Boom length (mm) | 6480 |
| Rod length (mm) | 3140 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

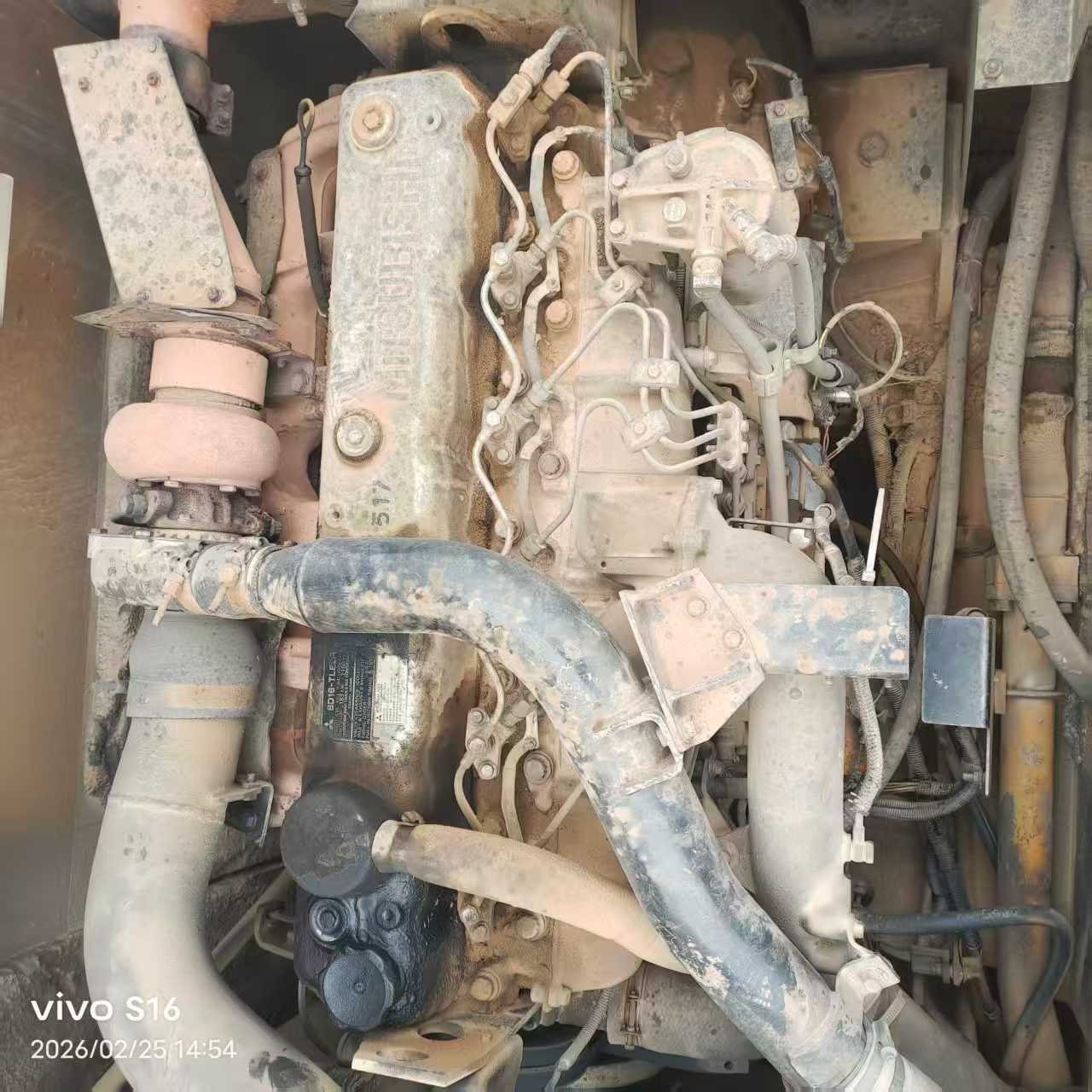

| Engine type | Mitsubishi 6D16-TLC1A |
| Rated power (kw/rpm) | 183/2150 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 118 x 115 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.54 |
| Ground specific pressure (Kpa) | 62 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 225 (Standard mode) /236 (Extra mode) |
| Rod digging force (kN) | 159 (Standard Mode) /167 (Power mode) |
| Travel speed (km/h) | 3.7/5.5 |
| Rotary hydraulic motor type | Constant piston motor |
| Type of walking hydraulic motor | Variable capacity piston motor |
| Maximum flow of main pump (l/min) | 301 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 32.9 |
| Main pump type | Variable capacity piston pump ×2+ gear pump |
| Working Hydraulic Circuit (Mpa) | 31.4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-150 x 1230 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-170 x 1840 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-150 x 1450 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 280 |
| Engine Oil changes (L) | 32 |
| Coolant (L) | 37 |
| Hydraulic System (L) | 485 |
| Total transport length (mm) | 11200 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3380 |
| Full cab height (mm) | 3020 |
| Counterweight ground clearance (mm) | 1130 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4640 |
| Back end turning radius (mm) | 3460 |
| Total track length (mm) | 4650 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3760 |
| Maximum digging radius (mm) | 11160 |
| Maximum digging depth (mm) | 7380 |
| Maximum excavation height (mm) | 10320 |
| Maximum unloading height (mm) | 7310 |
| Maximum vertical digging depth (mm) | 5920 |
