Product Description

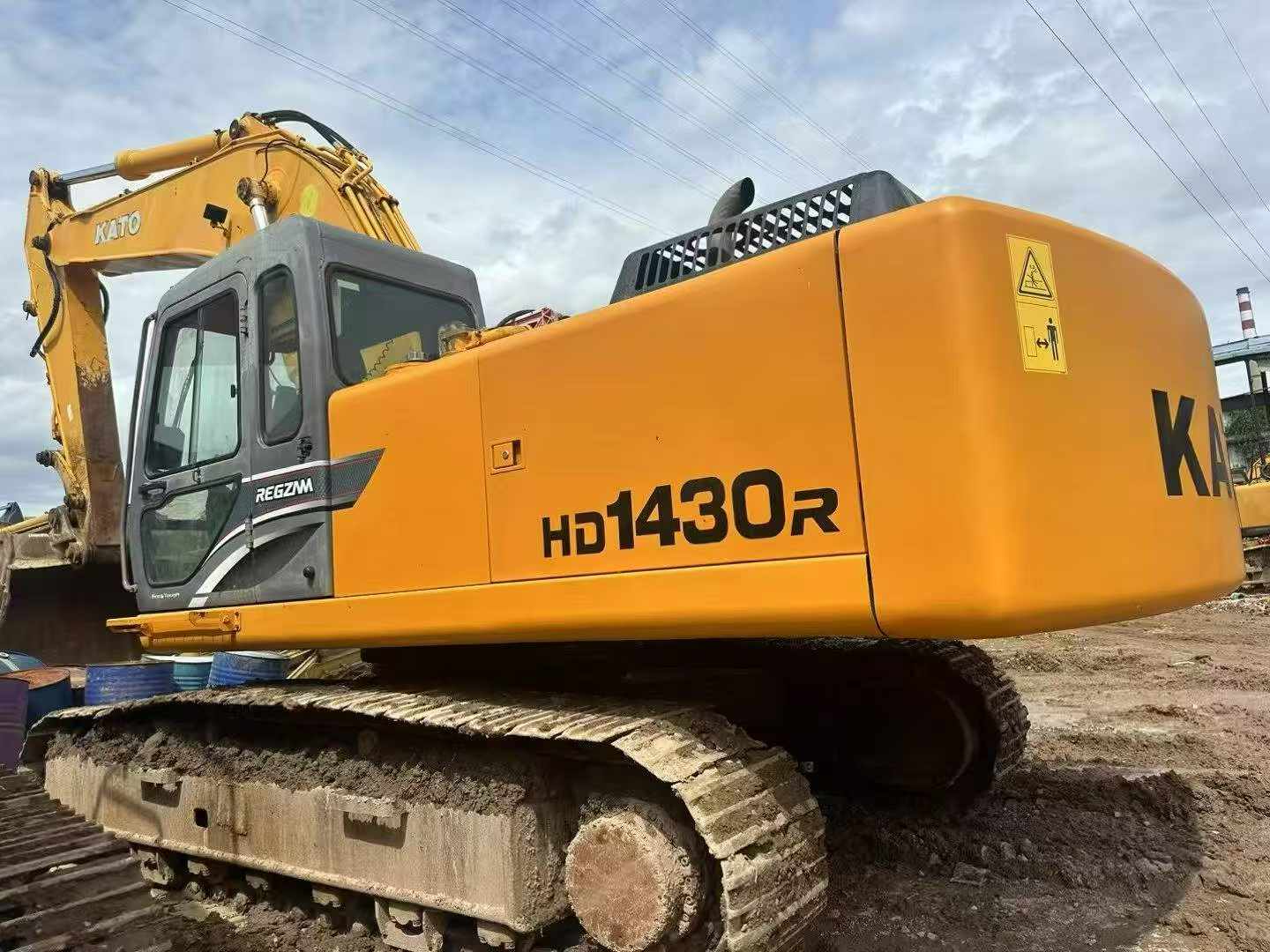

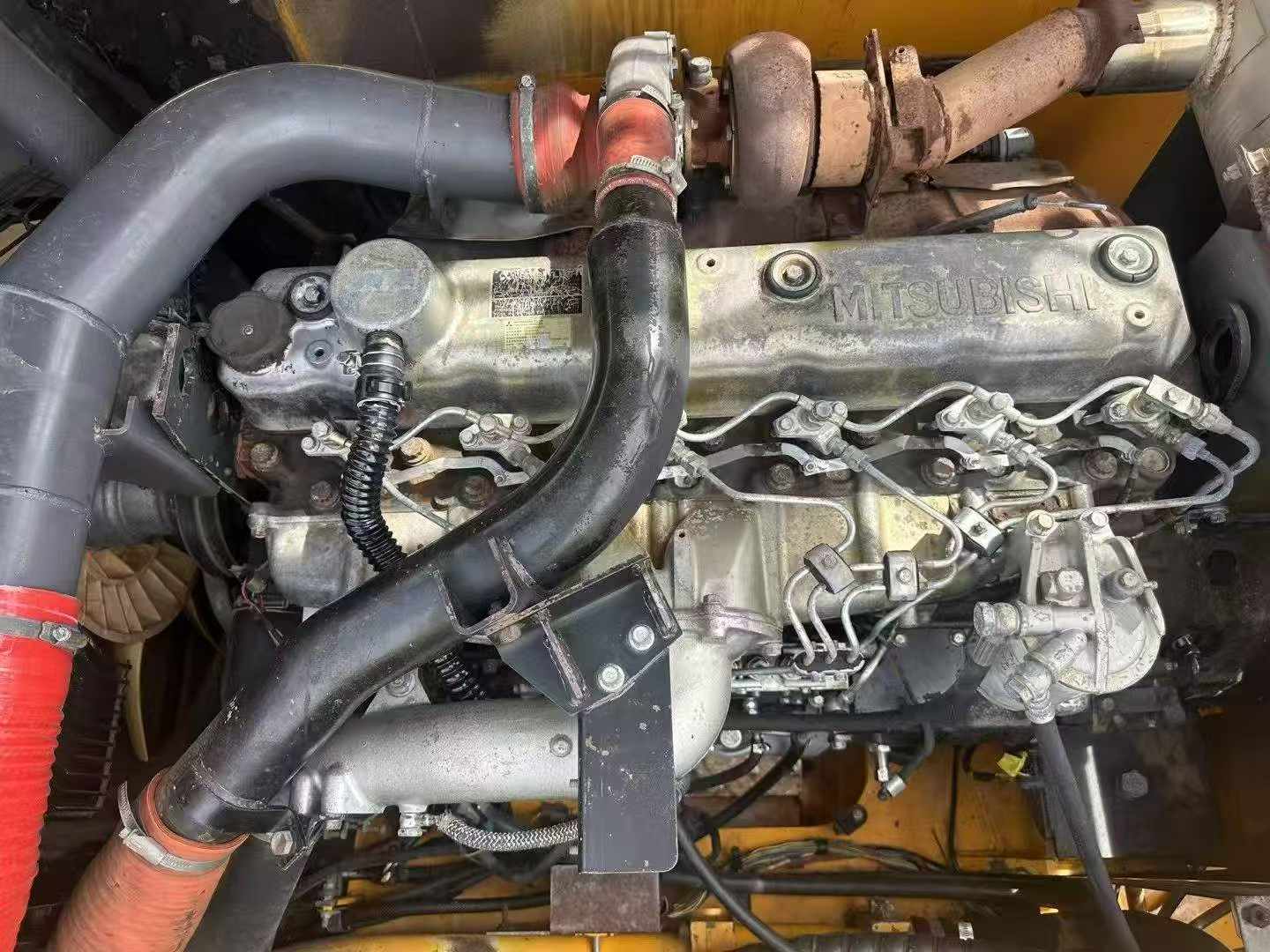

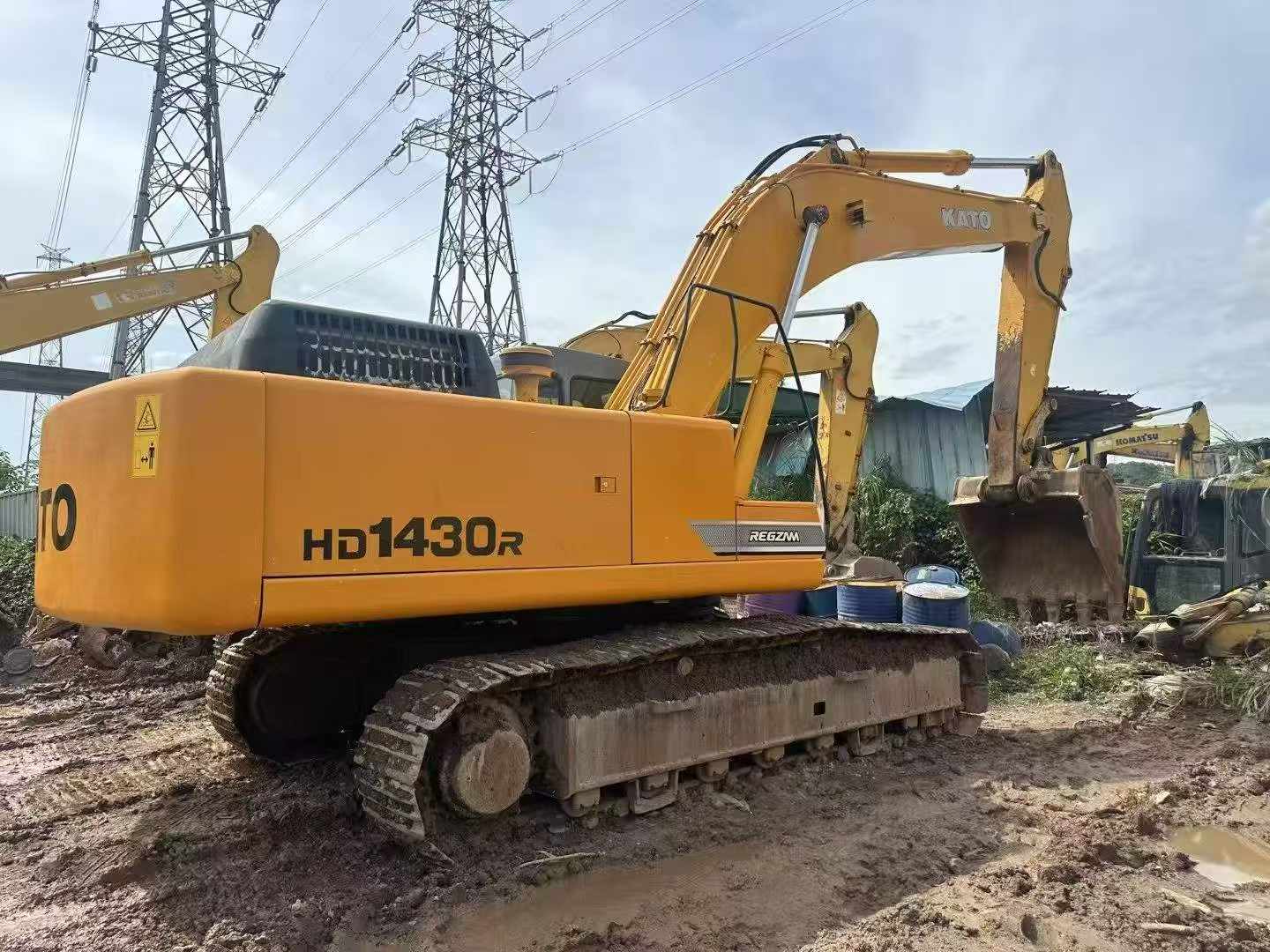

Boost your fleet capacity with this 2016 Kato HD1430R hydraulic excavator, a robust 30-ton workhorse engineered for high-demand construction and earthmoving operations. Powered by a Mitsubishi 6D16-TLC1A engine delivering 183 kW at 2150 rpm, this Japanese-designed machine provides reliable performance when primary equipment is deployed elsewhere or project timelines compress.

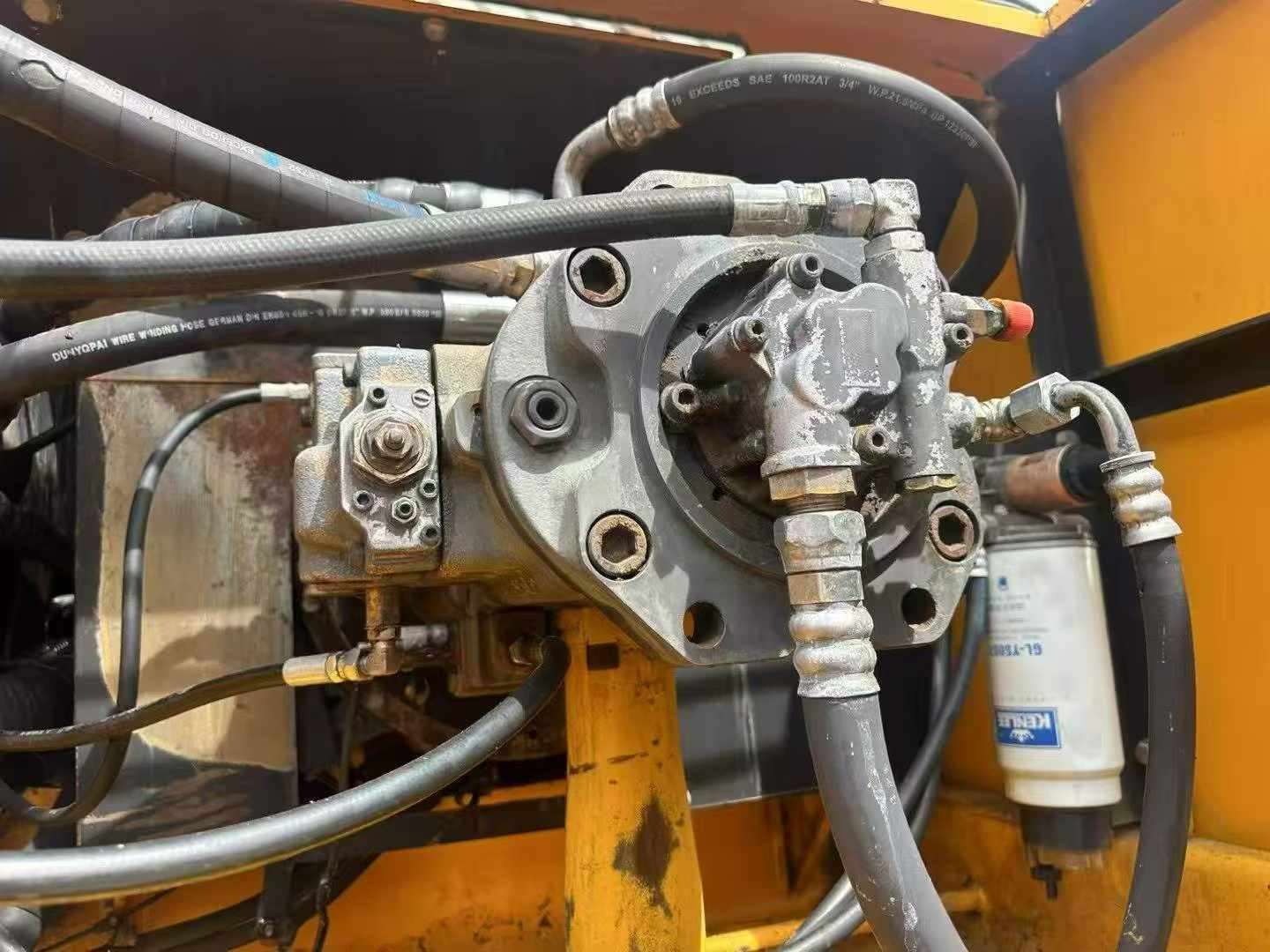

Built for versatility and productivity, this excavator features a 6,480 mm boom and 3,140 mm arm configuration, achieving an impressive 11,160 mm maximum digging radius and 7,380 mm digging depth. Bucket capacity ranges from 1.4 to 1.6 m³, with exceptional digging forces of 236 kN (bucket) and 167 kN (arm) in power mode. Dual variable piston pumps deliver 301 l/min each, ensuring responsive hydraulic performance across all functions.
Key Fleet Integration Benefits:
- 30,700 kg operating weight handles demanding excavation tasks
- Water-cooled 7.54L engine provides consistent power output
- 70% grading ability tackles challenging terrain
- Dual travel speeds (3.7/5.5 km/h) optimize site mobility
- Currently located in Zhuhai, Guangdong for convenient inspection
| Specifications | Value |
|---|---|
| No. | 1019013 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 30700 |
| Bucket capacity (m³) | 1.4-1.6 |
| Boom length (mm) | 6480 |
| Rod length (mm) | 3140 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi 6D16-TLC1A |
| Rated power (kw/rpm) | 183/2150 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 118 x 115 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.54 |
| Ground specific pressure (Kpa) | 62 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 225 (Standard mode) /236 (Extra mode) |
| Rod digging force (kN) | 159 (Standard Mode) /167 (Power mode) |
| Travel speed (km/h) | 3.7/5.5 |
| Rotary hydraulic motor type | Constant piston motor |
| Type of walking hydraulic motor | Variable capacity piston motor |
| Maximum flow of main pump (l/min) | 301 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 32.9 |
| Main pump type | Variable capacity piston pump ×2+ gear pump |
| Working Hydraulic Circuit (Mpa) | 31.4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-150 x 1230 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-170 x 1840 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-150 x 1450 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 280 |
| Engine Oil changes (L) | 32 |
| Coolant (L) | 37 |
| Hydraulic System (L) | 485 |
| Total transport length (mm) | 11200 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3380 |
| Full cab height (mm) | 3020 |
| Counterweight ground clearance (mm) | 1130 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4640 |
| Back end turning radius (mm) | 3460 |
| Total track length (mm) | 4650 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3760 |
| Maximum digging radius (mm) | 11160 |
| Maximum digging depth (mm) | 7380 |
| Maximum excavation height (mm) | 10320 |
| Maximum unloading height (mm) | 7310 |
| Maximum vertical digging depth (mm) | 5920 |
