Product Description

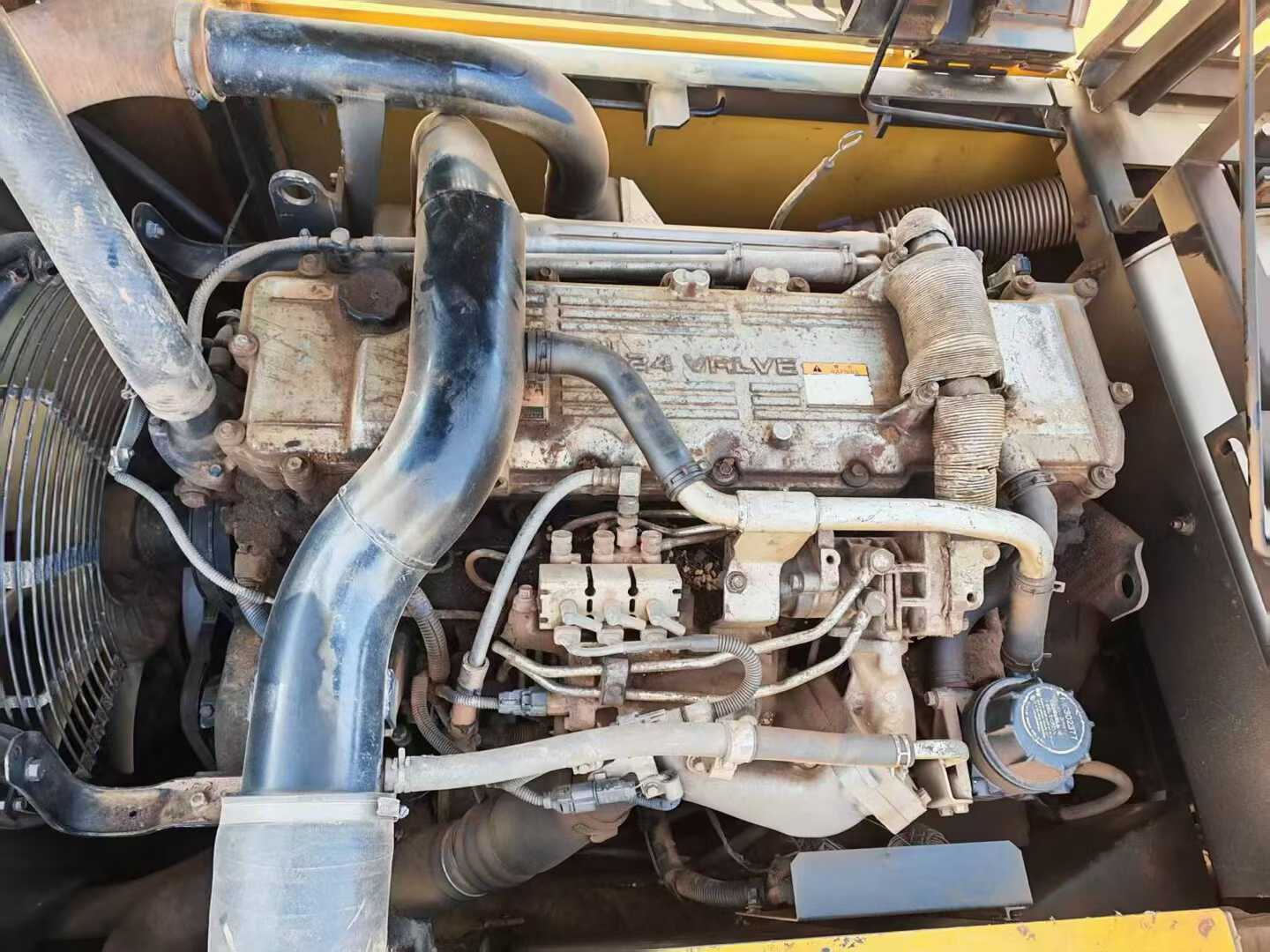

Commanding a 31-ton workhorse from Kunming, Yunnan, this 2016 Kato HD1430V delivers precision control and operational confidence for demanding excavation tasks. Built with Japanese engineering standards through joint venture manufacturing, the machine pairs a robust Mitsubishi 6M60-TLE3A engine (183 kW at 2150 rpm) with advanced hydraulic systems featuring dual variable piston pumps flowing 307 l/min each.

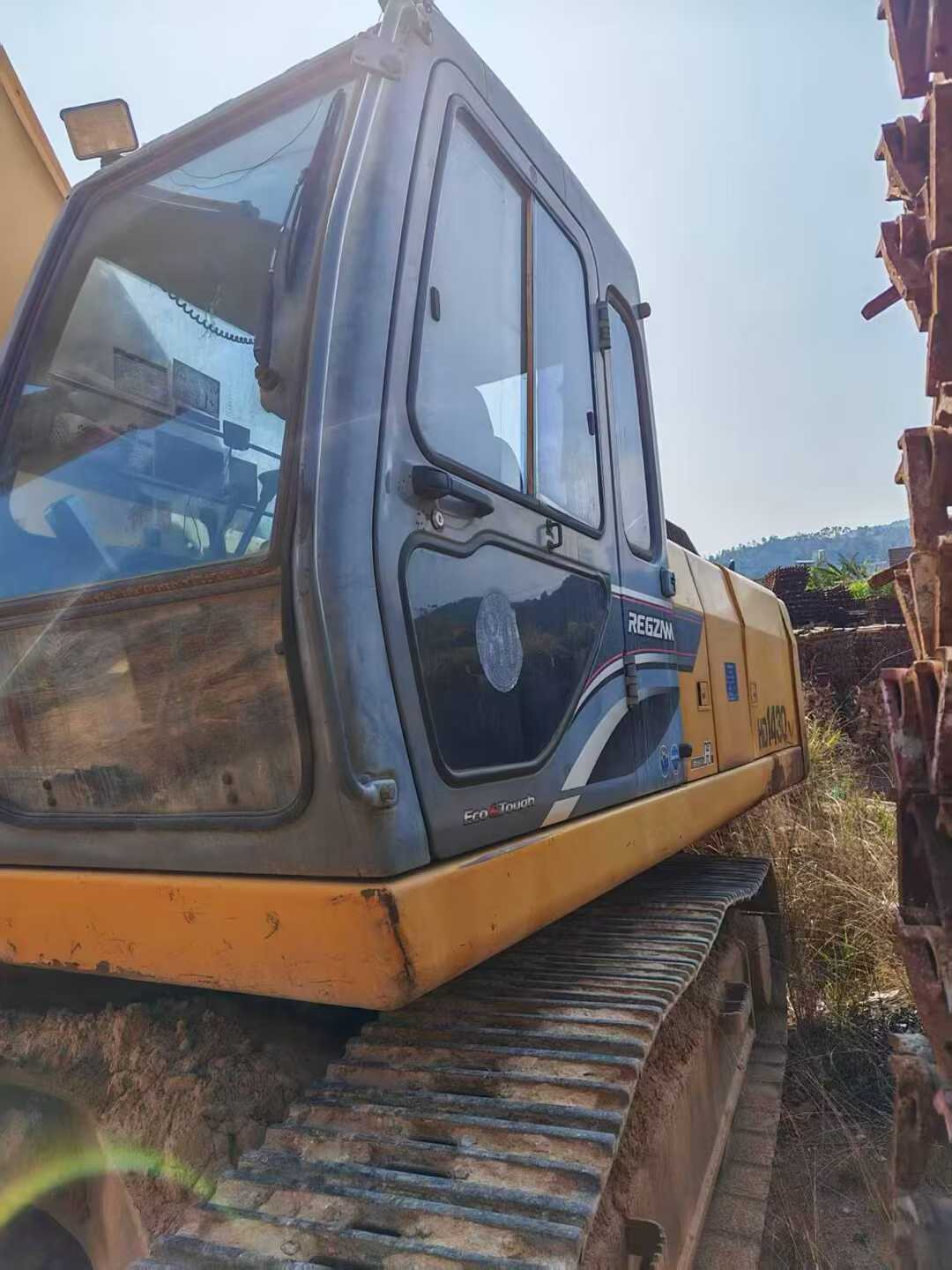

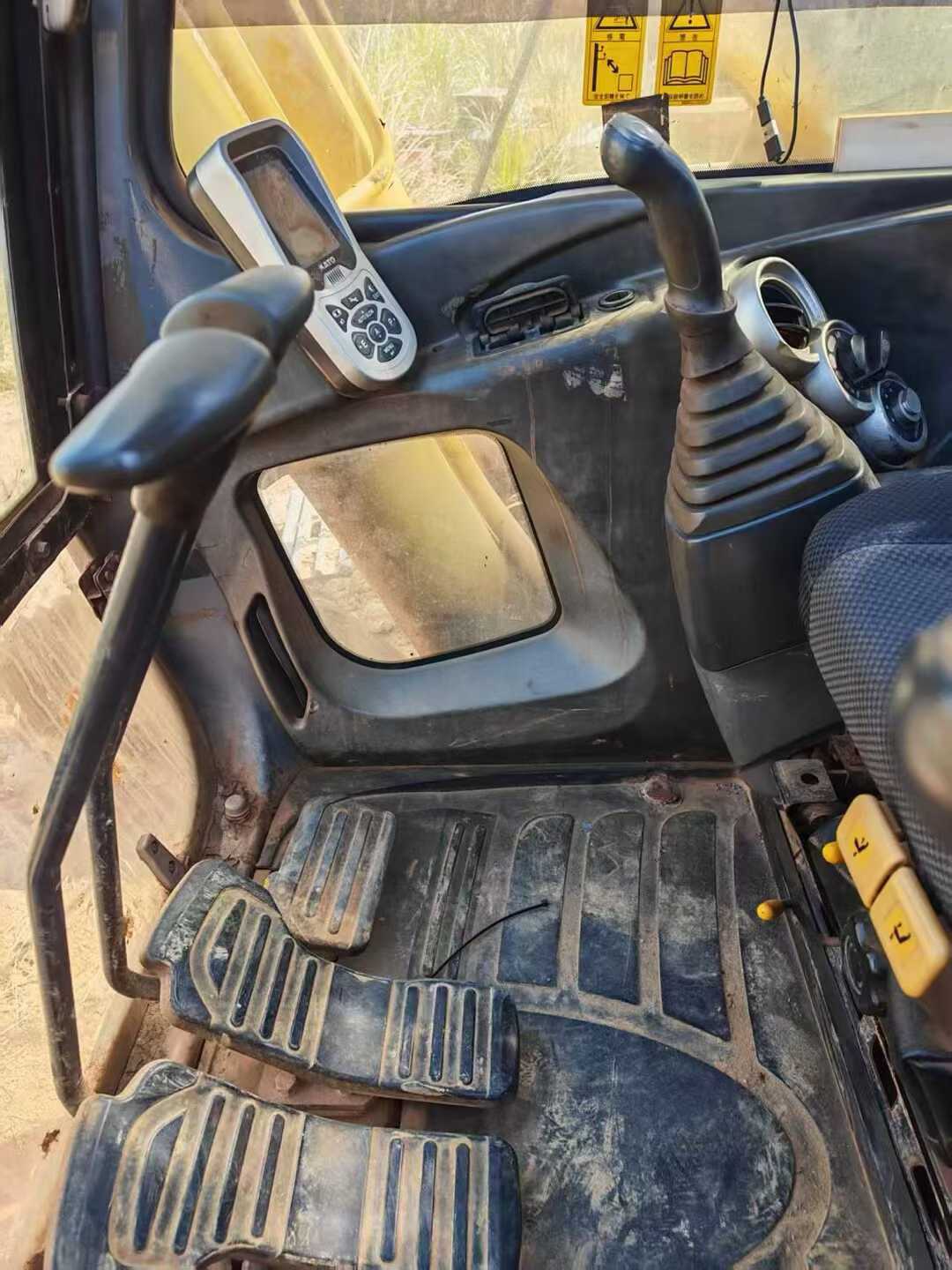

Operator-focused design ensures superior handling across challenging terrain. With a 70% climbing ability and 62 kPa ground pressure, stability remains consistent on varied surfaces. The spacious cab provides commanding visibility across an 11,180 mm maximum digging radius, while intuitive controls manage bucket digging forces up to 235 kN in Extra mode. Dual-speed travel (3.9/5.7 km/h) and a tight 3,460 mm rear turning radius enhance maneuverability in confined spaces.
- Bucket capacity: 1.1-1.8 m³ with backhoe configuration
- Maximum digging depth: 7,450 mm
- Water-cooled 6-cylinder engine with 7.54 L displacement
- Hydraulic system capacity: 404 L for sustained performance
- Transport dimensions: 11,200 × 3,190 × 3,370 mm
| Specifications | Value |
|---|---|
| No. | 1010739 |
| Tonnage (tons) | 31 |
| Working weight (kg) | 31000 |
| Bucket capacity (m³) | 1.1-1.8 |
| Boom length (mm) | 6480 |
| Rod length (mm) | 3140 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi 6M60-TLE3A |
| Rated power (kw/rpm) | 183/2150 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 118 x 115 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.54 |
| Ground specific pressure (Kpa) | 62 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 224 (Standard mode) /235 (Extra mode) |
| Rod digging force (kN) | 159 (Standard Mode) /166 (Power mode) |
| Travel speed (km/h) | 3.9/5.7 |
| Rotary hydraulic motor type | Constant piston motor |

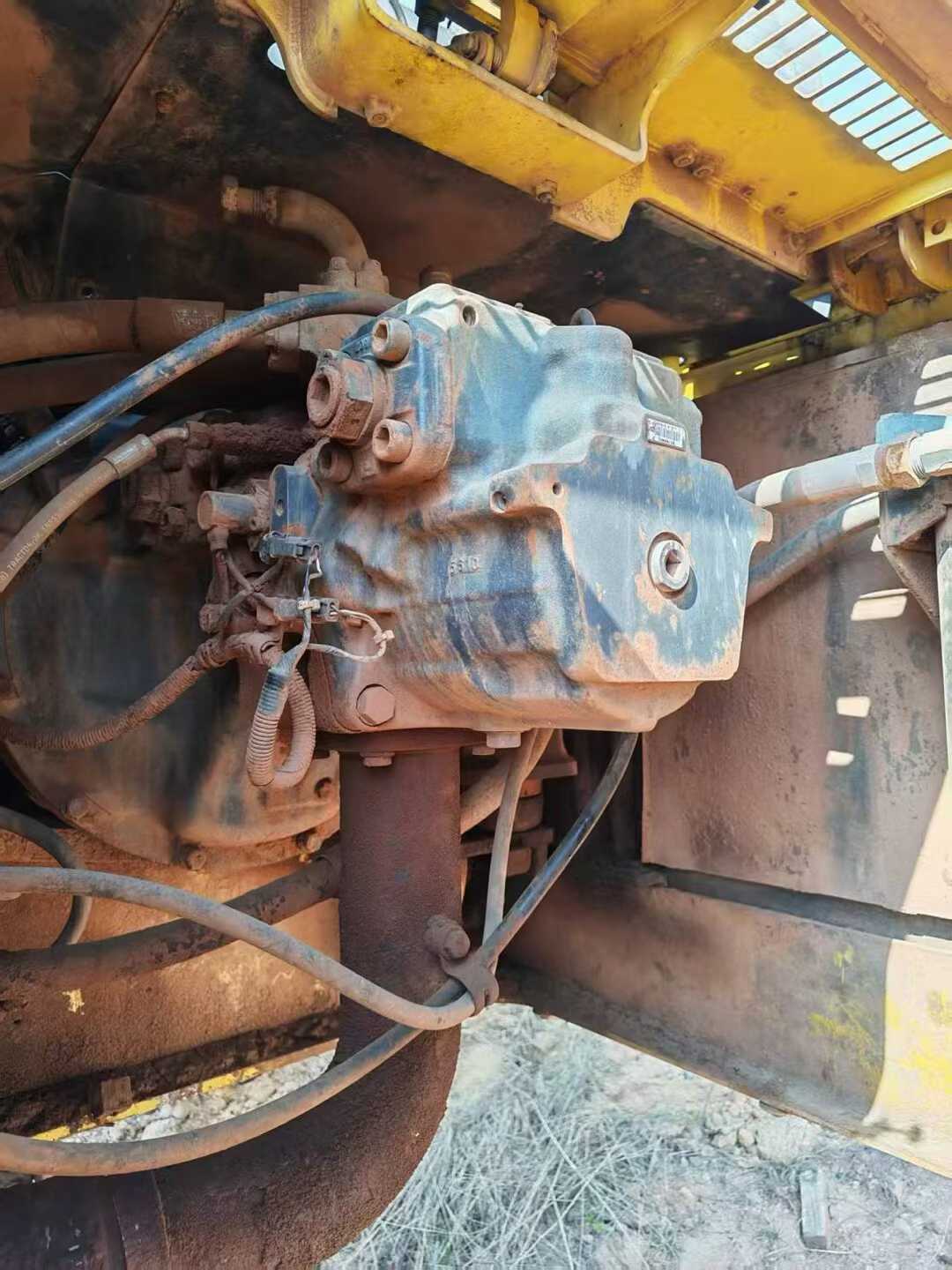

| Type of walking hydraulic motor | Variable capacity piston motor |
| Maximum flow of main pump (l/min) | 307 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 32.9 |
| Main pump type | Variable capacity piston pump ×2+ gear pump |
| Working Hydraulic Circuit (Mpa) | 31.4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-150 x 1230 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-170 x 1840 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-150 x 1450 |
| Fuel Tank (L) | 650 |
| Hydraulic Tank (L) | 200 |
| Engine Oil changes (L) | 32 |
| Coolant (L) | 44 |
| Hydraulic System (L) | 404 |
| Total transport length (mm) | 11200 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3370 |
| Full cab height (mm) | 3020 |
| Counterweight ground clearance (mm) | 1130 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4640 |
| Back end turning radius (mm) | 3460 |

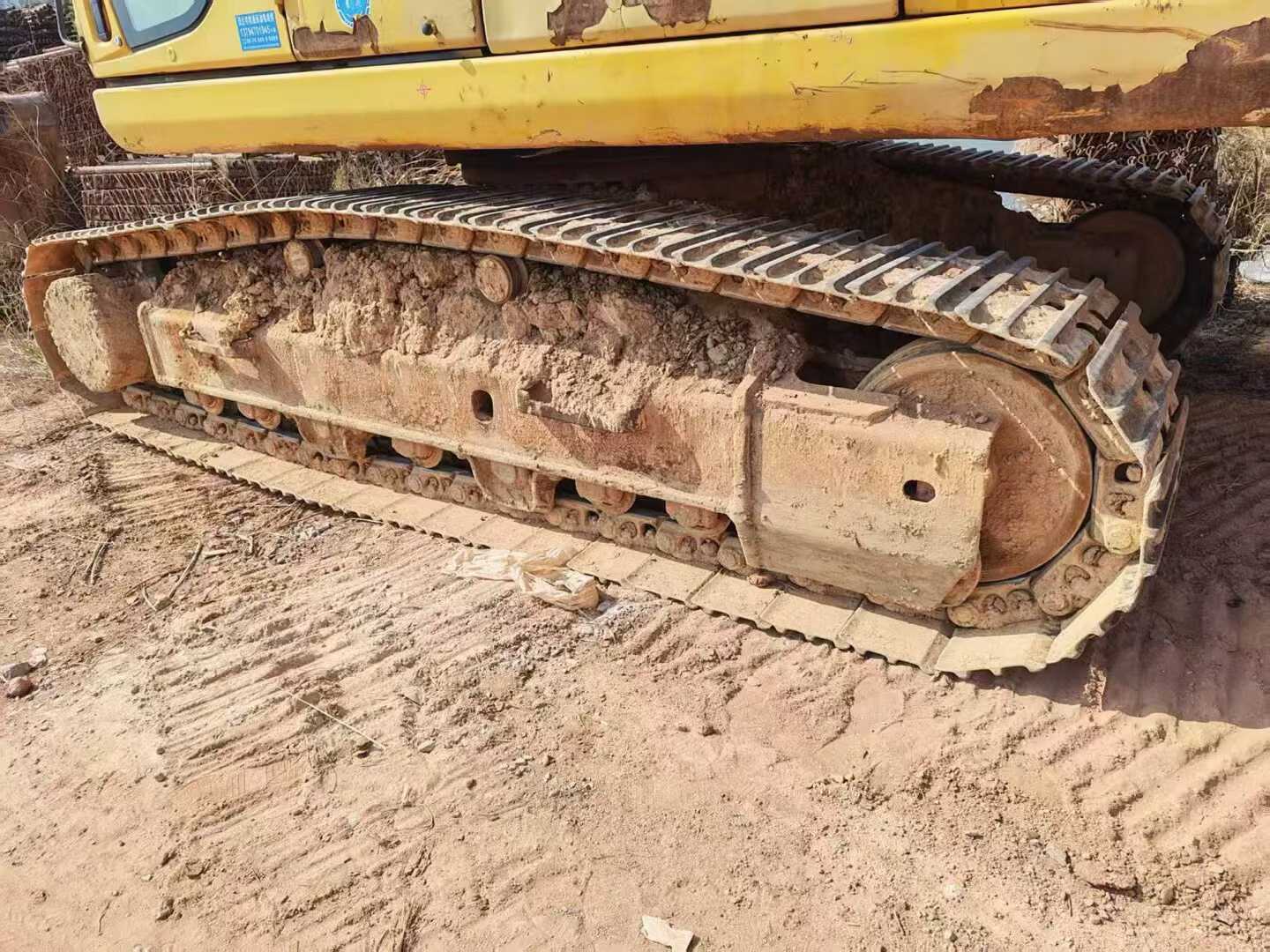

| Total track length (mm) | 4650 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3760 |
| Maximum digging radius (mm) | 11180 |
| Maximum digging depth (mm) | 7450 |
| Maximum excavation height (mm) | 10330 |
| Maximum unloading height (mm) | 7280 |
| Maximum vertical digging depth (mm) | 5950 |
