Product Description

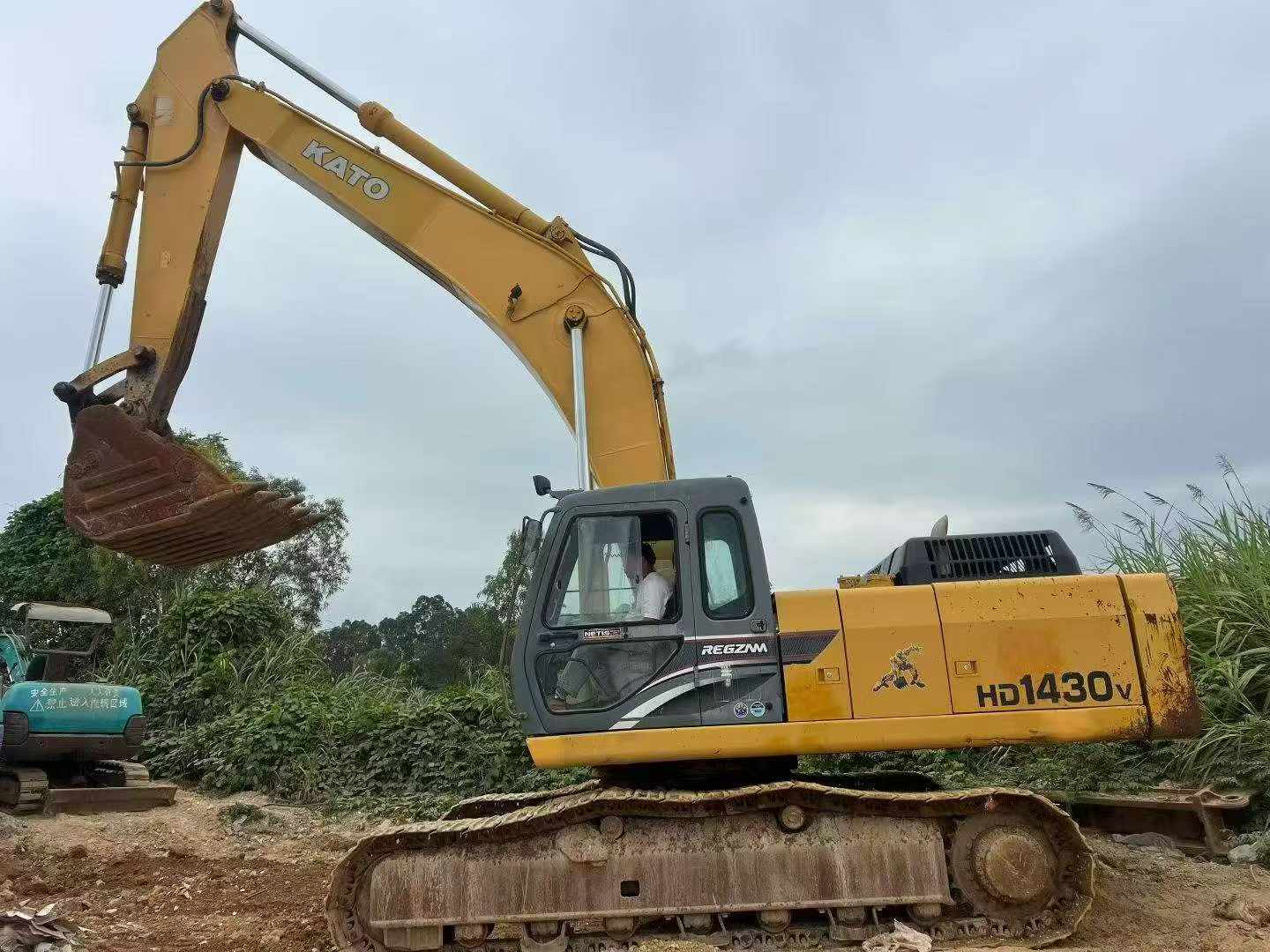

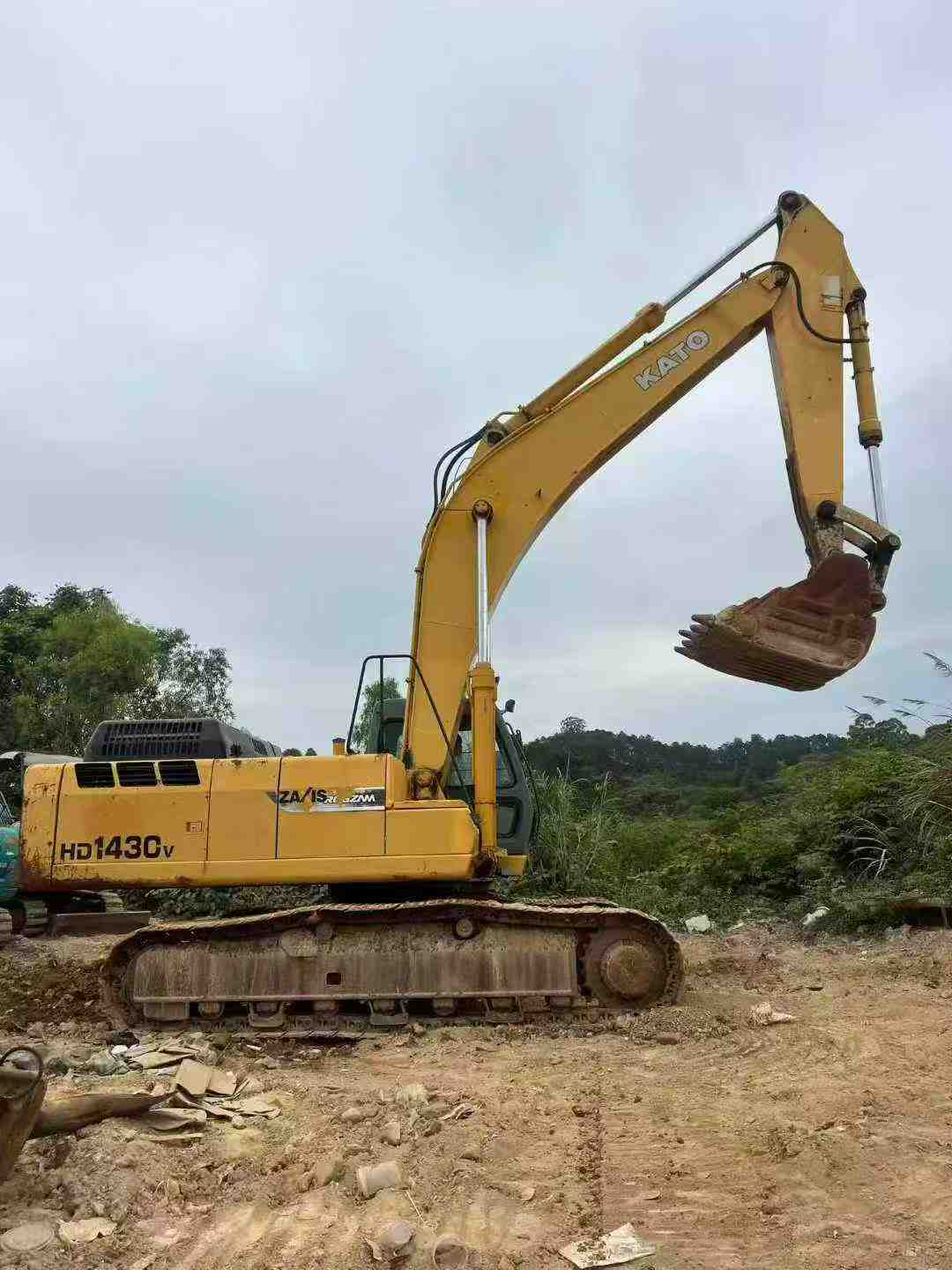

Engineered for operators who demand precision and control, this 2016 Kato HD1430V delivers exceptional stability across demanding jobsites. Weighing 31,000 kg with a ground-specific pressure of just 62 kPa, this 31-ton excavator distributes weight efficiently to minimize ground disturbance while maximizing traction on variable terrain. Powered by a robust Mitsubishi 6M60-TLE3A engine producing 183 kW at 2150 rpm, operators benefit from responsive hydraulics backed by dual variable piston pumps flowing 307 l/min each.

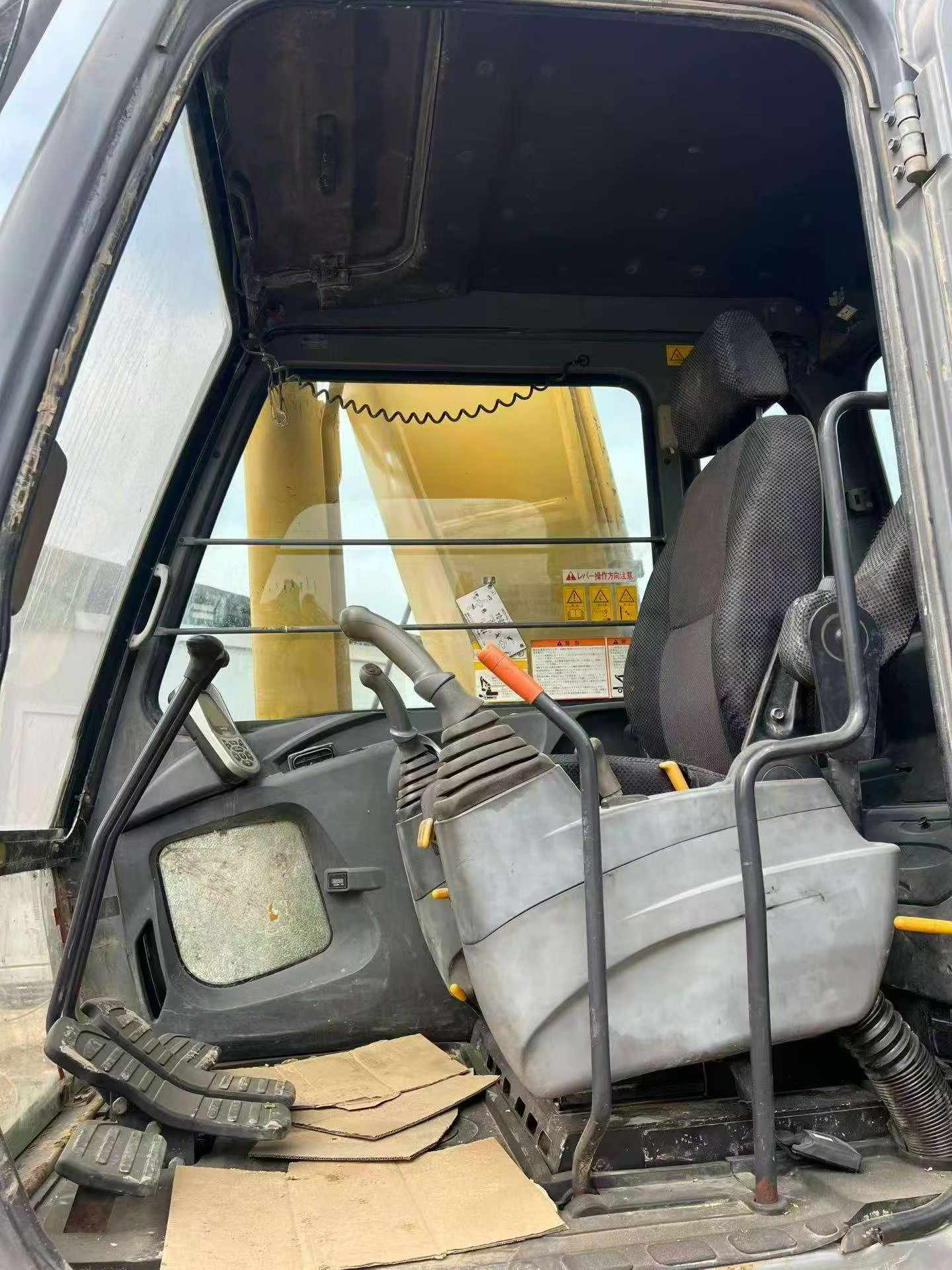

- Spacious cabin positioned 3,020 mm high provides commanding 360-degree visibility for safer operation around obstacles
- Intuitive controls paired with 10 rpm rotation speed enable smooth, fatigue-reducing movements during extended shifts
- Advanced hydraulic system delivers 235 kN bucket digging force in Extra mode for tackling compacted materials
- Maximum digging reach of 11,180 mm and depth of 7,450 mm expands operational versatility
- Water-cooled 7.54L displacement engine ensures consistent performance in Guangdong's humid climate
- Low 500 mm ground clearance and 70% climbing ability handle challenging site conditions confidently
Currently located in
| Specifications | Value |
|---|---|
| No. | 1036551 |
| Tonnage (tons) | 31 |
| Working weight (kg) | 31000 |
| Bucket capacity (m³) | 1.1-1.8 |
| Boom length (mm) | 6480 |
| Rod length (mm) | 3140 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

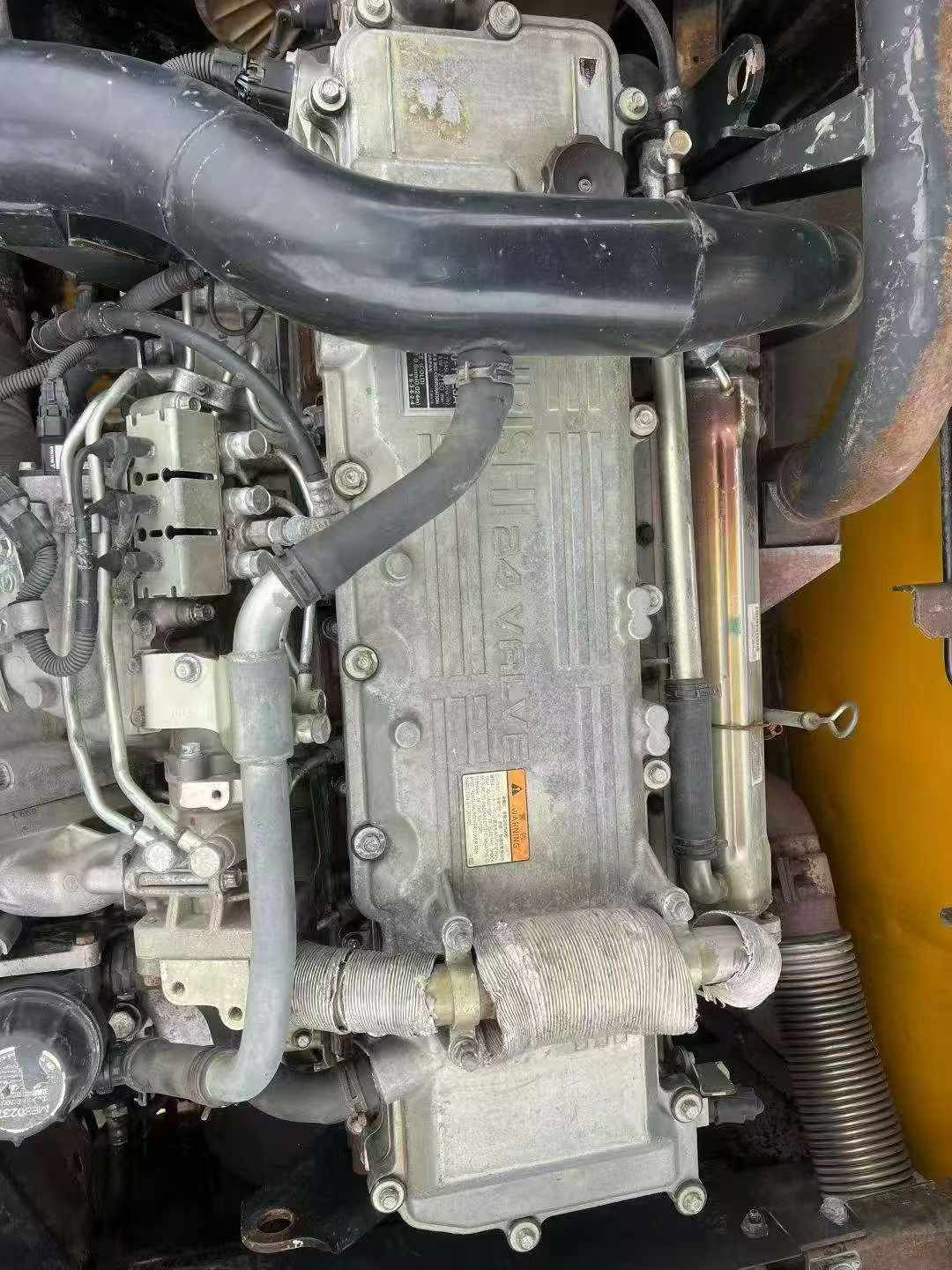

| Engine type | Mitsubishi 6M60-TLE3A |
| Rated power (kw/rpm) | 183/2150 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 118 x 115 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.54 |
| Ground specific pressure (Kpa) | 62 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 224 (Standard mode) /235 (Extra mode) |
| Rod digging force (kN) | 159 (Standard Mode) /166 (Power mode) |
| Travel speed (km/h) | 3.9/5.7 |
| Rotary hydraulic motor type | Constant piston motor |
| Type of walking hydraulic motor | Variable capacity piston motor |
| Maximum flow of main pump (l/min) | 307 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 32.9 |

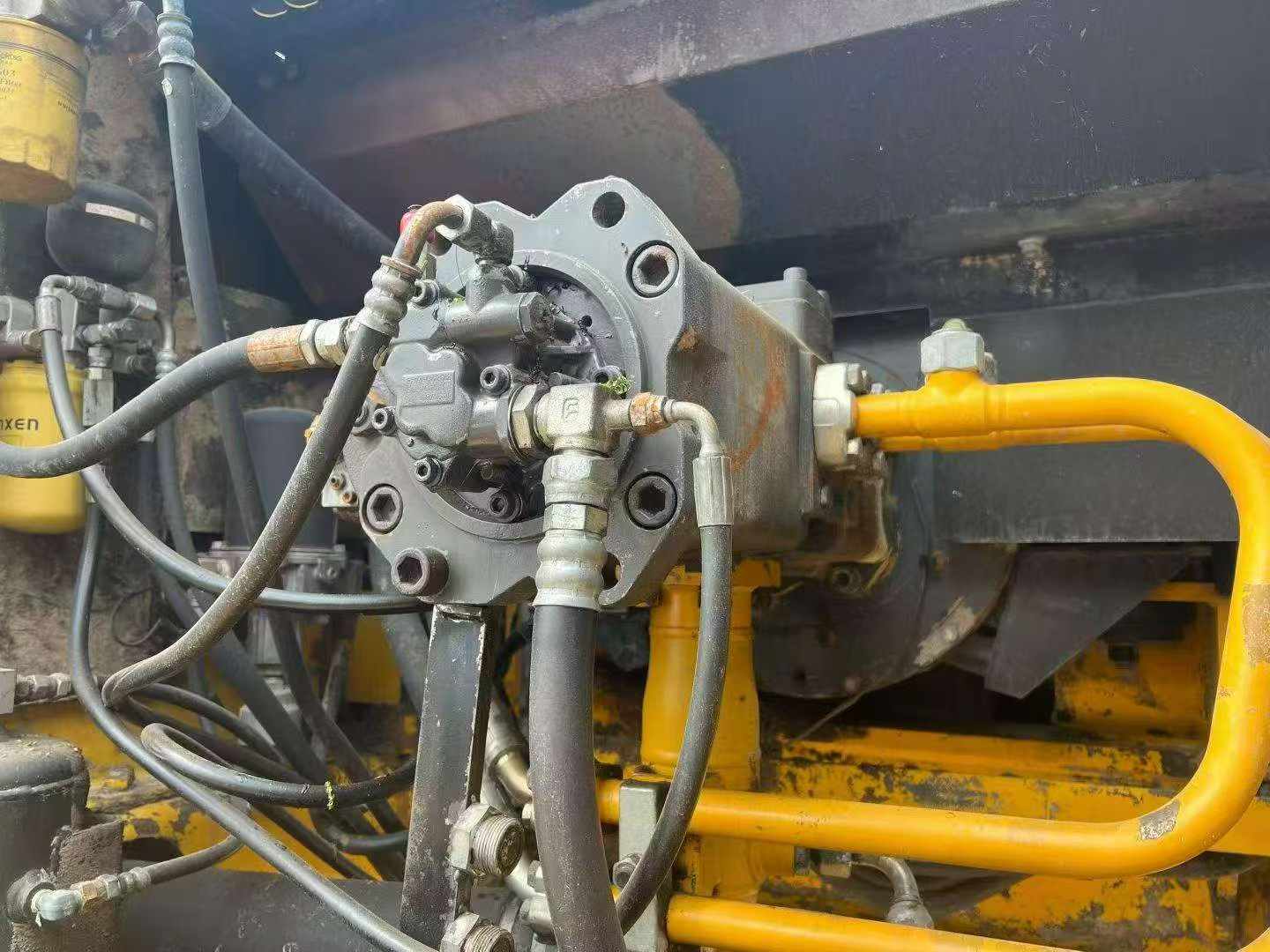

| Main pump type | Variable capacity piston pump ×2+ gear pump |
| Working Hydraulic Circuit (Mpa) | 31.4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-150 x 1230 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-170 x 1840 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-150 x 1450 |
| Fuel Tank (L) | 650 |
| Hydraulic Tank (L) | 200 |
| Engine Oil changes (L) | 32 |
| Coolant (L) | 44 |
| Hydraulic System (L) | 404 |
| Total transport length (mm) | 11200 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3370 |
| Full cab height (mm) | 3020 |
| Counterweight ground clearance (mm) | 1130 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4640 |
| Back end turning radius (mm) | 3460 |
| Total track length (mm) | 4650 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3760 |
| Maximum digging radius (mm) | 11180 |
| Maximum digging depth (mm) | 7450 |
| Maximum excavation height (mm) | 10330 |
| Maximum unloading height (mm) | 7280 |
| Maximum vertical digging depth (mm) | 5950 |
