Product Description

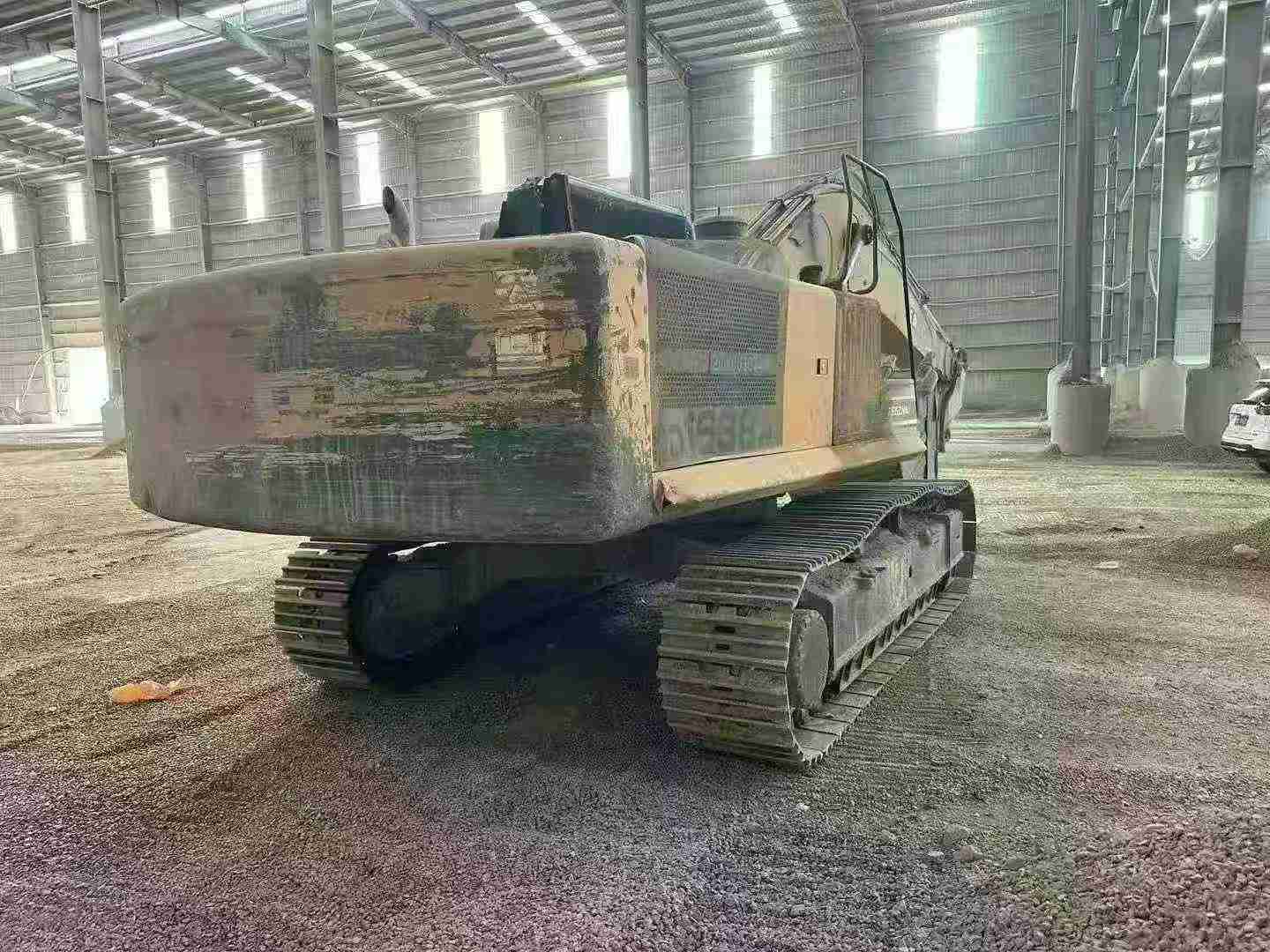

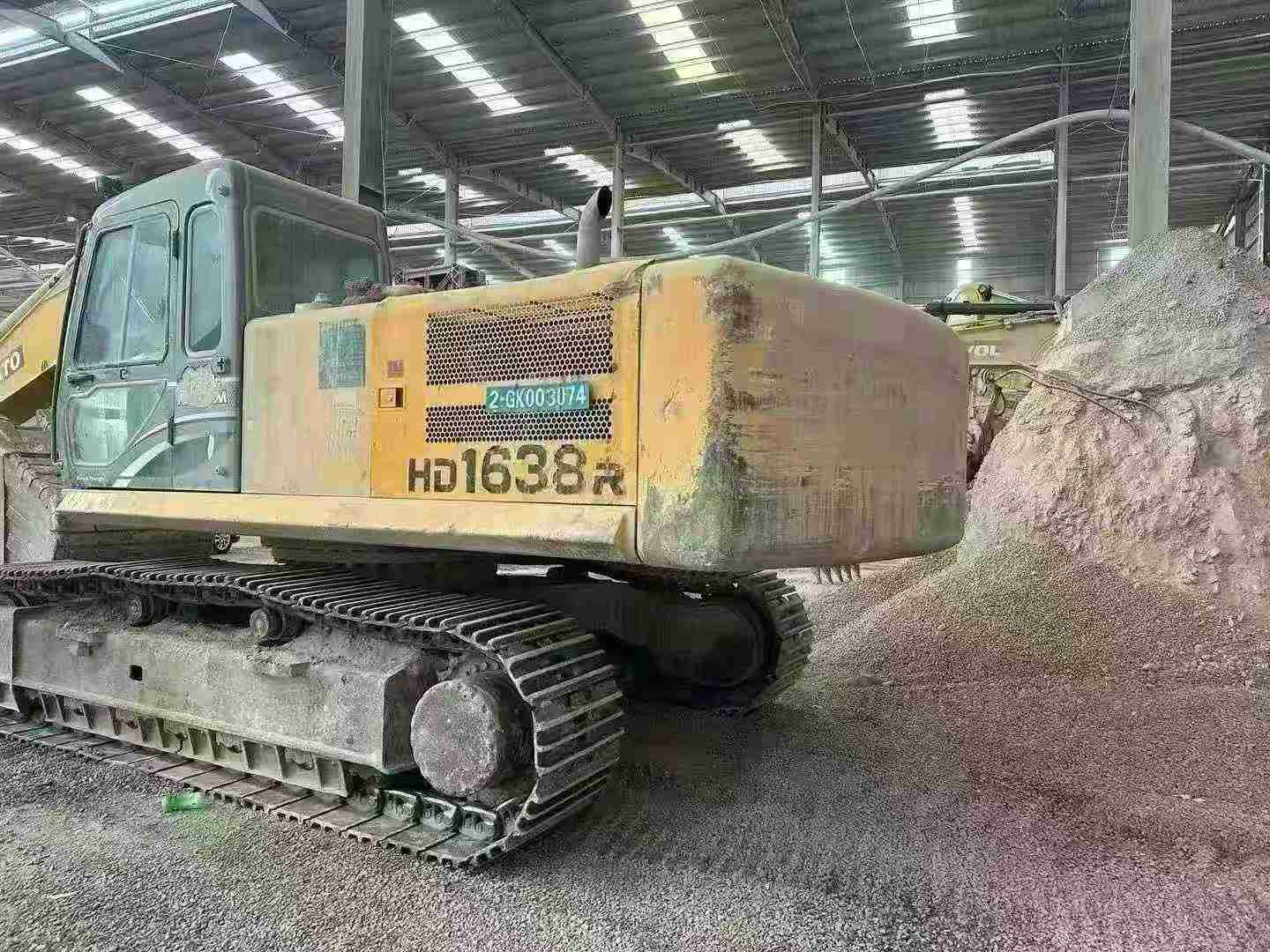

Maximize your excavation budget with this 2015 Kato HD1638R, a 35-ton powerhouse currently located in Zhejiang Shaoxing. Engineered with a robust Mitsubishi 6D16-TLC1A engine delivering 183kW at 2150 rpm, this joint venture machine offers exceptional performance at a fraction of new equipment costs. With 223kN bucket digging force and 158kN rod digging force, it tackles demanding jobsites with authority.
Key specifications include:
- Maximum digging reach of 10,580mm and depth of 6,650mm for versatile operation
- 1.6m³ bucket capacity optimized for productivity
- Dual main pumps providing 2×310 L/min hydraulic flow
- 580L fuel tank capacity for extended runtime
- 70% climbing ability and 296kN maximum tractive force
Proven reliability meets smart economics in this well-maintained excavator. Traditional power systems ensure straightforward maintenance, while the comprehensive hydraulic system (485L capacity) guarantees consistent performance. Invest strategically—acquire professional-grade capability without the premium price tag of new equipment. Contact us today to secure this high-value asset for your fleet.
| Specifications | Value |
|---|---|
| No. | 1009932 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 35500 |
| Bucket capacity (m³) | 1.6 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

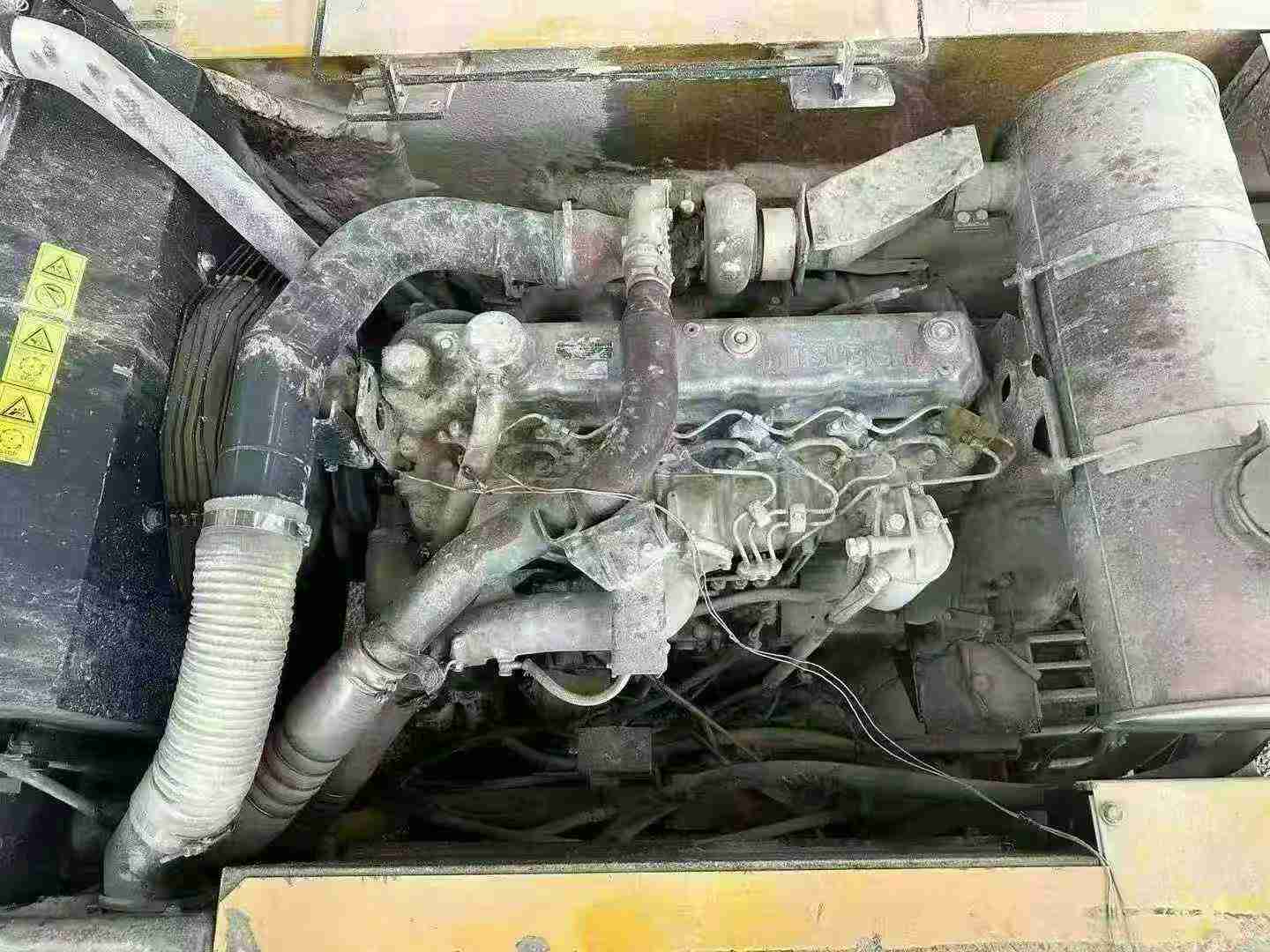

| Engine type | Mitsubishi 6D16-TLC1A |
| Rated power (kw/rpm) | 183/2150 |
| Cylinder diameter × stroke (mm) | 118*115 |
| Maximum torque (N.m) | 831/1800 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.54 |
| Ground specific pressure (Kpa) | 71 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70(35) |
| Bucket digging force (kN) | 223 |
| Rod digging force (kN) | 158 |
| Maximum tractive force (kN) | 296 |
| Travel speed (km/h) | 5.2/3.4 |

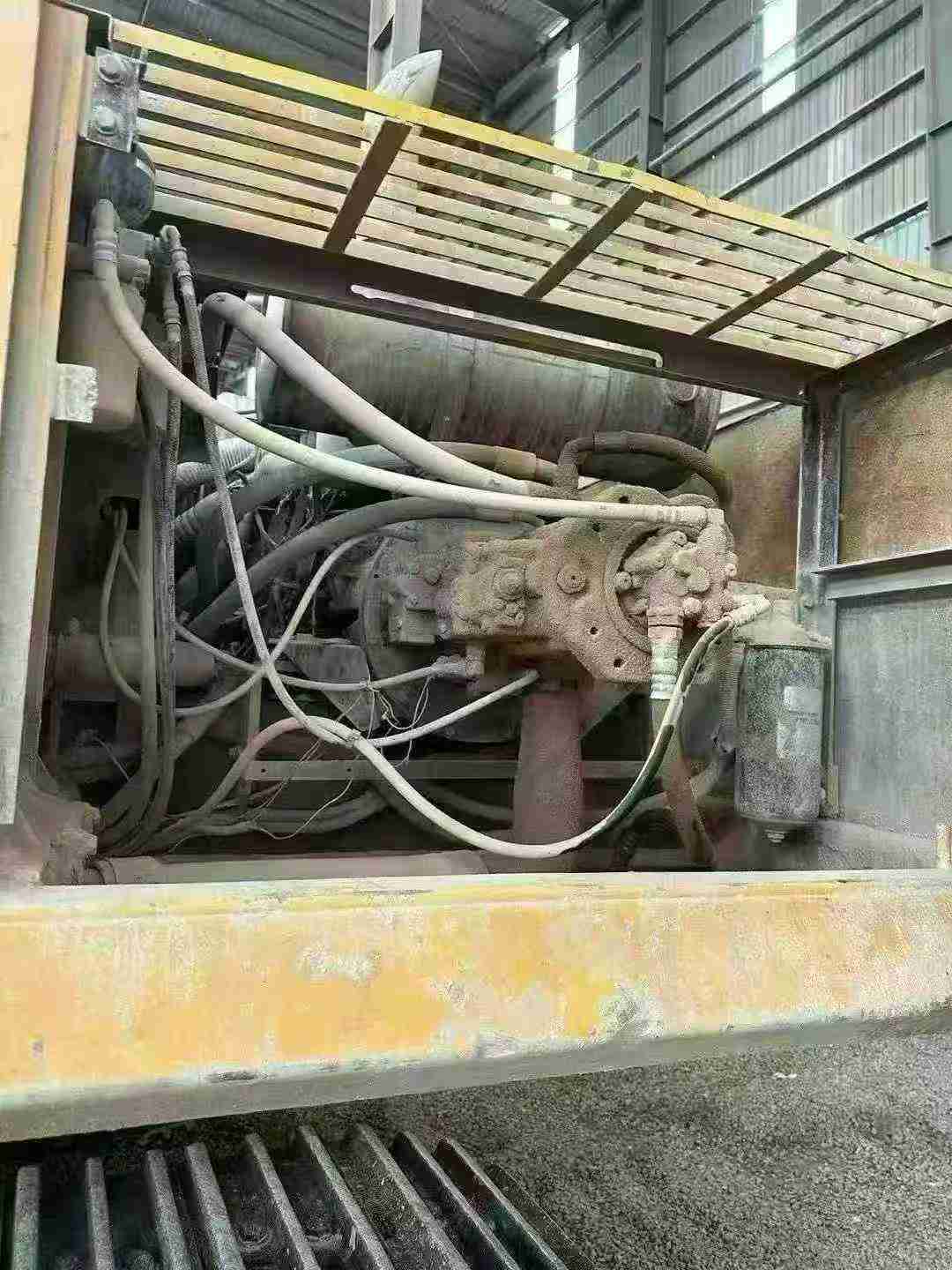

| Maximum flow of main pump (l/min) | 2*310 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*150*1230 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*170*1840 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*150*1450 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 280 |
| Engine Oil changes (L) | 32 |
| Coolant (L) | 44 |
| Hydraulic System (L) | 485 |
| Total transport length (mm) | 11180 |
| Total transport width (mm) | 3140 |
| Total transport height (mm) | 3380 |
| Counterweight ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4640 |
| Back end turning radius (mm) | 3460 |
| Total track length (mm) | 4670 |
| Maximum height at minimum turning radius (mm) | 4910 |
| Maximum digging radius (mm) | 10580 |
| Maximum digging depth (mm) | 6650 |
| Maximum excavation height (mm) | 10170 |
| Maximum unloading height (mm) | 7180 |
| Maximum vertical digging depth (mm) | 4490 |
