Product Description

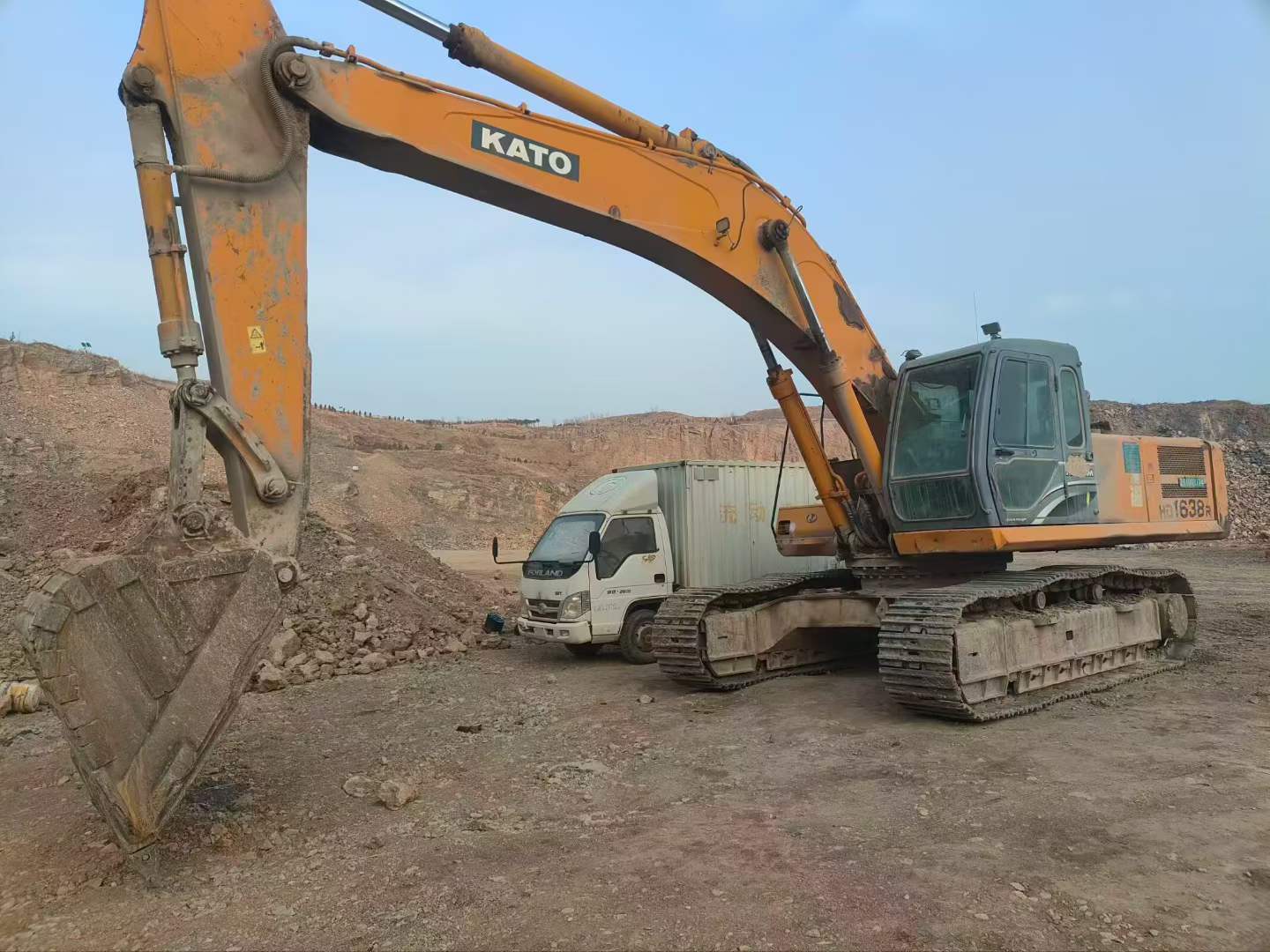

Commanding a 35-ton operational weight, this 2016 Kato HD1638R delivers precision control and robust stability for demanding excavation projects. Powered by a Mitsubishi 6D16-TLC1A engine generating 183 kW at 2150 rpm, operators benefit from responsive hydraulic performance through dual 310 l/min main pumps. The machine's 71 kPa ground pressure ensures minimal surface disruption while maintaining exceptional traction with 296 kN maximum tractive force.
Operator-focused engineering defines this joint venture excavator's design philosophy. Enhanced cabin visibility supports safe maneuvering across the 10,580 mm maximum digging radius, while intuitive controls manage the 223 kN bucket digging force with confidence. Stability remains uncompromised during full-extension operations, reaching 10,170 mm maximum excavation height. The 1.6 m³ backhoe bucket configuration balances productivity with precise material handling.
- Superior sightlines for enhanced jobsite awareness
- Balanced weight distribution for slope work up to 70%
- Ergonomic controls reduce operator fatigue during extended shifts
- Currently located in Putian, Fujian
| Specifications | Value |
|---|---|
| No. | 1006819 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 35500 |
| Bucket capacity (m³) | 1.6 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

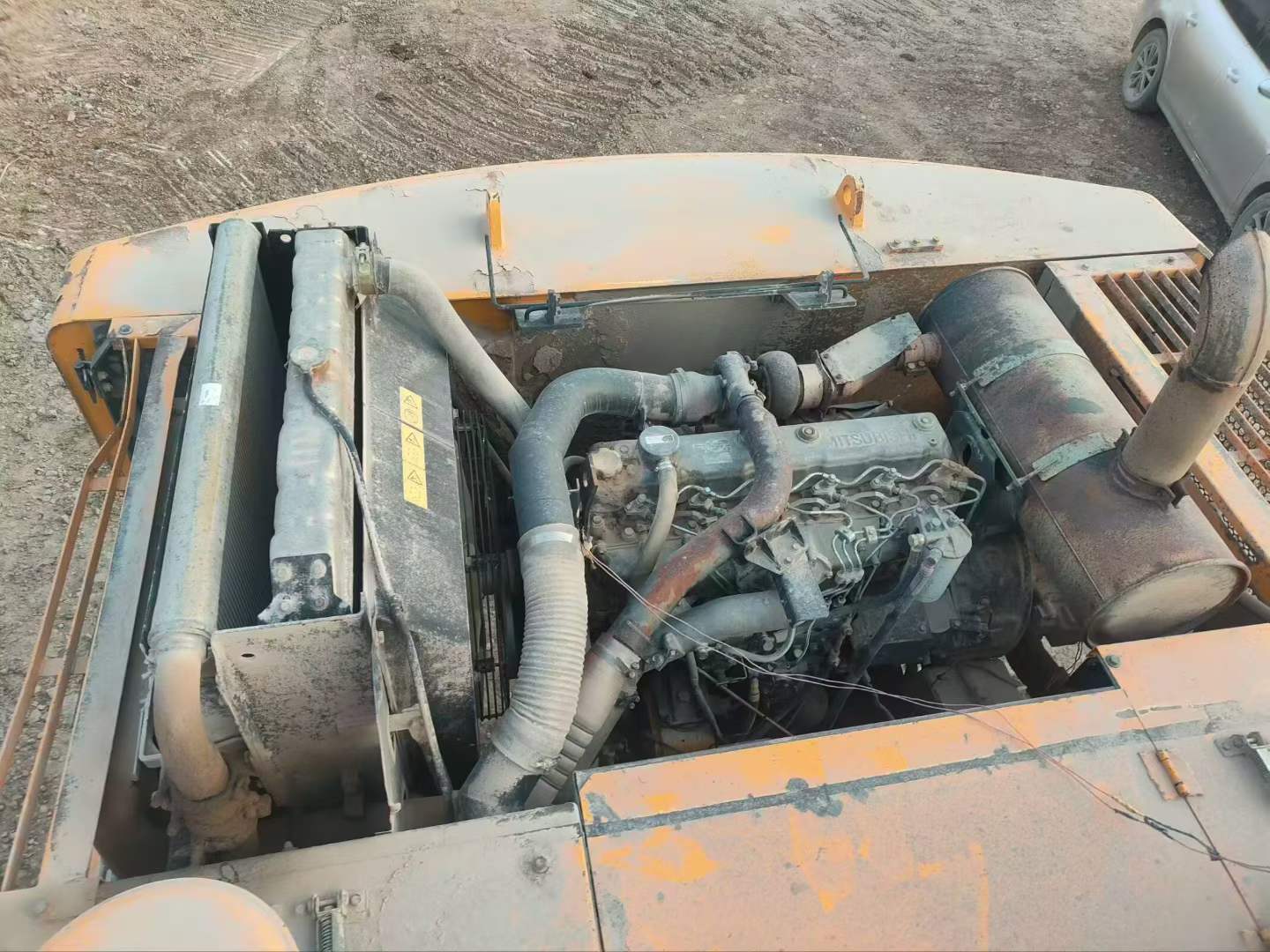

| Engine type | Mitsubishi 6D16-TLC1A |
| Rated power (kw/rpm) | 183/2150 |
| Cylinder diameter × stroke (mm) | 118*115 |
| Maximum torque (N.m) | 831/1800 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.54 |
| Ground specific pressure (Kpa) | 71 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70(35) |
| Bucket digging force (kN) | 223 |
| Rod digging force (kN) | 158 |
| Maximum tractive force (kN) | 296 |
| Travel speed (km/h) | 5.2/3.4 |

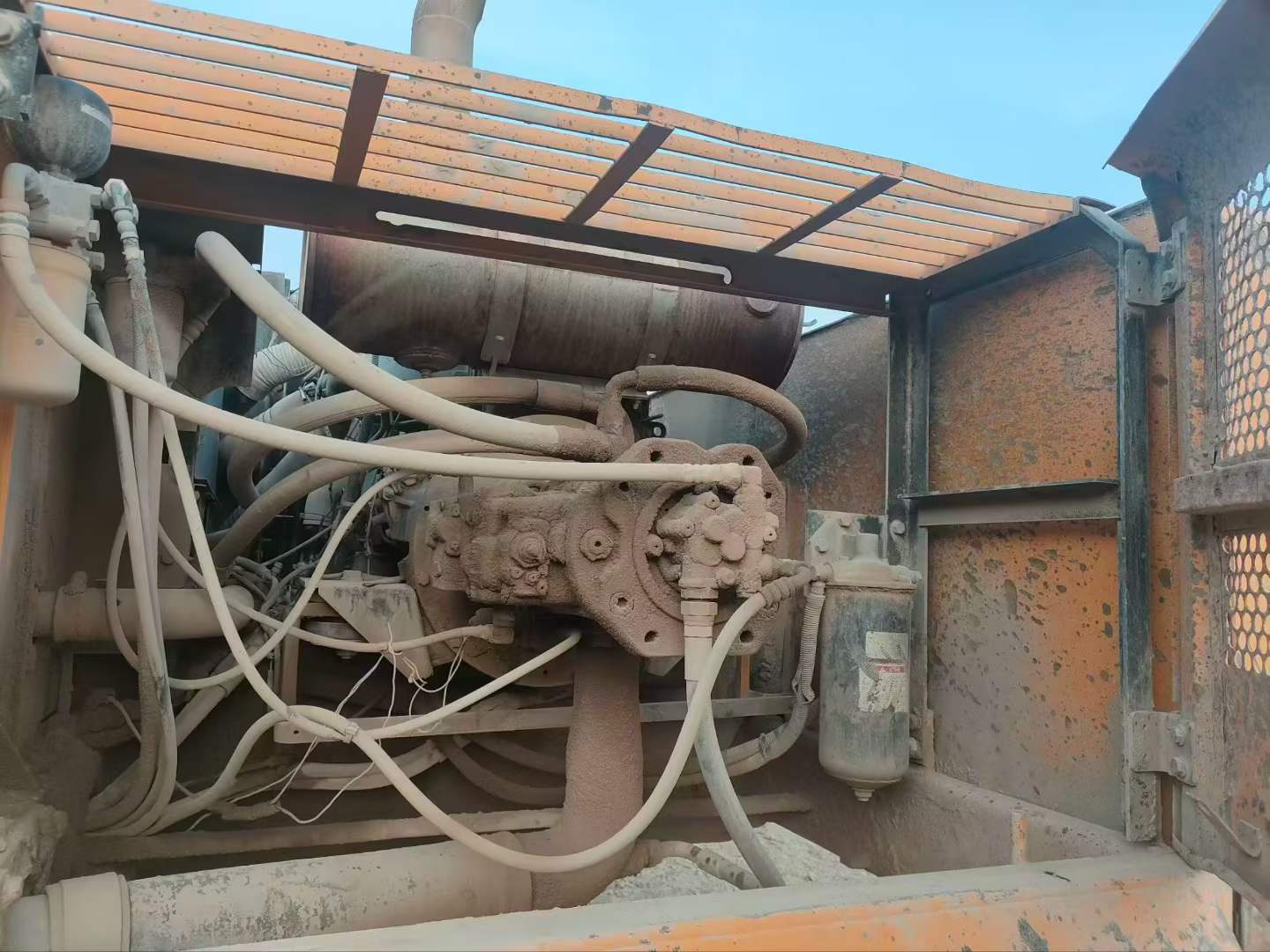

| Maximum flow of main pump (l/min) | 2*310 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*150*1230 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*170*1840 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*150*1450 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 280 |
| Engine Oil changes (L) | 32 |
| Coolant (L) | 44 |
| Hydraulic System (L) | 485 |
| Total transport length (mm) | 11180 |
| Total transport width (mm) | 3140 |
| Total transport height (mm) | 3380 |
| Counterweight ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4640 |
| Back end turning radius (mm) | 3460 |
| Total track length (mm) | 4670 |
| Maximum height at minimum turning radius (mm) | 4910 |
| Maximum digging radius (mm) | 10580 |
| Maximum digging depth (mm) | 6650 |
| Maximum excavation height (mm) | 10170 |
| Maximum unloading height (mm) | 7180 |
| Maximum vertical digging depth (mm) | 4490 |
