Product Description

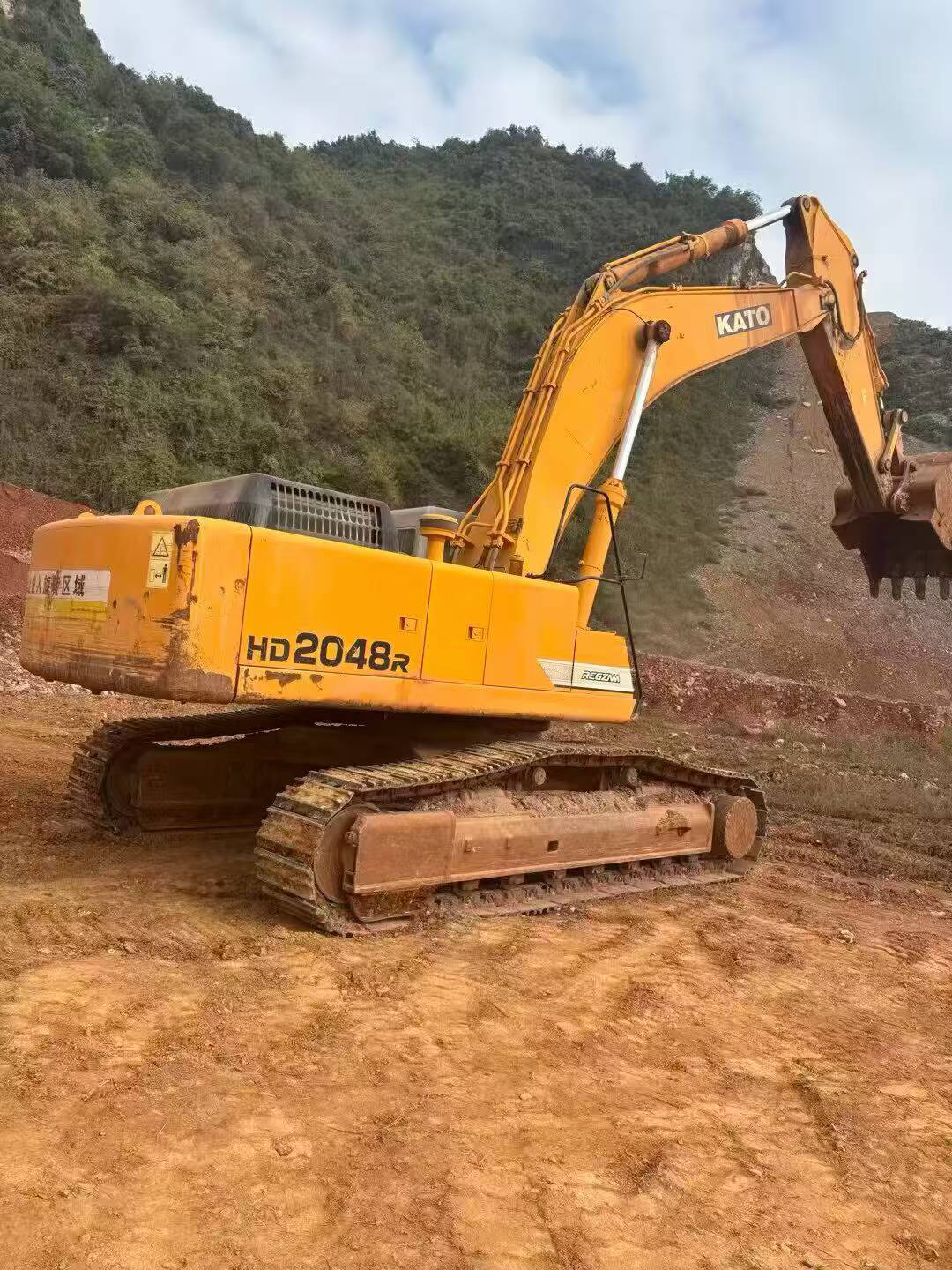

Available now from our Hunan facility, this 2013 Kato HD2048R delivers 48-ton performance without factory wait times. Powered by a Mitsubishi 6D24-TLU1A engine producing 235kW at 2000rpm, this machine combines proven reliability with immediate deployment capability. Fast delivery to your project site means you start generating revenue while competitors wait months for new equipment.
Key operational specifications include:
- Working weight: 46,600 kg with 2.0 m³ enhanced bucket capacity
- Maximum digging reach: 12,080 mm; maximum depth: 7,730 mm
- Standard boom digging force: 247 kN; rod force: 184 kN
- Dual 370 L/min main pumps with 29.4 MPa hydraulic circuit

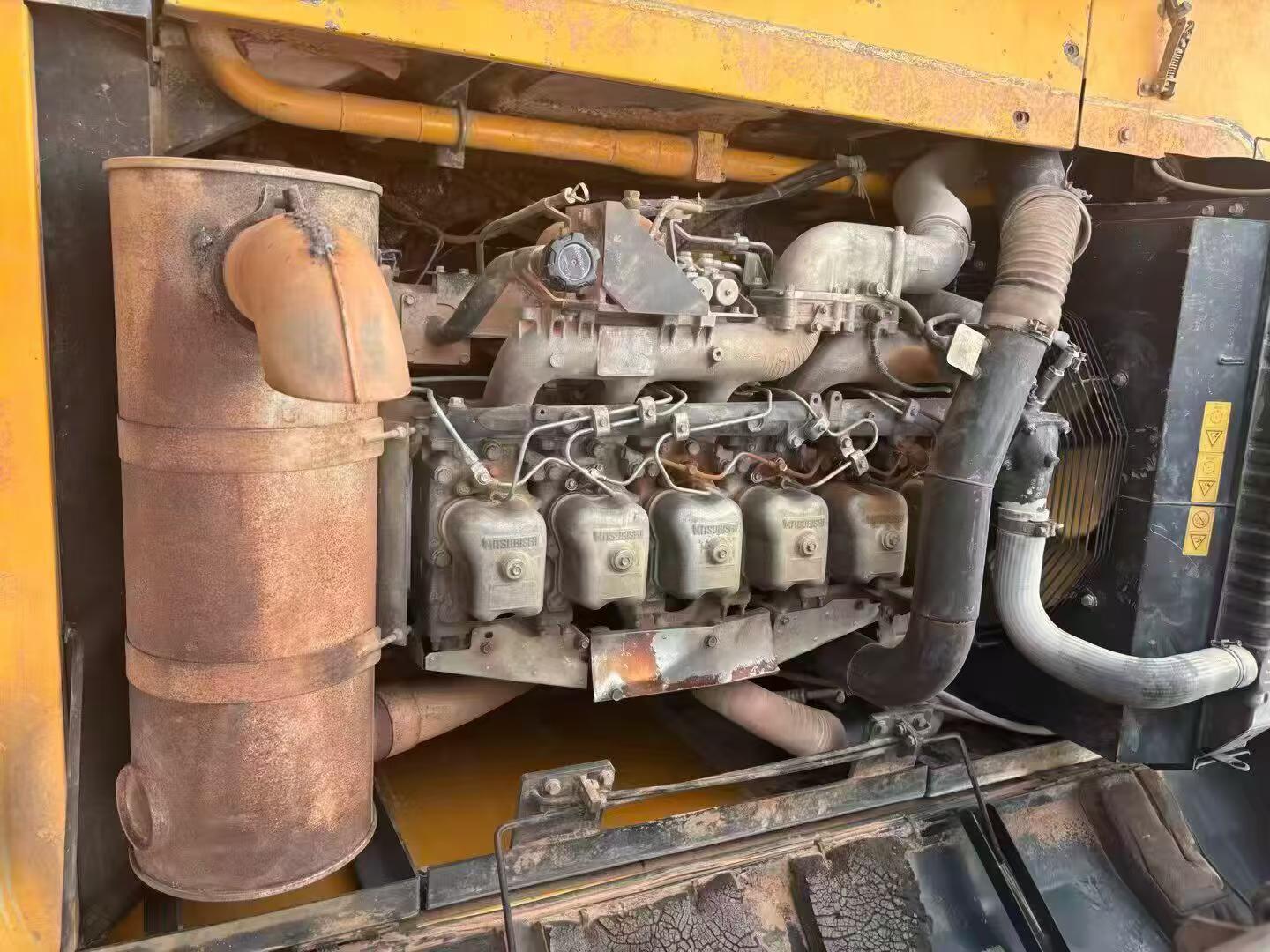

- Water-cooled 6-cylinder turbocharged engine with 11.94L displacement
- Variable travel speeds: 5.0/3.0 km/h for efficient site mobility
Positioned in Hunan for rapid logistics throughout China and Asia-Pacific markets, this joint-venture manufactured excavator ships immediately. Skip extended lead times and secure your heavy-lifting capacity today with a field-proven machine ready for demanding excavation, loading, and earthmoving operations.
| Specifications | Value |
|---|---|
| No. | 1041636 |
| Tonnage (tons) | 48 |
| Working weight (kg) | 46600 |
| Bucket capacity (m³) | 2.0 Enhanced |
| Boom length (mm) | Standard 7000/ Enhanced 6300 |
| Rod length (mm) | Standard 3450/ short bucket rod 2950 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

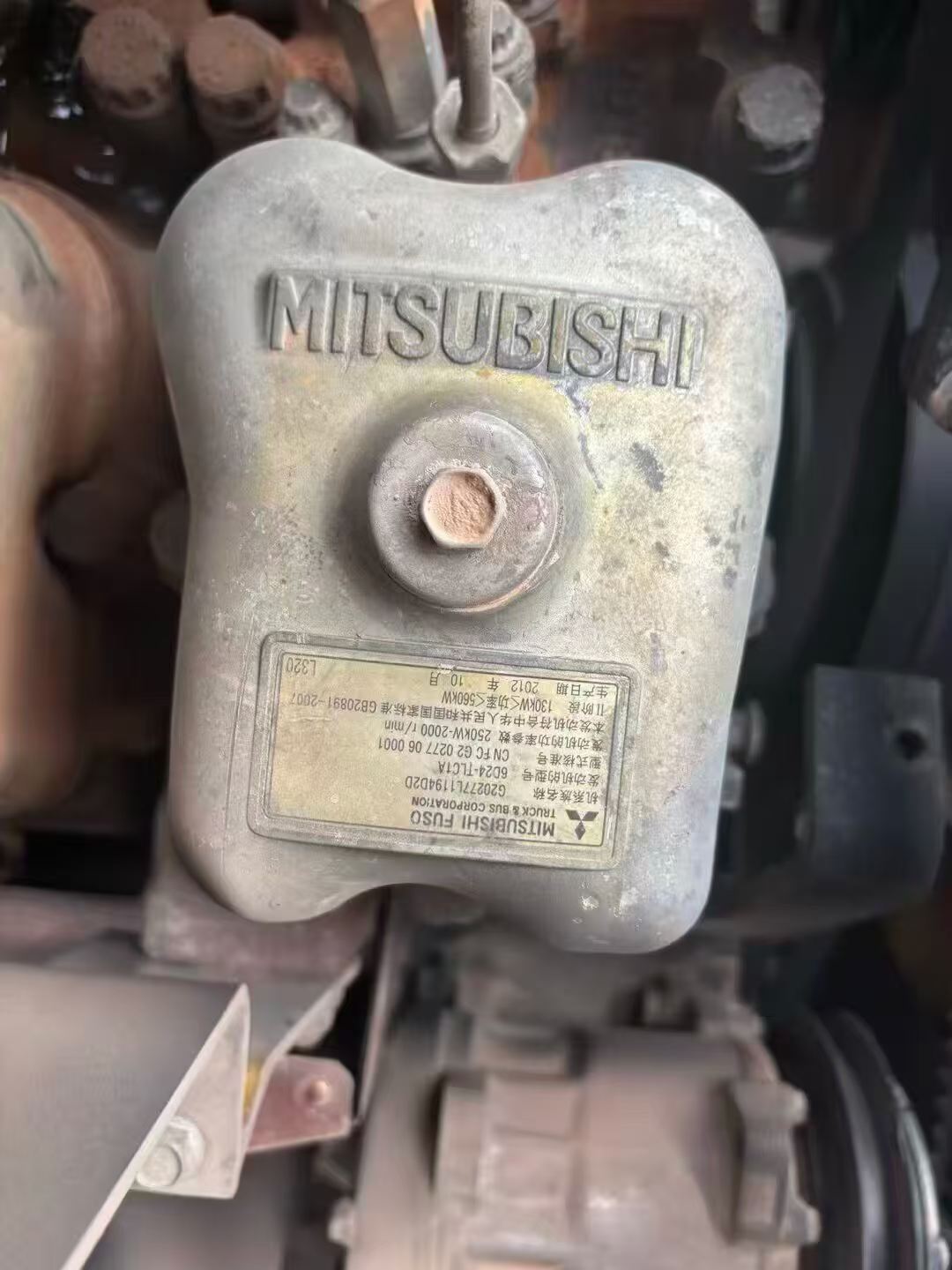

| Engine type | Mitsubishi 6D24-TLU1A |
| Rated power (kw/rpm) | 235/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 130 x 150 |
| Maximum torque (N.m) | 1245/1200 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 11.94 |
| Working form | 4 cycle intercooler and turbocharged engine; Direct injection |
| Ground specific pressure (Kpa) | 83 |
| Rotation speed (rpm) | 9.1 |
| Climbing ability (%) | 70% (35 °) |
| Bucket digging force (kN) | Standard 247/ Enhanced 243/ High Power 276 |
| Rod digging force (kN) | Standard 184/ Enhanced 210/ High Power 235 |
| Maximum tractive force (kN) | 415 |
| Travel speed (km/h) | 5.0/3.0 |
| Rotary hydraulic motor type | 2 axial piston motors with damping valves and retarders |
| Type of walking hydraulic motor | Variable capacity piston motor with reducers on both sides |
| Maximum flow of main pump (l/min) | 2 x 370 |
| Main pump type | Double acting adjustable piston pump and gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-170 x 1278 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-190 x 1990 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-180 x 1683 |
| Fuel Tank (L) | 605 |
| Hydraulic Tank (L) | 329 |
| Engine Oil changes (L) | 49 |
| Coolant (L) | 49 |
| Hydraulic System (L) | 610 |
| Total transport length (mm) | 11990 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3490 (to the top of the boom) |
| Full cab height (mm) | 3280 |
| Counterweight ground clearance (mm) | 1330 |
| Minimum ground clearance (mm) | 700 |
| Minimum turning radius of front working device (mm) | 4470 |
| Back end turning radius (mm) | 3625 |
| Onboard width (mm) | 3200 |
| Total track length (mm) | 5260 |
| Track gauge (mm) | Extension 2980/ contraction 2500 |
| Track plate width (mm) | 600 |
| Total track width (mm) | Extension 3500/ contraction 3200 |
| Track ground length (mm) | 4260 |
| Maximum digging radius (mm) | 12080 |
| Maximum digging depth (mm) | 7730 |
| Maximum excavation height (mm) | 11300 |
| Maximum unloading height (mm) | 7970 |
| Maximum vertical digging depth (mm) | 6100 |
